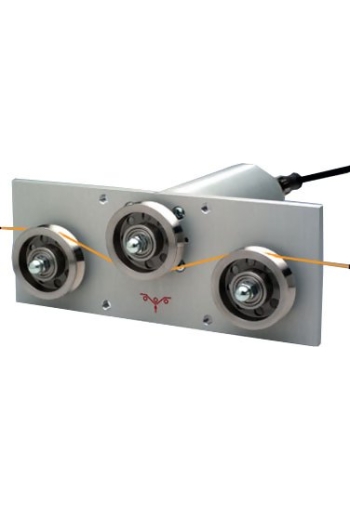

TE-24 Heavy-Duty Tension Sensor

See More Tension Sensors, Online

Heavy Duty Tension Sensor

6 Tension Ranges 0-1000 g up to 0-20.0 Kg

Heavy-duty, hardened steel rollers makes this model especially suitable for tire cord, wires and similar filaments to high-impact loading

6 Tension Ranges
0-1000 g up to 0-50.0 Kg

Heavy-duty, hardened steel rollers makes this model especially suitable for tire cord, wires and similar filaments to high-impact loading.

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

line
Features
line

Designed as a single-roller system -uses an existing reversing point for tension measurement.
Rugged stainless steel housing is environmentally sealed.
Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available.
System of protection IP67 - waterproof.
Overload protection up to 800%.
Resolution of 0.1% and better

line
Specifications
line

Accuracy	± 1.5% FS or better
Sensor Excitation	12 - 18 VDC, 21mA
Middle Roller Deflection	0.5 mm (maximum)
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional) proportional to tension
Overload Protection	200% FS
Housing Material	Aluminum
Roller Diameter (Root)	29.5 mm
Roller Material	Hardened Steel
Maximum Linear Speed	2400 m/min
5000 m/min	40 to 105° F (5-40° C)
Frequency Response	100 Hz

line Ranges
