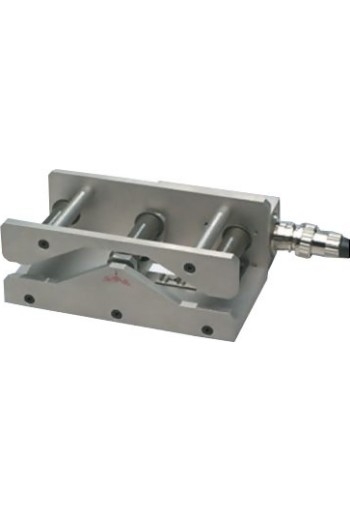

TSB2 Tension Sensor

See More Tension Sensors, Online
Call for price
    warrenty

    Product Description

    Tension Sensor

    Tension meter for continuous measuring low and high tensions of textile ribbons, films, foils, fibre bunches etc.

    Tape rollers mounted on both sides, max. width 100 mm


    line
    Kit Options
    line

    If sensor is ordered only:

    • 1 diode male plug without connecting cable

    If sensor and display unit is ordered:

    • 1 connecting cable
    • tension sensor with packaging
    • operating instructions
    • Certificate of Compliance with the order 2.1 according EN 10204 free of charge


    line
    Features
    line

    • Dual-flanged outer guide rollers with various widths from 10 mm up to 100 mm.
    • Various output signals:
      • Analog (0-1V DC).
      • RS232 (optional).
      • 0-10V DC (optional).
    • Cylindrical tape roller, ball-bearing mounted.
    • Integrated measuring amplifier.
    • Easy calibration to customized material by operator.
    • Rugged aluminum housing.
    • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report.


    line
    Specifications
    line

    Accuracy±1 % full scale ±1 digit other calibration material: ±3 % full scale or better
    Overload protection100% of tension range
    Measuring principleStrain guage bridge
    Measuring roller deflectionMax. 0.5 mm
    Natural frequencyApprox. 500 Hz, depending on tension range
    Temperature driftless than ±0.05 % fullscale/ºC
    Output signal0 - 1 V DC (analog)
    Damping30 Hz
    Temperature range10 - 45 ºC
    Air humidity85 % RH, max.
    Power supply+12 - 24 V DC, max. 50 mA regulated


    line
    Tension Ranges
    line

    ModelRangeRoller Width (mm)
    TSB2-10000 - 1000 g30, 36, 41, 50, 100
    TSB2-20000-2000 g30, 36, 41, 50, 100
    TSB2-50000-5000 g10, 15, 20, 30, 36, 41, 50, 100
    TSB2-10K0-10 Kg10, 15, 20, 30, 36, 41, 50, 100
    TSB2-20K0-20 Kg10, 15, 20, 30, 36, 41, 50, 100
    TSB2-50K0-50 Kg10, 15, 20, 30, 36, 41, 50, 100

    Important for your order: Please specify model and roller width! Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

    Calibration to customized material: If process material differs significantly from the Electromatic calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.


    line

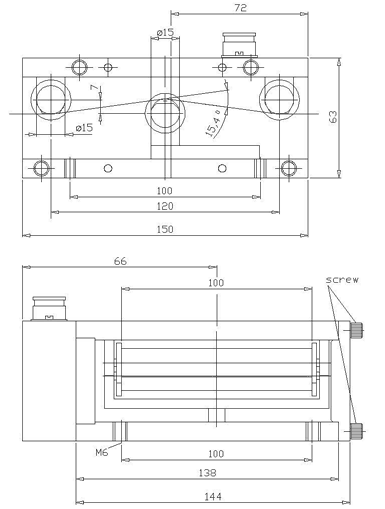

    Dimensions
    line
