For textile warps
0-100 emperical unit scale
Metal Housing
Spring Loaded Operation
An easy-to-operate measuring foot and small "scooping" frame provide a quick and easy way to check warp tensions.

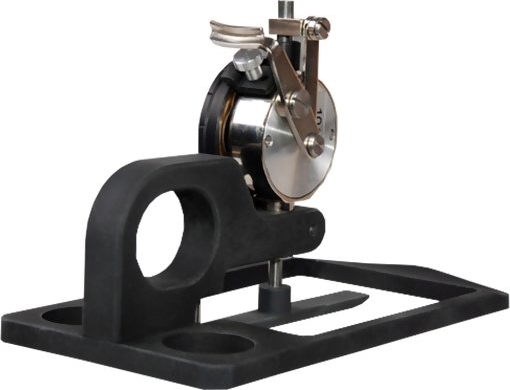

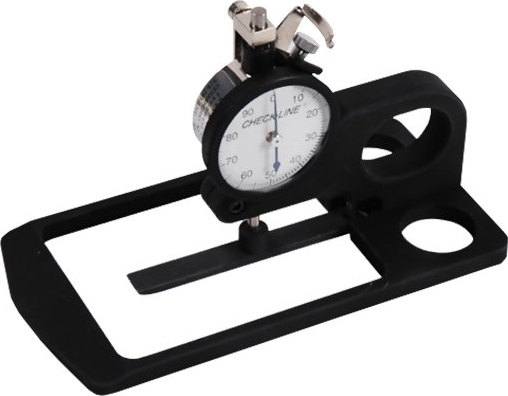

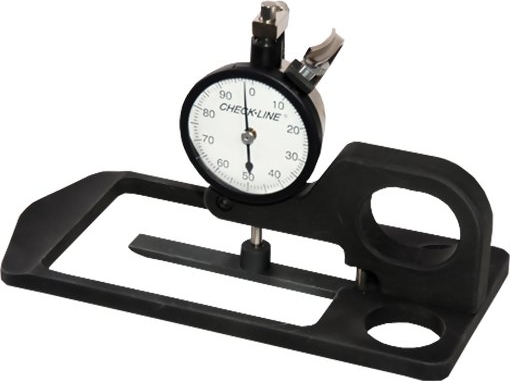

The Checkline WT-100 Warp Tension Meter 0-100 units scale and foot pressure have been carefully chosen to provide comparative warp tension measurements for most applications.
Special foot pressures are available where the standard foot pressure is too high or low
Features
- Dependable, lightweight, small, rugged and easy-to-use.
- A large, 2-3/4" wide measuring foot, provides even, perpendicular pressure for highly repeatable readings.
- A thumb-actuated mechanism lifts the pressure foot for easy insertion into the warp and allows a scooping action by the bottom frame to select the number of ends to be measured
Specifications
| Calibration | 0-100 empirical units |
| Resolution | 1 unit |
| Dial Face Diameter | 1-1/2" (38mm) |
| Foot Pressure | 240g ± 10 at 1 revolution of pointer |
| Dimensions | Frame: 5-7/8" x 3" (150 x 176mm)
Height 3-5/8" (92mm) |
| Frame Material | Aluminum Alloy |
