Multi-Configuration Tension Sensor
Several Ranges up 500 Kg (5000 N / 1100 lbs)
Several Ranges up 500 Kg (5000 N / 1100 lbs)
The new CHECK-LINE Model TE-RFS Tension Sensor measures the running line tensions of wires, optic fibers and cables. It is designed to minimize the effects of different material rigidities when measuring on a variety of material sizes and also features a unique "tri-tens" system where the material can be threaded through the 3 rollers in 3 distinct paterns.
Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection.

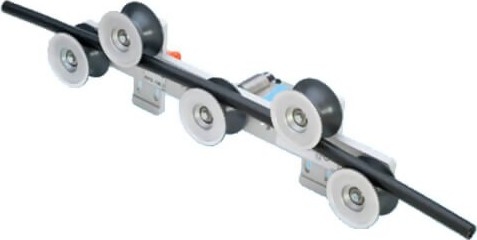

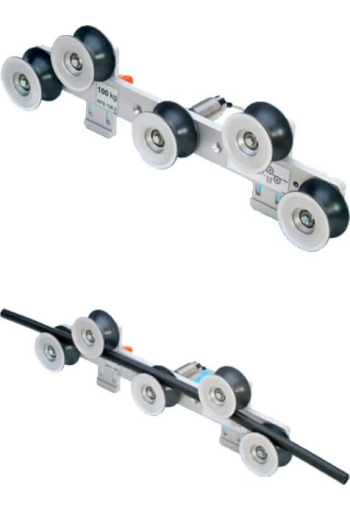

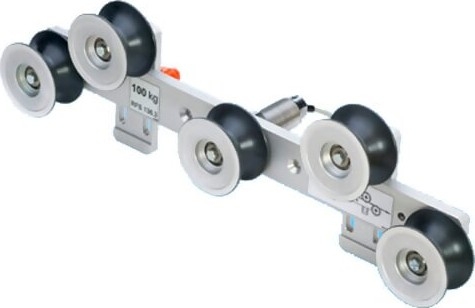

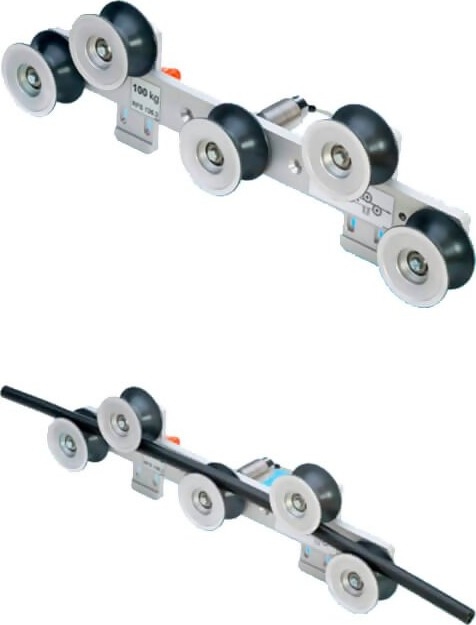

5-Roller version is offered to minimize tension fluctuations in applications where the process material vibrates, oscillates or is unsteady.
The 2 additional rollers mounted on top of the process material are mounted on adjustable brackets allowing them to be positioned so that they slightly contact the material
They provide additional control to insure that the process material travels over the three primary rollers (located under the material) in a smooth and even fashion
Features
- Based on the precision tension sensor RFS 150.
- Measure a wide range of materials without need to adjust calibration, when using threading pattern "D".
- Wear-resistant, ball-bearing guide rollers.
- Minimizes material deflection
Specifications
| Accuracy | ± 1.5% Full Scale or better |
| Tension Ranges (Kg) | Several Ranges up 500 Kg (5000 N / 1100 lbs) |

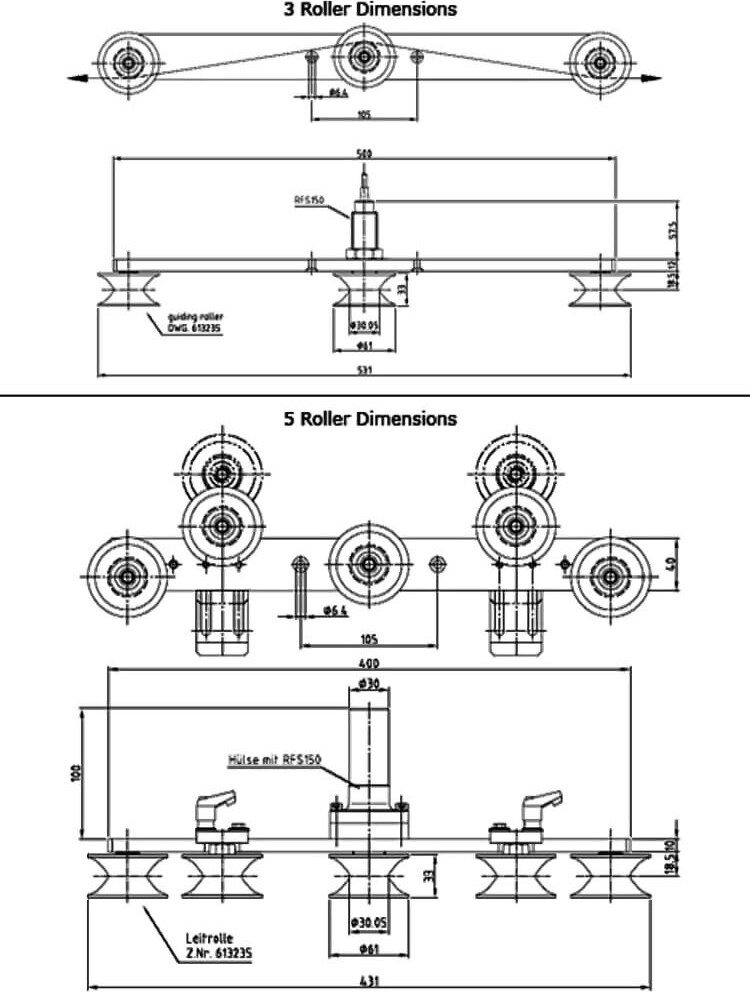

| Outer Roller Spacing (c:c) | 300 - 600 mm (depending upon material rigidity) |
| Guide Rollers | V Grooved, U Grooved or Flat Cylindrical (with or without flanges) |
| Roller Material | Natural Aluminum, Hard Coat Aluminum, Ceramic Plasma-Coated Aluminum & Hardened Steel |
| Overload Protection | 200% + |
| Calibration Certificate | Optional |
