    Product Description
    Low Cost Tension Monitoring System
    7 Ranges up to 10 Kg
    RS232 Serial output (optional) allows you to connect to a PC for datalogging

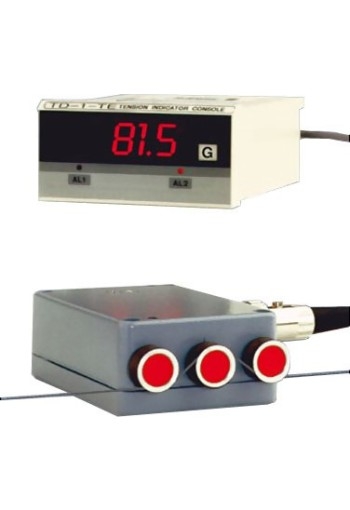

    TELC Sensor plus TD-1-TE Indicator Accurately measures the running line tensions of yarns, fibers, wires, cables, films & similar process materials - continuously!

    The TELC System detects "out of tolerance" conditions and immediately alerts operating personnel. This enables them to take the appropriate corrective action to maintain the highest product quality.

    Additionally, the TELC Tension Sensor can be installed separately, as part of a user-supplied control-loop system.

    RS232 Serial Output (optional)


    line
    Features
    line

    • Precision strain gauge accuracy of ± 1.5% or better
    • User-set high & low alarm limits with relays for alerting operating personnel of "out of tolerance" conditions
    • V-grooved rollers rated for speeds up to 2000 m/min are standard or, optionally, 3500 m/min (option K) or 5000 m/min (option HS)
    • Analog output for recording and control purposes
    • Built-in electronic damping to filter out fluctuating tension readings
    • RS232 Serial output (optional) allows you to connect your sensor to our SensorView software


    line
    Specifications
    line

    Accuracy±1.5% or better
    Power Required12 - 24 V DC, regulated (20 mA)
    Deflection0.5 mm maximum
    Output (Standard)0-1 V DC
    Output (Optional)0-10 V DC, 4-20 mA, RS-232 or RS-485 (Addressable)
    Analog: 0 –2 V AC, linearized, app. 500 Hz
    Digital: RS 232 (9600,8,N,1)
    Frequency Response50 Hz
    Outer Roller Spacing40-200 mm, depending upon tension range, process material and application
    Operating Temperature40 to 105° F (5-40° C)


    line
    Ranges
    line

    ModelRange ModelRange
    TELC-1000-100 gTELC-2K0-2 Kg
    TELC-2000-200 gTELC-5K0-5 Kg
    TELC-5000-500 gTELC-10K0-10 Kg
    TELC-1K0-1 Kg


    line
    Special Purpose Models
    line

    Tapes/Films & Tows
    Type RX

    • Uses 7, 10, 15, 20 or 30 mm wide cylindrical rollers for "strip" materials. Wider materials can be accommodated with other models.

    line

    Heavy-Duty Model
    Type 24

    • Uses 30mm diameter hardened steel rollers for heavy wires, cable tire cord and similar process materials subjected to high impact loads


    line
    Related Products
    line

    RMA-CSW
    Cantilever Measuring Roll

    • Direct, radial force transfer
    • High precision and excellent long-term stability
    related

    line

    RMA
    Radial Force Measuring Axle

    • High spring constants for the sensor permit high rotation speed ratings for the deflector roll
    • High precision and excellent long-term stability
    related

    line

    TS621
    Strain Gauge Amplifier

    • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
    • 0-10VDC analog output
    related

    line

    DPM502
    Digital Tension Indicator

    • Selectable “damping function” reduces display fluctuations
    • 24V DC power supply with galvanic isolation
    related

    line

    MU621
    Tension Indicator/Amplifier Console

    • For strain gauge sensors
    • 1 to 4 measuring channels
    related


    line
    Downloadsline

    TELC System - Dimensional Drawing
