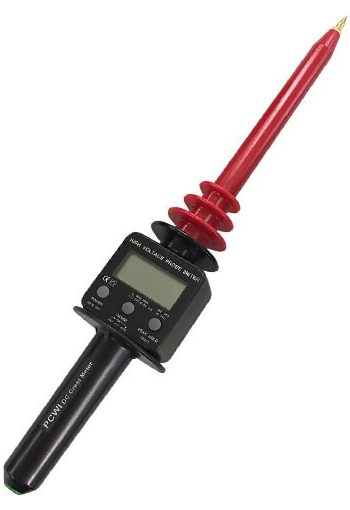

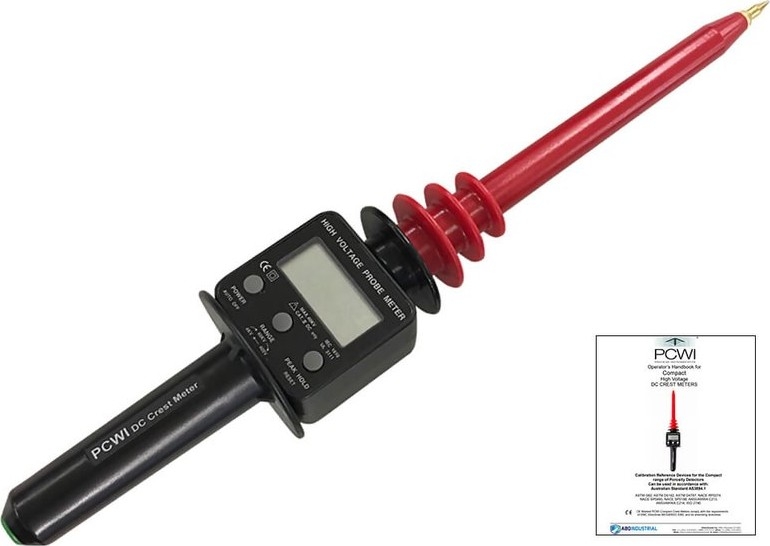

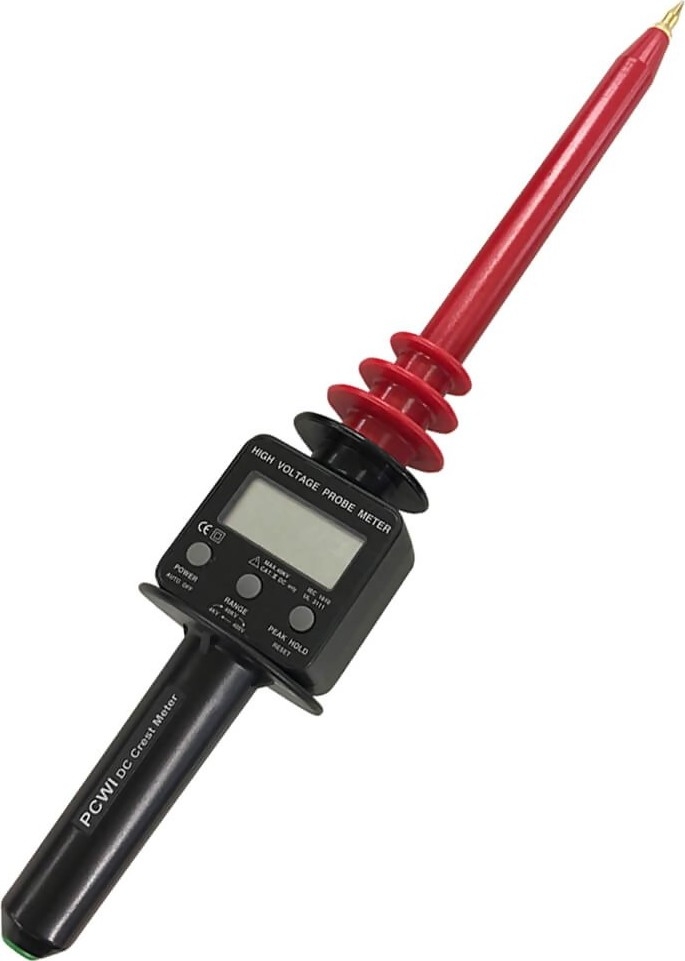

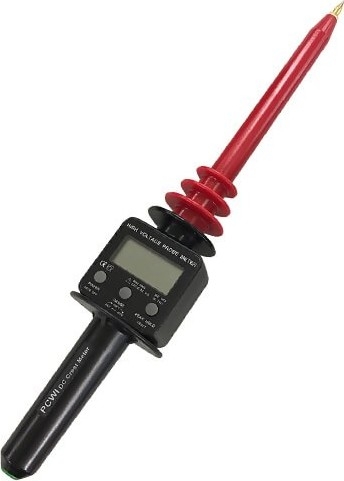

PCWI High Voltage DC Crest Meter

Description
Price: $420.00
High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter
Measuring Range: 0 to 30,000 Volts


For verifying output voltage and the calibration of Direct Current type Porosity and Holiday Detectors

line
Features
line

  • Used for checking and calibrating Direct Current Porosity Detector output voltage
  • Integral probe
  • Carrying case: 14" x 11.5" x 7" (36 x 29 x 18 cms)
  • Compact, light weight hand-held unit
  • Conformance Certificate
  • 0 to 30kV (autoranging) Traceable Certification available

line
Applications
line

Verification of output voltage and set voltage of detectors when a load is applied to the probe of Direct Current Type Porosity Detectors.

To ensure accuracy, and enable voltage adjustment (if necessary).

line
Specifications
line

Range0 to 30kV
Resolution10V (0 to 20kV) | 100V (0 to 30kV)
Earth leadIncludes 23-foot (7m) Earth lead and clamp.
Dimensions6.3" x 3" x 2" (160 x 75 x 50 mm)
Weight12 oz (340g)


line
Downloads
line

PCWI High Voltage DC Crest Meter - Data Sheet
