Tramex CCIK Concrete Coatings Inspector Kit

See More Tramex Moisture Meters

Tramex CCIK Concrete Coatings Inspector Kit

See More Tramex Moisture Meters
Price:
$1,260.00
    warrenty

    Product Description
    Tramex CCIK Concrete Coatings Inspector Kit
    Industry: Flooring Inspection, Concrete Coatings, Water Damage Restoration

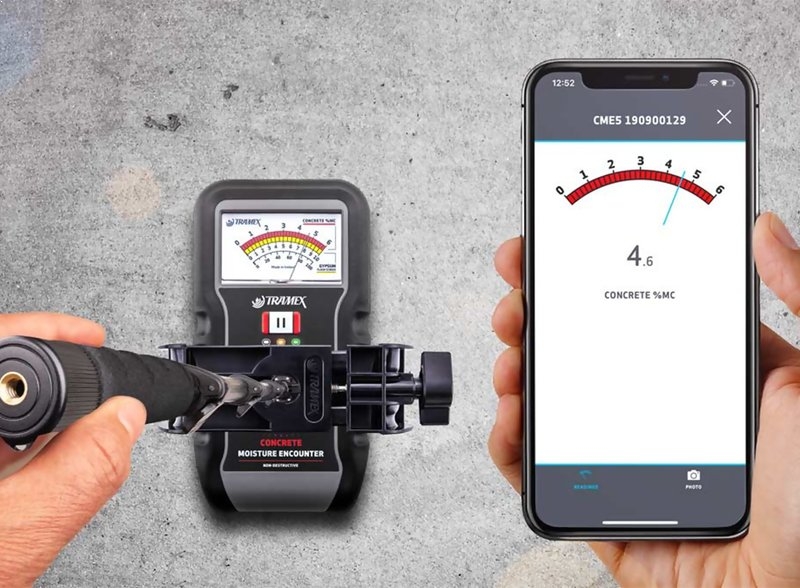

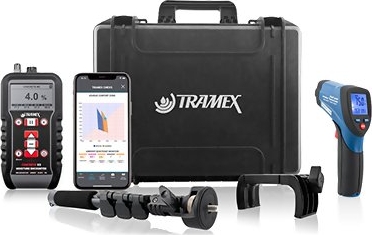

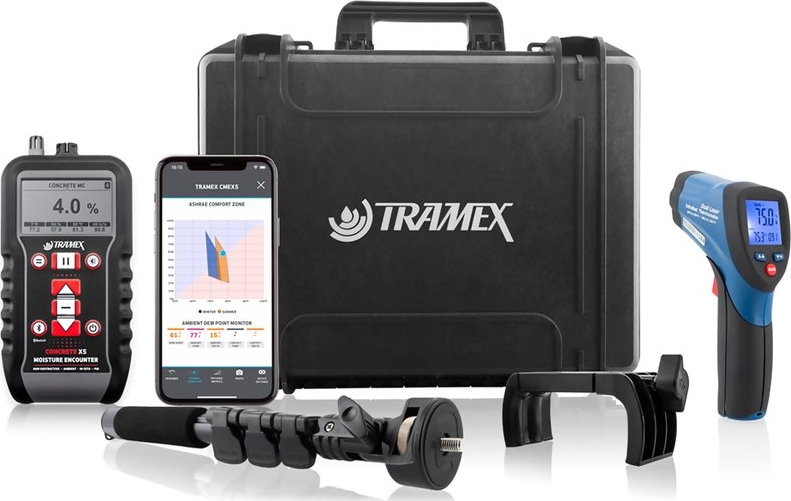

    The Tramex CCIK Concrete Coatings Inspector Kit is a compact kit for instant and precise moisture testing of concrete floors and slabs. The Tramex CMEX5 Concrete Moisture Encounter X5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. Non-destructive testing of the top ¾" of the slab is most critical when applying coatings. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Concrete Coatings Inspector Kit comes with an extension handle in a Tramex Easy-travel case. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.


    line
    Kit Contents
    line


    line
    Specifications
    line

    Kit:

    Size17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm)
    Weight6.8 lbs (3.1kg)
    Power2 x AA batteries, 1 x 9 volt PP3 battery

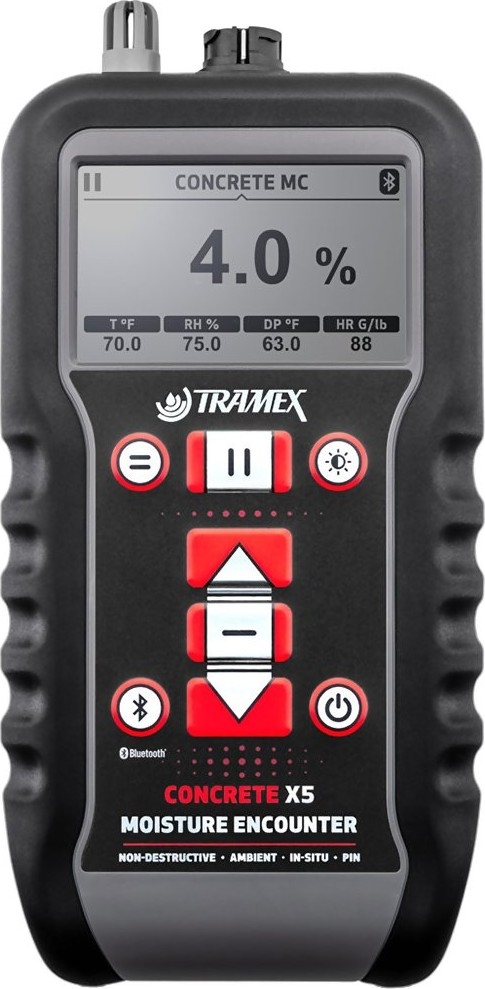

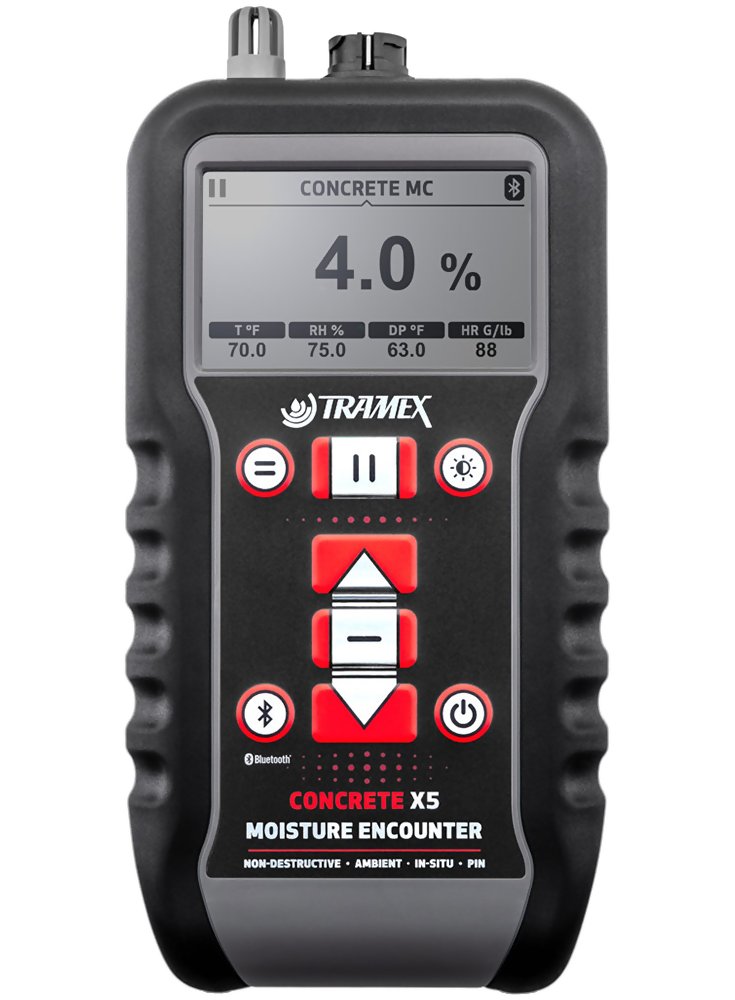

    Tramex CMEX5 Concrete Moisture Encounter X5

    Moisture content for Concrete0 → 6.9 %
    Comparative for Gypsum floor screed0 → 12
    CM Equiv Anhydrite/Concrete0→2.7 / 0→ 4.3
    Reference scale0 → 100
    Relative Humidity0 → 99% (with optional Hygro-i2 ® probe)
    Humidity accuracy0% → 99%RH ± 2% @ 25°C / 77°F
    Moisture content for wood5→ 30 % (with optional wood pin probes)
    ConstructionABS Body
    Power2 x AALR6 ALKALINE (included)
    DisplayDigital
    Depth of penetration in concreteapprox. ¾" (20mm)

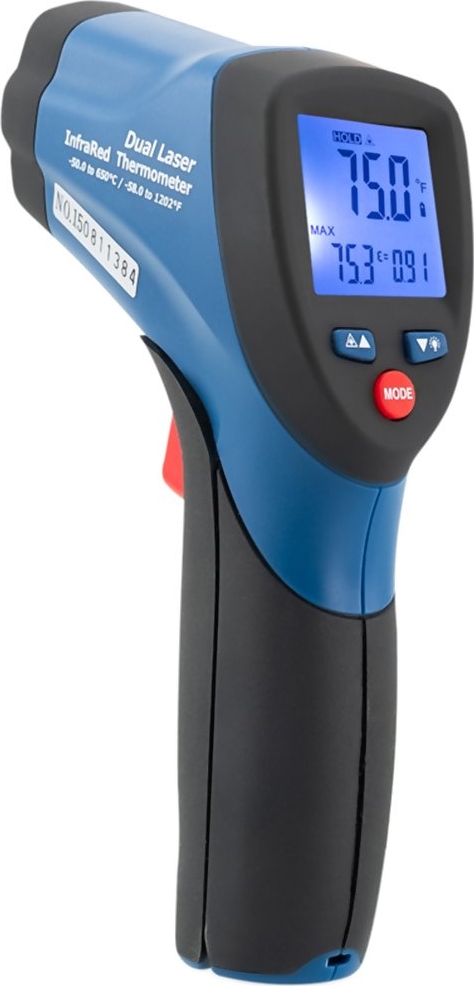

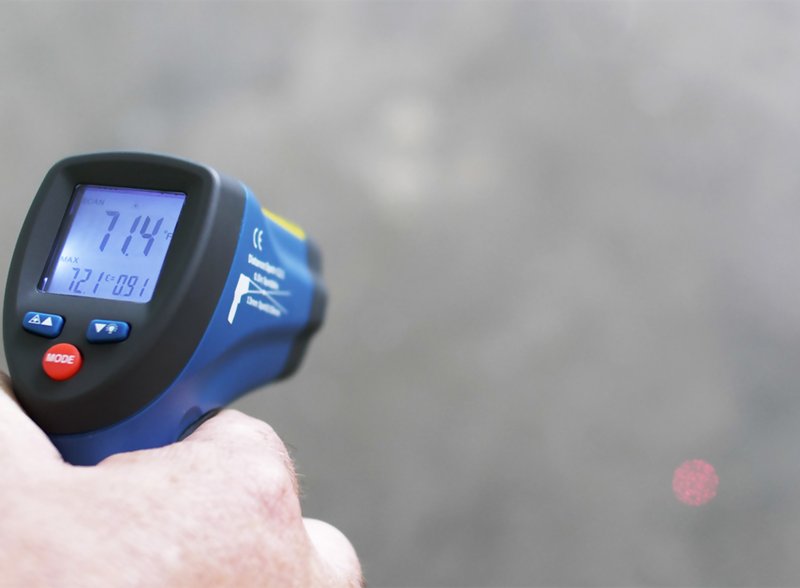

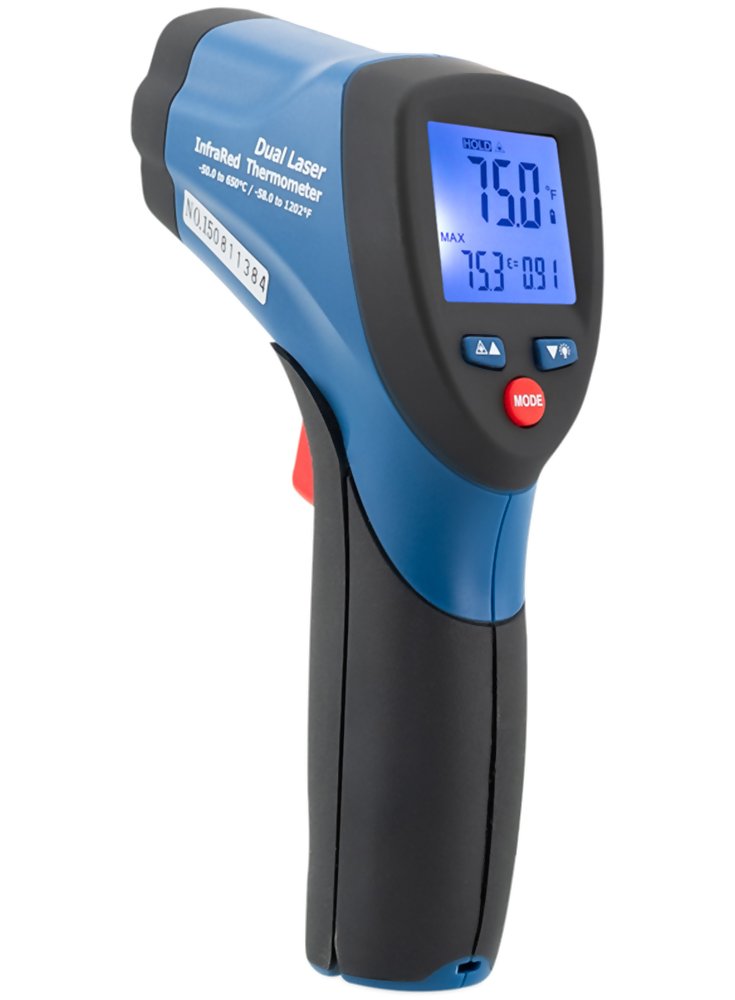

    Tramex IRT2 Infrared Surface Thermometer

    Temperature range

    -58°F ~ 1202°F (-50 to 650 °C)
    Distance to Spot ratioD:S = 12:1
    Display resolution0.1 °F(0.1°C)   <1000 1°C   >1000

    Accuracy for targets

    Assumes ambient operating temperature of  73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C)  ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C)  ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5%

    Repeatability

    -58~68°F (-50~20°C)  :  ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C)

    Response time

    150ms

    Spectral response

    8~14um

    Emissivity

    Digitally adjustable from 0.10 to 1.0

    Over range indication

    LCD will show "----"

    Polarity: Automatic (no indication for positive polarity)

    Minus (-) sign for negative polarity

    Diode laser output

    <1mW,Wavelength 630~670nm, Class 2 laser product

    Operating temp.

    32 to 122°F ( 0 to 50°C)

    Storage temp.

    14 to 140°F (-10 to 60°C)

    Relative humidity

    10%~90%RH operating, <80%RH storage

    Power supply

    9V battery, NEDA 1604A or IEC 6LR61, or equivalent

    Safety"CE" Comply with EMC


    line
    Related Products
    line

    Tramex Hygro-i2 Relative Humidity Probe

    • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
    related

    line

    Tramex Heavy-duty Pin-type Wood Probe with Cable and Pins

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    related

    line

    Tramex Accessory Pack for Concrete Moisture Encounter 5 and 5X

    • For use with CMEX5, CMEX2, MRH3 & PTM.
    • Order Code: HH14TP30 (For use with CMEX2, MRH3 and PTM)
    • Order Code: HH14TP30B (For use with CMEX5)
    related

    line

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • The Tramex CALCRH is a calibration check plate used to easily verify if moisture meters yield proper moisture readings, or if or needs to be sent to a calibration lab.

    related

    line

    Tramex HA21SP52 Hammer-Action Pin-Type Electrode

    • Hammer-action pin-type electrode (With Cable And Pins) for use with CMEX5, MRH3.
    • Order Code: HA21SP52 (For use with MRH3)
    • Order Code: HA21SP52B (For use with CMEX5)
    related

    line

    Tramex SP200 Spare 7" Pins for Pin Probe HH14SP200

    • Heavy-Duty Electrode with Cable and 7" (200mm) Long Pins for use with CMEX5, MRH
    • Order Code: HH14SP200 For use with MRH3
    • Order Code: HH14SP200B For use with CMEX5
    related

    line

    Tramex CALCRH Calibration Check for CME5, CMEX5

    • Heavy-duty Pin-type Electrode with Cable and 3" pins for use with CMEX5, MRH3
    • Order Code: HH14SP90 For use with MRH3
    • Order Code: HH14SP90 For use with CMEX5
    related

    line

    Tramex ASTM F2170 Accessory Pack

    • Accessory Pack for RH testing
    • The AP-F2170-B for use with the: CMEX5 and DL-RHTX
    • The AP-F2170 for use with the: CMEX2 and MRH3
    related

    line

    Tramex Extension Handle for ME5, CME5 and CMEX5

    • The Extension Handle can be used with the ME5CME5 and CMEX5 Moisture Meters. It is a useful accessory for measuring in out of reach, high places. It can also be used for taking readings on the floor and thus reduces the need for crouching or kneeling.
    • Order Code: E5-HBS
    related


    line
    Downloads
    line

    Tramex CCIK Concrete Coatings Inspector Kit - Data Sheet
    Tramex CMEX5 Concrete Moisture Encounter X5 - Data Sheet
    Tramex CMEX5 Concrete Moisture Encounter X5 - Instruction Manual
    Tramex IRT2 Infrared Surface Thermometer - Data Sheet
    Tramex Meters App - Visualizing, Photographing and Geo-tagging
    Accessories for Tramex Moisture Meters - Online Catalog
