The Tramex WDMK-X Water Damage Restoration Master Kit X allows for moisture and relative humidity testing and monitoring of buildings and building materials. Featuring the Tramex MEX5 Moisture Encounter and Humidity Meter for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The Tramex CMEX5 Concrete Moisture Encounter X5 for non-destructive quantitative and comparative testing of concrete and ambient conditions. The Tramex CMEX5 Concrete Moisture Encounter X5 incorporates a plug-in heavy-duty pin-probe measures Moisture Content in wood or WME in other building materials. The Tramex CMEX5 Concrete Moisture Encounter X5 also incorporates plug-in RH probes for in-situ testing of concrete, building materials, structures and air spaces. These probes can be used with the Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in the environment and in materials and air spaces. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the Tramex CMEX5 Concrete Moisture Encounter X5 hygrometer. The Tramex WDMK-X Water Damage Restoration Master Kit X comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

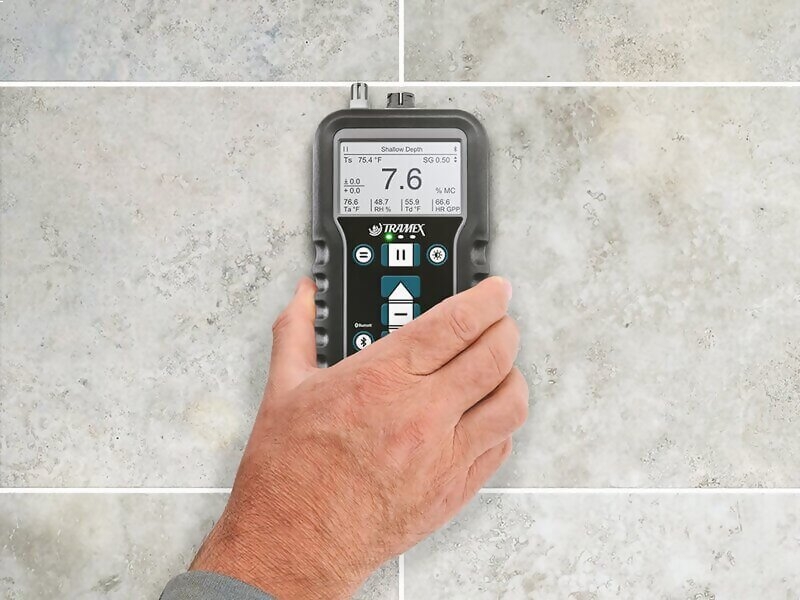

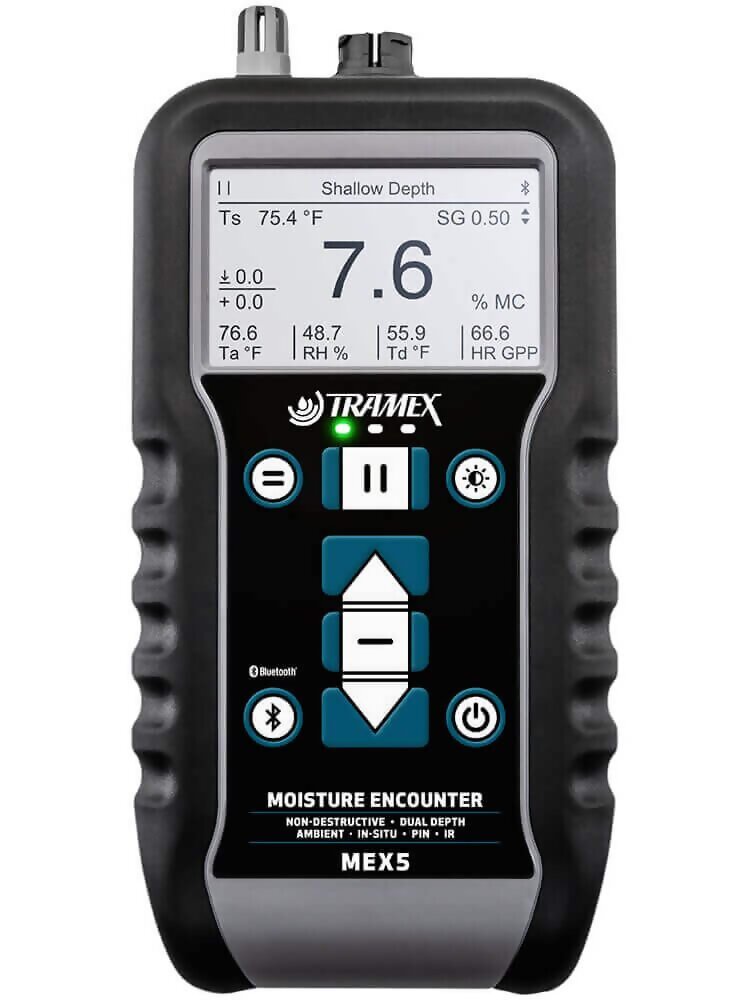

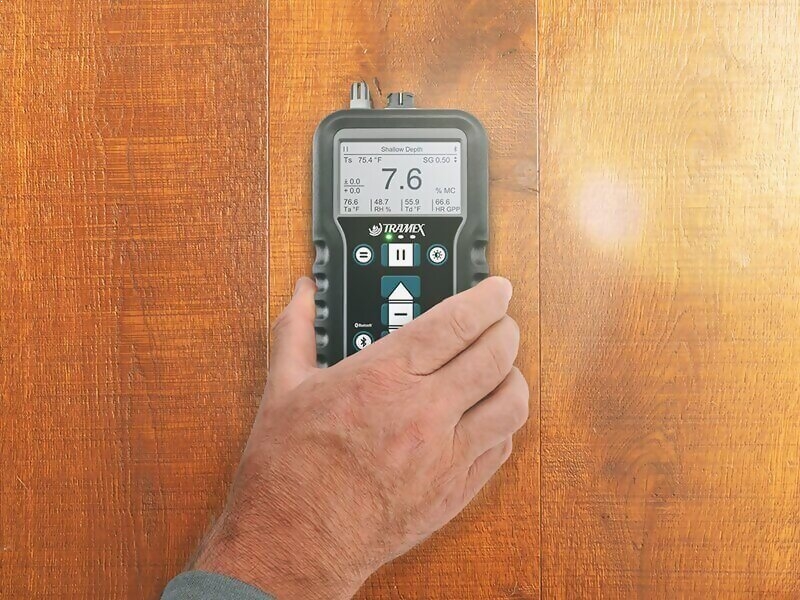

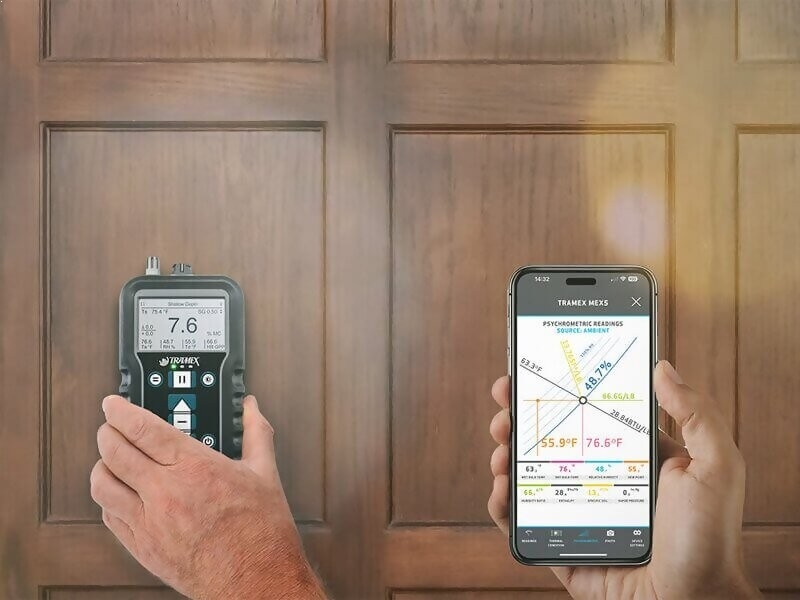

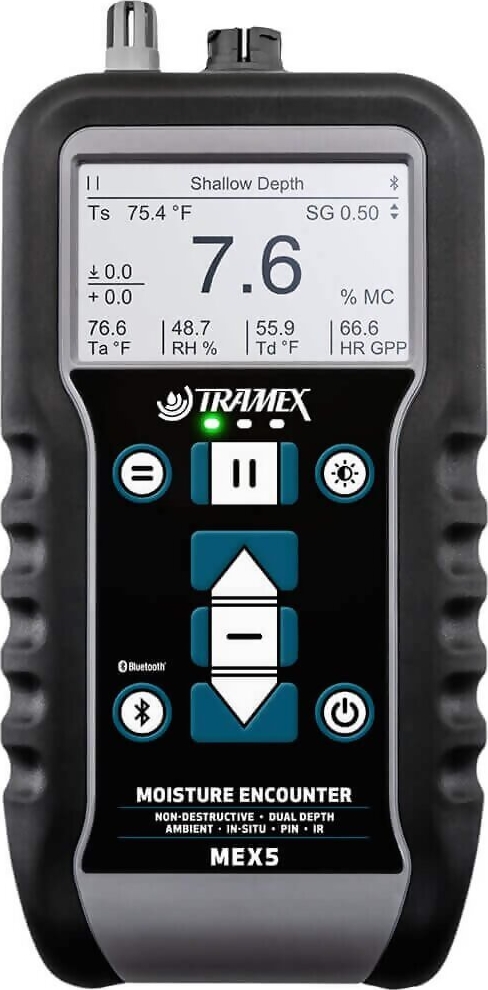

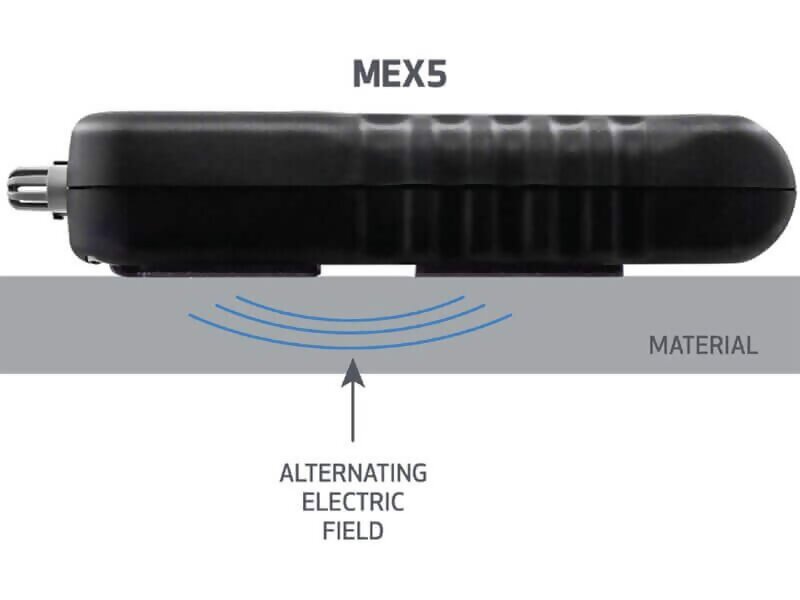

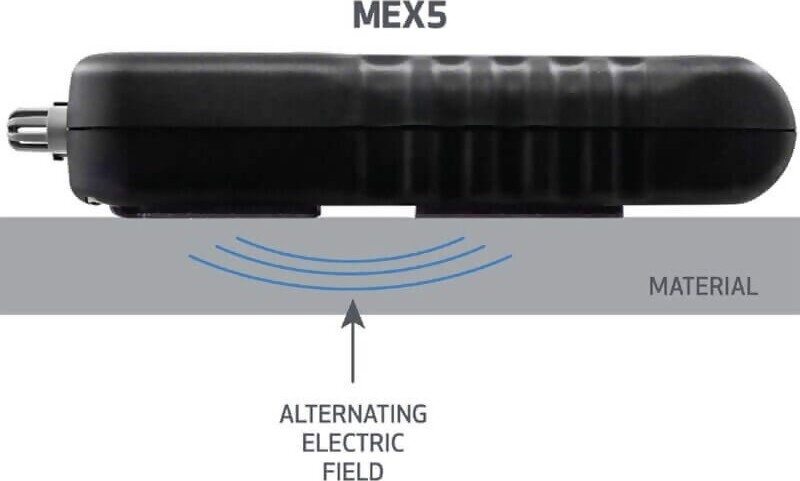

The Tramex MEX5 Moisture Encounter and Humidity Meter is a digital Dual-Depth, non-destructive moisture meter for wood and various building materials such as drywall, roofing, plaster, tile and masonry. The Tramex MEX5 Moisture Encounter and Humidity Meter has a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and also incorporates external in-situ RH probes for in-situ equilibrium RH readings, as well as Pin probes for wood, drywall, and WME readings. Moisture test results can be visualized and Geotagged with the Tramex Meters App and turned into moisture maps, reports and charts for sharing.

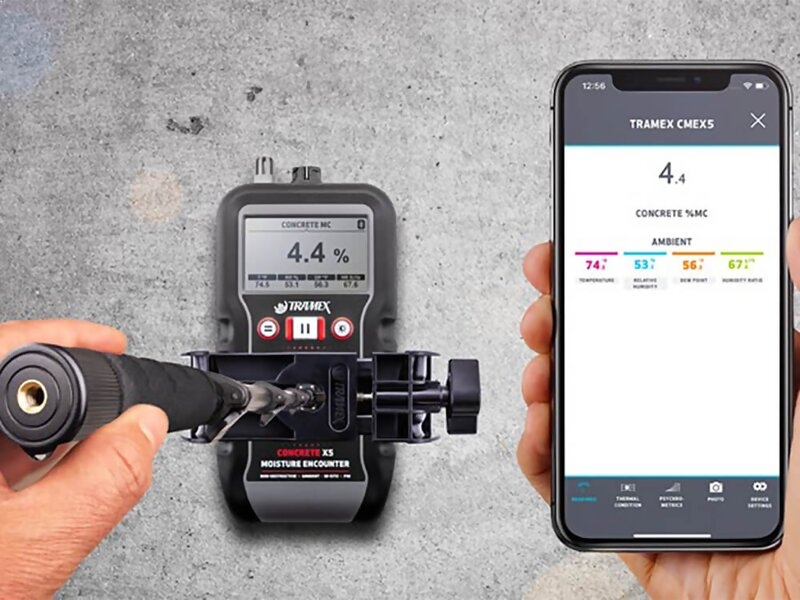

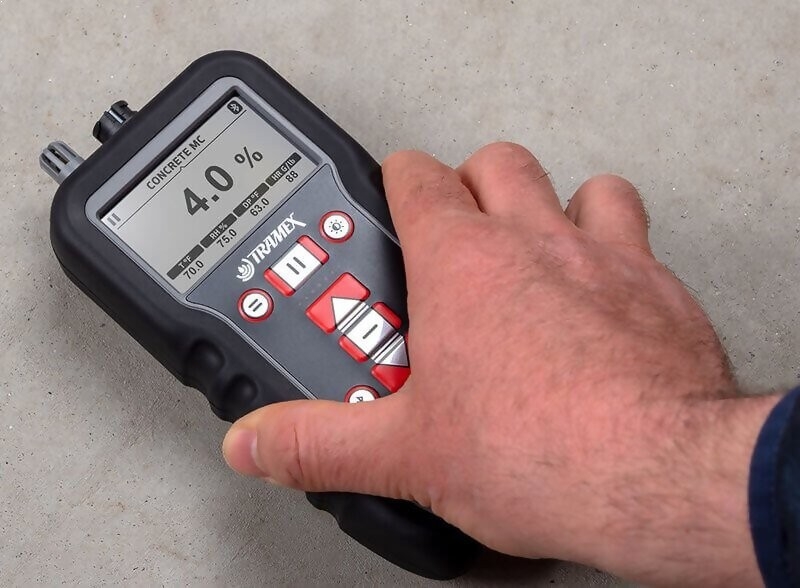

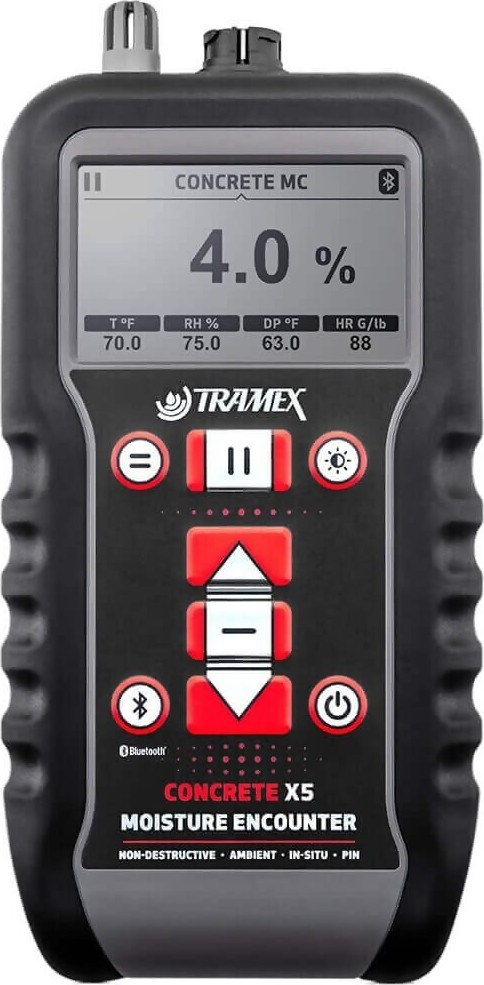

The Tramex CMEX5 Concrete Moisture Encounter X5 for concrete floors and slabs providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659. Incorporating plug-in ports for the optional Hygro-i2® relative humidity probe testing per ASTM F2170 and heavy-duty pin-type wood probes, this moisture meter transforms into the ideal all-in-one instrument for the flooring professional.

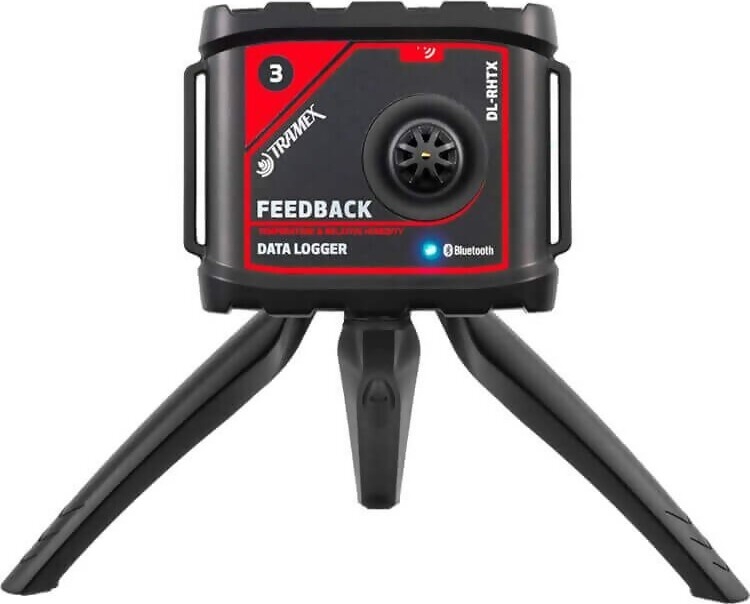

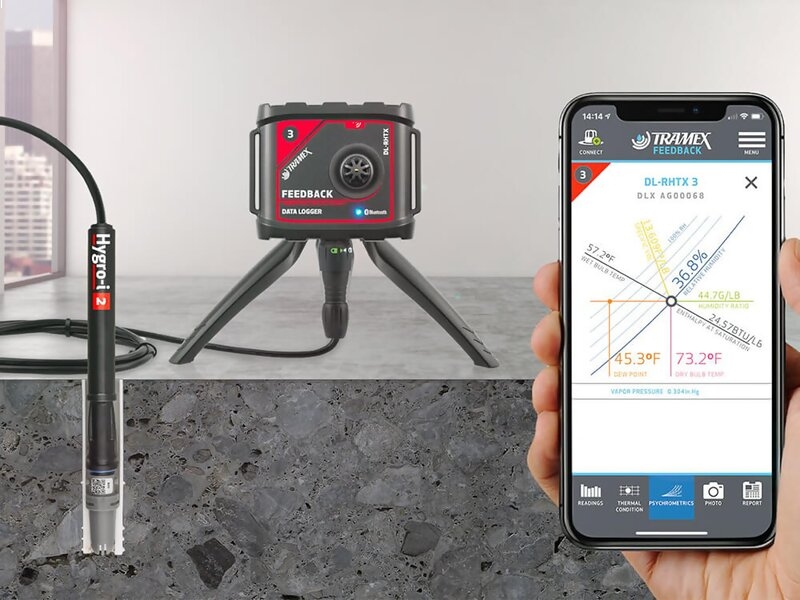

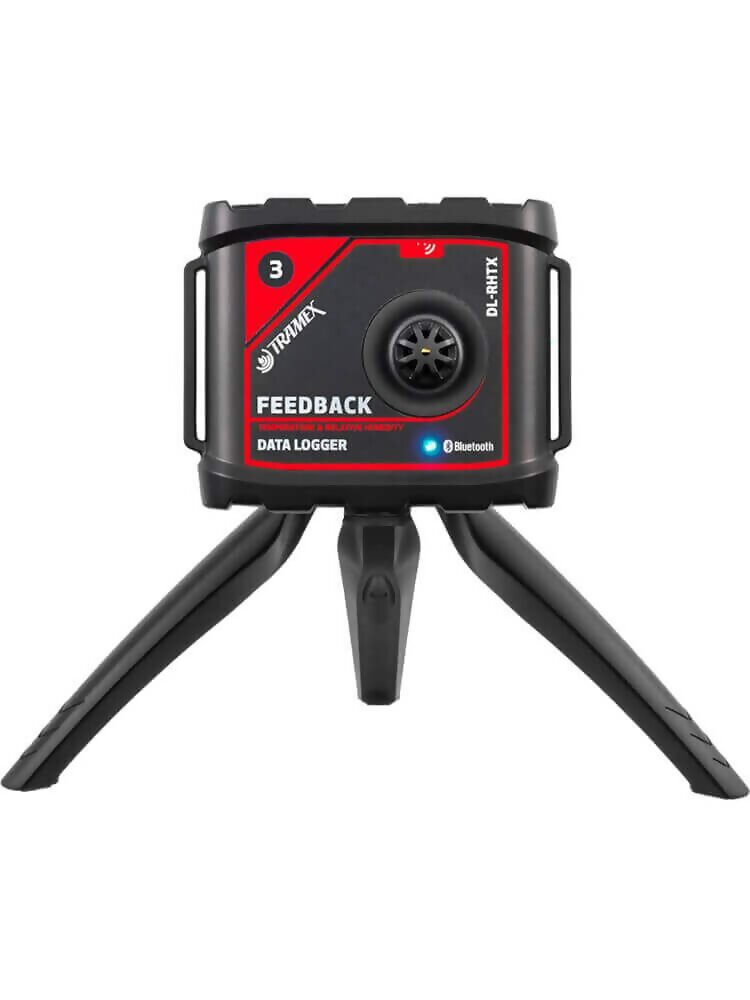

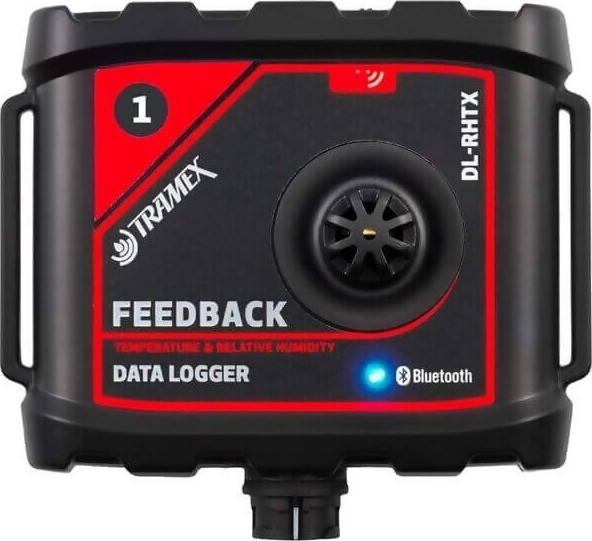

The Tramex DL-RHTX Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. Used to perfom ASTM F2170 with the Tramex Hygro-2 probe.

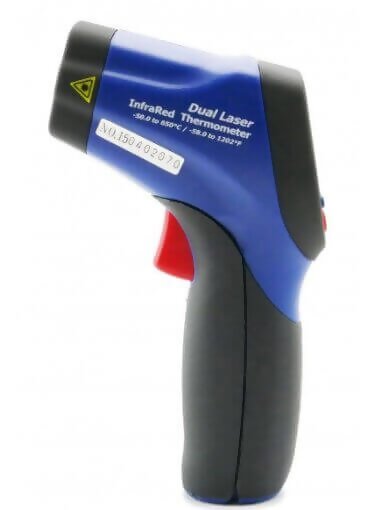

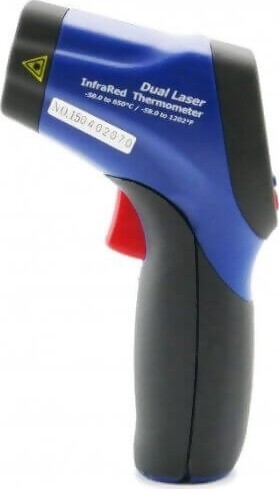

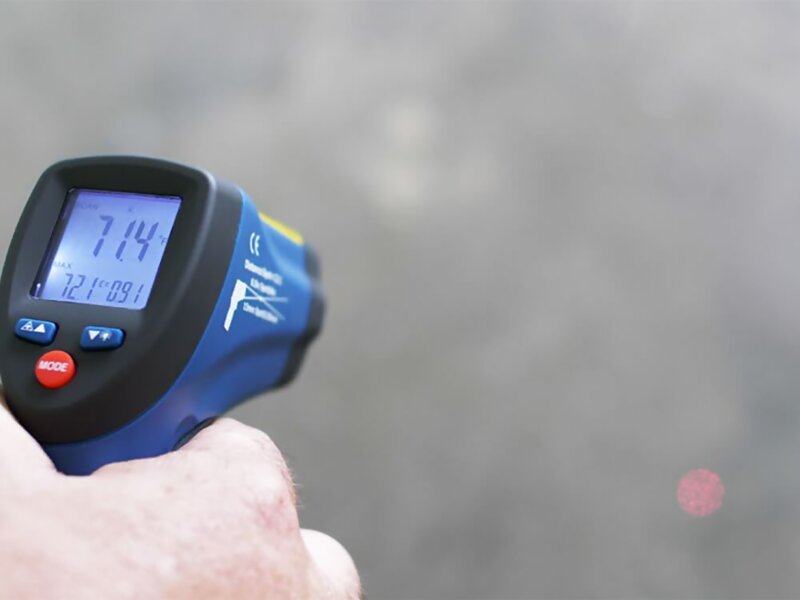

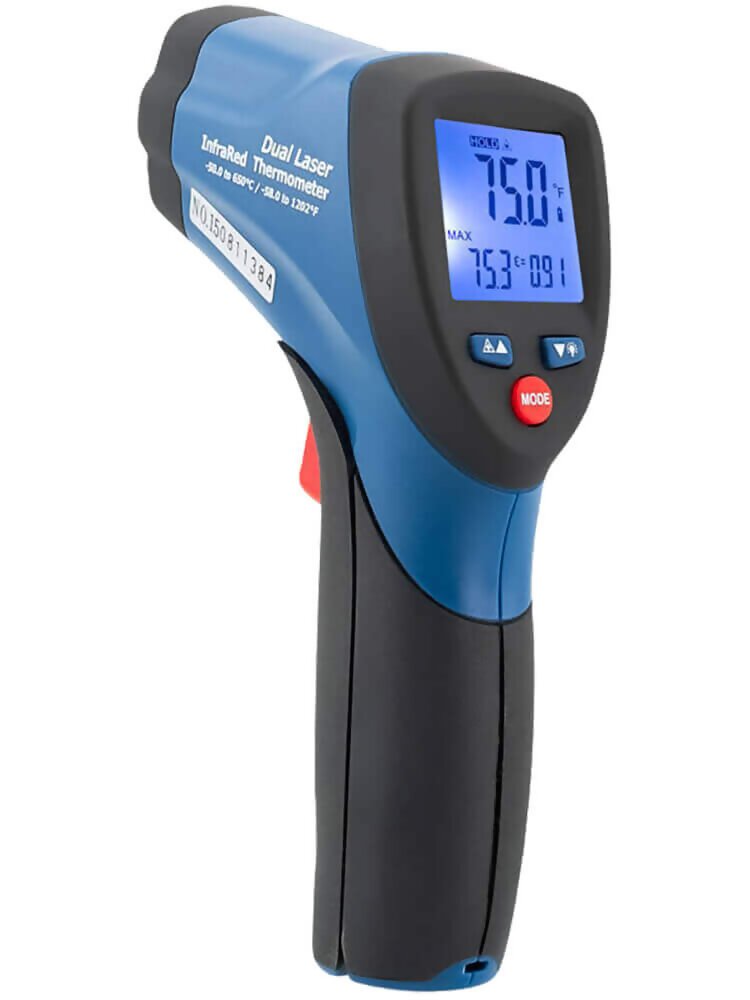

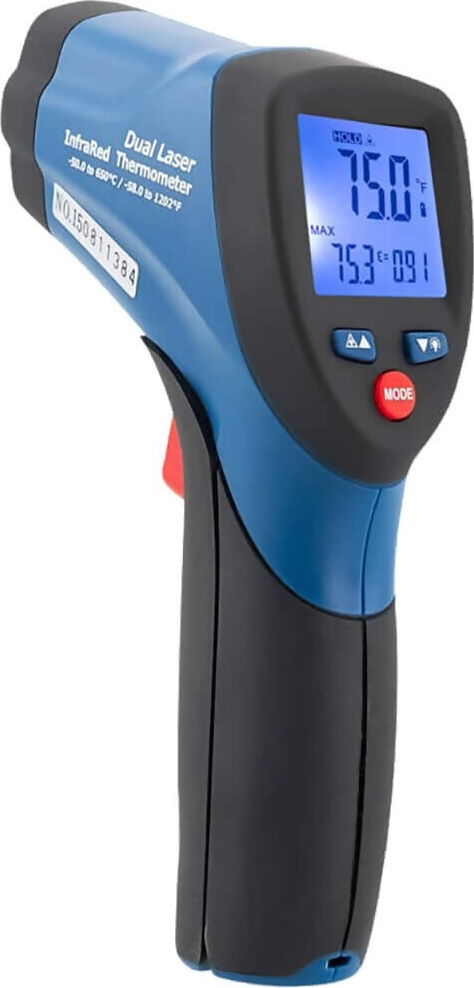

The Tramex IRT2 Infrared Surface Thermometer is a handheld, dual laser, non-contact Infrared Thermometer with 12:1 distance to spot ratio and audible and visible high/low set point alarms. It is used to measure and display surface temperatures within the range of -58ºF to 1202º (-50°C to 650°C) and has an accuracy of approximately 1 to 1.5% (see Specifications for details). The Tramex IRT2 Infrared Surface Thermometer has a fast response time (0.15 sec) and is powered with a 9V battery and complies with Class II UK/EU laser safety standard EN60285.

Kit Contents

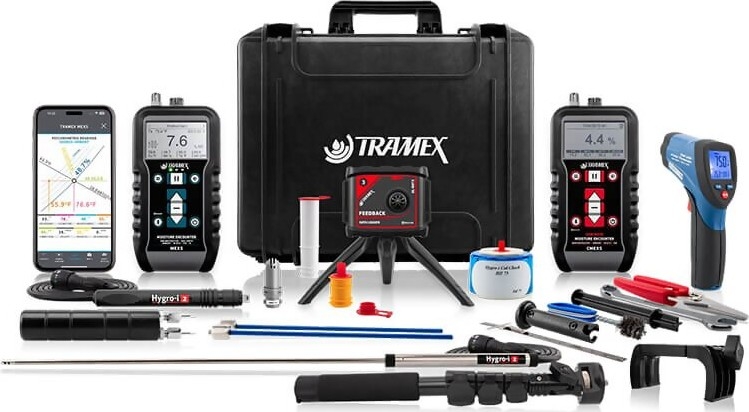

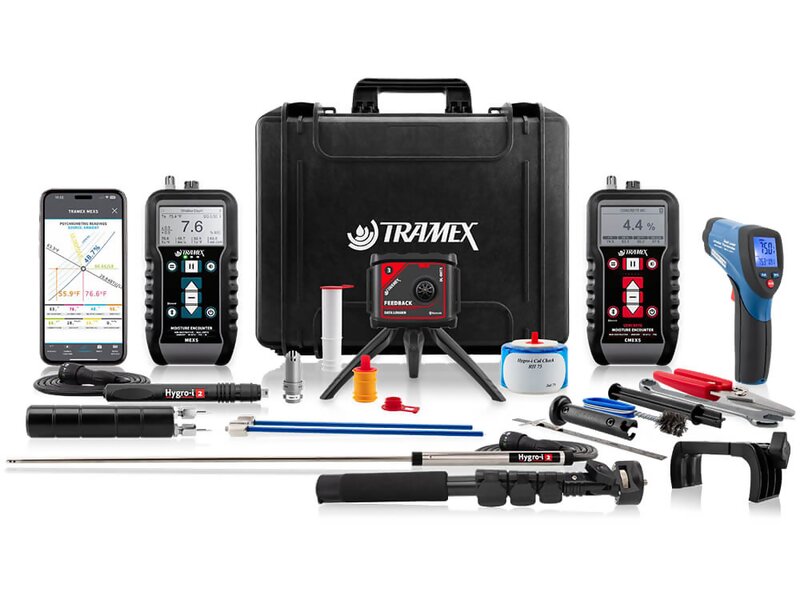

Tramex MEX5 Moisture Encounter and Humidity Meter Tramex CMEX5 Concrete Moisture Encounter X5 Tramex DL-RHTX Feedback DataLogger Tramex IRT2 Infrared Surface Thermometer Tramex Heavy-duty Pin-type Wood Probe Tramex 7.8" (200mm) Insulated Pins for In-Depth Penetration Tramex RHP-NW Narrow Wand Relative Humidity Probe Tramex HIPP Hygro-i2 Relative Humidity Probe Tramex RHHL Hygro-i Hole Liners and Caps Tramex SAL75 Calibration Salt Check Tramex Extension Handle Free App available for Android and iOS Tramex MAXMULTI Carring Case Operating Instructions One (1) year warranty

Features

Features of the Tramex MEX5 Moisture Encounter and Humidity Meter

NDT - Non destructive testing

• %MC dual depth measurement of wood
• Comparative dual depth of drywall, roofing, plaster, tile and masonry
• Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
• LED indicator Low/Med/High for all NDT scales
• Built-in Hygrometer readings on permanent display
• Built-in Surface Temperature Infrared Thermometer
• Adjustable Specific Gravity for NDT wood readings
• Baseline reference reading set point adjuster to compare to known dry / drying goal reading

Built-in hygrometer and Infrared Surface Thermometer

• Psychrometric evaluations of Ambient RH, Temp, Dew Point Temp, Humidity Ratio (GPP, g/kg)
• Sufrace Temperature
• Delta Temperature value
• Enthalpy readings
• Emissivity adjustment for surface temperature correction

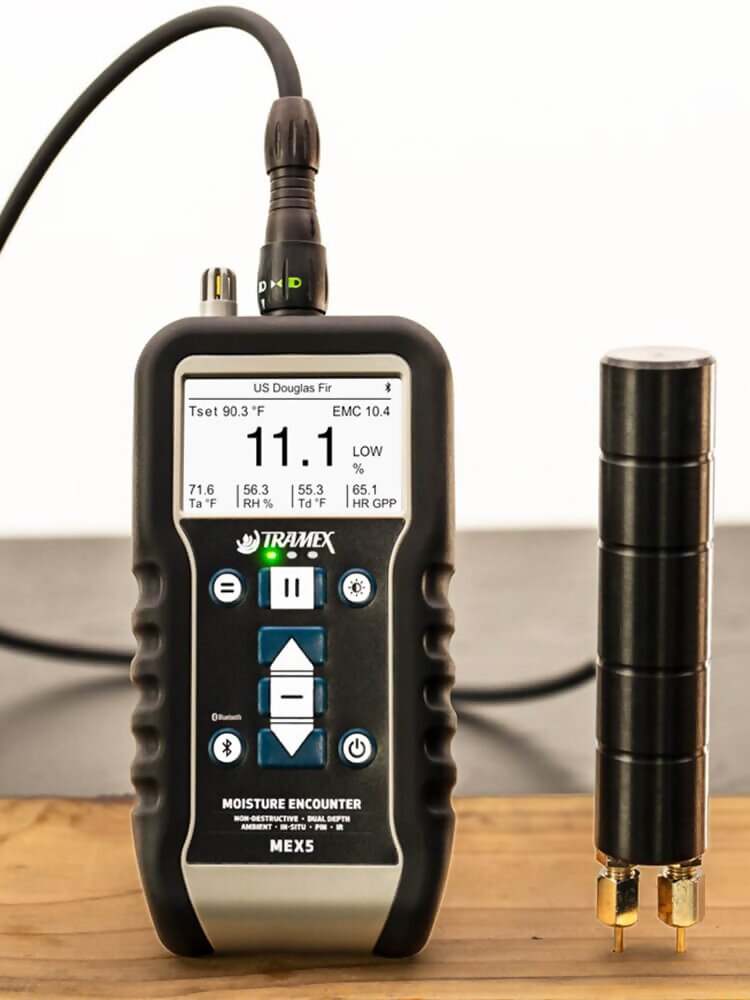

Pin Probe (optional plug-in probe)

• Variety of external pin probes and electrodes can be used
• %MC wood, pre-set international standards / access to various preset wood species
• WME readings
• Drywall %MC
• Auto calibration check
• Temperature correction of %MC in wood
• EMC Expected Moisture Content indication based on ambient conditions and wood selection

Uses

• Locating moisture-related problems and relative humidity issues within and behind a variety of building materials in the building envelope
• Mapping the extent of moisture damage caused to buildings
• Monitoring progressive drying conditions in the drying process of building materials and surfaces
• Dual-Depth penetration allows for comparison of surface and core moisture and elimination of substrate influence on the testing of coverings

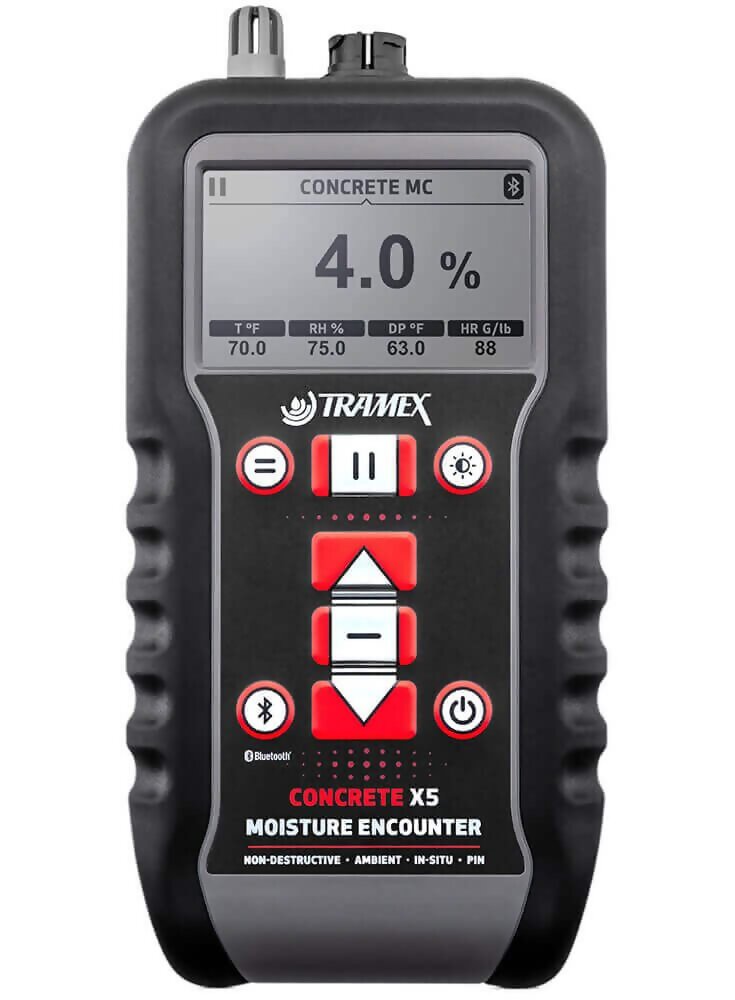

Features of the Tramex CMEX5 Concrete Moisture Encounter X5

• 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer and optional external in-situ hygrometer and wood pin probe.
• 8 simple membrane keypad controls.
• Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
• The built-in Hygrometer probe provides Relative Humidity (RH) readings, temperature, dew point temperature and Humidity Ratio.
• Wood pin probe mode is automatically selected when the probe is plugged into the Concrete Moisture Encounter X5.
• When the external Relative Humidity (RH) Hygro-i2 probe is connected to the Concrete Moisture Encounter X5, the instrument automatically switches to RH mode. Ambient or In-Situ Relative Humidity readings, probe temperature, dew point temperature and Humidity Ratio are automatically displayed (Hygrometer Mode).
• When the battery requires replacement a LOW BATTERY icon is shown on the display.

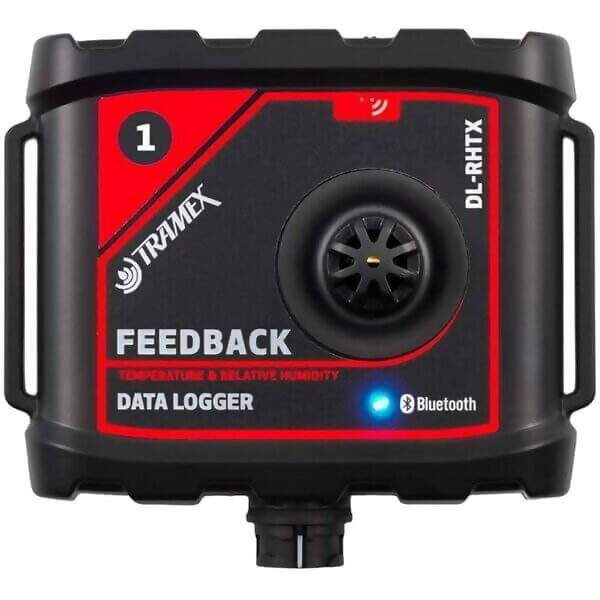

Features of the Tramex DL-RHTX Feedback DataLogger

• Bluetooth BLE enabled for use with mobile devices.
• Up to 100,000 data point entries. Instant set up and start modes.
• Precise Ambient Relative Humidity and Temperature logging.
• Used to perform BS 8201, 8203, 5325 and ASTM F2170.
• Intuitive and instructive App interface.
• Adjustable Interactive chart, spreadsheet, report and easy export functions.
• Connectivity up to 165ft (50m) for highly accessible data downloads.
• Ambient Relative Humidity, Temperature, Dew point, Grains per pound.
• Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point.
• Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional Contact Temperature Probe)

Features of the Tramex IRT2 Infrared Surface Thermometer

• Rapid detection function
• Precise non-contact measurements
• Dual laser sighting
• Automatic Data Hold
• User selectable ºC or ºF
• Emissivity digitally adjustable from 0.10 to 1.0
• MAX temperature display
• Backlight LCD display
• Trigger LOCK for continuous use
• Set high and low alarms
• Unique flat surface, modern housing design

Specifications

Specifications of the Tramex MEX5 Moisture Encounter and Humidity Meter

Specifications of the Tramex CMEX5 Concrete Moisture Encounter X5

Specifications of the Tramex DL-RHTX Feedback DataLogger

Specifications of the Tramex IRT2 Infrared Surface Thermometer
