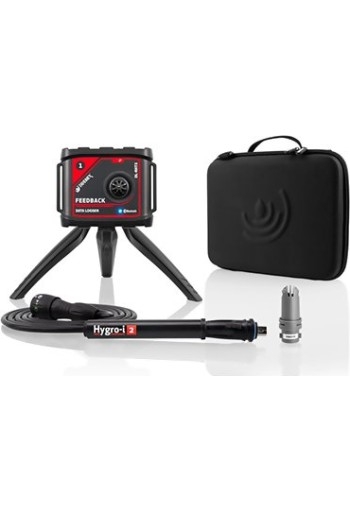

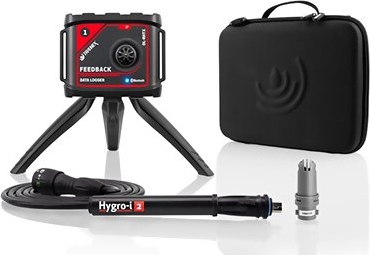

Tramex FBZK5.1 Feedback Datalogger EZ Kit

See More Tramex Moisture Meters

Tramex FBZK5.1 Feedback Datalogger EZ Kit

See More Tramex Moisture Meters
Price:
$710.00
    warrenty

    Product Description
    Ambient Relative Humidity, Temperature, Dew point, Grains per pound
    In Situ Relative Humidity, Temperature, Dew point, Grains per pound (with optional plug-in RH Probe) Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)

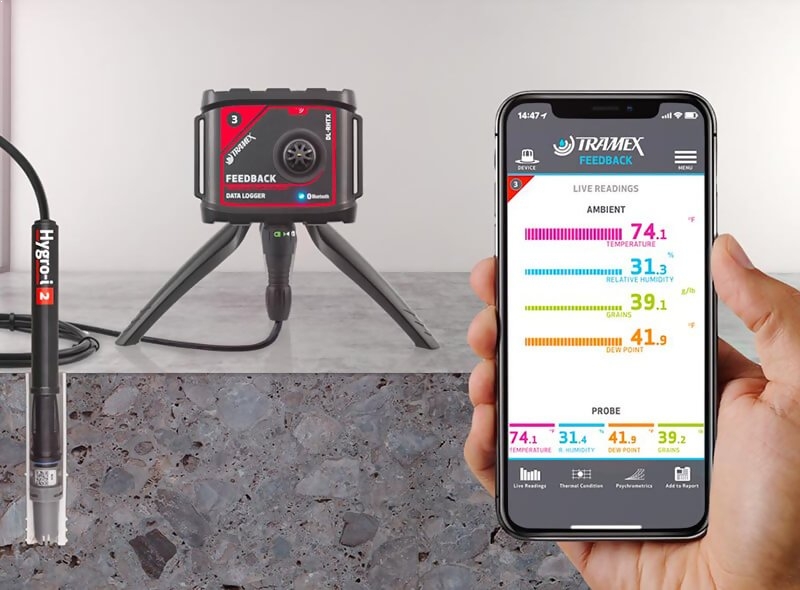

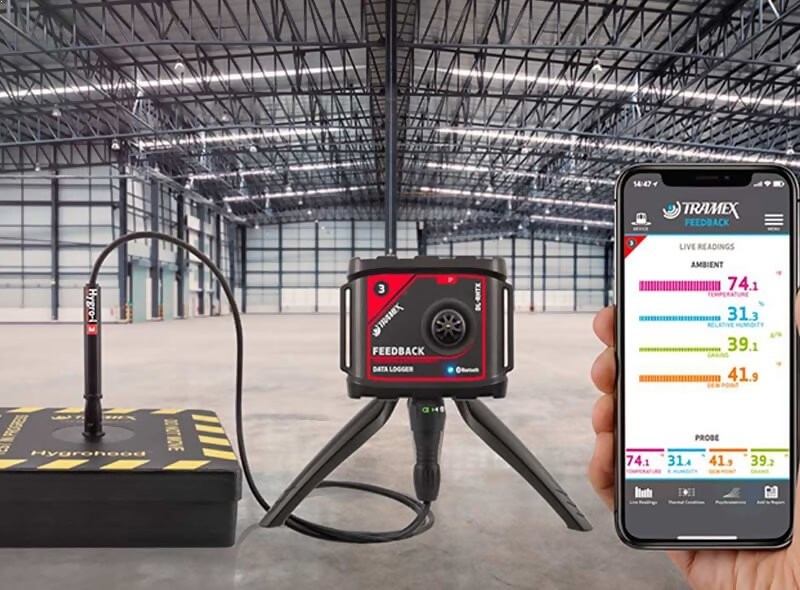

    The Tramex FBZK5.1 Feedback Datalogger EZ Kit has been designed and developed by Tramex for professionals who depend on accurate, reliable readings using the very best, state of the art technology and performing ASTM F2170. The Tramex DL-RHTX Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualize Live Readings, Thermal Conditions and Psychrometric Charts, as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Feedback Data Logger App and a compatible iOS or Android mobile device.


    line

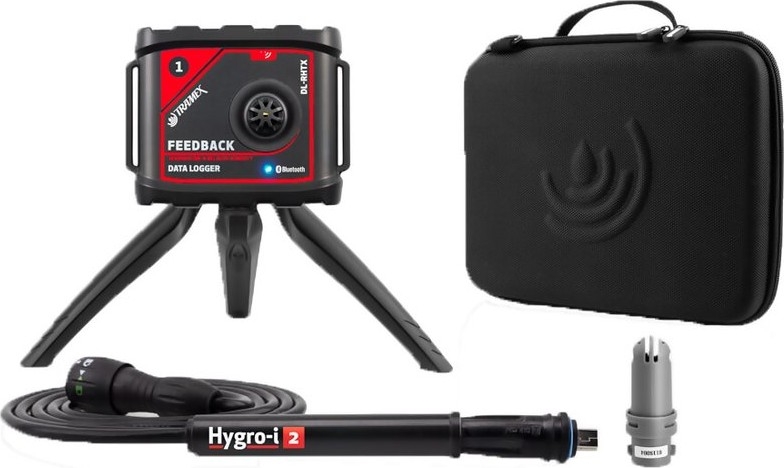

    Kit Contents
    line


    line
    Features
    line

    • Bluetooth BLE enabled for use with mobile devices.
    • Up to 100,000 data point entries possible.
    • Instant set up and start modes. Used to perform ASTM F2170.
    • Ambient and In-situ RH and temperature logging
    • Intuitive and instructive APP interface.
    • Adjustable interactive chart, spreadsheet, report and easy-export functions.
    • Connectivity up to 165ft (50 meters) for highly accessible data downloads.


    line
    Specifications
    line

    With built-in Ambient RH + Temperature sensor; Plug-in RH + Temperature Sensor (optional); Contact Temperature Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.

    Size3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
    Weight3.53oz (100g)
    ConstructionABS enclosure
    Power1 x AA type battery 1.5 Volt
    Memory100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
    Logging RateLogger interval adjustable between 5 minutes and 1 hour
    Transmission RangeUp to 165ft (50m) line-of-sight
    BluetoothBLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising
    IncludedWall Mounting and Tripod Stand
    Supported measurements
    Ambient Relative HumidityTemperature, Dew point, Grains per pound
    In Situ Relative HumidityTemperature, Dew point, Grains per pound (with optional plug-in RH Probe)
    Contact TemperatureEstimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
    Psychrometric chart showing Relative HumiditySpecific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point
    Relative humidity sensor specifications
    Range0 to 100%RH
    Accuracy±1.5%RH
    Range 0% to 80%RH ±2.0%RH
    Range 80% to 99%RH (@ 77ºF (25ºC))
    Resolution0.1% over the complete range
    Drift<0.25%RH per year
    Temperature sensor specifications
    Range-40ºF to 257ºF (-40ºC to 125ºC)
    Accuracy±0.1ºF Range 68ºF to 140ºF (±0.1 °C Range 20°C to 60°C)
    Sensor ProtectionPTFE Film protects sensor opening from water & dust
    Drift<0.04ºF (0.03ºC) per year
    Contact temperature probe
    UnitsºF (ºC)
    Temperature Range-20°F to +175°F (-30°C to +80°C)
    Accuracy±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C)
    Resolution0.1% over the complete range
    Battery
    Power supply1 x AA type battery 1.5 Volt
    Battery lifeOver 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied

    Supported measurements:

    • Ambient Relative Humidity, Temperature, Dew point, Grains per pound.
    • In Situ Relative Humidity, Temperature, Dew point, Grains per pound (with optional plug-in RH Probe) Contact Temperature, Estimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
    • Psychrometric chart showing Relative Humidity, Specific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point.
