Tramex WDIK Water Damage Restoration Inspector Kit
Industry: Water Damage Restoration

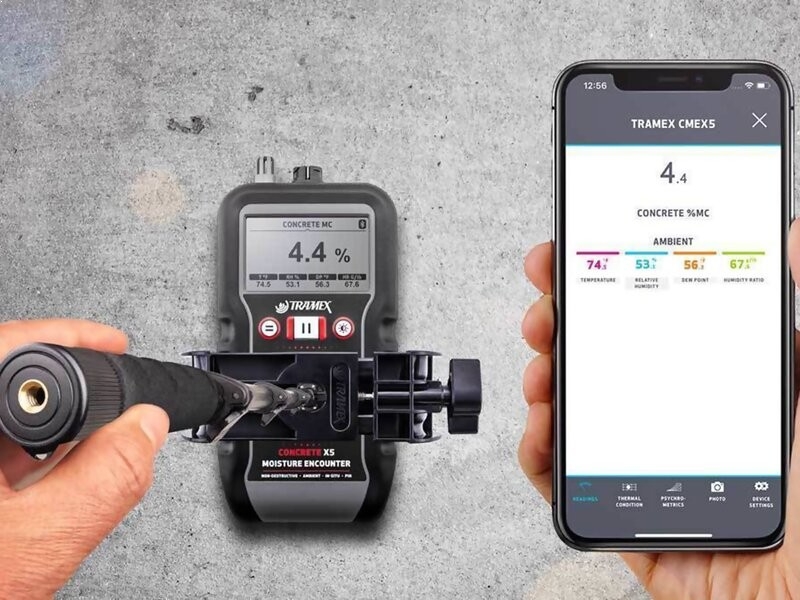

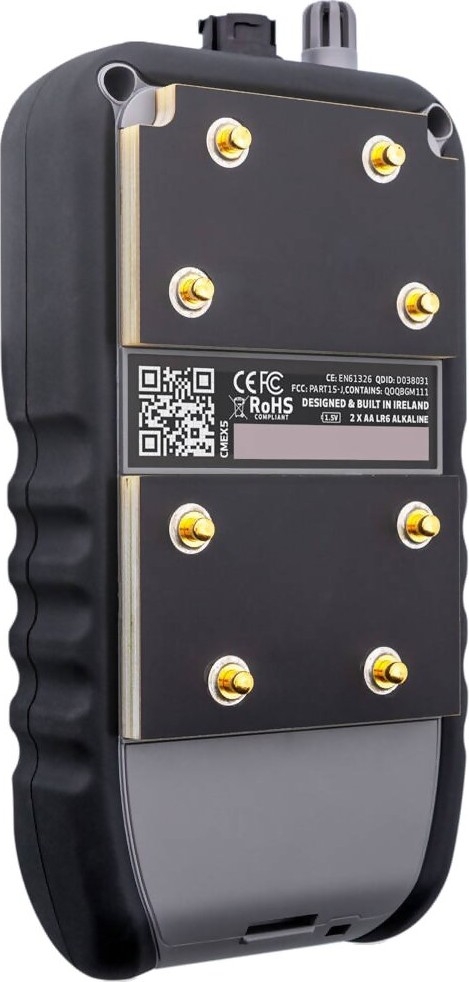

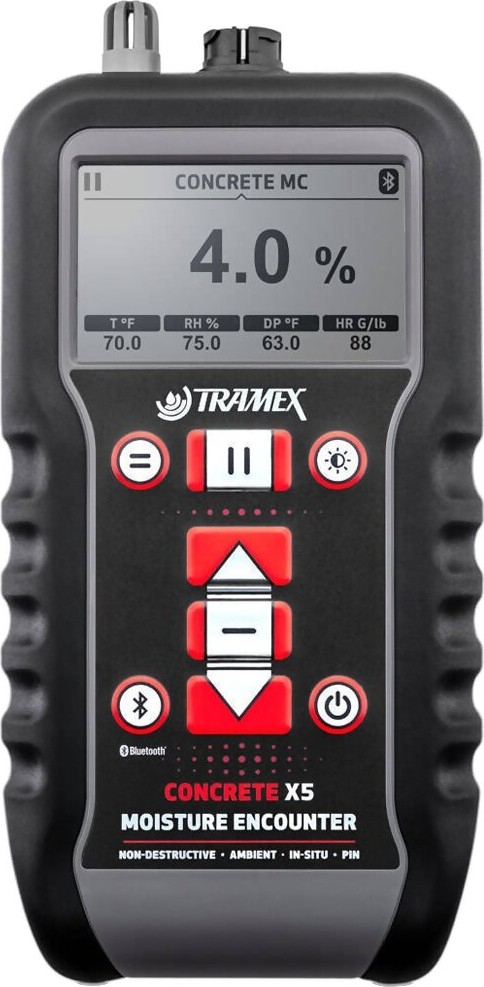

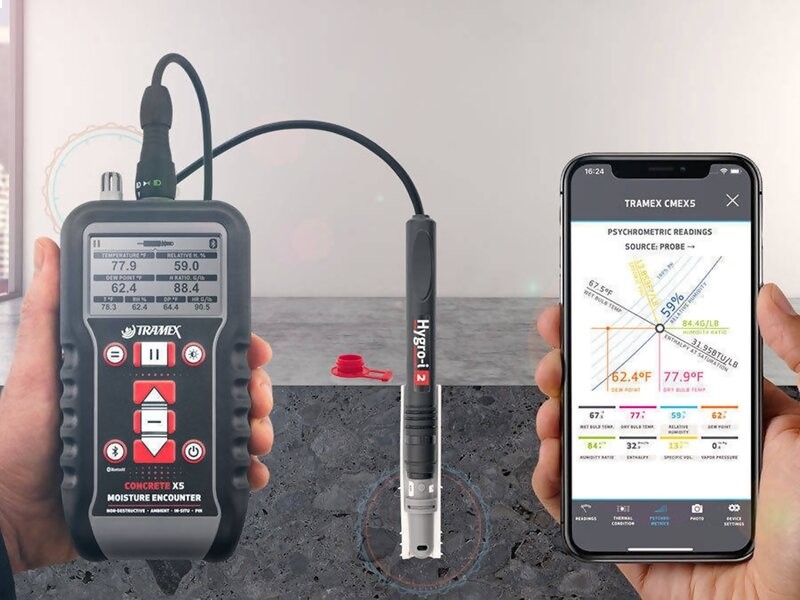

A compact kit for instant and precise testing of both Surface and In-Body concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method. The Tramex CMEX5 Concrete Moisture Encounter X5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5allows for in-depth moisture content probe testing within the concrete. The CMEX5 also incorporates reusable plug-in Hygro-i2 ® RH probes for in-situ testing of concrete. An infrared surface thermometer gives surface temperature and dew point conditions when used in conjunction with theCMEX5hygrometer. The Concrete Determinator Inspector Kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, as well as see your meter screen on your phone when using theCMEX5extension handle.
Popular complementary product: AP-F2170-B ASTM F2170 Accessory Pack for RH testing; including reusable Hygro-i2 probes, hole liners, and tools.

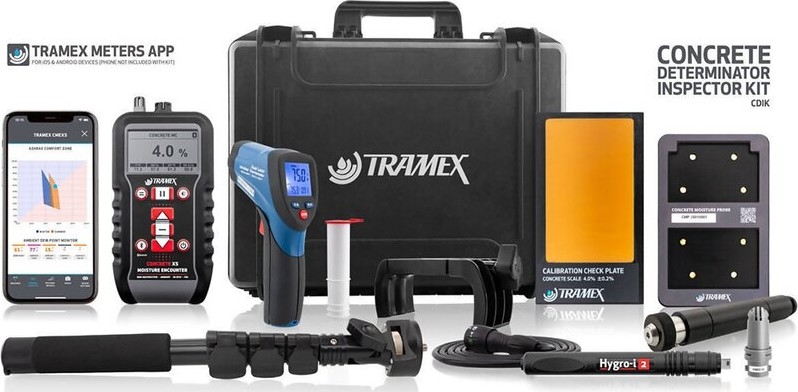

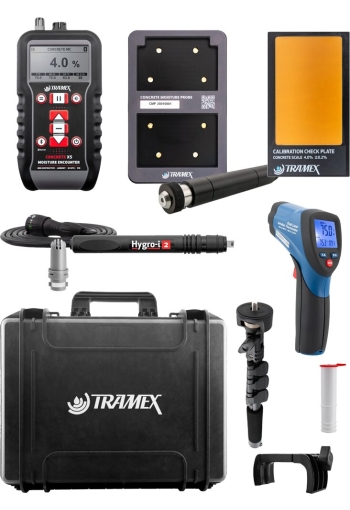

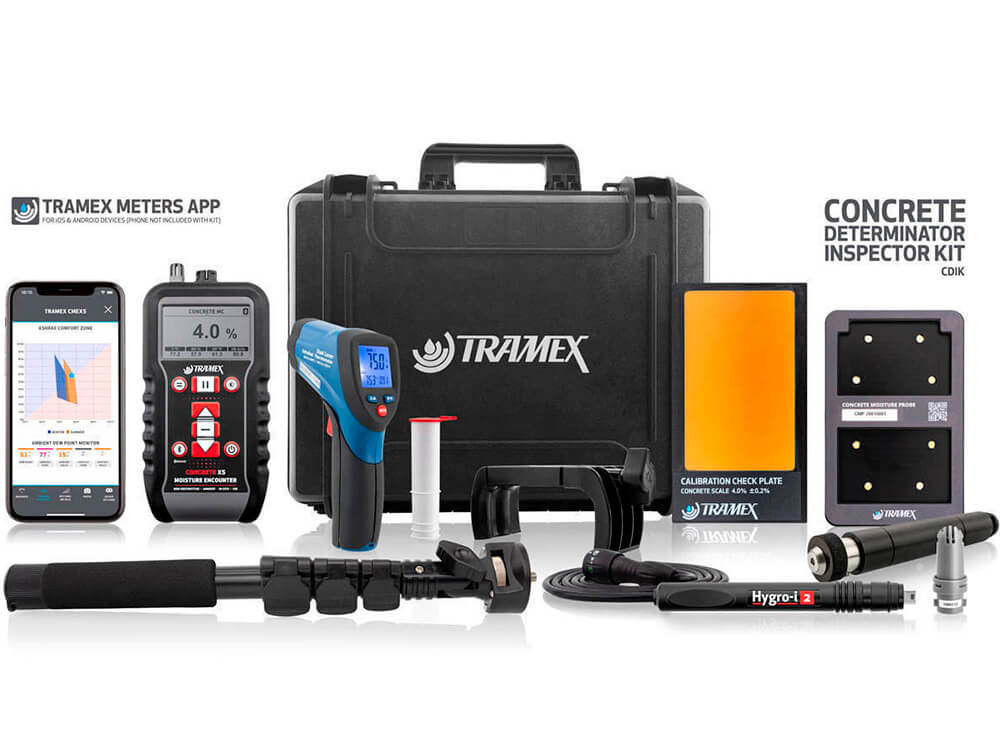

Kit Contents
Specifications
| Size | 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm) |
| Weight | 7.9 lbs (3.6 kg) |
| Power | 2 x AA batteries, 1 x 9 volt PP3 battery |
Tramex CME5 Concrete Moisture Encounter Non Destructive Moisture Meter:
| Size | 6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm) |
| Weight | 12.1oz (344g) |
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Analogue |
| Depth of penetration | approx. ¾" (20 mm) |
| Moisture Content for Concrete | 0 to 6 % |
| Comparative for Gypsum floor screed | 0 to 10 |
| Reference scale | 0 to 100 |

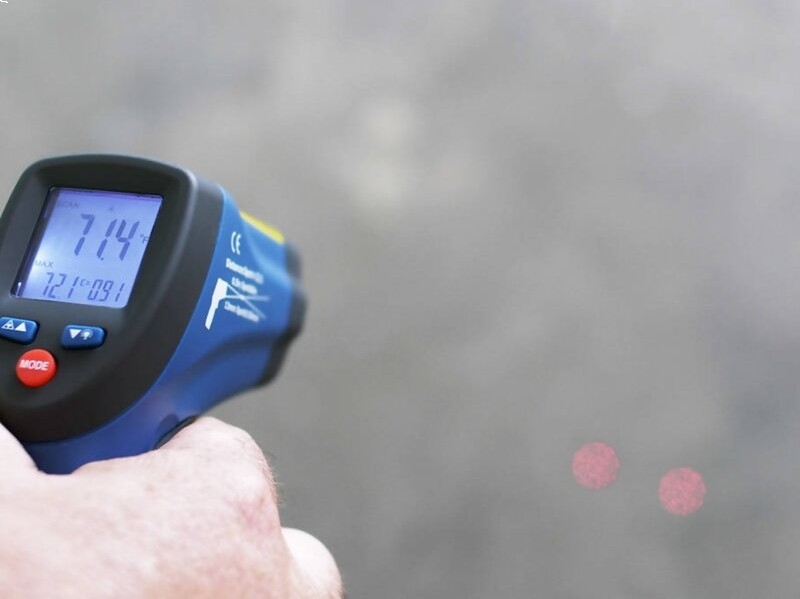

Tramex IRT2 Infrared Surface Thermometer:
Temperature range | -58°F ~ 1202°F (-50 to 650 °C) |
| Distance to Spot ratio | D:S = 12:1 |
| Display resolution | 0.1 °F(0.1°C) <1000 1°C >1000 |
Accuracy for targets | Assumes ambient operating temperature of 73 to 77°F (23 to 25 °C) -58°F ~ 68°F (-50 ~ 20°C) ±4.5°F (2.5°C) 68°F ~572°F (20°C ~300°C) ±1.0% ± 1.8°F (1.0°C) 572°F ~ 1202°F (300°C ~650°C) ±1.5% |
Repeatability | -58~68°F (-50~20°C) : ± 2.3°F (1.3°C) 68~1202°F (20~650°C) : ±0.5% or ±0.9°F (0.5°C) |
Response time | 150ms |
Spectral response | 8~14um |
Emissivity | Digitally adjustable from 0.10 to 1.0 |
Over range indication | LCD will show "----" |
Polarity: Automatic (no indication for positive polarity) | Minus (-) sign for negative polarity |
Diode laser output | <1mW,Wavelength 630~670nm, Class 2 laser product |
Operating temp. | 32 to 122°F ( 0 to 50°C) |
Storage temp. | 14 to 140°F (-10 to 60°C) |
Relative humidity | 10%~90%RH operating, <80%RH storage |
Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety | "CE" Comply with EMC |

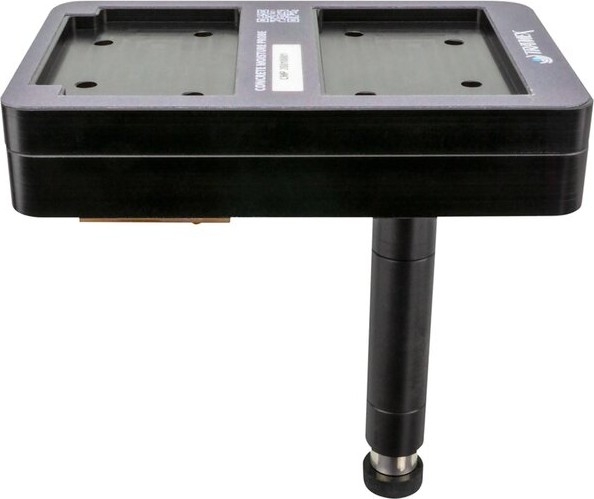

Tramex CDK Concrete Determinator Moisture Probe
| Moisture Content for Concrete with Tramex CMEX5 and CMEX2 | 0 - 6.9% |
| Moisture Content for Concrete with Tramex CME5 and CME4 | 0 - 6% |
| Depth of Penetration | 1 1/4” probe depth for concrete between 2” to 4”
2 1/4” probe depth for concrete between 4” to 6”
3 1/4” probe depth for concrete between 6” to 9”
4 1/4” probe depth for concrete between 9” to 11” |
