NDT - Non destructive testing
Built-in hygrometer and Infrared Surface Thermometer
Complies with ASTM D7954

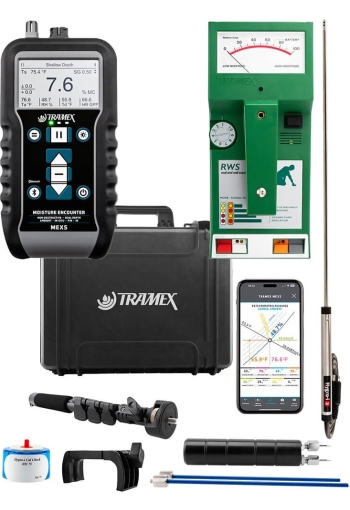

The Tramex BSMK Building Survey Master Kit is a complete kit featuring the Tramex RWS Roof Moisture Meter And Wet Wall Scanner for instant, non-destructive evaluation of moisture conditions deep within wall and roofing systems. The Tramex BSIMK X Building Survey Master Kit features the multifunctional Tramex MEX5 Moisture Encounter and Humidity Meter allowing for noninvasive testing of moisture conditions in numerous building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing.
The Tramex MEX5 Moisture Encounter and Humidity Meter has a built-in hygrometer and infrared surface thermometer for testing ambient relative humidity, temperature and dew point, and surface temperature. These can be used to identify detrimental condensation conditions conducive to microbial mold growth can also be identified.
The heavy-duty pin-probes measure moisture content in wood, and the insulated 200mm (7.8”) pins and narrow 127mm (5”) RH probe allow for in-situ probing. The Tramex BSIMK X Building Survey Master Kitcomes with extension handles and a protective heavy-duty carrying case with die-cut foam lining.

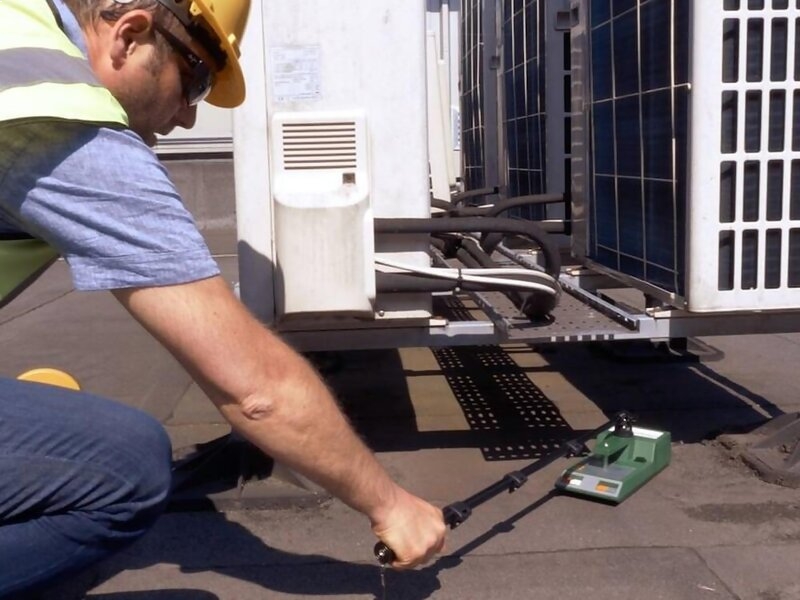

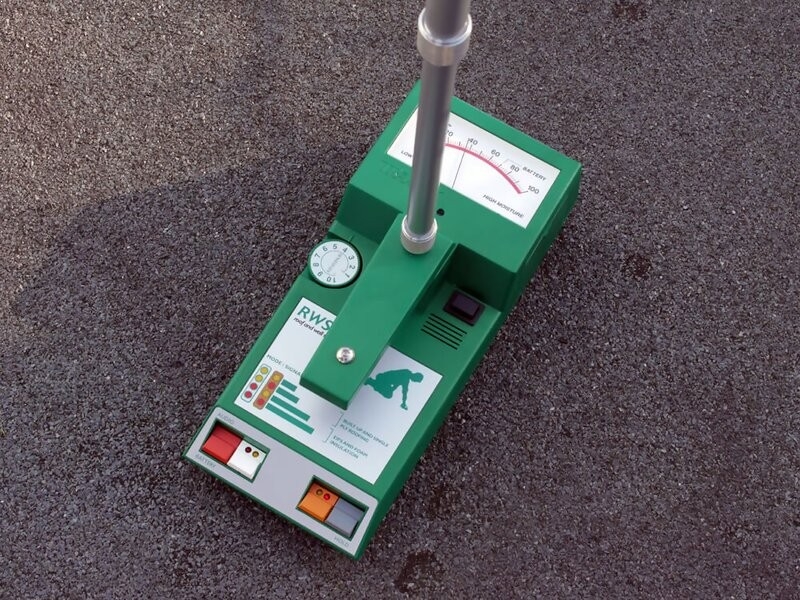

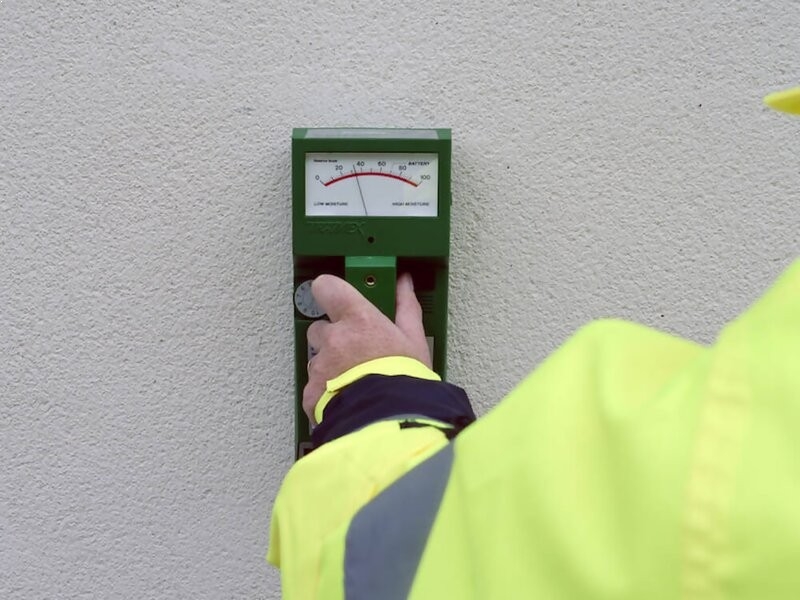

The Tramex RWS Roof Moisture Meter And Wet Wall Scanner is a multi-mode non-invasive impedance scanner designed for the instant, precise and non-destructive evaluation of moisture conditions and leak tracing in roofing per ASTM D7954 and in wall systems of the building envelope.

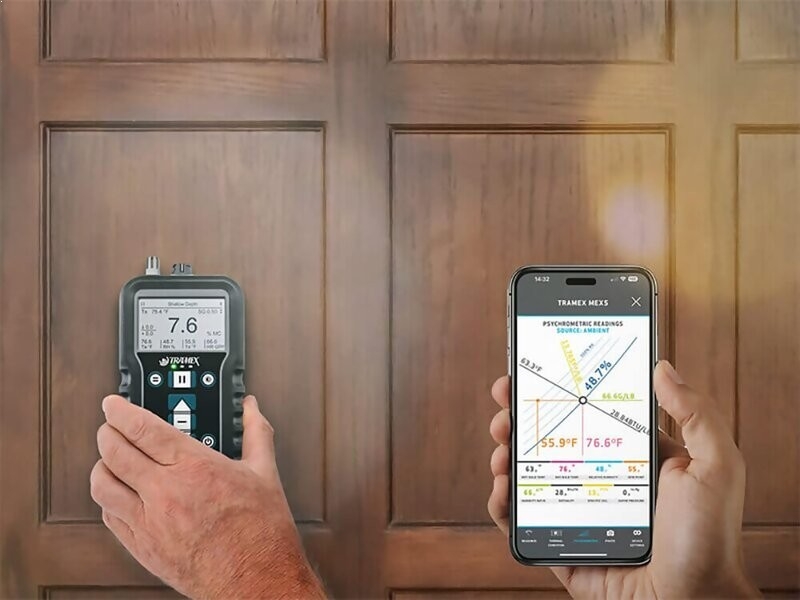

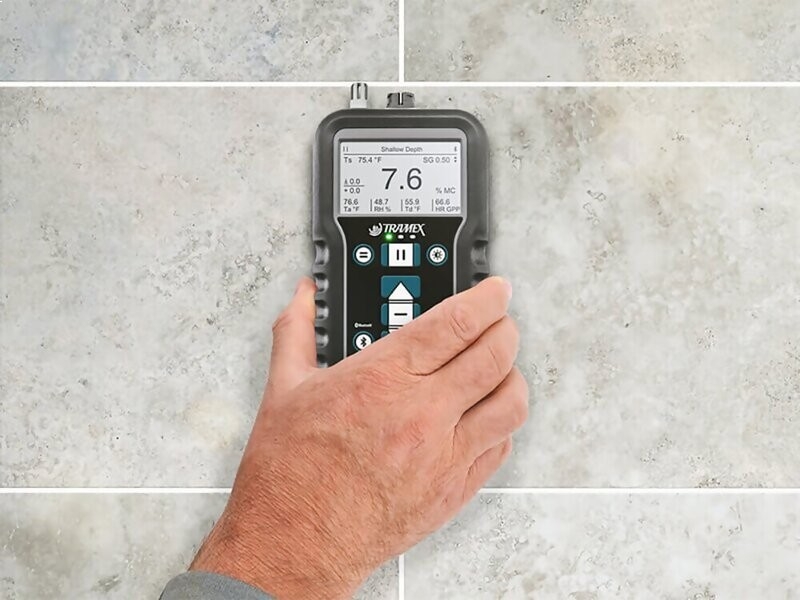

The Tramex MEX5 Moisture Encounter and Humidity Meter is a digital Dual-Depth, non-destructive moisture meter for wood and various building materials such as drywall, roofing, plaster, tile and masonry. The Tramex MEX5 Moisture Encounter and Humidity Meter has a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and also incorporates external in-situ RH probes for in-situ equilibrium RH readings, as well as Pin probes for wood, drywall, and WME readings. Moisture test results can be visualized and Geotagged with the Tramex Meters App and turned into moisture maps, reports and charts for sharing.
Kit Contents
Features
Features of the Tramex MEX5 Moisture Encounter and Humidity Meter
NDT - Non destructive testing

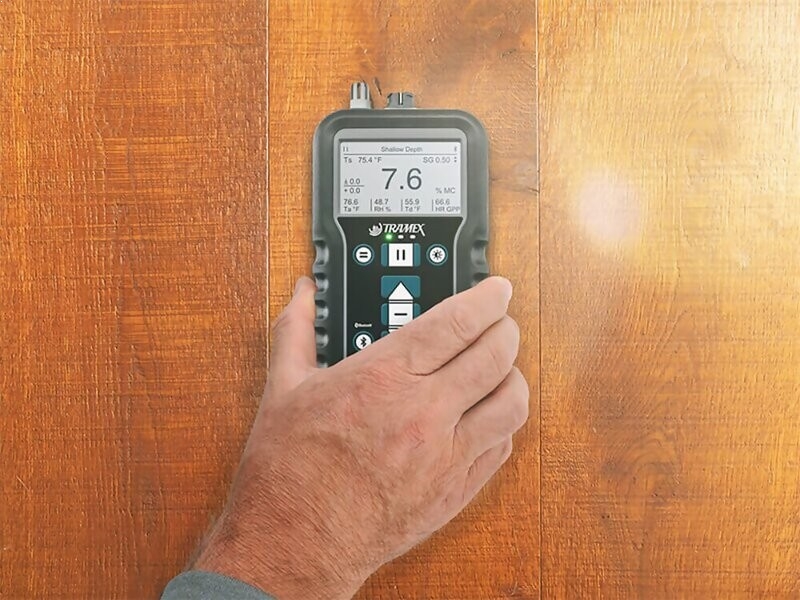

- %MC dual depth measurement of wood
- Comparative dual depth of drywall, roofing, plaster, tile and masonry

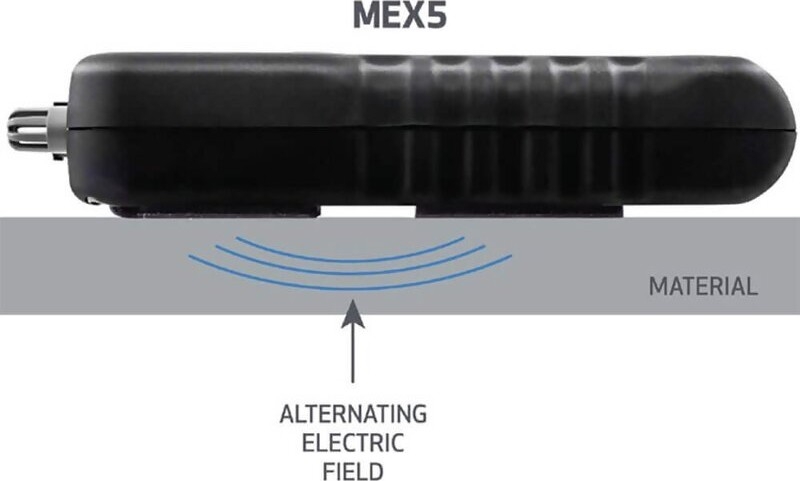

- Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
- LED indicator Low/Med/High for all NDT scales
- Built-in Hygrometer readings on permanent display
- Built-in Surface Temperature Infrared Thermometer
- Adjustable Specific Gravity for NDT wood readings
- Baseline reference reading set point adjuster to compare to known dry / drying goal reading
Built-in hygrometer and Infrared Surface Thermometer
- Psychrometric evaluations of Ambient RH, Temp, Dew Point Temp, Humidity Ratio (GPP, g/kg)
- Sufrace Temperature
- Delta Temperature value
- Enthalpy readings
- Emissivity adjustment for surface temperature correction
Pin Probe (optional plug-in probe)
- Variety of external pin probes and electrodes can be used
- %MC wood, pre-set international standards / access to various preset wood species
- WME readings
- Drywall %MC
- Auto calibration check
- Temperature correction of %MC in wood
- EMC Expected Moisture Content indication based on ambient conditions and wood selection
Uses
- Locating moisture-related problems and relative humidity issues within and behind a variety of building materials in the building envelope
- Mapping the extent of moisture damage caused to buildings
- Monitoring progressive drying conditions in the drying process of building materials and surfaces
- Dual-Depth penetration allows for comparison of surface and core moisture and elimination of substrate influence on the testing of coverings

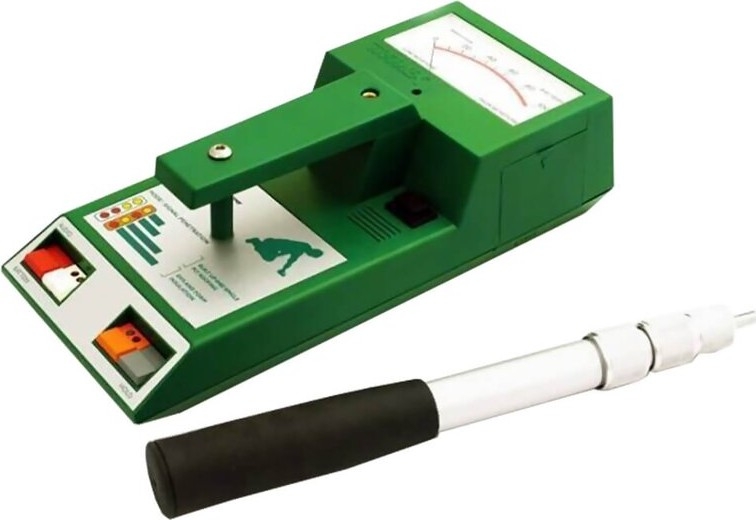

Features of the Tramex RWS Roof Moisture Meter And Wet Wall Scanner
- Complies with ASTM D7954
- For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications
- To evaluate the extent of the moisture problem and help trace and pin-point its source
- Multi-mode functions allowing for depth penetration and sensitivity selection
- Fast and easy to operate giving instant clear readings
- "Hold” function facilitates ease of recording readings
- Lightweight, handheld and battery operated
- Telescopic handle (for use on roofs)
- Inexpensive to purchase and operate compared to other non-destructive testing methods
Specifications
Tramex BSIMK X Building Survey Master Kit:| Size | 20.5” x 15.7” x 5.9” (52cm x 40cm x 15cm) |
| Weight | 9.9lbs (4.51kg) |
| Power | 2 x AALR6 Alkaline, 3 x 9 volt PP3 Batteries (included) |
Tramex MEX5 Moisture Encounter and Humidity Meter
| Construction | ABS Body |
| Power | 2 x AALR6 ALKALINE (included) |
| Display | Digital 2.3" x 1.4" (58mm x 35mm) |
| Depth of penetration | Shallow signal: up to ⅜" (10mm) | Deep signal: up to 1¼" (30mm) |
Tramex RWS Roof Moisture Meter And Wet Wall Scanner
| Size | 4.9" x 10.8" x 2.9" (125mm x 275mm x 75mm) |
| Weight | 1.88lbs (853g) |
| Construction | ABS Body Power: 9 volt PP3 |
| Battery | Included |
| Display | Analog Depth of penetration: 4" (100mm) |
| Four Ranges | Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity |
