Western Instruments WE-3 Standard AC Yoke

See More Magnetic Yokes

Western Instruments WE-3 Standard AC Yoke

See More Magnetic Yokes
Price:
$650.00
    warrenty

    Product Description

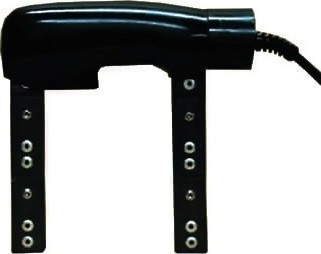

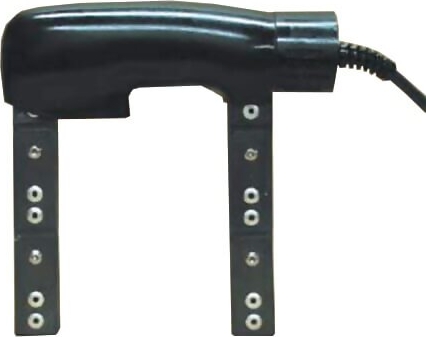

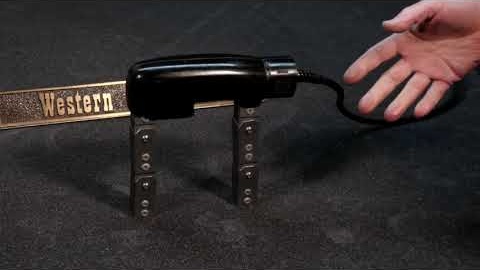

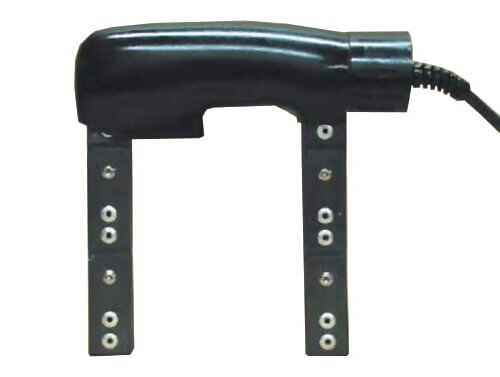

    Western Instruments WE-3 Standard AC Yoke
    Compact, Light Weight, Comfortable Grip, Standard Micro Switch, Urethane Rubber Grip, Durable & Economical
    Manufactured with an economical standard yoke switch
    Full current, not sealed switch type

    The Western Instruments WE-3 Standard AC Yoke is the world's most economically priced AC Yoke. Manufactured like competitive Yokes, it is our economical alternative to our premium quality WC-Series models.

    The WE-3 is a lightweight AC Yoke, used for Magnetic Particle Inspection, to quickly find surface defects. The WE-3 is Western’s economical alternative to our premium quality W-6 and WC-6 Models. This handheld Yoke has borrowed many of the low cost features of competitive AC Yokes, so we do not recommend it for use in Wet Method Inspection. The WE-3 has many superior features, such as its ergonomic grip, Urethane Rubber Housing, and Quick Change Switch.

    The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain permitting better and longer inspections. The compact design allows the WE-3 to fit into confined spaces better than full size Yokes. The urethane rubber housing provides superior durability in rugged environments, so the WE-3 is suitable for the high Arctic or the Sahara Desert.

    The WE-3 lifts over 10 pounds, exceeding ASTM or ASME specifications for AC Yokes. Magnetic Particle Inspection, with an AC field, is the fastest and easiest way to find surface discontinuities. The AC field provides maximum magnetic particle mobility, which cause the particles to migrate quickly and congregate at defects. Demagnetization is simple with this ‘one man inspection’; the operator simply activates the Yoke while pulling it off the workpiece


    line
    Features
    line

    • Compact
    • Light Weight
    • Comfortable Grip
    • Standard Micro Switch
    • Urethane Rubber Grip
    • Durable
    • Economical


    line
    Specifications
    line

    Voltage115 or 230 Nominal
    ModelsWE-3 (115 Volt)
    WE-3K (230 Volt)
    Current4.0 Amps (115V), 2 Amps (230V)
    Frequency50-60Hz
    Cord Length8’(2.5m), AWG3-16
    Lift10 pounds (4.6kg) minimum
    Capacity0 to 11” (280mm)
    FinishBlack Urethane Rubber
    Weight6.3 pounds (2.9kg)


    line
    Applications
    line

    • Automotive
    • Aerospace
    • Weld Inspection
    • Pressure Equipment
    • Piping
    • Fabrication
    • Manufacturing


    line
    Related Products
    line

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line

    Accessories for Western Instruments Magnetic Yokes:

    related


    line
    Downloads
    line

    Western Instruments WE-3 Standard AC Yoke - Data Sheet
    Western Instruments WE-3 Standard AC Yoke - Instruction Manual
