Western Instruments WC-6UW Compact Underwater Yoke

See More Magnetic Yokes

Western Instruments WC-6UW Compact Underwater Yoke

See More Magnetic Yokes
Price:
$1,020.00 - $1,075.00
    warrenty

    Product Description

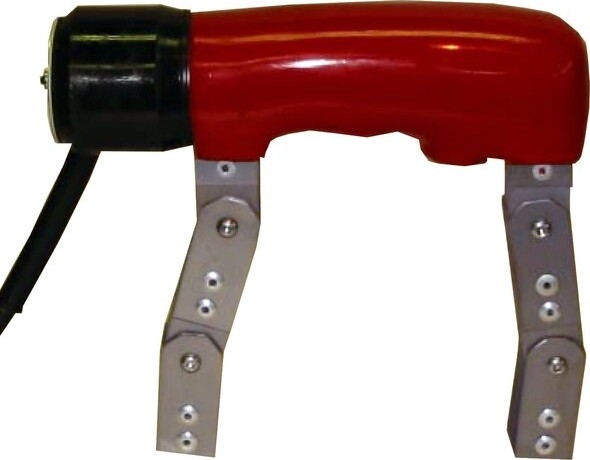

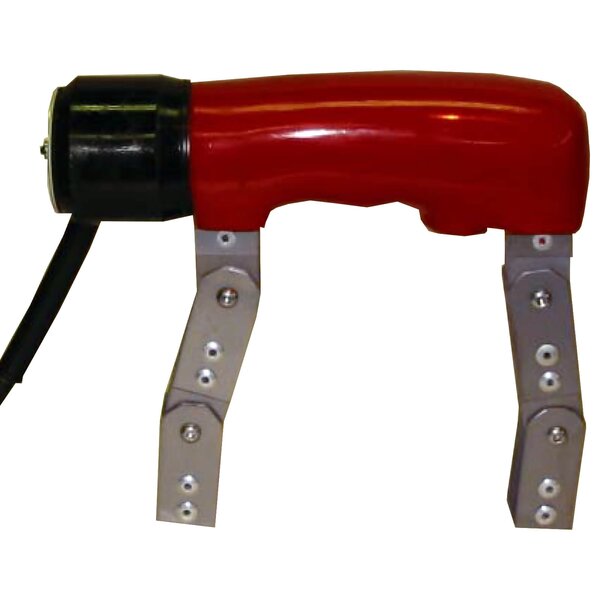

    Western Instruments WC-6UW Compact Underwater Yoke
    Developed for Underwater use

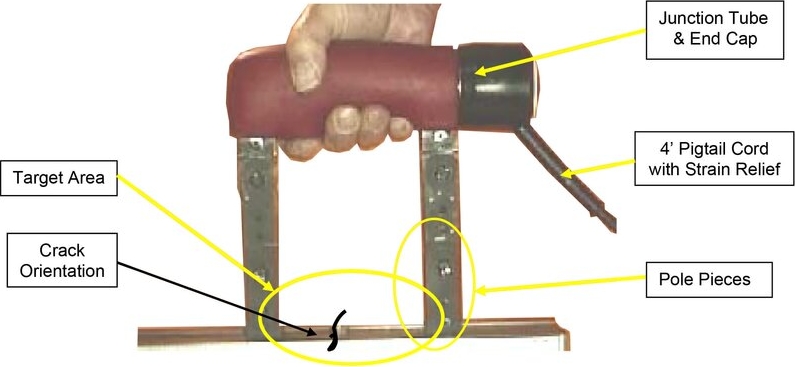

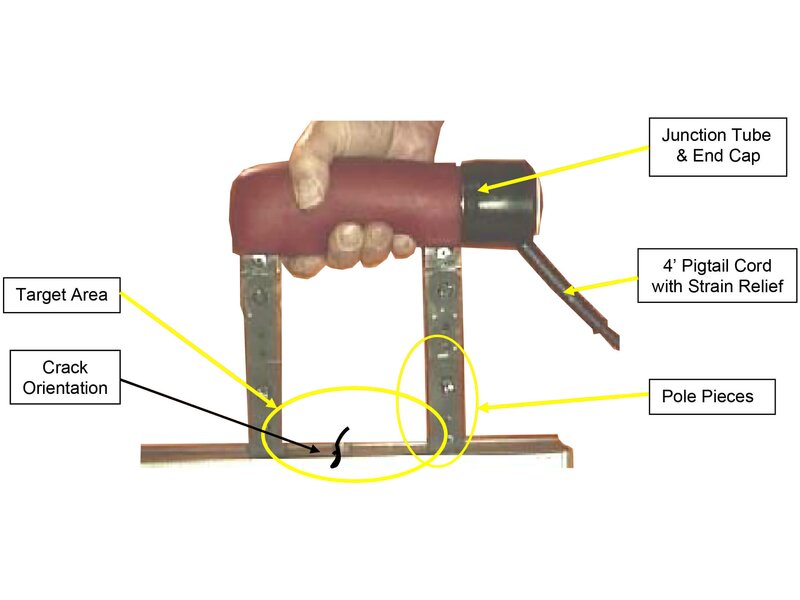

    Supplied with a Pig Tail

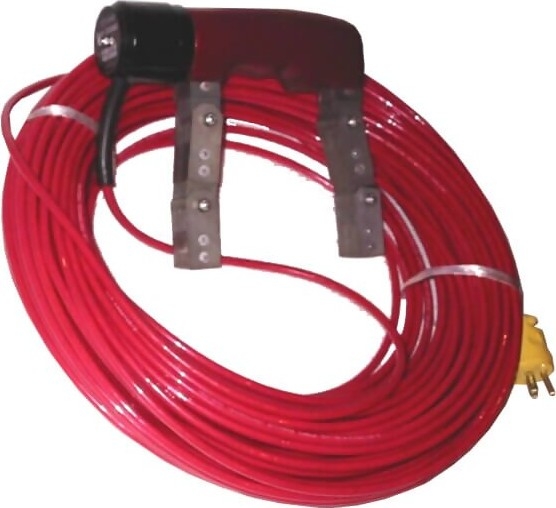

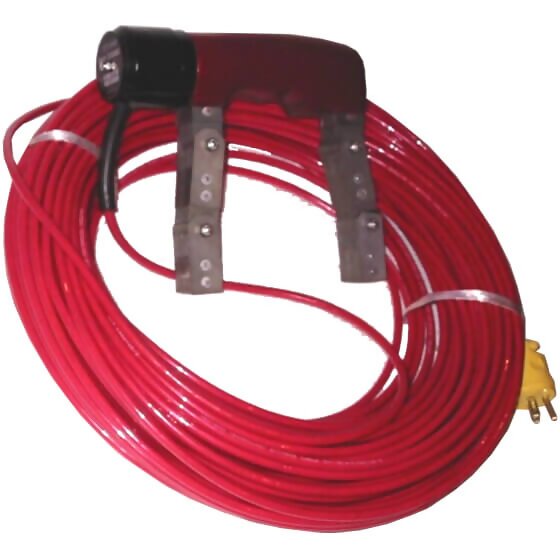

    The Western Instruments WC-6UW Compact Underwater Yoke is developed for Underwater use, such as Offshore Platforms, Pipelines, Ships, etc. The WC-6UW is supplied from a switchable Top Side power supply; 115 or 230 VAC, Pulsed DC, or a 12 Volt Battery. The WC-6UW is supplied with a Pig Tail, or optionally with 250 feet (76m) of Power Cable.

    The Western Instruments WC-6UW Compact Underwater Yoke is an AC Yoke designed for Underwater Magnetic Particle Inspection. The WC-6UW induces a magnetic field into the ferrous material being tested from an external power supply. This power supply can be either 115VAC (or 230VAC K Models) or 12VDC), but must be fully grounded and equipped with a GFI.

    The Western Instruments WC-6UW Compact Underwater Yoke is manufactured for full submergence to 300’ (91m), thus it is exposed to high static heads. To counteract this pressure, each lamination within the Iron Lamination Frame is sealed to prevent the ingress of water.


    line
    Specifications
    line

    ModelWC-6UW (115V)WC-6UWK (230V)
    Voltage115VAC230VAC
    Frequency60 Hz50 Hz
    Current4.0 Amps2.0 Amps
    ControlsTop Side or Approved Underwater Device
    Capacity<10 Pounds (4.5kg) in AC
    <50 Pounds (23kg) in DC
    Pole Spacing0-11" (0-280mm)
    Pole Cross Section1" (5mm)
    Weight6.5 Pounds (3.0kg)


    line
    Related Products
    line

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line

    Accessories for Western Instruments Magnetic Yokes:

    related


    line
    Downloads
    line

    Western Instruments WC-6UW Compact Underwater Yoke - Instruction Manual
