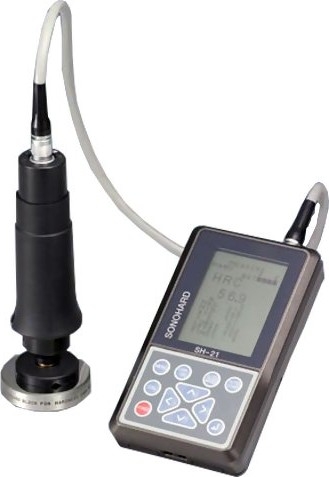

    Checkline SH-21 Metal Hardness Tester - Rockwell HRC
    Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units.

    The Checkline SH-21 (now SH-21A) is designed for precise measurement of hardness in difficult to reach areas of compact parts, metal casts, gears, crank shafts, component parts and more. It is ideal for inspection and maintenance of large-scale structures, vehicles, ships, steel towers, bridges, aircraft.


    line
    Kit Contents
    line

    • SH-21 Metal Hardness Tester - Rockwell HRC
    • Probe

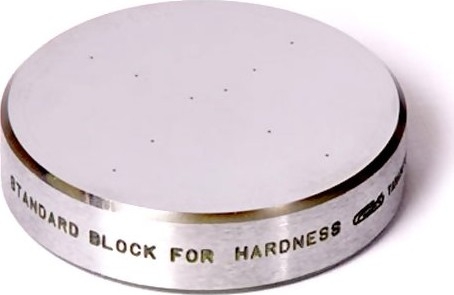

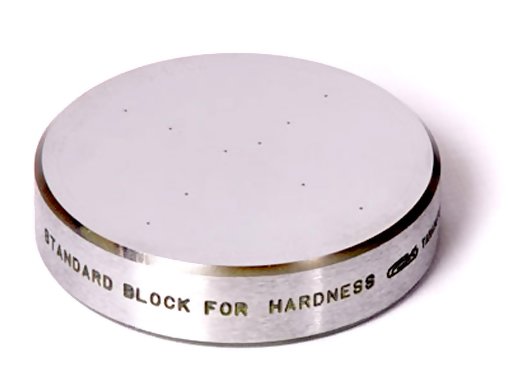

    • Hardness test block (approx 55HRC)
    • 1.5m probe cable
    • 100-240V AC Adapter
    • Battery charger
    • 1 Li-On battery

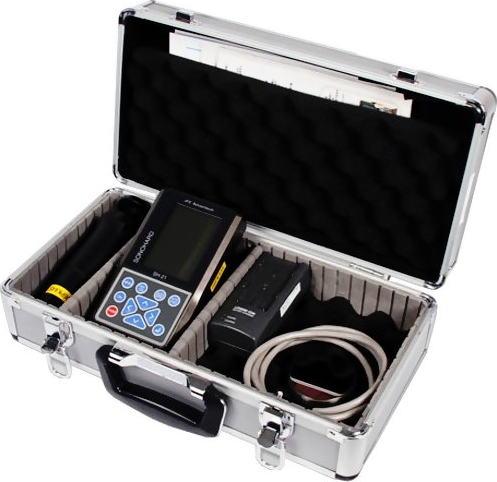

    • Carrying case


    line
    Features
    line

    • Fast action, measures hardness in seconds.
    • Practically undetectable measurement technique leaves indentations of 0.1mm2 allowing use on finished products.
    • Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units.
    • Measurement can be converted to tensile strength, N/mm2
    • Readings not affected by surface underneath test sample.
    • 2000 Reading data memory can be transferred to PC.


    line
    Specifications
    line

    Measuring IndentorDiamond indenter for Micro-Vickers
    (facing-to- surface angle of 136°)
    Testing ForceSH-21-E2: Approx 2kgf (roughly 20N)
    SH-21-E1: Approx 1kgf (roughly 10N)
    SH-21-E4: Approx 4kgf (roughly 40N) (manual probe only)
    Measuring RangeRockwell hardness: HRC 10.0 - 70.0
    Vickers hardness: HV 100 - 999
    Shore hardness: HS 20.0 - 99.9
    Brinell hardness: HB 85 - 550
    Resolution1HV, 0.1HRC, 0.1HS, 1HB, 1N/mm2 (tensile strength)
    RepeatabilityHRC : ± 1.0HRC
    HV : ± (3%rdg)HV
    HS : ± 1.0HS
    HB : ± (3%rdg)HB
    Applicable test materialsSteel is the principle material, other metallic materials may also be measured by calibrating against a standard hardness test block.
    DisplayDigital display (LCD, 4 digits) with EL backlight
    Temp limit0-50 C Ambient
    PowerAC adapter(100 - 240V) or lithium ion rechargeable battery
    Battery Life5 hours using backlight, 8 hours without backlight
    DimensionsDisplay: 97(W) x 50(D) x 170(H) mm
    Probe diameter: 40mm, length: 164mm
    WeightDisplay: approx. 400g (including battery)
    Probe and cable: approx. 400g
    Carrying case dimensions400(W) x 220(D) x 140(H) mm
    OutputRS-232C output used for data transmission or printing
    FrequencyMotorized / manual switchover type approx 69-71kHz
    Manual type (optional) approx 38-40kHz
    ConversionHV, HRC, HS, HB, N/mm2 according to JIS B 7731, ASTM E 140, DIN 50150
    Warranty1 Year
