Rex OS-2H Test Stand with dampener for Type A, B, E and O Durometers

See More Durometers

Rex OS-2H Test Stand with dampener for Type A, B, E and O Durometers

See More Durometers
Price:
$1,506.00
    warrenty

    Product Description

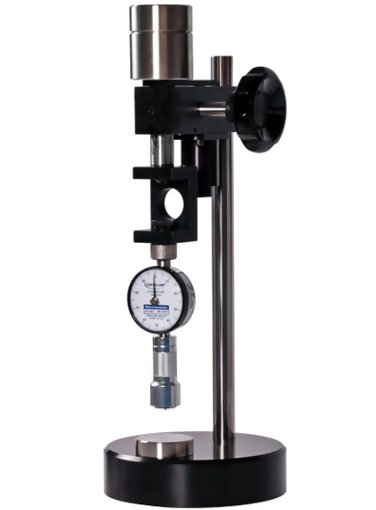

    Rex OS-2 Durometer Test Stand for Type A, B, E and O scale durometers
    Durometer Sold Separately
    Eliminates operator error

    We introduce the Rex OS-2 Durometer Test Stand compact operating stand for durometers in the A, B and O scales. The stand, used in conjunction with our Durometers, eliminates operator error sometimes associated with shop floor durometer testing. The stand features a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. It can be used with either the provided specimen holder or the optional O.R.F.-1 O-Ring Fixturing Set (sold separately)

    The OS-2H features an a dampener that lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests

    *Durometer Sold Separately
    Compatible with RX-1600, RX-1700 & RX-DD Durometers


    line
    Features
    line

    • Eliminates operator error in the A, B, and O scales
    • Stainless steel and anodized aluminum construction
    • Compact size - 13" high x 6" wide
    • Total Weight approximately 9 lbs.
    • Made in the U.S.A.
    • Optional Dampener further increases repeatability


    line
    Specifications
    line

    Sample ClearanceHeight: 2 5/8" To Specimen Holder
    Depth: 3 1/4" Durometer Center To Shaft
