    Product Description
    Checkline HPSAO Shore Durometer
    For use with: foams, steering wheels and inner linings of motor vehicles

    HPSAO Shore Durometer according ISO 7619-1 for determining the Shore surface hardness of foams, steering wheels and inner linings of motor vehicles with hardness < 20 Shore A


    line
    Kit Contents
    line

    • HPSAO Shore Durometer
    • Certificate of Compliance with the order 2.1 according EN 10204 free of charge
    • Instruction manual
    • Foam-fitted carrying case

    * Spring load of outer ring to create constant pressure


    line
    Features
    line

    • The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
    • Working face 44.5 mm Ø
    • Application range < 20 Shore A units
    • Flat bottom prevent tilting and improves the measuring accuracy

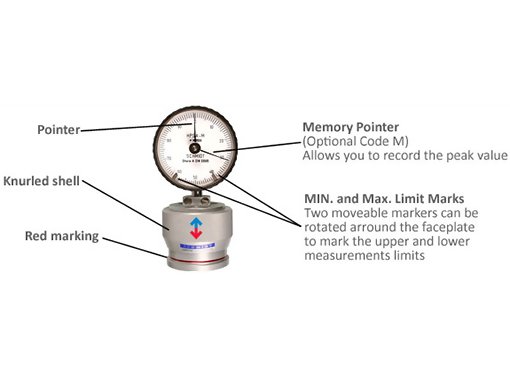

    • Adjustable Min./Max. indicator marks to highlight working range of the hardness tester
    • High repeatability


    line
    Specifications
    line

    IndentorBall, 5 mm diameter (R=2.5mm)
    Depth of indentation0 - 2.5 mm
    Typical applicationsFoams, steering wheels and inner linings of motor vehicles
    Accuracy± 1 hardness unit
    Application range< 20 Shore A
    StandardISO 7619-1
    Measuring spring force0.55 - 8.065 N
    Test pressure*Approx. 12.5 N
    Scale diameter54 mm
    Display range0 - 100 Shore AO units
    Working face44.5 mm Ø = 15.5 cm²
    Base plate44.5 mm Ø
    Weight, net (gross)Approx. 300 g (500 g)

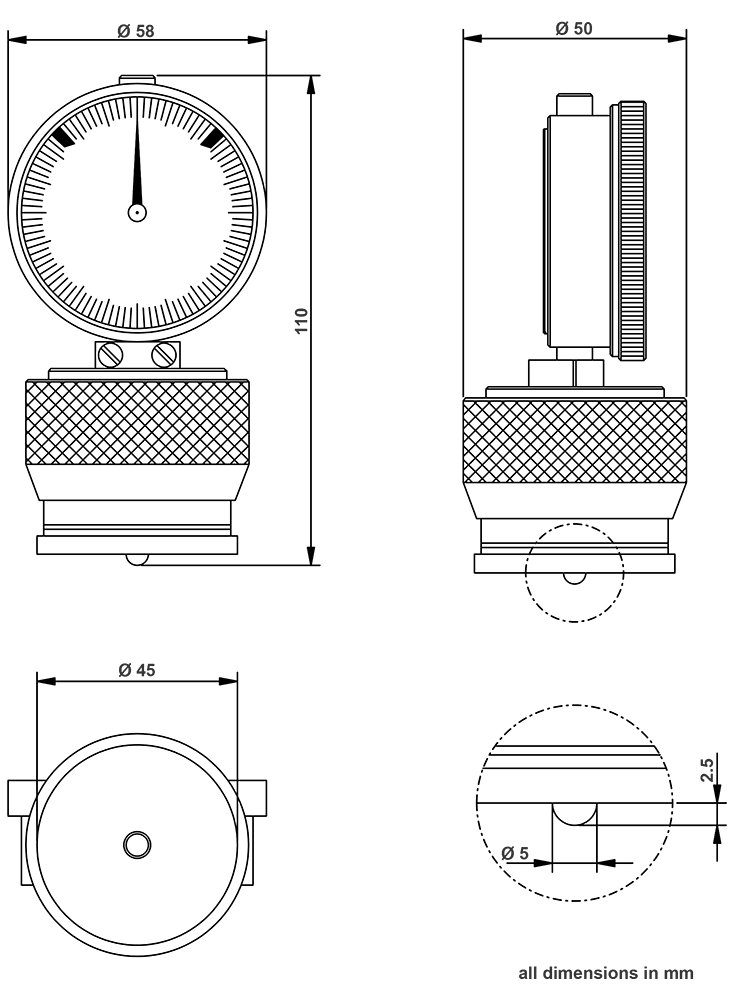

    Dimensions50 x 60 x 110 mm (LxWxH)


    line
    Operation
    line

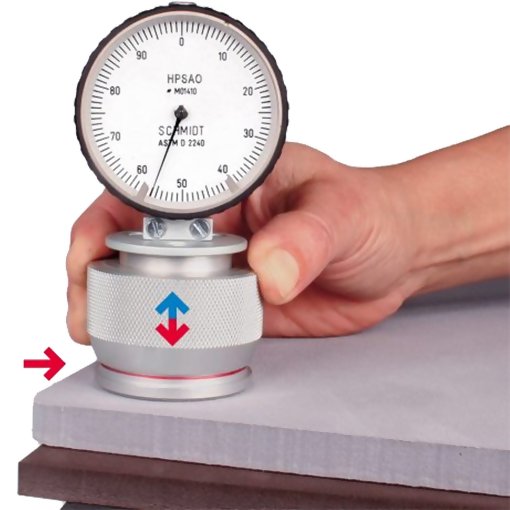

    For measuring the hardness, the spring-loaded outer ring of the housing is pressed downwards until the edge of the ring meets the colored marking on the housing. This ensures a constant pressure and prevents measuring errors.

    General:
    The principle used to measure shore hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration is converted to hardness reading on a scale with 100 shore units.

    As the depth of indentation is max. 2.5 mm the test material has to have a minimum thickness of 6 mm. If thickness is less stack some samples til you reach the required thickness.


    line
