Product Description

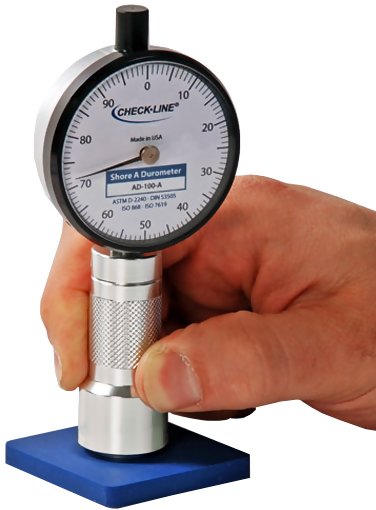

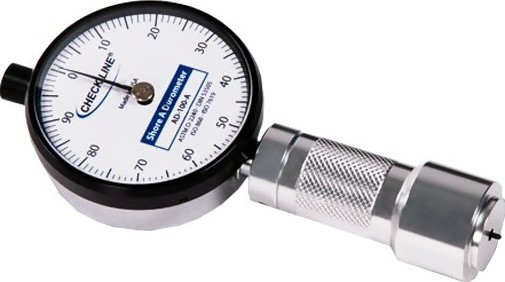

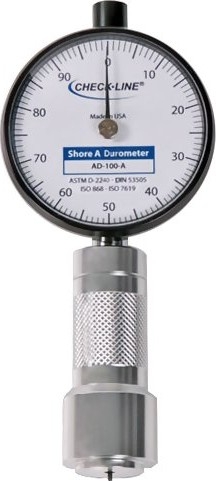

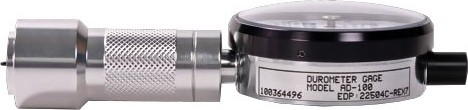

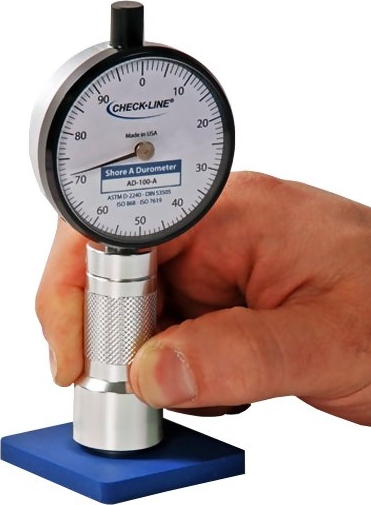

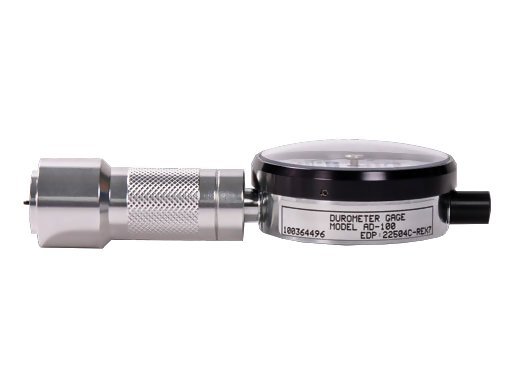

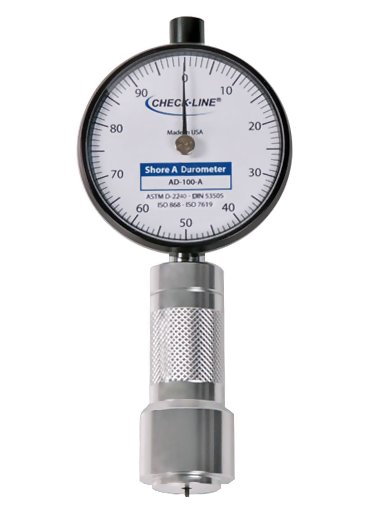

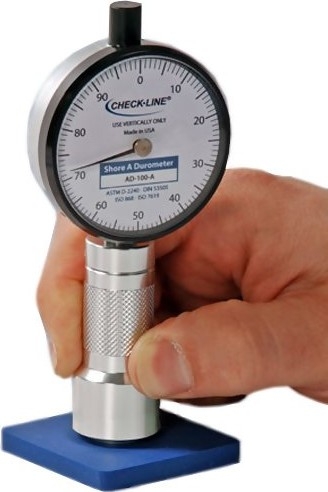

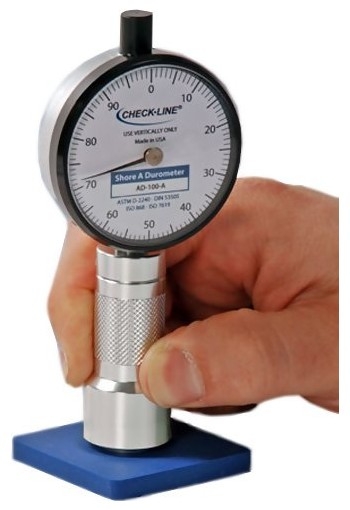

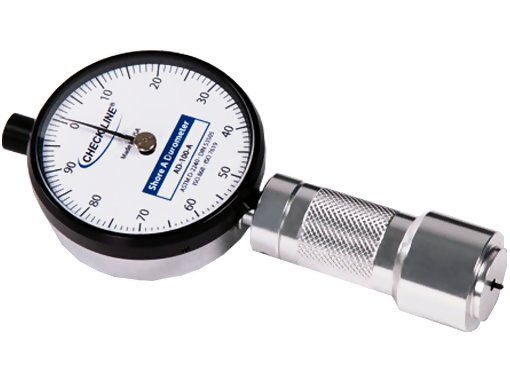

Checkline AD-100 Shore Durometer Tester
Available Scales: A, B, C, D, DO, O, OO & Asker C
Can be used in any measurement orientation as gravity does not affect readings

Available Scales: A, B, C, D, DO, O, OO & Asker C
Conforms to: ASTM D-2240, DIN 53505, ISO 868 & ISO 7619. Asker C model conforms to JIS K-7312.

The Checkline AD-100 analog durometer is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the AD-100 is the ideal durometer for a wide range of shore hardness measuring applications.

Eight models are available each calibrated for a different Shore scale including; Shore A, Shore B, Shore C, Shore D, Shore DO, Shore O, Shore OO and Asker C.

AD-100-D has been assigned NSN# 6635-01-672-7759

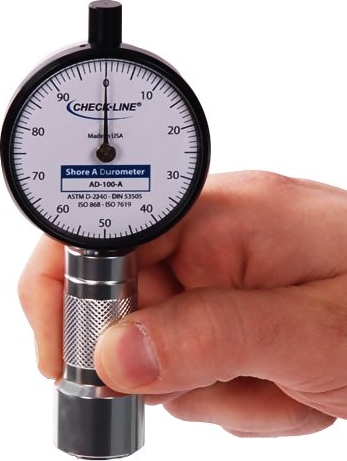

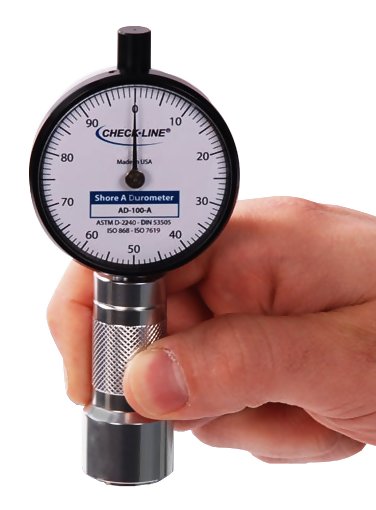

The AD-100 displays hardness readings on an easy-to-read analog scale calibrated in 0 to 100 Shore units. An optional MEMORY POINTER holds reading until manually reset, allowing operator to concentrate on measurement task. Also valuable if used in a position where dial is obstructed.

All AD-100 models are supplied in a foam-fitted protective carrying case along with NIST traceable calibration certificate.


line
Kit Contents
line

  • AD-100 Shore Durometer Tester
  • Calibration certificate
  • Instruction manual

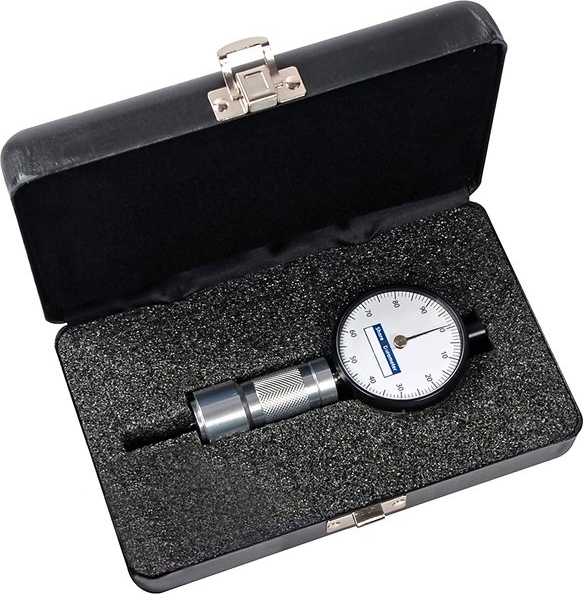

  • Foam-fitted metal carrying case


line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ ABQ


line
Features
line

  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619
  • 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
  • 1-Year Warranty
  • Can be used in any measurement orientation as gravity does not affect readings


line
Specifications
line

Measuring Range0 - 100 units
Accuracy*±1 durometer unit (A,B,C,D,O,DO)
±2 durometer units (OO)
Dial Size50 mm Diameter
Dimensions128 x 57 x30 mm
Weight200 grams (7 ounces)
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

line

Conformance to International Standards

ModelASTM D2240DIN 53505ISO 868ISO 7619
AD-100-AXXXX
AD-100-BX
AD-100-CX
AD-100-DXXXX
AD-100-DOX
AD-100-OX
AD-100-OOX


line
Easy To Operate
line


line

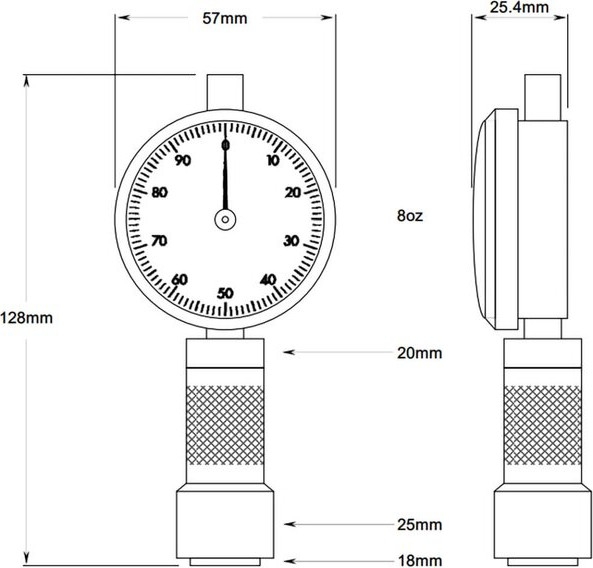

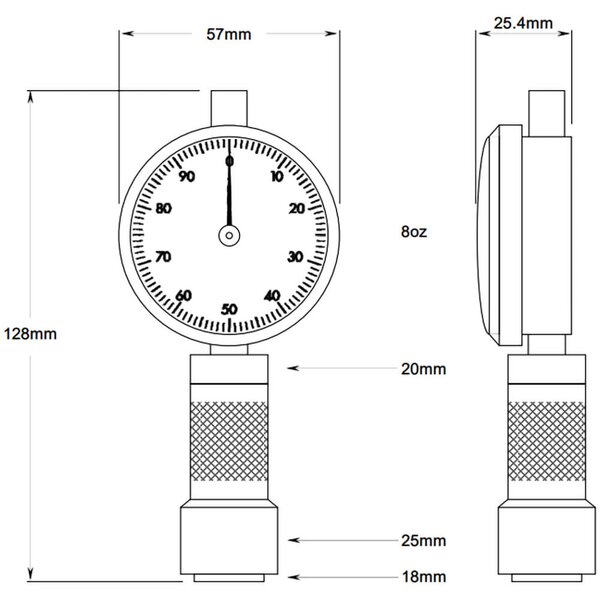

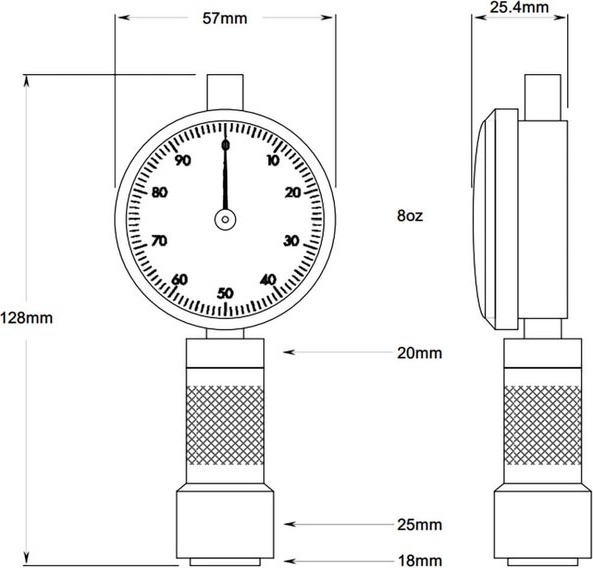

Dimensions
line


line
Related Products
line

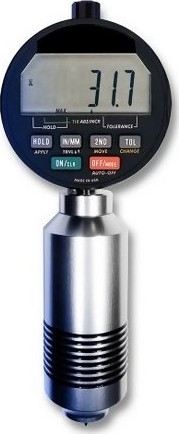

DD-100
