This product has been discontinued
Product Description
This product has been replaced by the Imada SY Durometer Stand

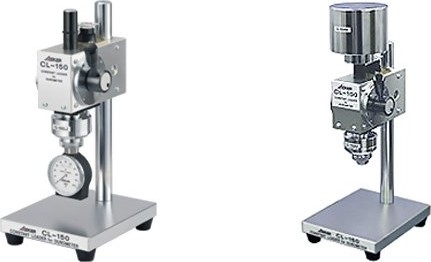

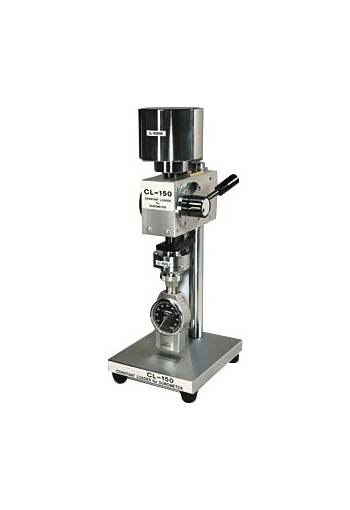

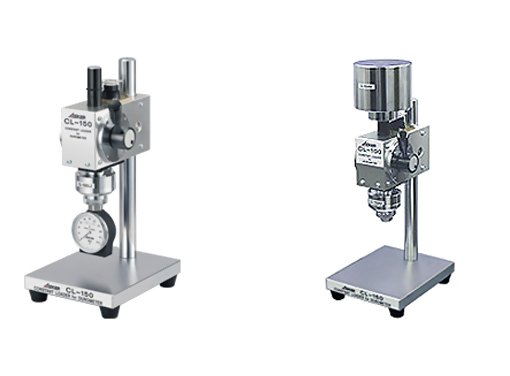

Asker CL-150 Constant Load Durometer Stand
DUROMETERS SOLD SEPARATELY
Unique flexible coupling system automatically aligns the presser foot to the surface of sample

CL-150L - for Shore A and Asker C Durometers
CL-150H - for Shore D Durometer
CL-150M - for Shore A, D and Asker C Durometers

The Asker CL-150 Constant Load Durometer Stand eliminates different speed and load variables which occur when testing samples with a hand-held durometer. The test speed and load the durometer applies to rubber and plastic samples are kep t constant with a pneumatic damper and a standard weight. In addition, our unique flexible coupling enables the presser foot of the durometer to make perfect contact even on samples with inclined surfaces. A printing roller durometer application can be setup using our special adapter.
Click image to enlarge

Features


  • Test speed and weight are constant
  • Test speed is adjustable with pneumatic damper

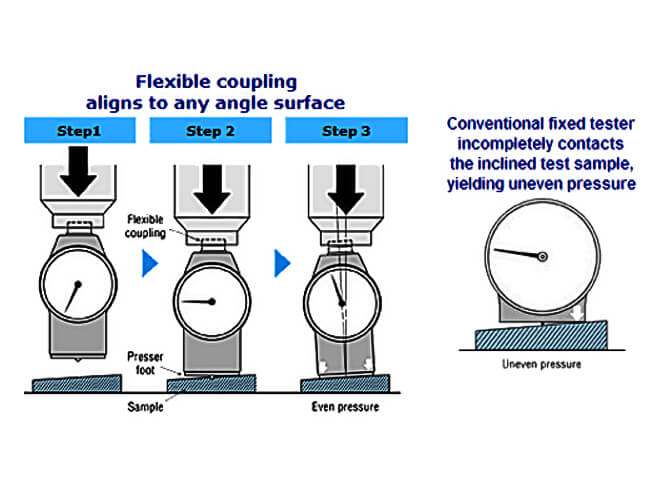

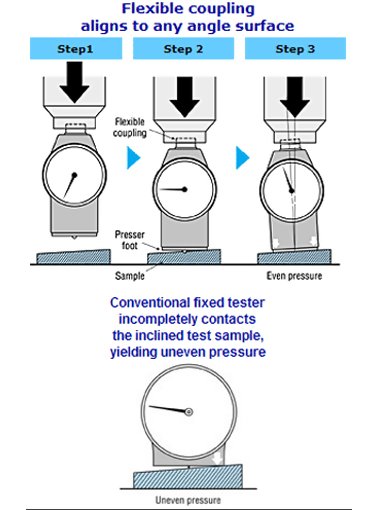

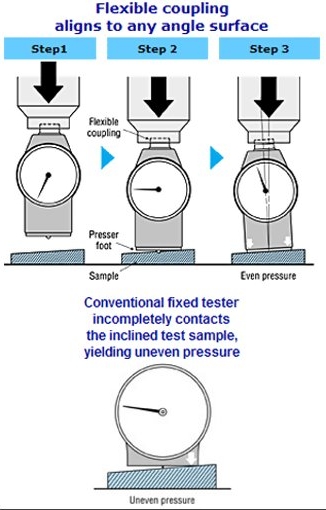

  • Unique flexible coupling system automatically aligns the presser foot to the surface of sample

Specifications


ModelCapacityDurometer
CL-150L1000gShore A and Asker C
CL-150H5000gShore D
CL-150M1000g/5000gShore A, D and Asker C

Downloads

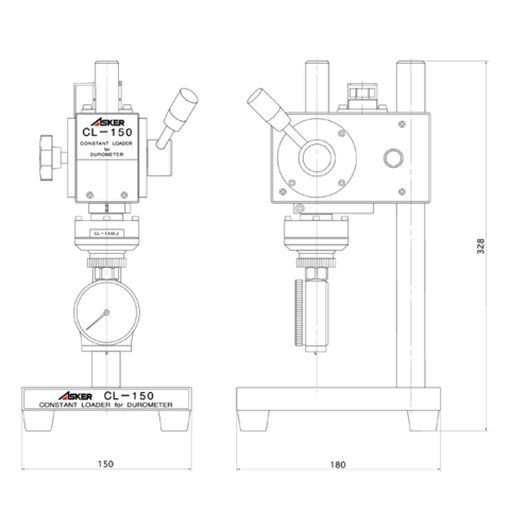

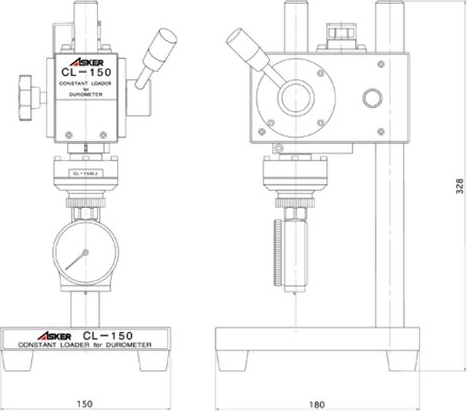

CL-150 Rubber and Plastic Hardness Tester - Dimensions

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
MODELS
ACCESSORIES
$1,038.00
$1,038.00
$1,085.00
