Cedar DIW Lightweight Digital Torque Tester / Wrench
1/4", 3/8" or 1/2" Drive
Capacity: up to 87 ft-lbs
Wrench head swivels 300°
5 Ranges Available
DIW-4W Capacity: 35 lb-in / 4 N-m, 1/4" dr
DIW-15 Capacity: 130 lb-in / 15 N-m, 1/4" dr
DIW-20 Capacity: 180 lb-in / 20 N-m, 3/8" dr
DIW-75 Capacity: 55 lb-ft / 75 N-m, 3/8" dr
DIW-120 Capacity: 87 lb-ft / 120 N-m, 1/2" dr

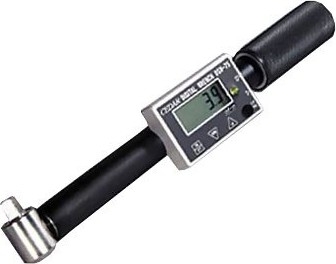

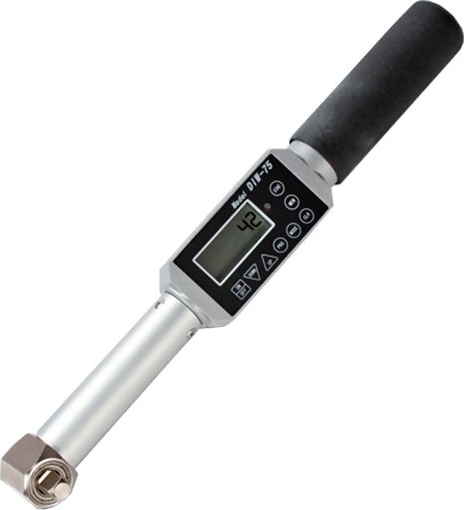

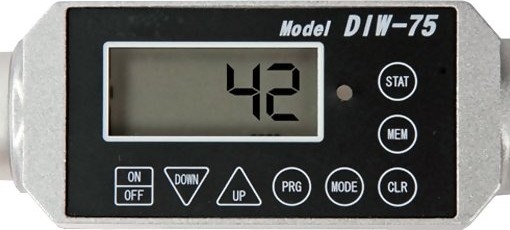

Cedar DIW is a lightweight digital torque wrench that tightens or loosens bolts up to 1040 lbf-in. The wrench head swivels 300° and can be used in tight places. You'll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. The Cedar DIW is rugged enough to be used in production. Wrench head swivels 300°

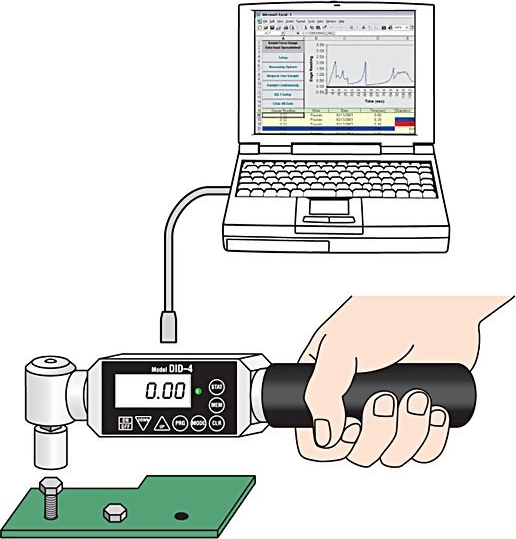

| This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port. | | Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive. |
Kit Contents

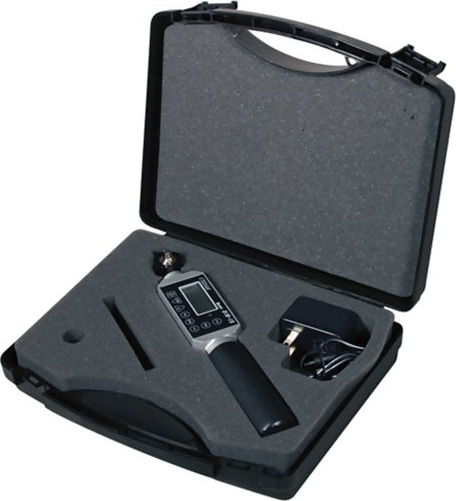

- Imada Cedar DIW Lightweight Digital Torque Tester
- AC Adapter/Charger
- Calibration Certificate
- Instruction Manual
- Fitted Cardboard Box
Features
- Includes 3-Point Certificate NIST calibration Certificate, ISO-17025 Cert Optional

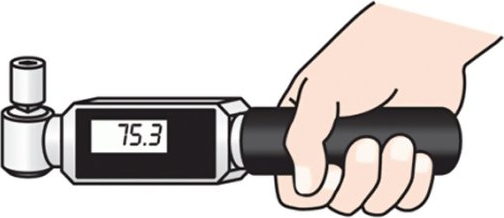

- Drive-Centered Torque Sensor apply load anywhere on the tester, not just the load point, and achieve consistent results
- Wrench head swivels 300°
- Displays lbf-in, lbf-ft, Kgf-cm and N-m (selectable)
- Peak, Real Time and Peak Down measuring mode (selectable)
- 800 data memory for recall or for SPC download

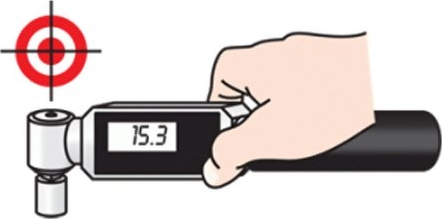

- Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
- Both CW and CCW operation

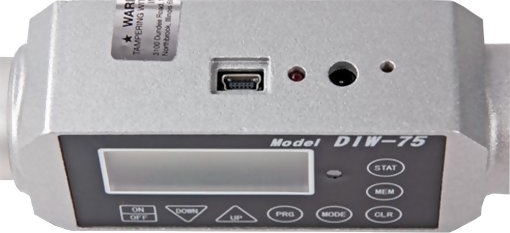

- USB output for SPC capability
- Runs on internal NiCad batteries (8 hour use)
- Ergonomic, light weight, rugged metal construction
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

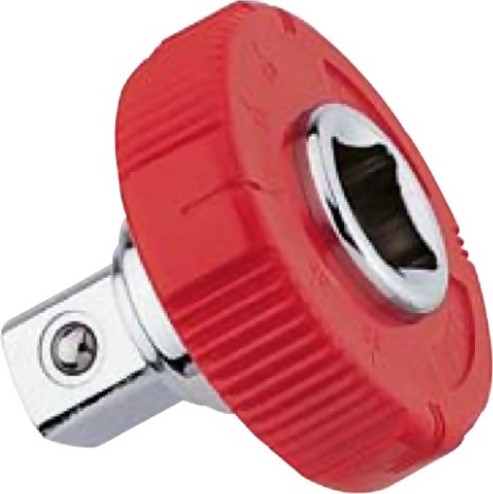

- Stepless one-way clutches are included with DIW-15, DIW-20 and DIW-75
- 1 Year Warranty
Specifications
| Accuracy | ±0.5%, ±1 LSD |
| Sampling Frequency | 100 Hz (100 samples/sec) |
| Display Update Rate | 5 Hz (5 times/sec) |
| USB Output | 180 data/sec |
| Memory | 400 data memory for recall or for SPC download |
| Warranty | 1 Year |
Force Ranges

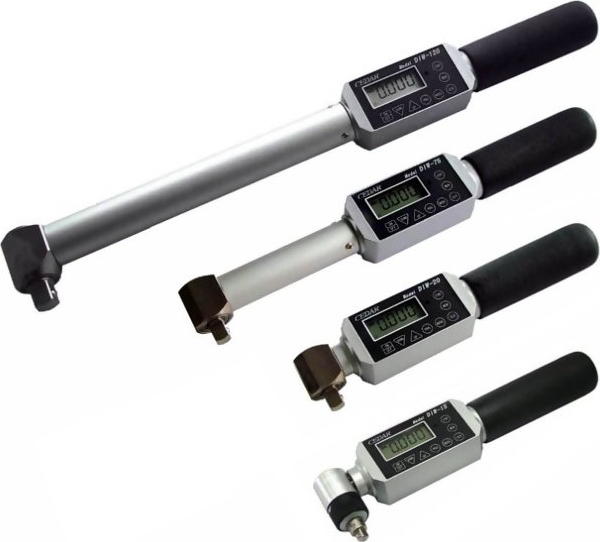

| Model | Capacity | Drive Size |

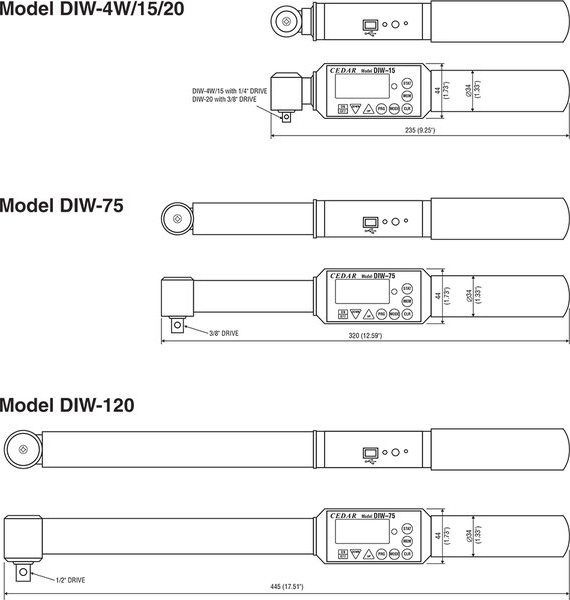

| DIW-4W | 0.20 – 35.00 lbf-in 0.2 – 40.00 kgf-cm 0.020 – 4.00 N-m | 1/4" |
| DIW-15 | 3.0 – 130.0 lbf-in 3.0 – 150.0 kgf-cm 0.30 – 15.00 N-m | 1/4" |
| DIW-20 | 3.0 – 180.0 lbf-in 3.0 – 200.0 kgf-cm 0.30 – 20.00 N-m | 3/8" |
| DIW-75 | 3.0-660.0 lbf-in 0.30-55.00 lbf-ft 3.0-750.0 kgf-cm 0.30-75.00 N-m | 3/8" |
| DIW-120 | 30-1040 lbf-in 3.0-87.0 lbf-ft 30-1200 kgf-cm 3.0-120.0 N-m | 1/2" |
Related Products
DTW Electronic Torque Wrench
- Designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.
DTF Digital Torque Wrench

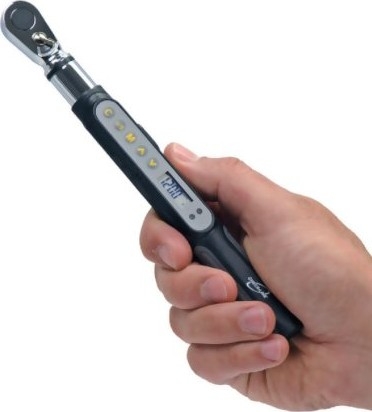

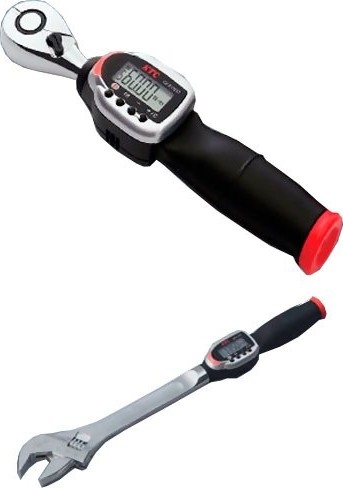

- Designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its low profile design and 1/4" female hex drive with ratcheting head are ideal for use in areas with limited access.
