Cedar DIW-15 Lightweight Digital Torque Tester / Wrench, 1/4" Drive, Capacity 130 lbf-in

See More Torque Wrenches

Cedar DIW-15 Lightweight Digital Torque Tester / Wrench, 1/4" Drive, Capacity 130 lbf-in

See More Torque Wrenches
Price:
$1,540.00
    warrenty

    Product Description

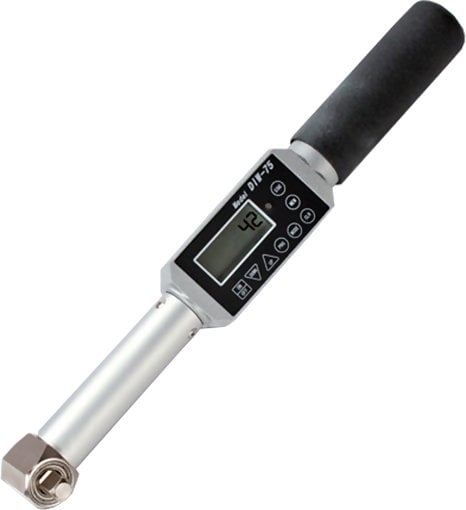

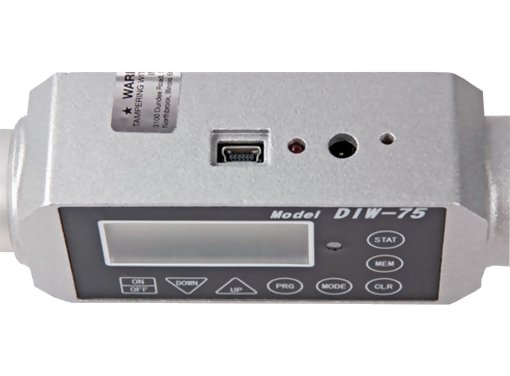

    Cedar DIW Lightweight Digital Torque Tester / Wrench
    1/4", 3/8" or 1/2" Drive
    Capacity: up to 87 ft-lbs
    Wrench head swivels 300°

    Cedar DIW is a lightweight digital torque wrench that tightens or loosens bolts up to 1040 lbf-in. The wrench head swivels 300° and can be used in tight places. You’ll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. The Cedar DIW is rugged enough to be used in production. Wrench head swivels 300°

    This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port.

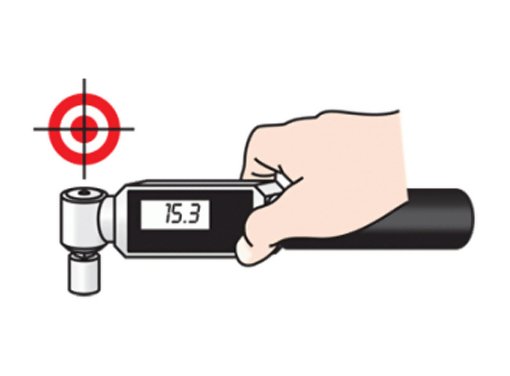

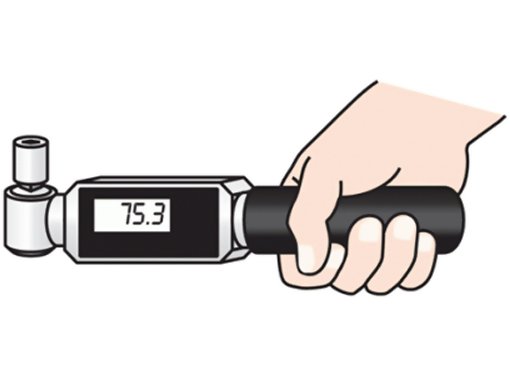

    Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.


    line

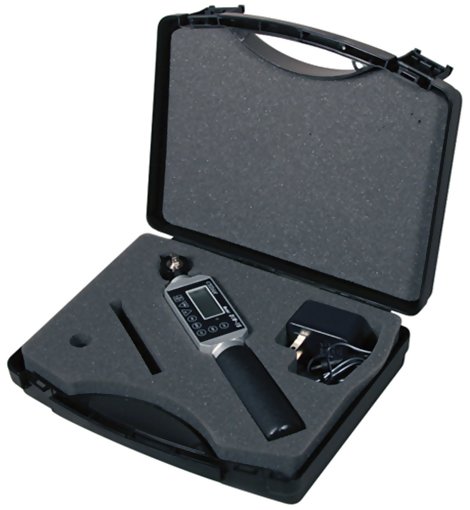

    Kit Contents
    line

    • Imada Cedar DIW Lightweight Digital Torque Tester
    • Carrying case
    • AC adapter/charger


    line
    Features
    line

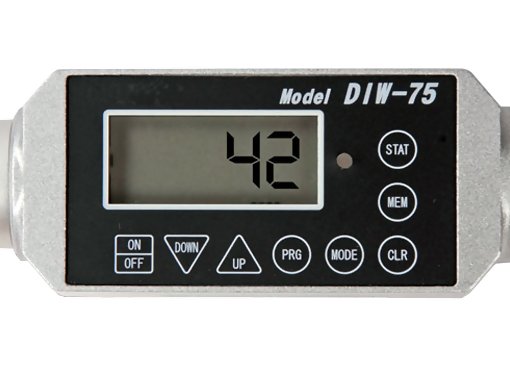

    • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
    • CW and CCW operation
    • Peak or Real-Time (track) mode (User Selectable)
    • Programmable Target Set-point with audible and visual indicators
    • Includes Calibration Certificate
    • CE Certified


    lineSpecificationsline

    Accuracy±0.5%, ±1 LSD
    Sampling Frequency100 Hz (100 samples/sec)
    Display Update Rate5 Hz (5 times/sec)
    USB Output180 data/sec
    Memory400 data memory for recall or for SPC download
    Warranty2 years


    line

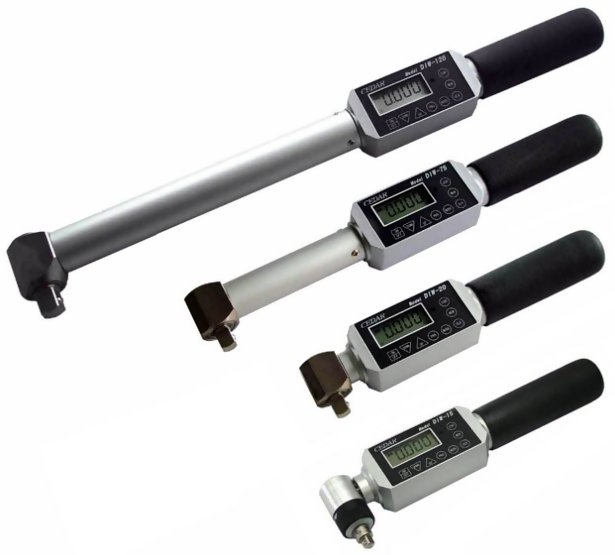

    Force Ranges
    line

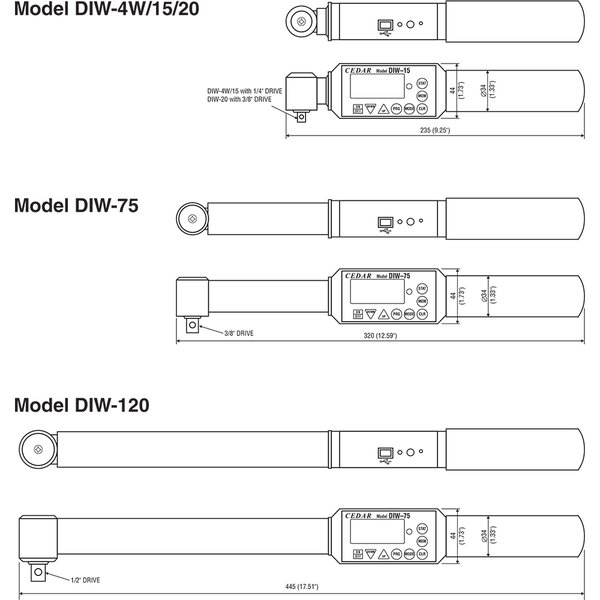

    ModelCapacityDrive Size
    DIW-4W0.20 – 35.00 lbf-in
    0.2 – 40.00 kgf-cm
    0.020 – 4.00 N-m
    1/4"
    DIW-153.0 – 130.0 lbf-in
    3.0 – 150.0 kgf-cm
    0.30 – 15.00 N-m
    1/4"
    DIW-203.0 – 180.0 lbf-in
    3.0 – 200.0 kgf-cm
    0.30 – 20.00 N-m
    3/8"
    DIW-753.0-660.0 lbf-in
    0.30-55.00 lbf-ft
    3.0-750.0 kgf-cm
    0.30-75.00 N-m
    3/8"
    DIW-12030-1040 lbf-in
    3.0-87.0 lbf-ft
    30-1200 kgf-cm
    3.0-120.0 N-m
    1/2"
