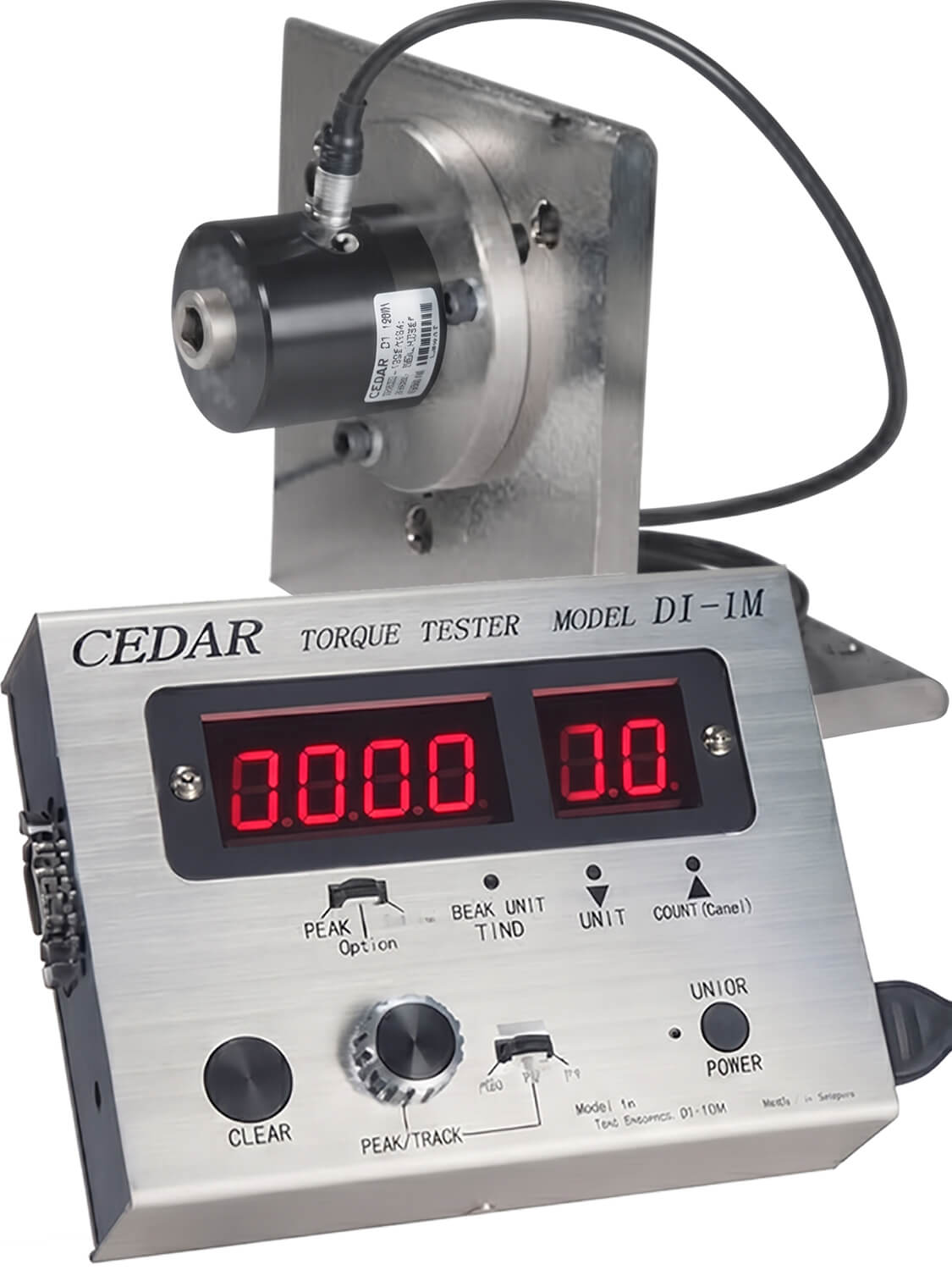

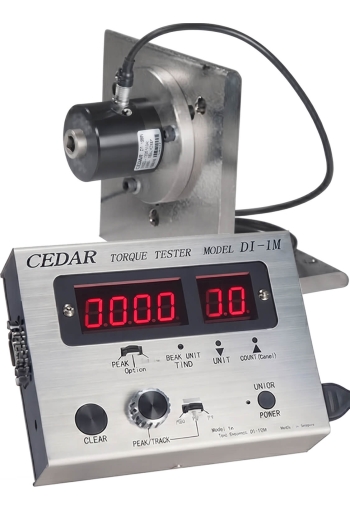

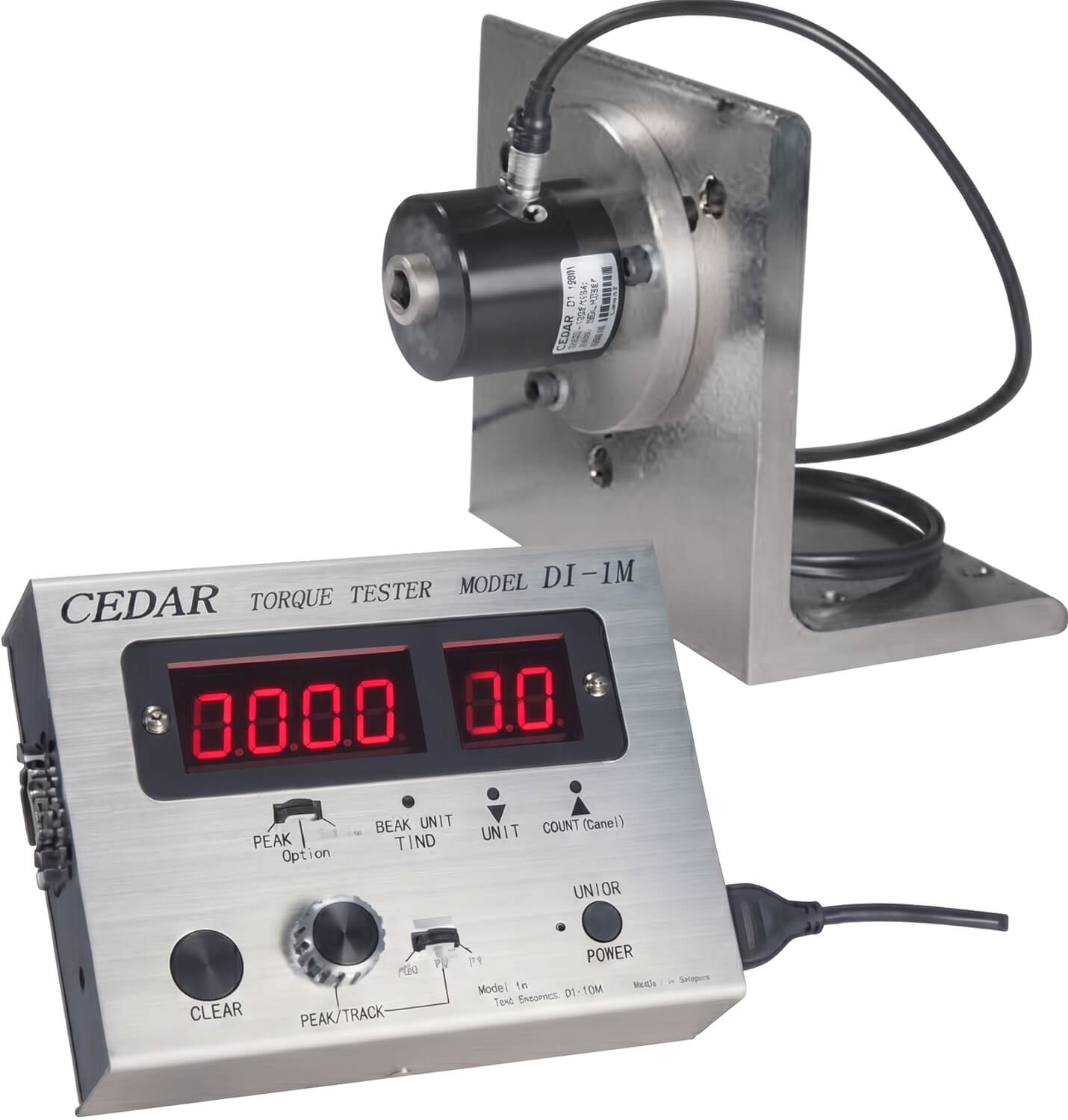

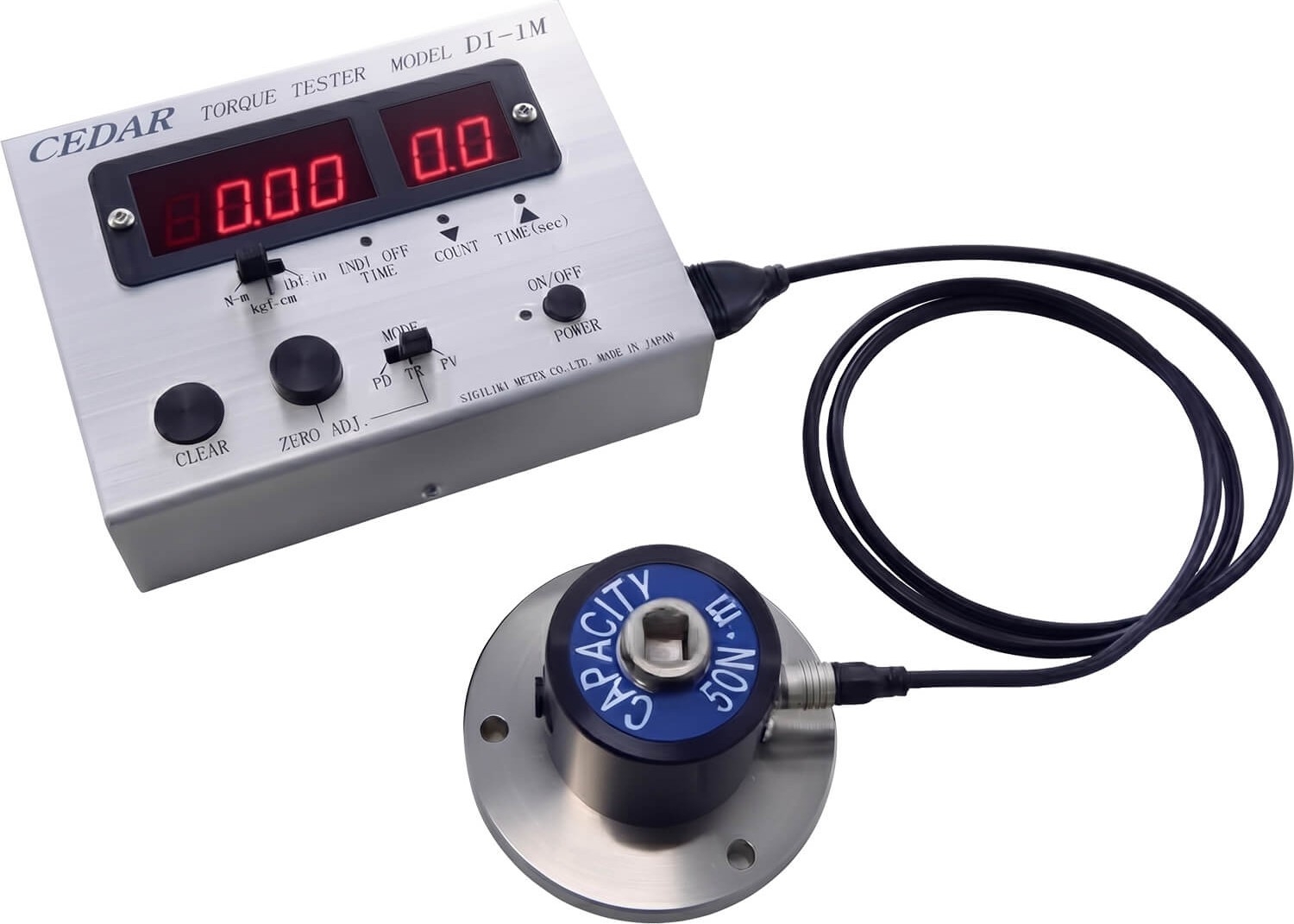

Imada Cedar DI-1M - DI-2M Digital Torque Tester for Air Tools & Impact Wrenches
Air Tool & Impact Wrench Digital Torque Tester
Requires Spring Adapter - Sold Separately
4 Ranges up to 362.0 lb-ft / 50.00 kg-m / 500.0 N-m.
For calibrating hand screwdrivers, wrenches, and power tools.
Selectable Units: lb-ft, kg-m and N-m
The Imada Cedar DI-1M - DI-2M Digital Torque Tester for Air Tool are designed for calibration verification of pneumatic, electric, impact, pulse, and continuous drive torque tools. A large display indicates the peak torque value in either direction and the number of blows. Data can be downloaded to your computer via the USB port for analysis with the optional SW-1SV-USB data acquisition software. DI-1M uses switches to control test settings. DI-2M features easy-to-use menu screens and buttons to program the unit.
The DI-2M offers Impact Sensitivity Adjustment (offset), which allows the user to control torque output to more closely match the manufacturer’s specifications. High/Low setpoints for both torque and blows give visible and audible alerts to enable Go/No Go testing. A Peak Down Minimum setting ensures that continuous drive tools won’t lock up the unit before breakaway torque is reached.
Kit Contents
- Imada Cedar DI-1M - DI-2M Digital Torque Tester
- Display Unit
- Remote sensor
- Cable
- AC Adapter and Charger
- NIST-Traceable Calibration Certificate
Features
- Includes NIST-Traceable Calibration Certificate
- Easy to read LED panel displays reference torque value in lbf-ft, kgf-m and N-m (selectable); and number of blows for selected period (0.1 - 9.9 sec)
- Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
- USB data output (peak or continuous data)
- Peak, Real Time and Peak Down measuring modes (selectable)
- Ergonomic light weight, torque tester with heavy duty metal construction
- Runs on internal NiCad batteries (8 hour use)
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty
- Impact Sensitivity Adjustment to closely match manufacturer’s specifications
- High/Low setpoints for both torque and blows enable Go/No Go testing
- Peak Down Minimum helps prevent manual torque wrenches locking up before breakaway is reached
Force Ranges
| Model | Capacity | Drive Size |
| DI-2M-50 | 3.0 - 440.0 lb-in
0.30 - 50.00 N-m
3.0 - 500.0 kg-cm
30 - 5000 N-cm | 3/8" Sq. Dr. |
| DI-2M-200 | 3.0 - 145.0 lb-ft
0.30 - 20.00 kg-m
3.0 - 200.0 N-m | 1/2" Sq. Dr. |
| DI-2M-500 | 3.0 - 362.0 lb-ft
0.30 - 50.00 kg-m
3.0 - 500.0 N-m | 3/4" Sq. Dr. |
The readings displayed may vary from the actual torque that a tool applies to a thread joint, because testers cannot always duplicate actual joint characteristics. Verify the torque output of the tool being used on the actual assembly, when critical assemblies are involved.
Optional Spring Adapters
Optional Spring Adapters Simulate Joint characteristics for more accurate measuring.
| SJ Spring Adapter Specifications |
| Model | Capacity | Drive | Screw | for Model |
| SJ-200 | 200 lbf-in / 22 Nm | 3/8" | 3/8-16 | DI-2M-50 |
| SJ-300 | 300 lbf-in / 34 Nm | 3/8" | 1/2-13 | DI-2M-50 |
| SJ-500 | 500 lbf-in / 56 Nm | 1/2" | 1/2-13 | DI-2M-200 |
| SJ-1500 | 125 lbf-ft / 170 Nm | 1/2" | 3/4-10 | DI-2M-200 |
| SJ-2000 | 167 lbf-ft / 226 Nm | 3/4" | 3/4-10 | DI-2M-500 |
