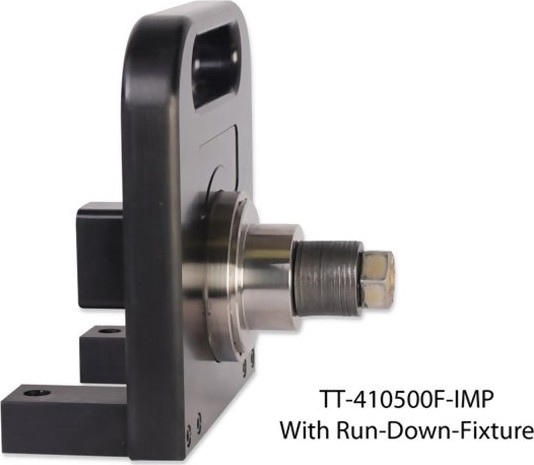

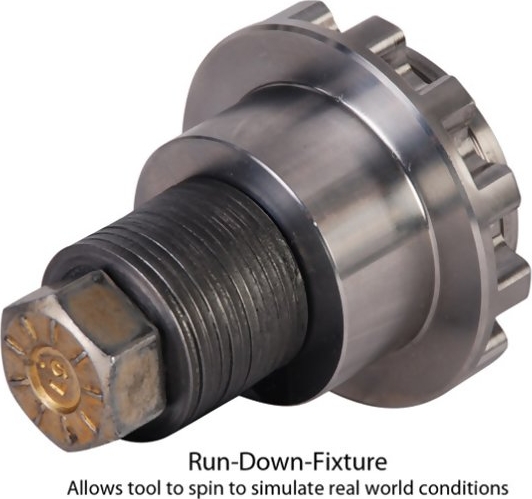

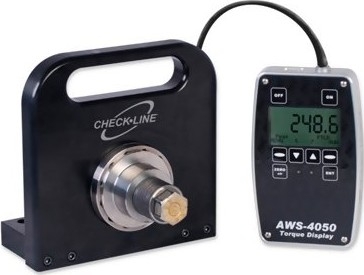

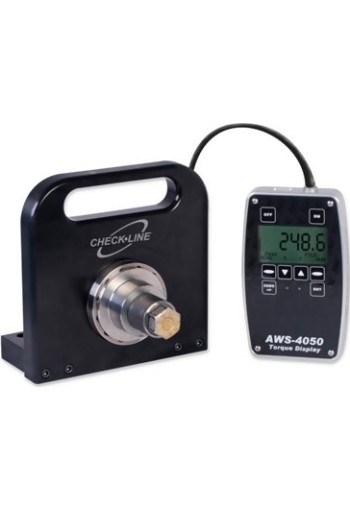

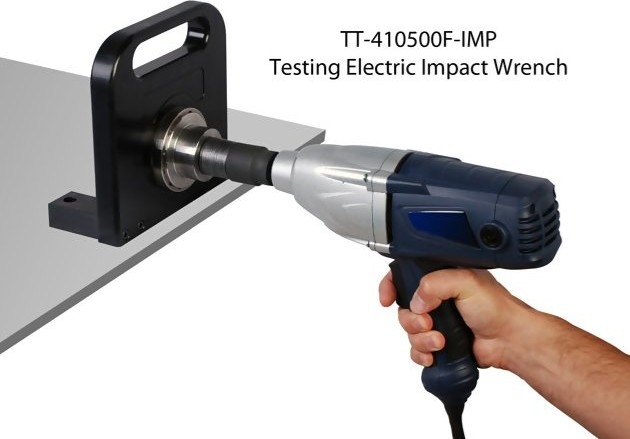

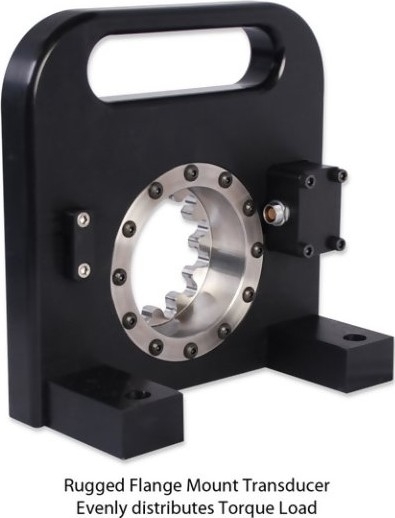

The AWS TT-IMP Impact Wrench Torque Tester is specially designed with extra-rugged construction for the demanding job of testing impact tools. The flange-mounted transducer is fixed in a heavy-duty frame designed for secure bench top mounting. A digital display is connected remotely to isolate the electronics from the damaging vibrations caused by impact tools. A specially designed spline drive run-down-fixture simulates real-world application conditions, allowing the impact tool motor to ramp-up to freely rotate several times before building resistance to rotation.

The included digital indicator can display torque in lb-ft, N-m, Lb-in or Kg-m (selectable) with an accuracy of +/-1% (bi-directional with optional reverse threaded run-down-fixture).

Features

• Counts Pulses / Blows while displaying peak torque
• Heavy Duty Construction
• Solid machined aluminum plate for weight reduction and long term durability
• Spline engagement of rundown into torque transducer improves durability of transducer
• Test stand is designed with feet to accomodate bolting test stand to bench

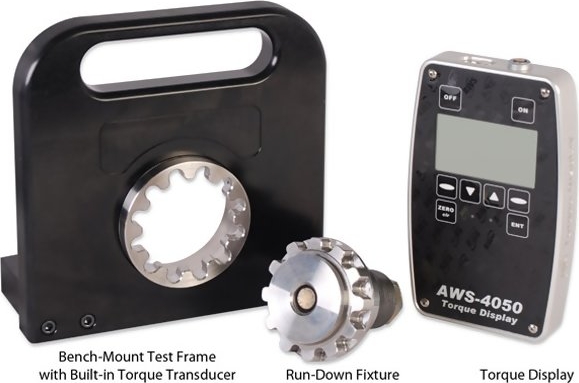

• Supplied as a complete system with bench-mount transducer, run-down-fixture, display and connecting cable

Specifications

Torque Ranges

Options

The test stand can be connected to the MTM or TT-3000 torque testers with external port option. They can also be configured with digital output for connection to a tablet or direct to your PC with our Tools software application. Inquire for details.

Notes for Impact Testing

• Set filter on AWS-4050 Torque Display to 1000 Hz
• Back off run-down between each test
• Be aware of heat build-up, it breaks down the lubricant in the run-down fixture, increasing friction. Let the run-down cool after a few minutes of use (this will vary by torque range)
