    Product Description

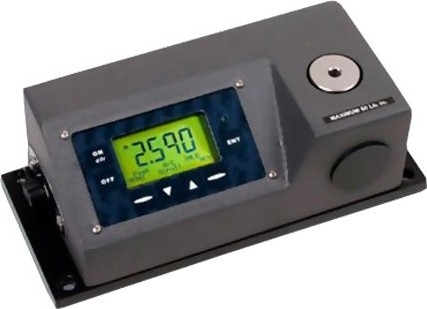

    AWS TT-3000 / AWS-3000 Desktop Torque Tester
    Digital Torque Tester for For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric
    16 Ranges up to 1000 Lb-ft.
    Eight selectable engineering units: Oz-in, Lb-in, Lb-ft, N-m, N-cm, Kgf-m, gf-cm, Kgf-m
    RS-232 output

    The AWS TT-3000 / AWS-3000 Desktop Torque Testers is designed specifically for the needs of today’s production facilities. The AWS-3000 powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.

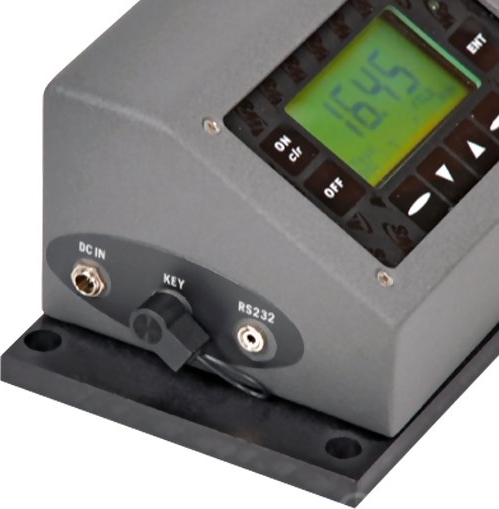

    Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. The unique keylock feature enables tamper-proof operation. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing


    line

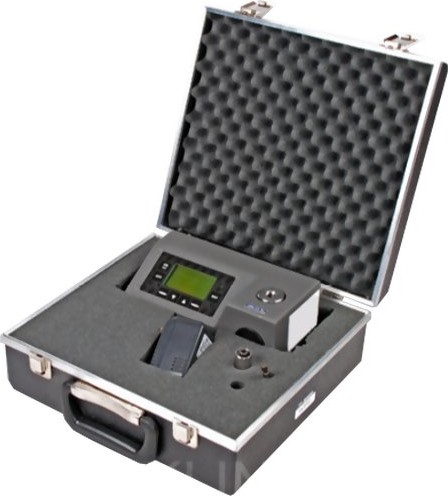

    Kit Contents
    line

    • AWS TT-3000 / AWS-3000 Desktop Torque Tester
    • AC adapter/Charger
    • Operating Manual
    • NIST Traceable calibration certificate with data
    • Warranty 1 (one) Year

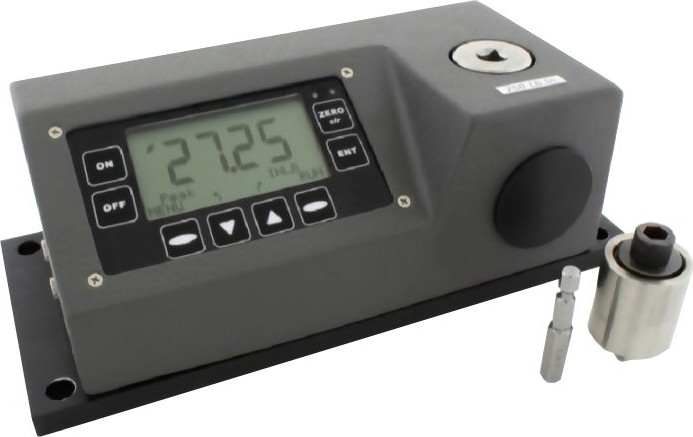

    * Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models


    line
    Features
    line

    • Bidirectional accuracy of ±0.5% of indicated reading.
    • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
    • 3 modes of operation: Track, Peak, and 1st Peak
    • NiMH rechargeable batteries provide 8-10 hours continuous use
    • Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives
    • RS-232 Output
    • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz

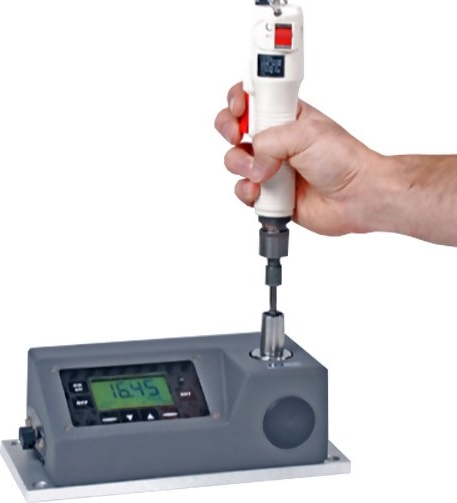

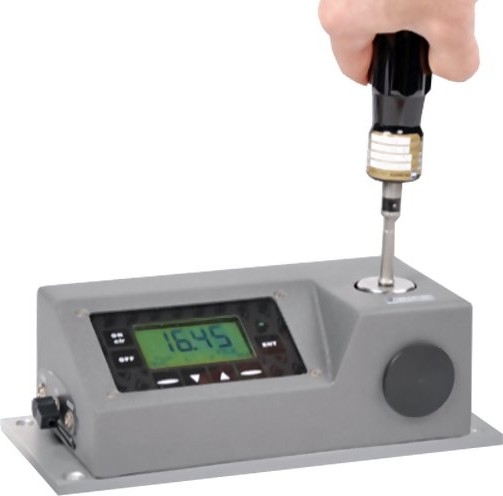

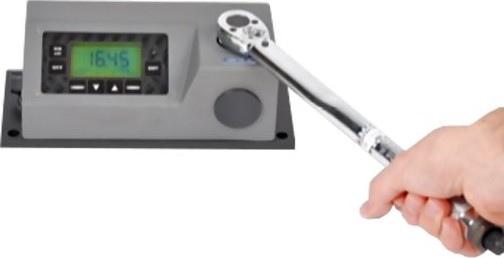

    • For testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic
    • Includes NIST Calibration Certificate with Data


    line
    Specifications
    line

    Calibrated Range10-100% Full Scale, bi-directional (Standard)
    Extended Range5-100% Full Scale, bi-directional (ER Option)
    Accuracy±0.5% of indicated (within calibrated range)
    Resolution4 Active Digits
    Overload Protection200% Full Scale bi-directional
    Operating ModesTrack, Peak, 1st Peak
    FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
    Memorydata storage of up to 999 readings
    Data OutputRS-232
    Display62 x 62mm backlit LCD
    Alarm LimitsPanel Mounted LED for Visual Alarm Limits
    PowerNiMH rechargeable batteries provide 8-10 hours continuous use
    Weight6-9 lbs, depends on number of transducer
    Operating Temp32 - 120 °F (0-50 °C)
    Warranty1 Year
    Calibration CertificateIncludes NIST Traceable calibration certificate with data
    Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
    Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option


    line
    Torque Ranges
    line

    ModelRangeDrive SizeRun-Down Fixture
    TT-30050 5 - 50 Oz-in 1/4"Included
    TT-3001 10.00 - 100.0 Oz-in 1/4"Included
    TT-3011 1.000 - 10.00 Lb-in 1/4"Included
    TT-3002 20.00 - 200.0 Oz-in 1/4"Included
    TT-3012 2.500 - 25.00 Lb-in 1/4"Included
    TT-3005 5.000 - 50.00 Lb-in 1/4"Included
    TT-3010 10.00 - 100.0 Lb-in 1/4"Included
    TT-3015 15.00 - 150.0 Lb-in 1/4"Included
    TT-3025 25.00 - 250.0 Lb-in 3/8"Included
    TT-3050 50.00 - 500.0 Lb-in 3/8"Included
    TT-3075 75.00 - 750.0 Lb-in 3/8"Included
    TT-30100 100.0 - 1000 Lb-in 3/8"Included
    TT-3100 10.00 - 100.0 Lb-ft 1/2"Optional
    TT-3150 15.00 - 150.0 Lb-ft 1/2"Optional
    TT-3250 25.00 - 250.0 Lb-ft 1/2"Optional
    TT-3750 75.00 - 750.0 Lb-ft 3/4"Optional
    • The available engineering units of measurement on the TT-3000 Torque Testers are oz-in, lb-in, lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, gf-cm


    line
    Related Products
    line

    TT-CA
    Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel

    related

    line

    ILTT
    Inline Torque Tester

    • Bidirectional accuracy of ±1% of indicated reading
    • 3 modes of operation: Track, Peak and 1st Peak
    related

    line

    AWS RDF
    Run Down Fixture - Joint Simulators for Torque Testers

    • Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
    related


    line
    Downloads
    line

    TT-3000 Series Digital Torque Tester - Data Sheet
