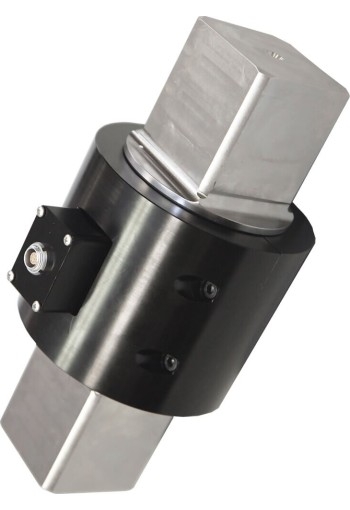

Name: AWS Series IL Torque Transducer
Brand: AWS
SKU: 2337

Torque Transducer with Integrated Bench Stand

Ideal for checking torque on hand and non-geared power tools

16 Ranges up to 5000 Lb-ft

The versatile AWS Series IL Torque Transducer are designed for precision torque measurement of wrenches, drivers and other applications from 10 oz-in to 5000 lb-ft with ±0.5% (±0.25% optional) accuracy from 10% - 100% of the transducer range. All transducers can be calibrated bidirectionally.

The IT Series can be used with manual tools or powered using a Run-Down-Fixture (optional).

AWS Series IL Torque Transducer can be positioned in a horizontal or vertical orientation and features a rugged aluminum housing for benchtop mounting. Custom ranges and configurations are available, inquire.

Power tools require the use of a run-down-fixture
Not for use with impact tools or torque multipliers

Features

Ranges from 10 Oz.in. to 2,000 Lb.ft.
Accuracy 0.5% of indicated between 10-100% of capacity
For Testing According to ISO 6789:2017

Ranges

Model

Range

Male Square Drive

Female Square Drive

ILIO-100

1 - 100 ozf-in

1/4"

ILI-10

1 - 10 lbf-in

1/4"

ILI-25

2.5 - 25 lbf-in

1/4"

ILI-50

5 - 50 lbf-in

1/4"

ILI-100

10 - 100 lbf-in

1/4"

ILI-250

2 - 250 lbf-in

3/8"

ILI-500

50 - 500 lbf-in

3/8"

ILF-100

10 - 100 lbf-ft

1/2"

ILF-250

25 - 250 lbf-ft

1/2"

ILF-600

60 - 600 lbf-ft

3/4

ILF-1000

100 - 1000 lbf-ft

ILF-2000

200 - 2000 lbf-ft

ILI-500-1.5

50 - 500 lbf-in

1 1/2"

3/8"

ILF-100-1.5

10 - 100 lbf-ft

1 1/2"

1/2"

ILF-150-1.5

15 - 150 lbf-ft

1 1/2"

1/2"

ILF-250-1.5

25 - 250 lbf-ft

1 1/2"

1/2"

ILF-600-1.5

60 - 600 lbf-ft

1 1/2"

3/4"

ILF-750-1.5

75 - 750 lbf-ft

1 1/2"

3/4"

ILF-1000-1.5

100 - 1000 lbf-ft

1 1/2"

ILF-2000-1.5

200 - 2000 lbf-ft

1 1/2"

ILF-2500-1.5

250 - 2500 lbf-ft

1 1/2"

ILF-3000

300 - 3000 lbf-ft

1 1/2"

ILF-5000

500 - 5000 lbf-ft

1 1/2"

ILF-6000

600 - 6000 lbf-ft

1 1/2"

ILF-7500

750 - 7500 lbf-ft

1 1/2"

ILF-10000

1000 - 10000 lbf-ft

2 1/2"

ILF-15000

1500 - 15000 lbf-ft

2 1/2"

ILF-25000

2500 - 25000 lbf-ft

2 1/2"

ILF-50000

5000 - 50000 lbf-ft

3 1/2"

Related Products

The AWS 1000 Series Mechanical Torque Wrench Loader are designed for use with our IT Transducers, AWS MTM Multi-Channel Digital Torque Tester and AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Wrench Tester. These precision torque loaders allow operators to precisely test and calibrate torque wrenches up to 1000 lb-ft / 1350 Nm with measuring accuracy up to ± 0.25% of indicated readings, satisfying metrology lab requirements while providing the durability required for production environments.

An optional motor kit allows for automated testing, improving speed and repeatability.
