    Product Description

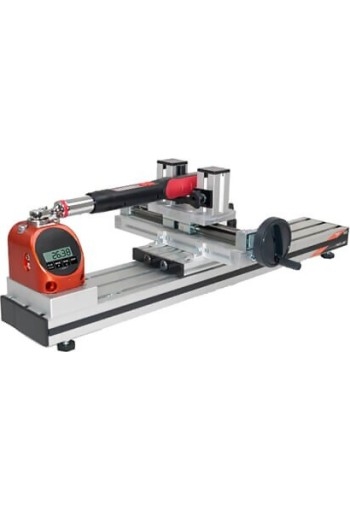

    AWS TWT-410 Torque Wrench Loader

    Calibrates and verifies torque wrenches up 250 lb-ft / 340 Nm

    Flexible design for various torque wrench lengths and brands

    3 Measuring Ranges:

    • AWS TWT-410-150i - Test Range: 15 - 150 lb-in / 16 Nm, 1/4" Dr
    • AWS TWT-410-250i - Test Range: 25 - 250 lb-in / 28 Nm, 3/8" Dr
    • AWS TWT-410-250f - Test Range: 25 - 250 lb-ft / 338 Nm, 1/2" Dr (other ranges ranges available on request)

    The AWS TWT-410 torque wrench loader is the ideal tool for calibration and verification of all types torque wrenches including, cam-over, click, slip, digital and dial. The test stand is available in capacities up to 250 lb-ft / 340 Nm. The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands.

    The digital torque tester included with the TWT-400 can also be used to test power tools including impulse and DC electric drivers and wrenches with the use of a run-down-fixture(included with 1/4' and 3/8" sizes, optional on 1/2" models).


    line
    Features
    line

    • The flexible design of the TWT-410 is easy to use and is suitable for various torque wrench lengths and brands
    • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
    • Bidirectional accuracy of ±0.5% of indicated reading
    • 3 modes of operation: Track, Peak and 1st Peak
    • NiMH rechargeable batteries provide 8-10 hours continuous use
    • CE Certified and NIST Calibration Certificate


    line
    Standard Accessories
    line

    Calibrated Range10-100% Full Scale, bi-directional
    Accuracy±0.5% of indicated reading (Bidirectional)
    Resolution4 Active Digits
    FilteringSelectable - 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
    Operating Temperature32 - 122 °F / 0-50 °C
    Operating ModesTrack, Peak, 1st Peak
    Data OutputRS-232
    Alarm LimitsPanel Mounted LED for Visual Alarm Limits
    PowerNiMH rechargeable batteries provide 8-10 hours continuous use
    Warranty1 Year
    Weight25 lbs
    Calibration CertificateIncludes NIST Traceable calibration certificate with data
    CE certificationYes
    Dimensions30" x 9" x 14" (76cm x 23cm x 35cm)


    line
    Ranges
    line

    ModelRangeDrive Size
    TWT-410-150i15 - 150 Lb-in1/4"
    TWT-410-250i25 - 250 Lb-in3/8"
    TWT-410-250f25 - 250 Lb-ft1/2"

    Alternative Unit Calculator- recasts values in above table (units in RED can be selected on gauge. Other units for reference only)
