HV-750-S Manual Test Stand with distance meter

See More Test Stands, Mechanical

HV-750-S Manual Test Stand with distance meter

See More Test Stands, Mechanical
Price:
$6,422.00
    warrenty

    Product Description

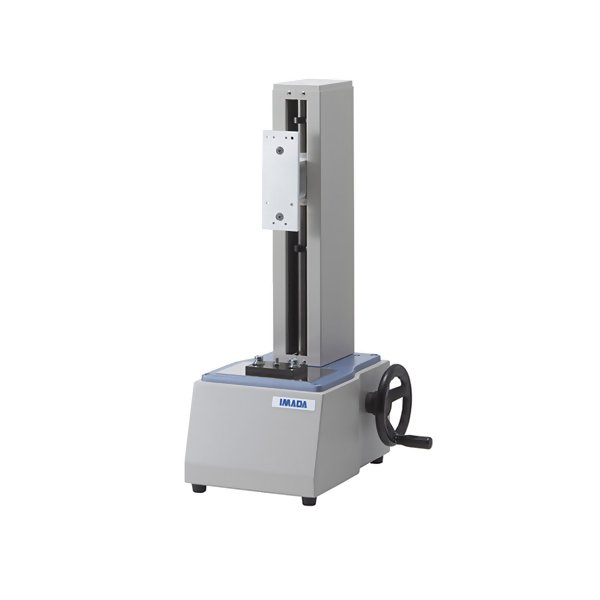

    Imada HV-300 / HV-500 Manual Hand Wheel Test Stand

    Force Gauge sold Separately
    2 Ranges Up to: 0-500 lbs / 0-250 Kg / 0-2500N

    12" (300mm) Maximum Travel

    The Imada HV-300 / HV-500 Manual Hand Wheel Test Stand have greater clearance to accommodate oversize materials and a long stroke to test materials that require a greater range of movement. The Imada HV-300/500 are precise push/pull test stands that are ideal for force applications requiring relatively consistent speed and maximum gauge control. The force gauge remains in position when the wheel is released which allows the user to easily change samples between tests. The hand wheel operation will provide repeatable test results from sample to sample.

    *FORCE GAUGE NOT INCLUDED
    Designed to work with the DS2 & Z2 force gauges.


    line
    Features
    line

    • Hand wheel design provides a high degree of precise control
    • Gauge remains in place when hand wheel is released
    • One stand for both compression (push) and tension (pull) tests
    • Maximum clearance 15"


    line
    Specifications
    line

    Capacity HV-300: 300 lbs (150 Kg)
    HV-500: 500 lbs (250 Kg)
    Stroke 12" (300mm)
    Dimensions Download PDF
    Weight HV-300: 60
    HV-500: 65
    Compatible Gauges DS2 and Z2
    Warranty 3 years


    line
    Downloads
    line

    Imada HV-300 / HV-500 High Capacity Precision Hand Wheel Test Stand - Dimensions

    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    Models Price
    $6,422.00
