Product Description

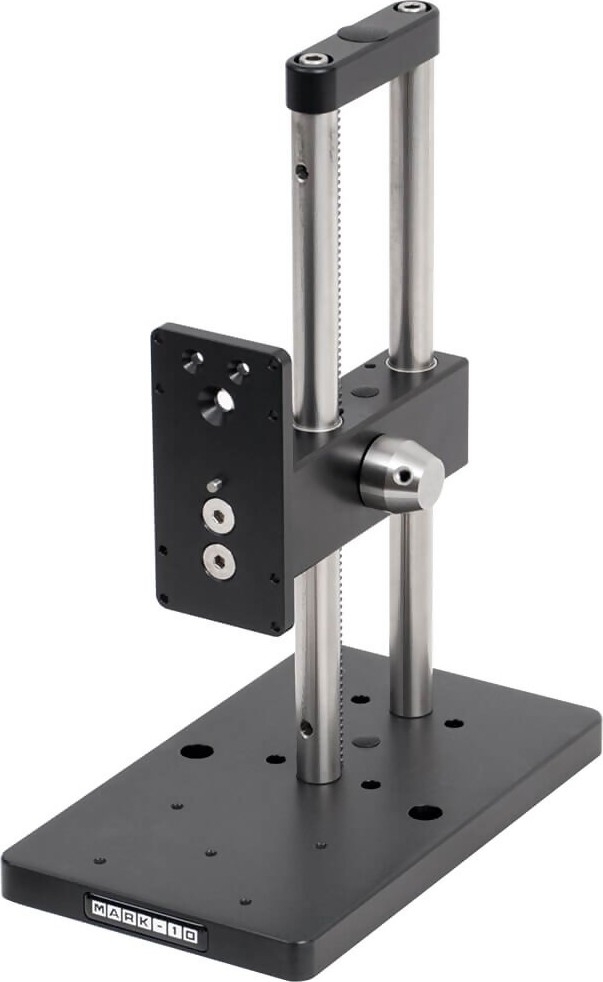

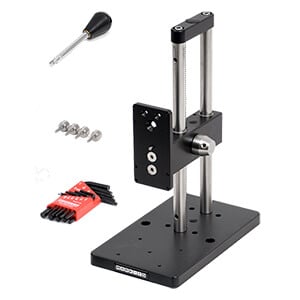

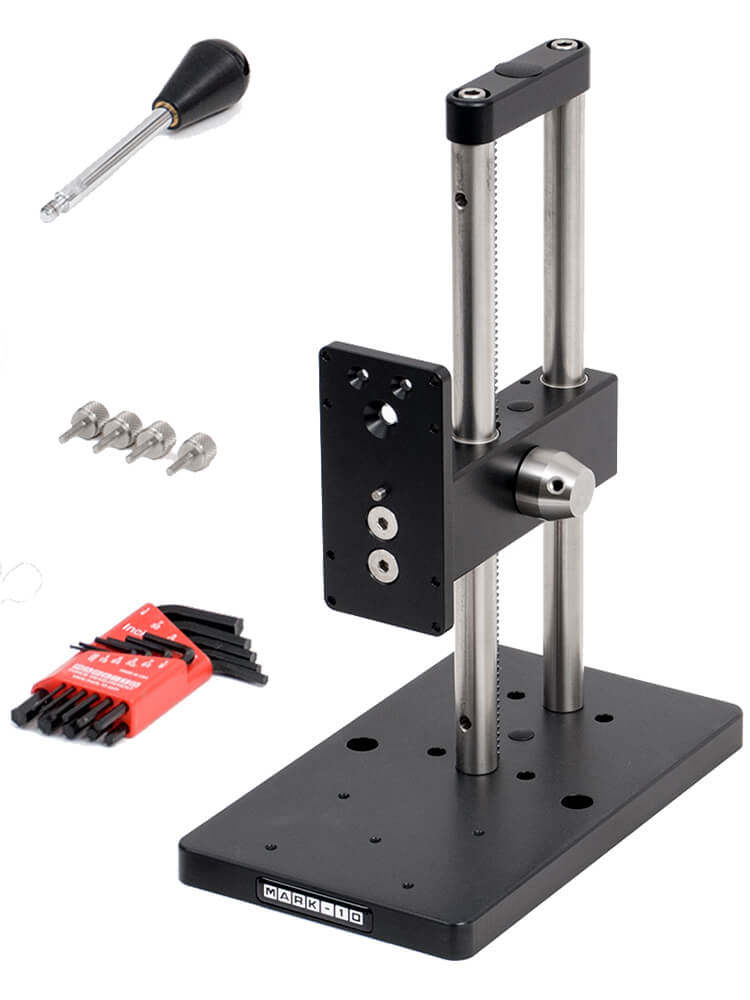

Mark-10 ES10 Mechanical / Manual Lever Operated Test Stand, 100 Lb Capacity


Force Gauge sold Separately
100lb Capacity

9" Maximum Travel

The new Mark-10 ES10 Manual Force Test Stand is a hand-lever operated manual test stand with a maximum capacity of 100lbs.

*Force Gauge & Dial Indicator Not Included

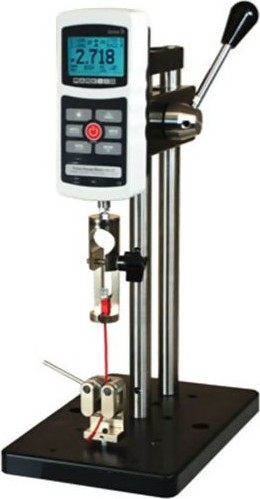

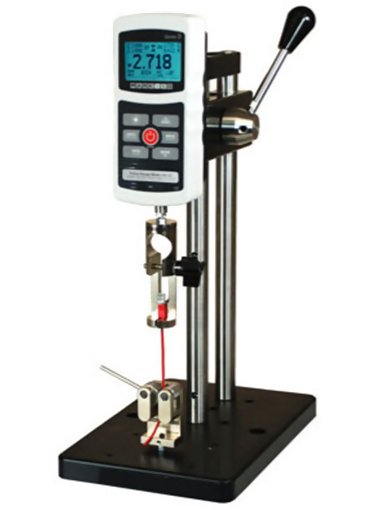

Shown with MG Series Force Gauge & Dial Indicator


line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ


line
Features
line

  • Mounting holes for bench mounting
  • Loading lever can be placed in 3 positions for ease of operation

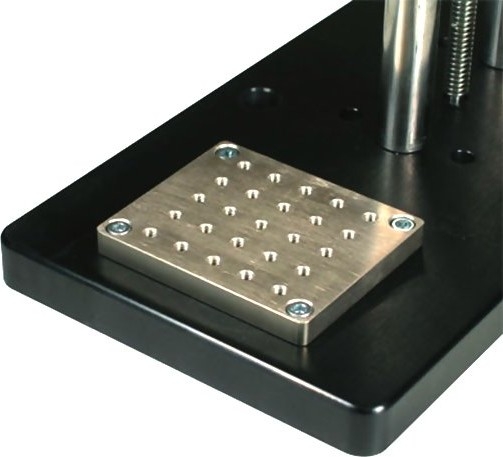

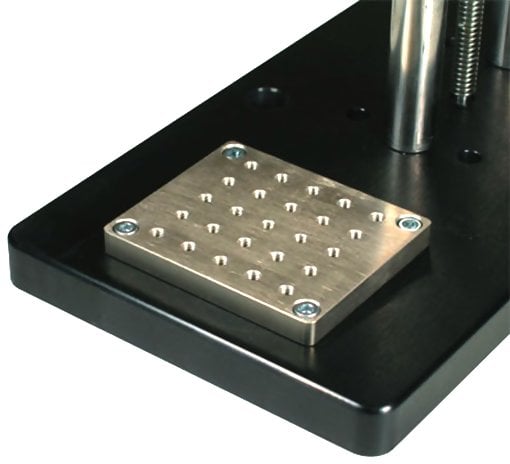

  • Large baseplate with 5 #10-32 UNF holes for fixture mounting

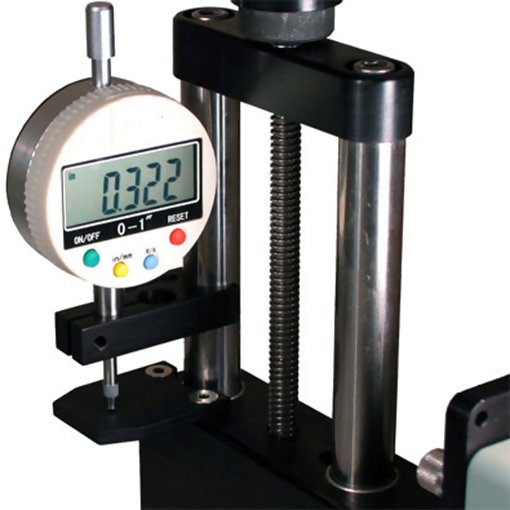

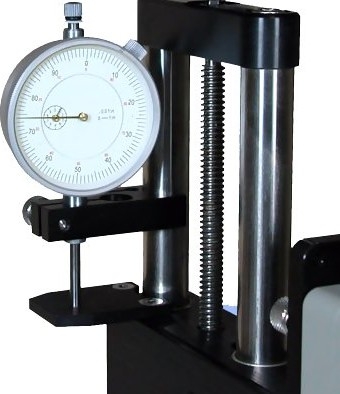

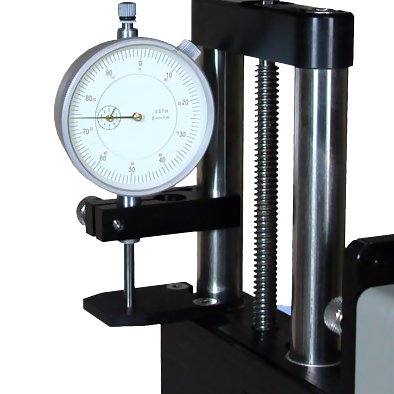

  • Optional 1" [25.4mm] dial indicator travel kit
  • Can be used with our HP Series Durometers


line
Specifications
line

Capacity 100 lb (45 kg)
Stroke 9" (229mm)
Dimensions Mark-10 ES10 Manual Force Test Stand - Download PDF
Weight 10 lb (4.5kg)
Compatible Gauges BG and MG
Warranty 3 years


line
Related Products
line

MG
Economical Digital Force Gauge - Push Pull Gauge
  • User-selected units of Pounds, Kilograms or Newtons
  • 3 Year Warranty
related

line

ES001
Dial Indicator / Distance Meter

  • Displays up to 1" of displacement
  • Resolution of 0.001"
related

line

ES002
Digital Indictator / Distance Meter

  • Displays up to 1" (25.4mm) of displacement
  • Resolution of 0.0005" (0.01 mm)
related


line
Downloads
line

Mark-10 ES10 Manual Force Test Stand - Instruction Manual

Mark-10 ES10 Manual Force Test Stand - Dimensional Drawing

Mark-10 ES10 Manual Force Test Stand - Data Sheet
