    Product Description
    Wireless Loadshackle are designed to measure tension / weight in limited headroom applications
    Capacities up to 880000 lbs / 400 tonnes

    The Straghtpoint WLS Wireless Load Shackle are designed to measure tension / lifting weight in limited headroom applications.. Each Wireless Loadshackle is proof tested, then equipped with a hard anodized aluminum electronics enclosure. Contained within this aluminum enclosure is a new internal chassis providing IP67/NEMA6 environmental protection even with the battery cover plate missing.

    Featuring industry leading wireless technology and range, the Straghtpoint WLS Wireless Load Shackle is supplied with an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller or Wireless Windows PC data logging software package. Our Wireless data logging software allows for simultaneous control, display and real time data logging of up to 100 telemetry load cells.

    Logged data is captured in a .csv file format and opens in MS Excel providing easy visual presentation, analysis of logged data, and simple test certificate generation. Our Wireless Loadshackle utilizes easily sourced AA alkaline batteries and features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement. Our huge range of tooling allows us to calibrate in shackle for extra accuracy unlike many other loadcell manufacturers.A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs. There is no better choice than the WLS Wireless Loadshackle for limited headroom applications.


    line
    Kit Contents
    line

    • Straghtpoint WLS Wireless Load Shackle
    • centralising bobbin
    • Calibration certificate
    • Instruction manual

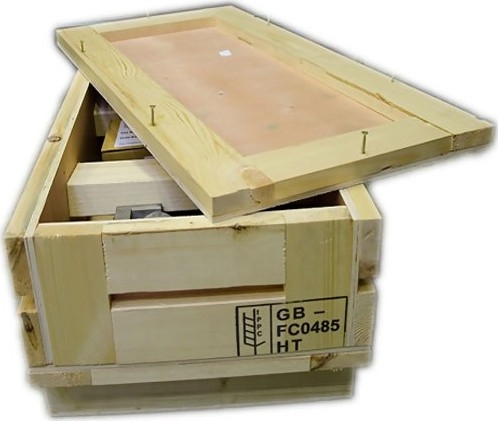

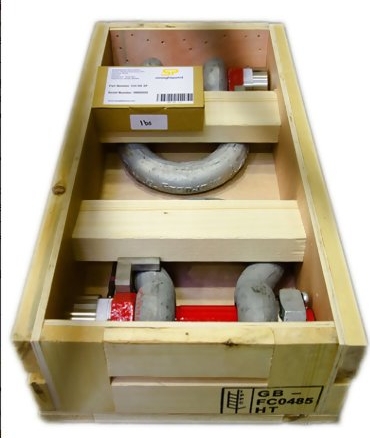

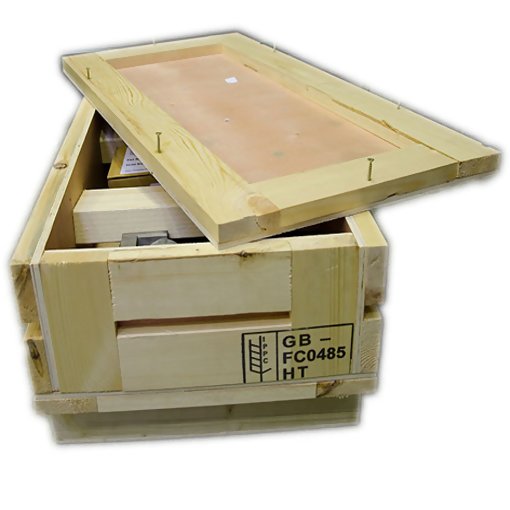

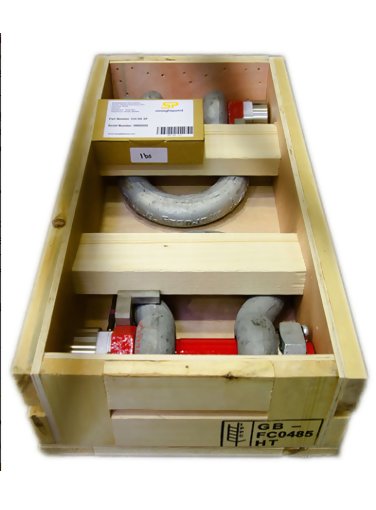

    • All Models are supplied in Wooden Crates


    line

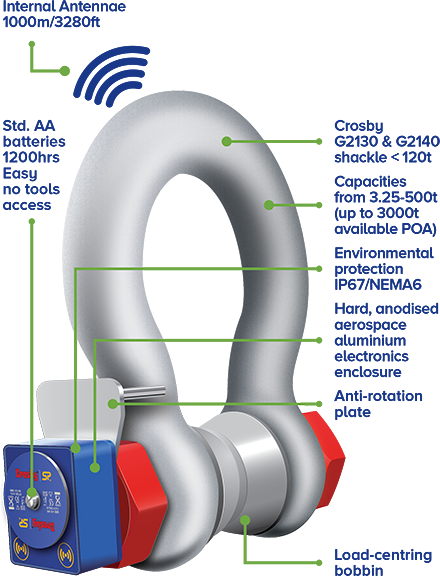

    Features
    line

    • Wireless Range of 1000m or 3280ft
    • Electronics housed in a hard anodised enclosure
    • Environmentally sealed to IP67 or NEMA6
    • Battery Life of 1200hrs from 4 x AA batteries
    • Internal Antennae
    • Remote On-Off from handheld display or software
    • ATEXZones 0,1&2 available

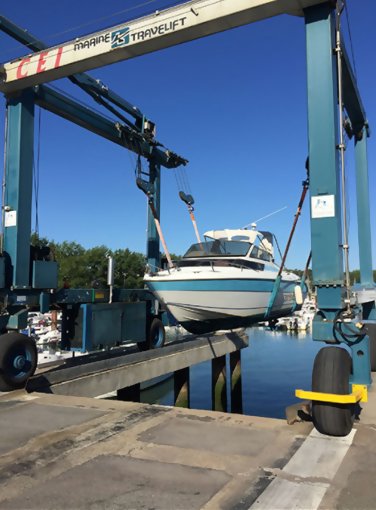

    • Under Hook Crane Weighing

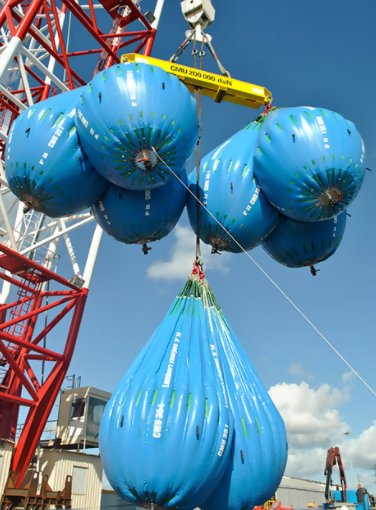

    • Water weight bag testing

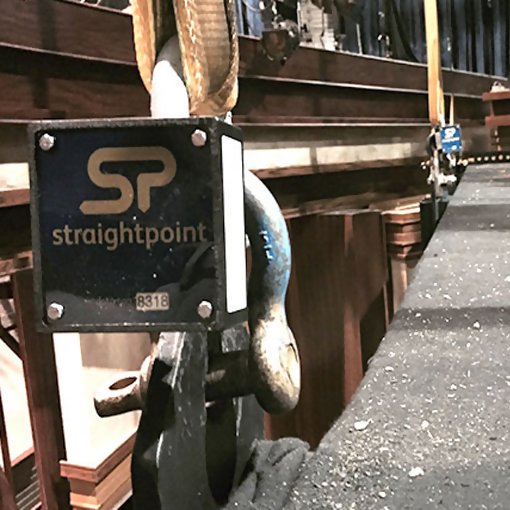

    • Entertainment & theatre rigging
    • Aircraft Manufacturing and Repair
    • Tandem Lifting and Lowering

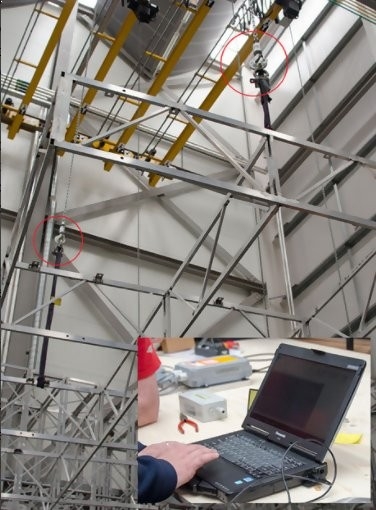

    • Structural Load Testing and Certification
    • Shipping & receiving weighing
    • Off Shore Mooring Anchor Setting
    • Crane and Hoist Calibration and Proof Load Testing
    • Manufacturing and Heavy Construction
    • Bollard pull testing and certification
    • Swing Stage
    • Catenary Anchor Leg Mooring (CALM) monitoring
    • Hawser Tension Monitoring
    • Single Point Mooring
    • Complies with ASME B30.26
    • Design validated by F.E.A.
    • Warranty 1-Year (FREE Extension to 2-Year Warranty with Product Registration)


    line
    Specifications
    line

    Safety Factor 5:1 when used with bobbin
    Battery Type Loadcell 4x AA Alkaline
    Battery Life Loadcell 1200Hrs continuous (500hrs if Bluetooth)
    Operating Temp-10 to +50 °C / 14 to 122˚F
    Accuracy+/- 1% FS
    Frequency2.4GHz
    Range MET1000metres(100m if Bluetooth)
    Range IMP3280 feet (328ft if Bluetooth)
    Data Rate3 updates per second
    ProtectionIP67/NEMA6


    line
    Ranges
    line


    ModelCapacityResolutionWeightSafety
    Factor
    Overall
    Height
    WLS3.25T7150 lb
    3.25 te
    10 lb
    0.005 te
    6.16 lb
    2.8 kg
    5:14.17 In
    106 mm
    WLS6.5T1100%0 lb
    6.5 te
    10 lb
    0.005 te
    7 lb
    3.2 kg
    5:15.83 In
    148 mm
    WLS12T26400 lb
    12 te
    20 lb
    0.01 te
    17.6 lb
    8 kg
    5:18.27 In
    210 mm
    WLS25T55000 lb
    25 te
    50 lb
    0.02 te
    40 lb
    18 kg
    5:112.32 In
    313 mm
    WLS55T120000 lbs
    55 te
    100 lb
    0.05 te
    55 lb
    25 kg
    5:113.70 In
    348 mm
    WLS85T185000 lbs
    85 te
    100 lb
    0.05 te
    99 lb
    45 kg
    5:117.83 In
    453 mm
    WLS120T260000 lbs
    120 te
    200 lb
    0.1 te
    187 lb
    85 kg
    5:121.50 In
    546 mm
    WLS200T440000 lbs
    200 te
    200 lb
    0.2 te
    473 lb
    215 kg
    5:129.25 In
    743 mm
    WLS300T660000 lbs
    300 te
    1000 lb
    0.5 te
    801 lb
    364 kg
    5:135.24 In
    895 mm
    WLS400T880000 lbs
    400 te
    1000 lb
    0.5 te
    1144 lb
    520 kg
    5:140.24 In
    1022 mm
