For samples up to 2"/50mm
Capacity 500 lbF (2,500 N)

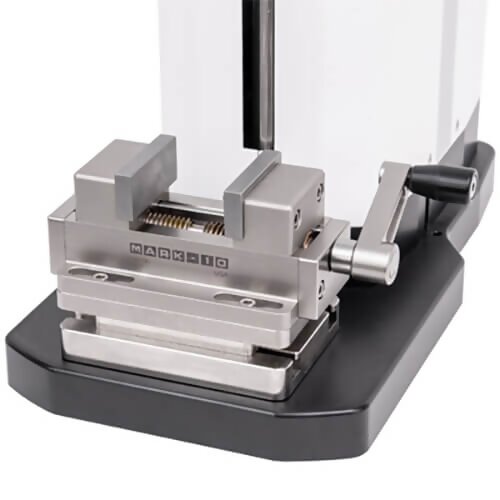

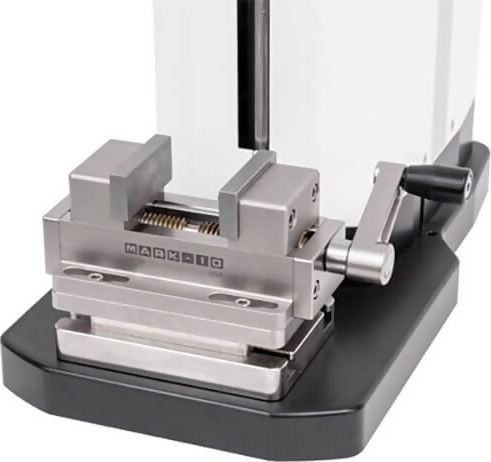

The Mark-10 G1106 Self-centering Vise Grip self-centering vise can be used in a wide range of testing applications. Wide opening range (2"/50mm) accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Use this grip with a choice of test stand and force gauge to create a complete testing system.
Replaces Model G1070.

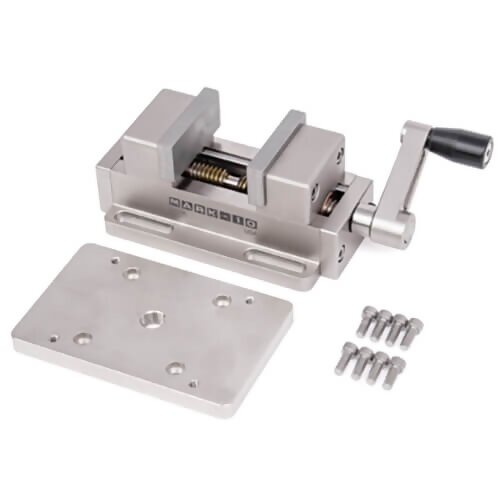

Kit Contents
- Mark-10 G1106 Self-centering Vise Grip
- Vise assembly
- Test stand adapter plate
- 8 - #10-32 mounting screws
Features
- Maximum tension force: 500 lbF (2,500 N)

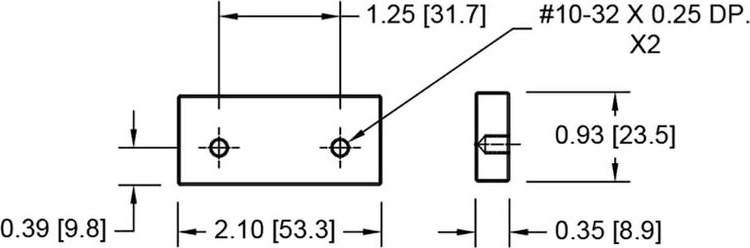

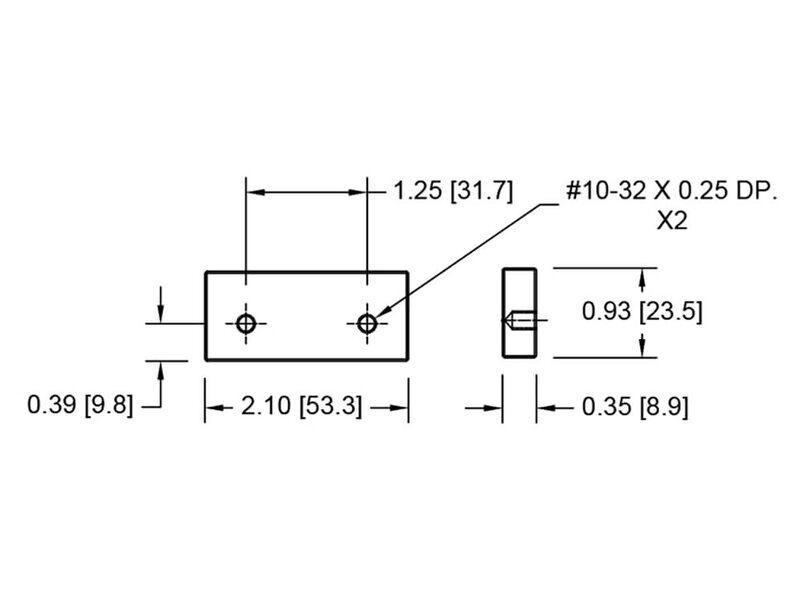

- Removable jaws
- Self-centering design
- Ergonomic lever, smooth operation
- Weight: 3.00 lb [1.36 kg]
- Mounts directly to the following test stands: ESM303, ESM1500 (when ordered with optional AC1055 mounting plate) ES30, TSC1000, TSF. Also compatible with ES10/ES20 when ordered with optional AC1060 mounting plate
Specifications
| Maximum Tension Force | 500 lbF [2,500 N] |
| Weight | 3 lb [1.4 kg] |
| Shipping weight | 4 lb [1.8 kg] |
