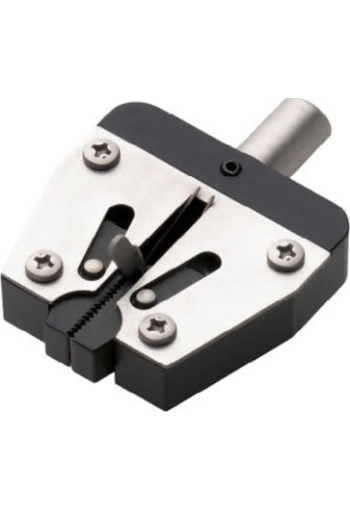

Imada KC Heavy-Duty Wedge Grips
For tensile measurements of thick materials
3 Models
KC-100: 110 lbf Capacity
KC-1001: 220 lbf Capacity
KC-5000: 1100 lbf Capacity This Imada spring-loaded wedge grip is ideal for tensile measurements of high capacity materials. Attachment/detachment of a test piece can be done by one-touch operation. The Imada KC Heavy-Duty Wedge Grip is self-tightened by applying tensile force (spring-loaded wedge grip).
Specifications
| Model | KC-100 | KC-1001 | KC-5000 | | Capacity | 110 lbf | 220 lbf | 1100 lbf | | Width | 46 mm | 46 mm | 75 | | Height | 59 mm | 59 mm | 94 mm | | Depth | 14.5 mm | 14.5 mm | 36 mm | | Jaw Opening | Max 2 mm | Max 2 mm | Max 5 mm | | Jaw Width | 9.8 mm | 9.8 mm | 23.8 mm | | Jaw Height | 15 mm | 15 mm | 26 mm | | Mounting crew | M6 P1 | M6 P1 | M10 P1.5 | *Not suitable for small and short samples
