Imada GT-30-1 90° Peel Test Fixture

See More Force Gauge Attachments (Imada)

Imada GT-30-1 90° Peel Test Fixture

See More Force Gauge Attachments (Imada)
Price:
$1,105.00 - $1,755.00
    warrenty

    Product Description
    Imada GT-30-1 90° Peel Test Fixture
    Maintains constant 90° angle during pull test

    Perform quick and accurate 90 degree peel tests with our test fixtures.

    *NOTE The Imada GT-30-1 includes slide bearing table and string bolt only. Other grips pictured are sold separately.


    line

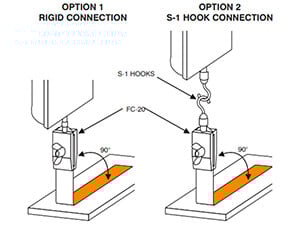

    Mounting Options
    line

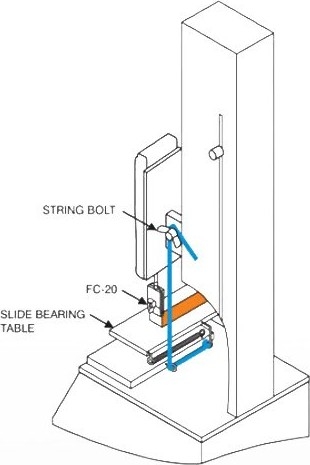

    Rigid Connection

    1. Cut the tape sample to size and affix it to the peel table, leaving one end of the tape unaffixed for gripping purposes.
    2. Move the gauge and FC-20 grip to the same level.
    3. Use the FC-20 (or FC-40) to grip the unaffixed tape end
    4. Loosen the string bolt
    5. Make sure there is no slack, then adjust the string length to move the slide bearing table and make a 90° angle
    6. Re-tighten the string bolt
    7. Press ZERO on DPS gauge, then start the peel test.

    S-1 Hook Connection

    1. Cut the tape sample to size and affix it to the peel table, leaving one end of the tape unaffixed for gripping purposes.
    2. Use FC-20 (or FC-40) to grip the end of the tape and hold it perpendicular while moving the gauge and hook to the same level.
    3. Hook the S-1 attachment hooks together.
    4. Loosen the string bolt.
    5. Make sure there is no slack between the hooks, then adjust the string length to move the slide bearing table and make a 90° angle.
    6. Re-tighten the string bolt.
    7. Press ZERO on DPS gauge, then start the peel test.
