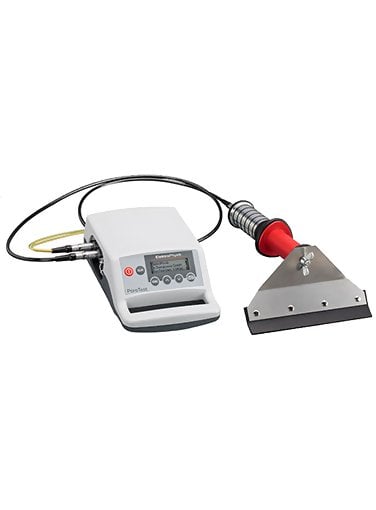

ElektroPhysik 80-440-0002 PoroTest-7 High Voltage Porosity Holiday Detector

See More High Voltage Holiday Detectors

ElektroPhysik 80-440-0002 PoroTest-7 High Voltage Porosity Holiday Detector

See More High Voltage Holiday Detectors
Price:
$2,550.00
    warrenty

    Product Description
    ElektroPhysik PoroTest-7 High Voltage Porosity Holiday Detector, designed for detecting flaws and pores (holidays)

    3 high voltage probes for different coating thicknesses available (not included):

    • P7: 0.03 mm – 1.7 mm / 1 mils – 67 mils
    • P30: 0.52 mm – 9.49 mm / 20.5 mils – 373.6 mils
    • P35: 1.4 mm – 11.3 mm / 55 mils – 444 mils

    Designed for detecting flaws and pores, the ElektroPhysik PoroTest-7 High Voltage Porosity Holiday Detector can be used for non-destructive porosity testing of all insulating coatings on conductive substrates such as steel, aluminium, etc. The test instrument consists of a high voltage probe with an integrated high voltage generator and a test electrode, which is simply connected to the probe. The test voltage control works automatically and is specific to the thickness of the material to be tested and vice versa.

    The control unit features a digital display and control pad. The control unit housing is fully portable and made of rugged ABS plastic with an integrated handle. The high voltage probe and control unit are connected via a rugged cable. To detect porosity, the appropriate test voltage specific to the material thickness is set on the control unit which applies, when activated, a spark discharge at the moment a material flaw is detected. In addition to the spark discharge, flaws are indicated by a visible and audible signal and counted. The test voltage is directly indicated on the digital display.

    Typical applications: Testing linings and coatings applied on ducts, pipes, hulls, oil and storage tanks, enamel, paint, rubber and bitumen linings, vessels and tanks, GFK and other plastic materials.


    line
    Kit Contents
    line

    • PoroTest-7 High Voltage Porosity Holiday Detector
    • Control unit with integrated storage battery
    • Connecting cable probe-control unit
    • Metal brush
    • Grounding cable, 5 m (16 ft) length
    • Power cable
    • Shoulder belt
    • Instruction Manual
    • Carrying Case


    line
    Features
    line

    • Powerful and versatile gauge with new ergonomic design making it ideal for on-site testing
    • User-friendly key-pad layout with menu driven operation
    • Variable pre-set test voltages specific to material thickness
    • High voltage probe with equipment-on and pore indicator (red LED)
    • Light-weight and hand-held test electrodes provide convenient operation
    • Test method conforms to DIN 55 670
    • Backlit display to indicate current test voltage, number of pores and material thickness
    • Residual voltage indicator
    • Alarm signal when exceeding pore limit setting (Limit)
    • Power supply: AC operated or battery operated via integrated storage battery (C-cells)
    • Electrical safety provisions according to VDE 0411, part 1: probe voltage and maximum discharge rate stay below the limit values as specified by the safety standard.
    • Low-battery indicator


    line
    Specifications
    line

    VoltageDC
    DisplayLC-Display, 3-digit
    Accuracy of voltage setting± (0.1 kV + 3% of reading)
    Dimensions of high voltage probe274 mm x 63 mm
    Dimension of control unit225 mm x 150 mm x 85 mm
    Weight high voltage probe550 g
    Weight control unit1400 g
    Alarm signal90 dB, 0.1 s/Pore, continuous tone in case of short-circuit
    Signal outputpotential free, Umax.: 100 V, Imax.: 0.4 A
    Storage battery4 C-cells, IEC LR 14, 3.5 Ah, NiMH, replaceable
    Storage battery life at maximum voltagePoroTest 7-P7: 20 hours continious operation PoroTest 7-P30 & P35: 10 hours continious operation
    Storage battery charging time4 hrs quick charge
    Mains voltage110 to 230 V, 50/60 Hz, automatic switch
    Operating temperature0°...+50°C/ 32°...122°F
    Humidityavoid dew on the surface (refer to DIN 55 670)
    StandardsDIN 55 670, ASTM D 5162-01, AS 3894.1-2002


    line
    Downloads
    line

    ElektroPhysik PoroTest-7 High Voltage Porosity Holiday Detector - Data Sheet
    ElektroPhysik PoroTest-7 High Voltage Porosity Holiday Detector - Instruction Manual
