ElektroPhysik 80-143-0000 MiniTest 2500 Coating Thickness Gauge - Probes Sold Separately

See More Coating Thickness Gauges

ElektroPhysik 80-143-0000 MiniTest 2500 Coating Thickness Gauge - Probes Sold Separately

See More Coating Thickness Gauges
Price:
$1,275.00
    warrenty

    Product Description
    High precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals
    MiniTest 2500 - Basic Model with memory and USB output
    MiniTest 4500 - Adds Batch Memory, Bluetooth
    Probe Sold Separately

    Two Models

    • MiniTest 2500 - Basic Model with memory and USB output
    • MiniTest 4500 - Adds Batch Memory, Bluetooth, RS232 and more

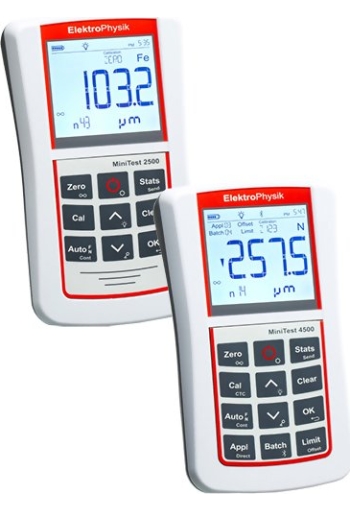

    The ElektroPhysik MiniTest 2500 and 4500 Coating Thickness Gauges are high precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals. Different calibration methods and evaluation options for a wide range of tasks in the field of coating measurements.

    MiniTest coating thickness gauges are not only useful in the laboratory but are equally qualified for use in industrial applications thanks to their rugged housing with a IP 65 rating. Both models feature USB output for connection to notebooks and PCs. The ElektroPhysik MiniTest 4500 Coating Thickness Gauges additionally offers a Bluetooth output for wireless data transfer to mobile devices like Smartphones and printers directly on site. All gauge functions can be triggered directly pressing a single key of the illuminated keypad. The large display with background illumination adds to a high level of user comfort and ergonomics. A broad selection of measuring sensors is available for the MiniTest 2500/4500 line of coating thickness gauges allowing it to handle standard applications as well more complex measuring tasks.

    The scope of application is determined by the sensor connected to the gauge:

    F-type (ferrous) sensors work according to the magnetic induction principle and can measure non-magnetic coatings such as paint, enamel, rubber, aluminum, chrome, copper, zinc etc applied on iron and steel (including steel alloys and hardened magnetic steels).

    N-type (non-ferrous) sensors work according to the eddy current principle and measure insulating coatings such as paint, anodizing, ceramics etc. applied on all non-ferrous metals (for example aluminum, copper, zinc die cast, brass etc.) including austenitic steels.

    FN-type (combination ferrous / non-ferrous) sensors combine both principles and identify the substrate underneath the coating thus automatically switching to the correct measuring principle to measure on base material steel or non-ferrous metal.


    line
    Kit Contents
    line

    • ElektroPhysik MiniTest 2500 or 4500 Coating Thickness Gauges
    • Rubber protection case
    • x AA battery
    • USB connection cable
    • Instruction Manual
    • Caring Case
    • Probe Sold Separately


    line
    Features
    line

    • All functions directly accessible
    • Large selection of interchangeable sensors
    • High-contrast display and illuminated keypad
    • Memory and Statistics
    • Bluetooth and USB Output
    • IP 65 Rated Rugged housing


    line
    Specifications
    line

    Memory MiniTest 2500 2,000,000 values stored in 1 batch
    Memory MiniTest 4500 2,000,000 values stored in up to 9500 batches
    Statistical functions (per batch) MiniTest 2500 kvar, n, max., min.
    Statistical functions (per batch) MiniTest 4500 kvar, n, max., min., CP, CPK
    Calibration Factory settings, zero and up to four calibration points
    Measuring units µm, mm, cm, mils, inch
    Output MiniTest 2500 USB
    Output MiniTest 4500 USB and Bluetooth (RS232 optional)
    Power 3x AA batteries or via USB
    Norms and standards DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376
    Display 53 x 46 mm, backlit
    Operating temperature -10 - 60 °C / 14 - 140° F
    Storage temperature -20 - 70 °C / -4 - 158° F
    Dimensions 153 mm x 89 mm x 36 mm (6” x 3.5” x 1.4”)
    Weight 320 g (0.7 lbs) (gauge incl. batteries), 90 g (0.2 lbs) rubber protection case
    Protection class IP 65


    line
    Related Products
    line

    CPS Certified Plastic Shim Set

    • Foils for Coating Thickness Gauge Calibration and Verifications


    line
    Downloads
    line

    ElektroPhysik MiniTest 2500 & 4500 Coating Thickness Gauges - Data Sheet
    ElektroPhysik MiniTest 2500 & 4500 Coating Thickness Gauges - Instruction Manual
