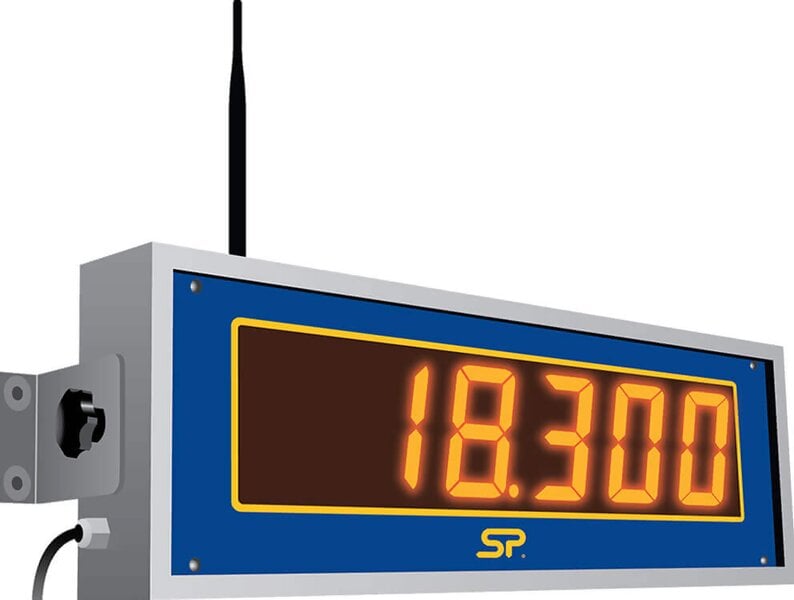

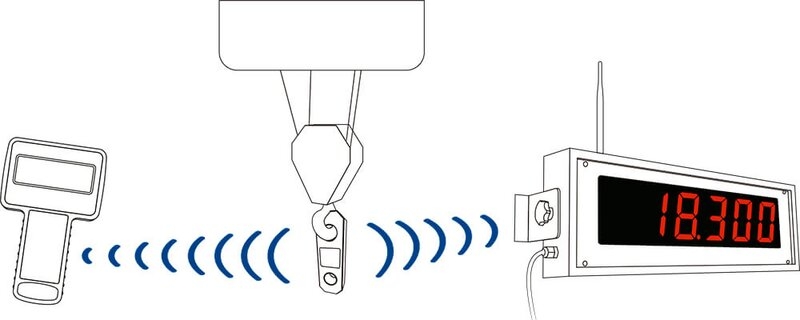

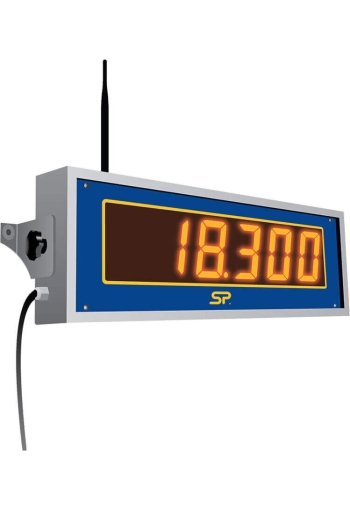

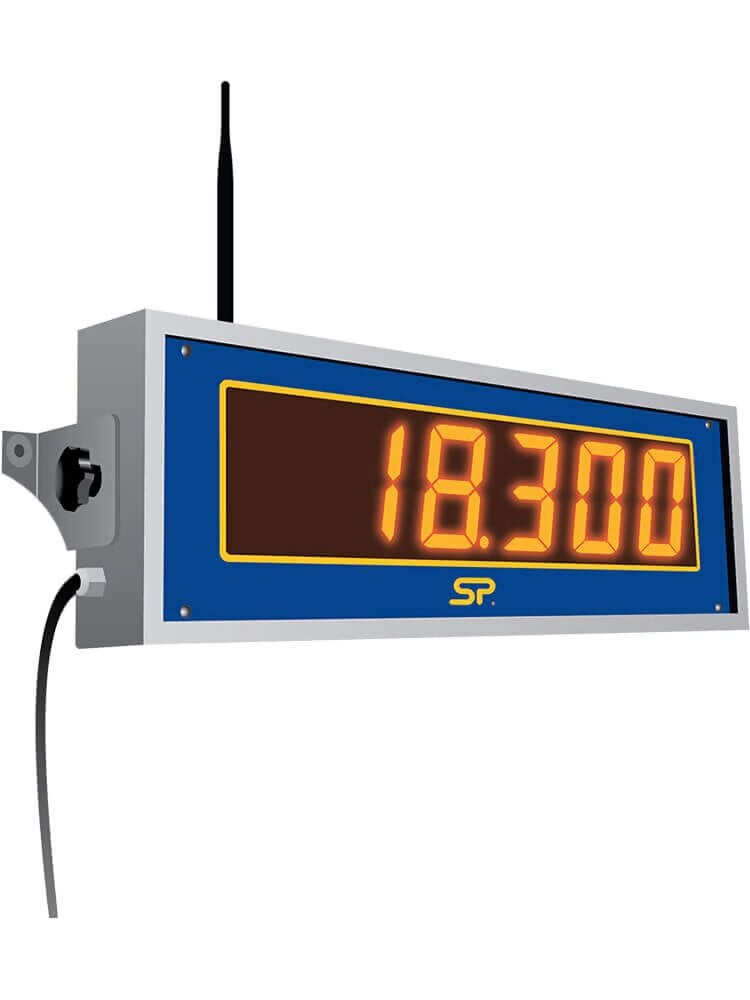

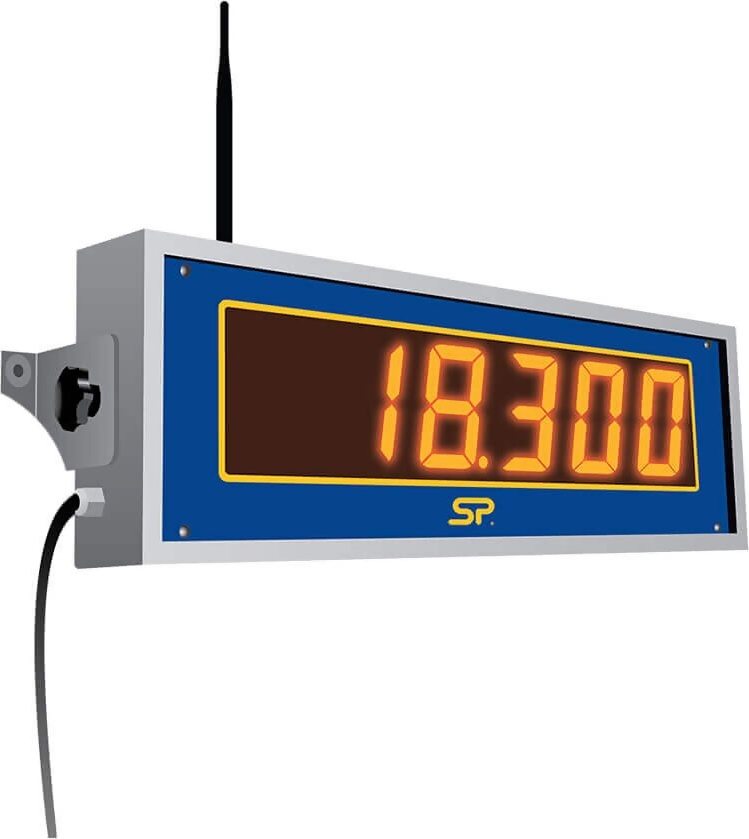

The StraightPoint SW-SD Crosby 2789132 Wireless 100mm LED Remote Scoreboard Display is wireless and viewable for up to 45m/150ft. Perfect for installation on a crane gantry, the unit operates on 110-240 VAC and displays an individual load or summed load for up to eight Straightpoint wireless devices.
Please note: The units of the scoreboard are set to be displayed in tons by default. If you require it to display in different units (lbs/kg) please specify this when ordering, so we can set the scoreboard to display your desired unit.

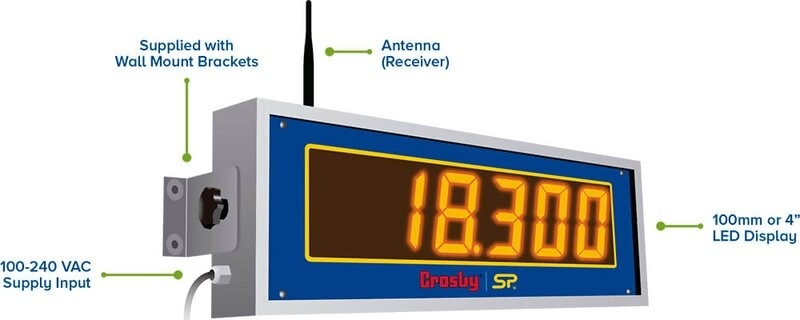

- Easy to read 100mm/4" LED display
- Rugged steel case
- Wall mount brackets supplied
- 700 meters / 2300 ft Wireless Range
- External antenna for maximum range
| Required power supply: | 100 - 240V AC, 50/60 Hz
|
| Operational current: | 0.7 Amps
|
| Radio frequency: | 2.4 GHz (license free)
|
| Maximum number of load cells: | 4 wireless load cells (total load display, sum)
|
| Wireless Range: | 700 meters (2300 ft)
|
| Operating temperature range: | -10°C to +50°C (+14°F to +122°F)
|
| IP Rating of Housing: | IP55 (NEMA 4 and 4X)
|
| Dimensions (L x H x D): | 700 x 230 x 90 mm (27.5" x 9" x 3.5", approx.)
|

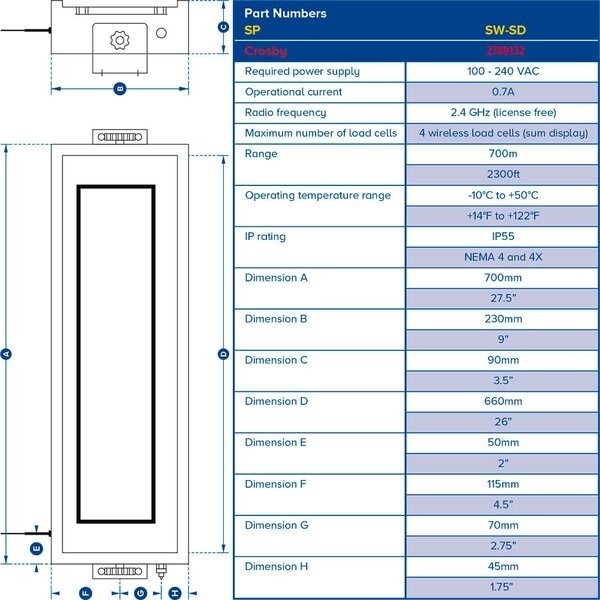

| Dimensions (all): | Refer to drawing & table on PDF Brochure |
