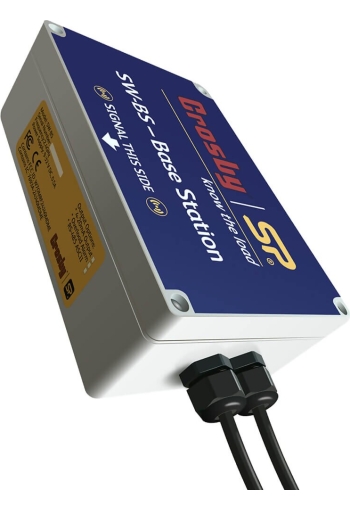

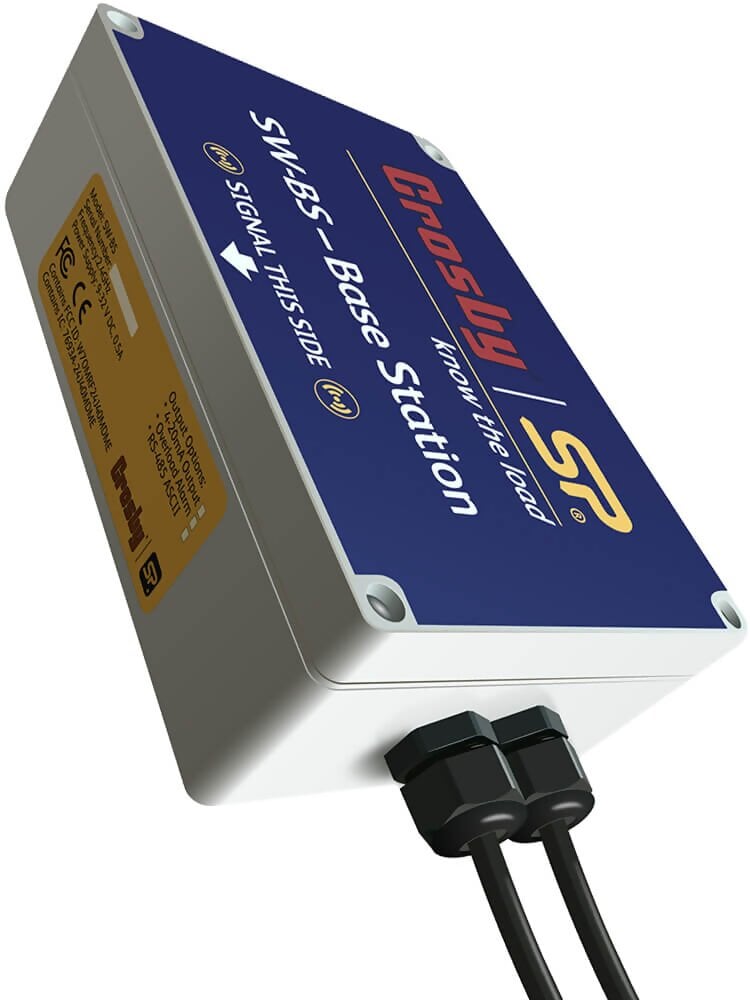

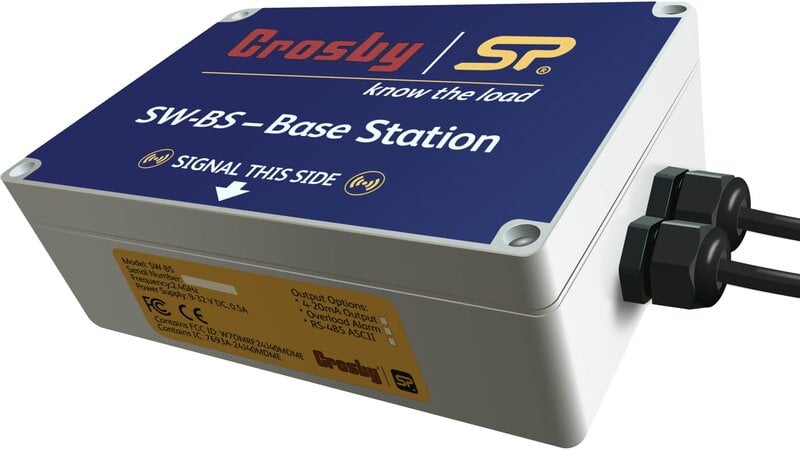

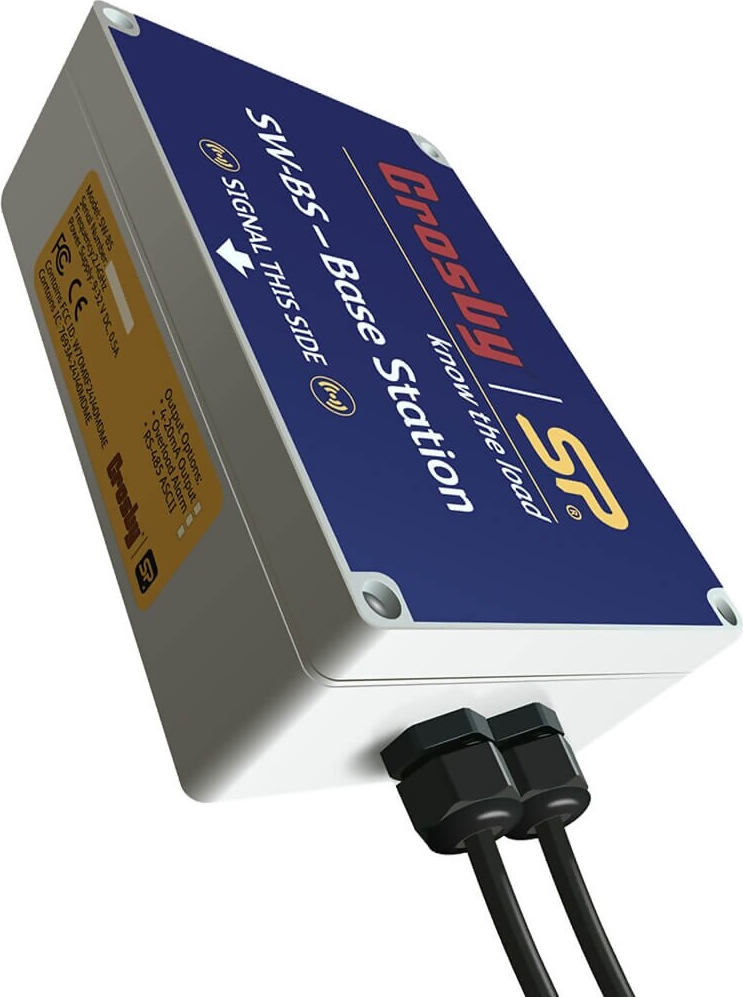

The StraightPoint Crosby SW-BS Wireless Base Station Module is powered via a 9-32V DC external power source and easily pairs to any Straightpoint wireless device e.g. load cell, accessories, and software solutions within range, providing analog & digital outputs.
The SW-BS, Straightpoint base station, provides a configurable analog or digital output for any single or multiple (up to a maximum of four)Straightpoint wireless load cells.
The StraightPoint Crosby SW-BS Wireless Base Station - 2789314 is ideal for integration with PLC, SCADA, DAQ, or another compatible third-party system. The device can be configured to provide any of the following outputs as per configuration:
- 4-20mA
- Relay setpoint
- RS485 ASCII
- Optional CANbus 2.0A & 2.0B
The load data from the wireless loadcell can then be seamlessly fed into an external controller installed on a crane, vehicle or other machinery requiring feedback for close loop or real time control and monitoring.
- 4-20mA analog or RS485 / CANbus digital output for integration into existing systems
- 2 onboard relay setpoints to allow external switching
- Powered b External Power Source (9-32V DC)
- IP65 / NEMA 4 Enclosure
- 800 m / 2652 ft Range
| Required power supply: | 9 to 32V DC
|
| Output options: | Current 4-20mA, 2 relay outputs, RS485 ASCII (configurable)
|
| Radio frequency: | 2.4GHz (licence free)
|
| Wireless Range: | 800 m or 2652 ft
|
| Maximum no. of load cells: | wireless load cells
|
| Operating temperature range: | -10°C to +50°C or 14°F to 122°F
|
| IP rating: | IP65 or NEMA4X
|
| Dimensions: | 180mm (7”) x 120mm (4.72”) x 60mm (2.36”)
|
| Current output specification: | 4-20mA (2 wire), Resolution 4096/12
|
| Relay specification: | Two (2), SPST (relay 1 NO, relay 2 NC), 5A at 250V AC, 5A at 30V DC
|
| RS485 specification: | ASCII
|
| CANbus specification: | CAN2.0A and CAN2.0B supported |
