High Speed Filaments / Limited Access
Ceramic Pins allow measuring speeds up to 6000 m/min

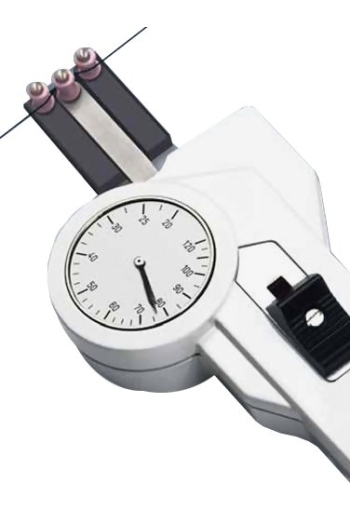

The DX2FP features ceramics pins for measurings filaments moving at high speeds. It's long, flat fingers allow use in applications where there is limited access space or where the running filaments are close together.
Kit Contents
- DX2FP Limited Access Tension Meter with Ceramic Pins
- Instruction manual
- Carrying case
NIST-Traceable Calibration Certificate & Test Report is optionally available
Features
- Dual flanged Non-rotating ceramic pins permit line speeds up to 6000 m/min.
- 27 mm measuring head with outer rollers permits a narrow access "window"
- The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
- Non-rotating ceramic pins permit line speeds up to max. 6000 m/min.
Specifications
| Accuracy | ± 1% of full scale or
± 1 graduation mark on scale |
| Diameter of Scale | 41 mm |
| Maximum Speed | 6000 m/min |
| Roller Material | Oxide ceramic Ø 5.2 mm |
| Housing Material | Die-cast aluminum |
| Dimensions | 225 x 90 x 44 mm (8.6" x 3.5" x 1.7") |

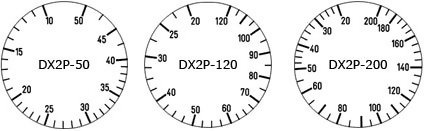

Ranges
| Model | Range |  |
| DX2FP-5 | 10 - 50 grams |
| DX2FP-12 | 20 - 120 grams |
| DX2FP-20 | 20 - 200 grams |
Guide Pins
| Order Code | Line Speed
vmax...m/min | Pin Material |
| Standard | 6000 | Oxide ceramic Ø 5.2 mm |
