RTMB / RTMX Digital Tension Meter

See More Tension Meters, Digital
Call for price
    warrenty

    Product Description
    Digital Tension Meter with Cylindrical Rollers for Tapes and Bands
    9 Ranges from 2.0 g to 50.0 kg
    For all kinds of tape such as, textile ribbons, films, foils, fibre bunches etc


    RTMB / RTMX Dual Flange Rollers up to 30mm Width
    BTMB / BTMX Single Flange Rollers up to 30mm Width

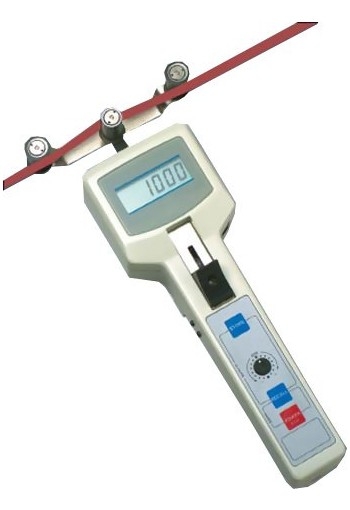

    The RTMB / BTMB Digital Tension meter accurately measures the running line tension of all kinds of tape such as, textile ribbons, films, foils, fiber bunches etc.

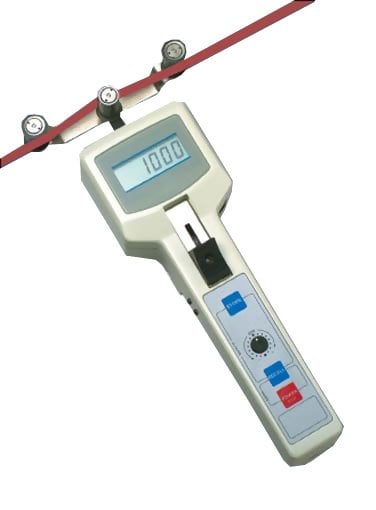

    Cylindrical rollers pointing toward the operator allows the operator to easily see the material being measured and the display.


    line
    Kit Contents
    line

    • RTMB / RTMX Digital Tension Meter
    • Four (4) AA batteries
    • Needle nose pliers
    • Instruction Manual
    • Carrying Case


    line
    Features
    line

    • Roller shifting mechanism ensures easy acquisition of the running material
    • Cylindrical rollers pointing toward the operator
    • Dual-flanged outer guide rollers (single-flanged rollers optional, recommended if the material being measured is wider than the tape roller)
    • Built-in datalogging with RS232 and 0-1 VDC Analog output
    • Memory capacity of 100 values plus min, max, peak, avg and standard deviation
    • Optional TensionView software available for batch download or continuous real-time trending


    line
    Specifications
    line

    AccuracyFrom 10% up to 90% of tension range: ±0.5% full scale and ±1 digit remaining tension range and other calibration material: ± 3% full scale and ±1 digit
    OverrangeApprox. 15% full scale, without accuracy guarantee
    Overload protection100% of tension range
    Measuring principleStrain gauge bridge
    Measuring roller deflection0.2 mm max.
    Converter12 bit A/D
    Temperature CoefficientGain: less than ±0.01 % full scale/ºC
    Zero point: less than ±0.3 % full scale/ºC
    DisplayLCD 4 digit, 12 mm high
    Display update rateAdjustable 0.5, 1, 2 or 4 s (averaging)
    Field adjustment±7 steps in 1.5 % increment
    MemoryMIN, MAX, PEAK and last value
    Temperature range10 -45 ºC
    Air humidity85 % relative humidity, max.
    Housing Dimensions235 x 76 x 45mm (LxWxH)

    Additional specifications model for BTMX

    Expanded memoryMax. 100 readings, MAX, MIN, and PEAK as well as average values and standard deviation
    Digital output signalRS 232 C (4800, 8, N, 2)
    Analog output signal0 - 1 V DC (converter rate 16 ms)
    Digimatic interfaceMitutoyo


    line
    Ranges
    line

    ModelRangeResolutionMeasuring Head
    Width mm
    BTMB-200
    BTMX-200
    2.0 - 200.0 g0.1 g55
    BTMB-500
    BTMX-500
    5.0 - 500.0 g0.1 g55
    BTMB-1000
    BTMX-1000
    50 - 1000 g1 g55
    BTMB-2000
    BTMX-2000
    200 - 2000 g1 g55
    BTMB-2500
    BTMX-2500
    250 - 2500 g1 g117
    BTMB-5000
    BTMX-5000
    500.00 - 5000.00 g0.01 kg117
    BTMB-10K
    BTMX-10K
    1.00 - 10.00 kg0.01 kg117
    BTMB-20K-L
    BTMX-20K-L
    2.00 - 20.00 kg0.01 kg217
    BTMB-50K-L
    BTMX-50K-L
    5.00 - 50.00 kg0.01 kg217


    line
    Rollers
    line

    Roller WidthLine Speed...m/minRoller Material
    7 mm1000Nickel-plated steel
    10 mm1000Hardcoated aluminum
    15 mm1000Hardcoated aluminum
    20 mm1000Hardcoated aluminum
    30 mm1000Hardcoated aluminum


    line
    Downloads
    line

    PT-100-L Pocket Tension Meter for Circular Knitting with Speed and Length Meter - Dimensions
