Measuring Range: 0 - 50 mm / 0 - 2.0 inch
Jaw Depth: 300 mm / 11.8 inch
Resolution: 0.1 mm / 0.01 inch

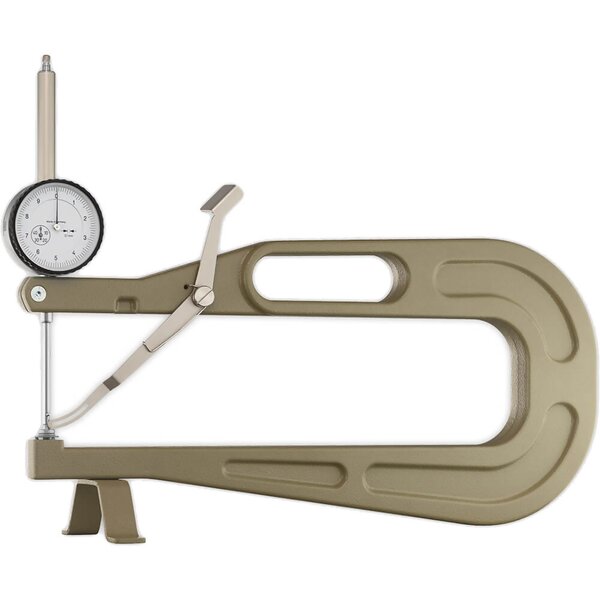

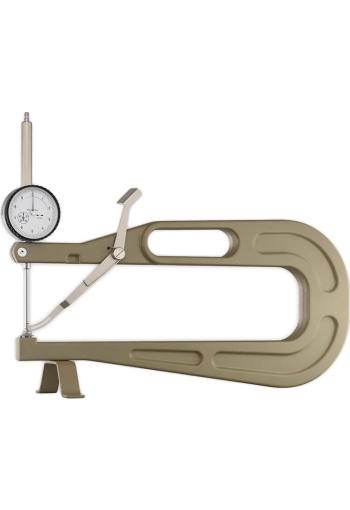

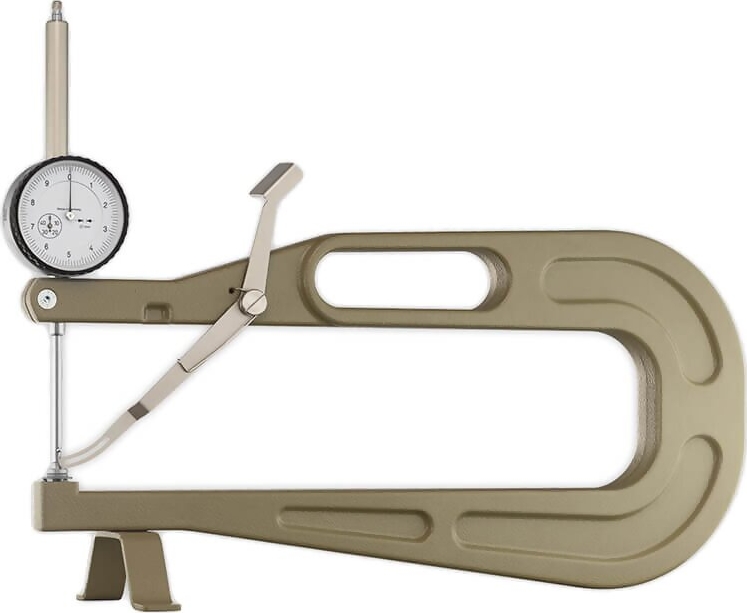

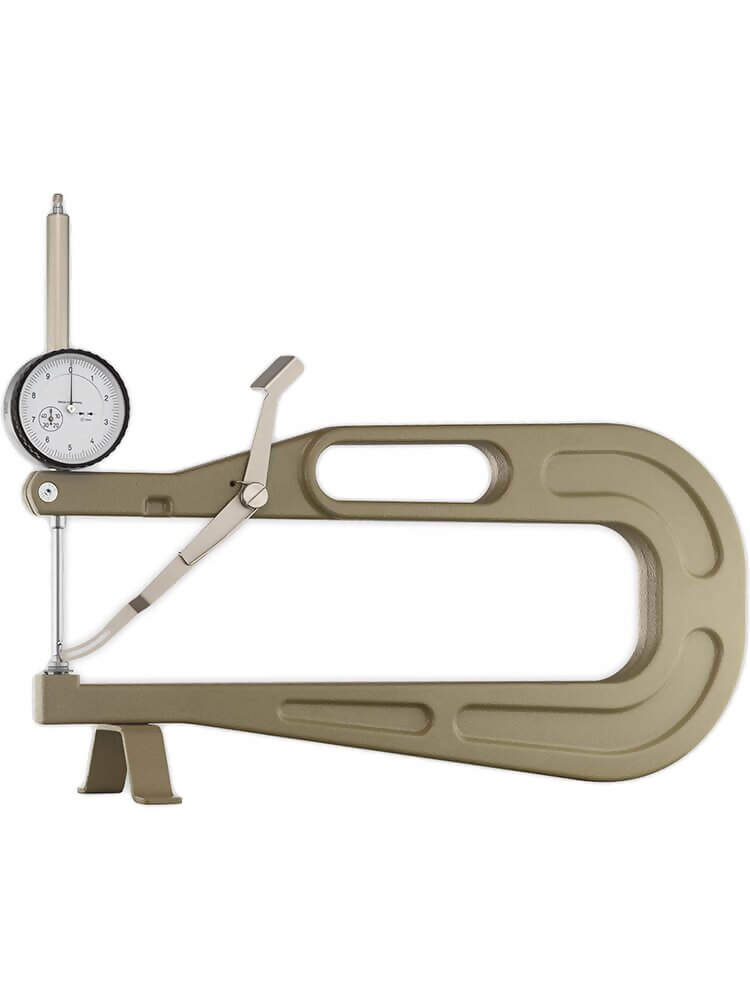

The Hans-Schmidt K-300-50 Dial Thickness Gauge, 300mm Jaw Depth, 50mm Measuring Range is an easy-to-read analog display along with high accuracy. 5 different feelers are available, they are listed below. The Hans-Schmidt K-300-50 Dial Thickness Gauge, 300mm Jaw Depth, 50mm Measuring Range is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.
Kit Contents
- Hans-Schmidt JD-300 Digital Thickness Gauge
- Transport Packing Case
Features
- Self closing mechanism for fast and reliable measurements
- 5 different feelers
- Calibration Certificate OPTIONAL
Specifications
| Measuring Range | 50 mm (K models)
2.00" (KZ models) |
| Resolution | 0.1mm (K models)
0.01" (KZ models) |
| Depth Of Jaw | 300mm / 11.8" |
| Scale Diameter | 54 mm / 2" |
| Feeler Shape | Select Feeler "A", "B", "C", "D" or "E" |
| Measuring Principle | Self closing |
| Weight, net (gross) | 2000g / 4lbs |
Feeler Shape
To order, please indicate the desired feeler, e.g. K-300-50-B for gauge with feeler B.
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
