Measuring Range: 0 – 12.5 mm / 0 - 0.5 inch
Resolution: 0.01 mm / 0.001 inch
Jaw Depth: 300 mm (11.8 inch)

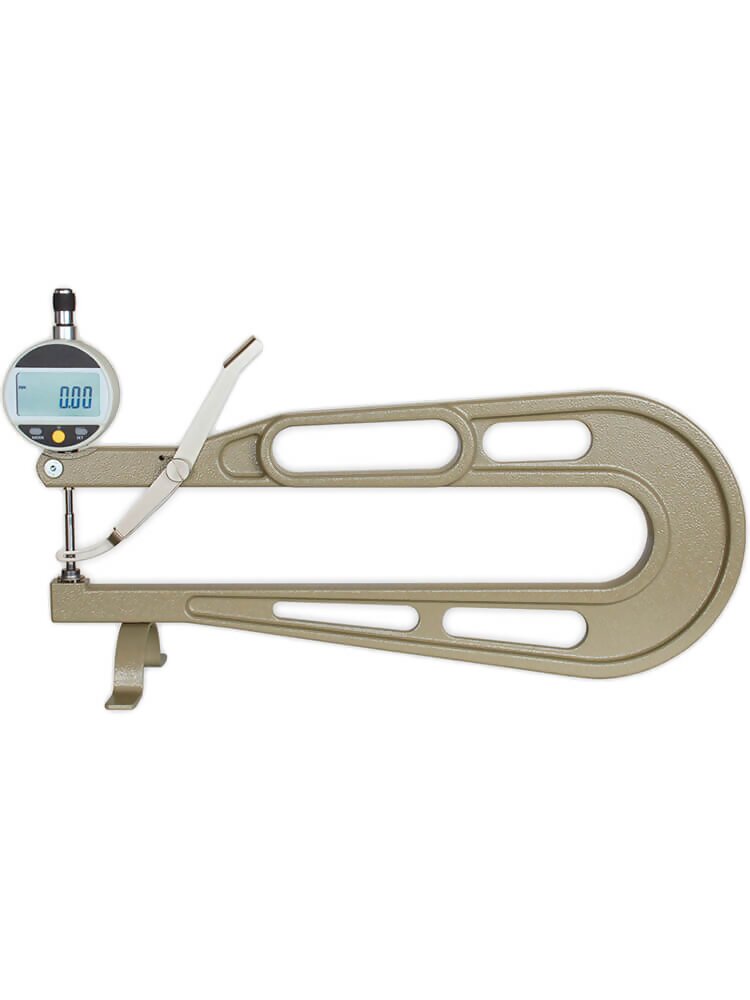

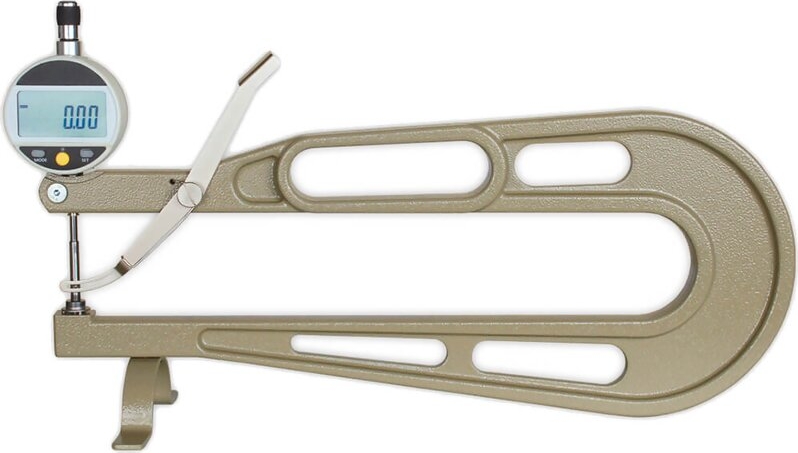

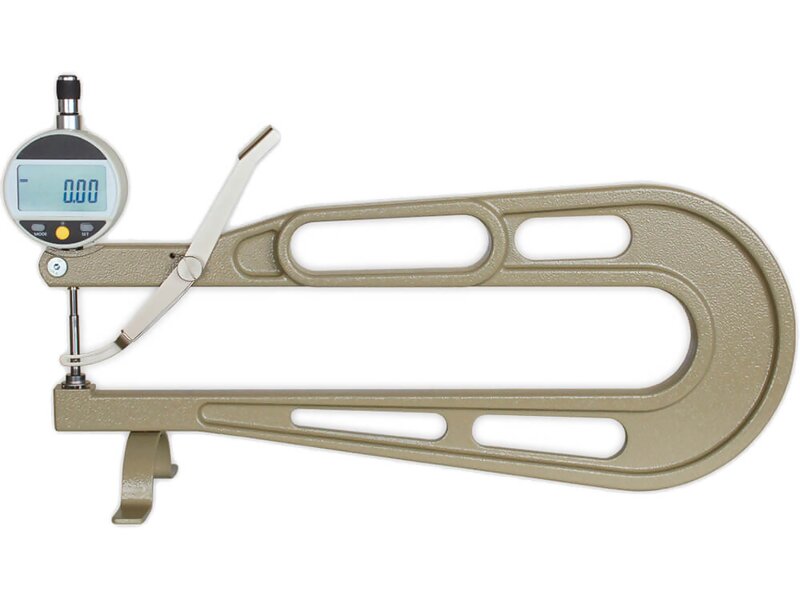

The Hans-Schmidt JD-300 Digital Thickness Gauge is a digital thickness gauge with a deep throat for measuring leather, textiles, cardboard, felt, rubber, foam, sheet metal, foil, plywood, plastic, etc.
Kit Contents
- Hans-Schmidt JD-300 Digital Thickness Gauge
- Battery
- Transport Packing Case
Features
- Selectable units of measurement (mm or inch)
- Calibration Certificate OPTIONAL
- Includes swing-out foot for on-table operation
- Choice of 5 different feelers, see list below (select only 1)
- USB and RS-232 output, requires optional USB or RS-232 output cable
Specifications
| Resolution | 0.01 mm / 0.001 inch |
| Measuring range | 0 – 12.50 mm / 0.500 inch |
| Depth of jaw | 300 mm / 12" |
| Feeler shape | A / B / C / D / E (select one) |
| Display | LCD 6 digit, 8.5 mm high |
| Measuring system | Capacitiv (Sylvac) |
| Temperature range | 10 – 45 °C |
| Battery | 3 V Lithium, CR 2032 |
| Data output | USB, RS 232 |
| Weight, net (gross) | Approx. 1000 g (1400 g) |
Feeler Shape
To order, please indicate the desired feeler, e.g. JD-300-B for gauge with feeler B. This means that NOT all feelers are included! Select only one (1) Feeler type.
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
