Measurement Range: 10 mm / 0.4 inch
Resolution: 0.01 mm / 0.0005 inch
Jaw Depth: 50mm (2 inch)

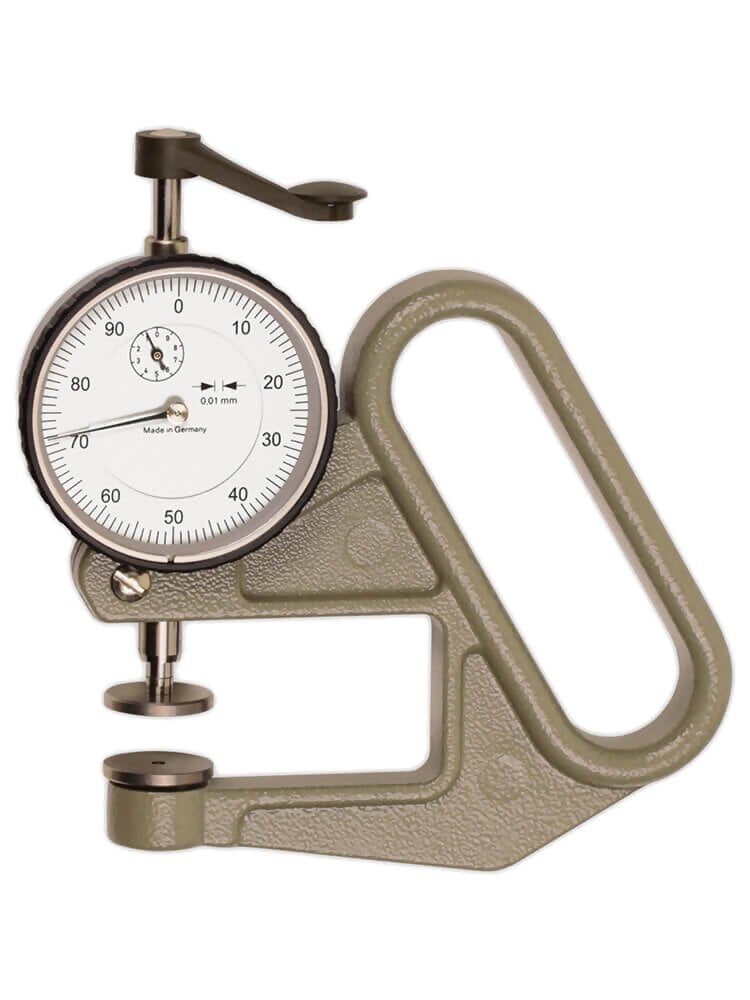

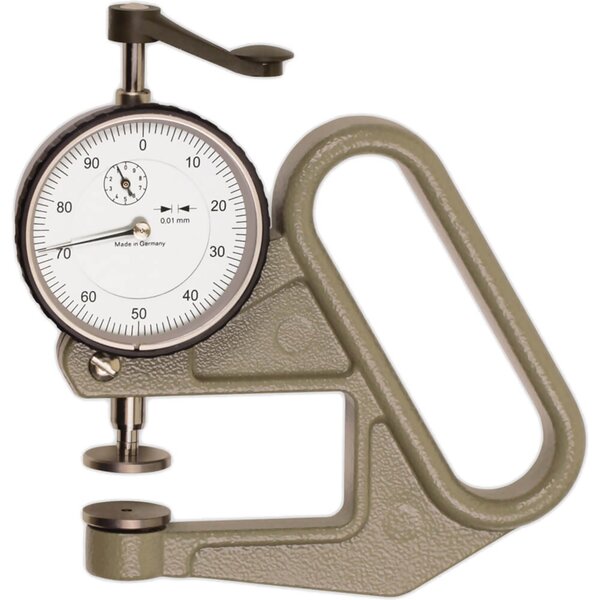

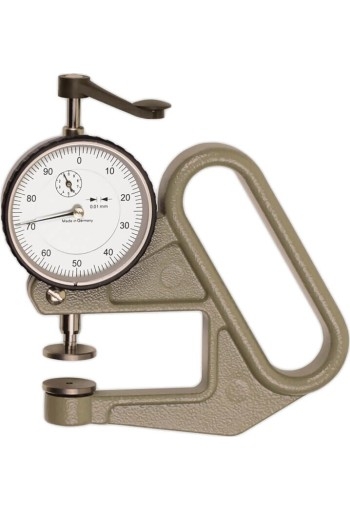

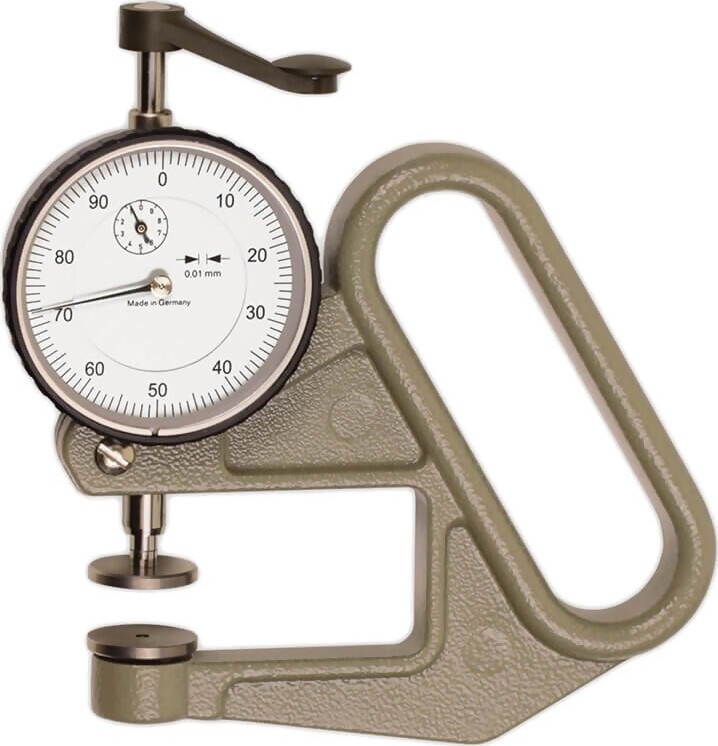

The Hans-Schmidt J-50 Analog Thickness Gauge with 50mm Jaw Depth is used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
The Hans-Schmidt J-50 Analog Thickness Gauge with 50mm Jaw Depth model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger.

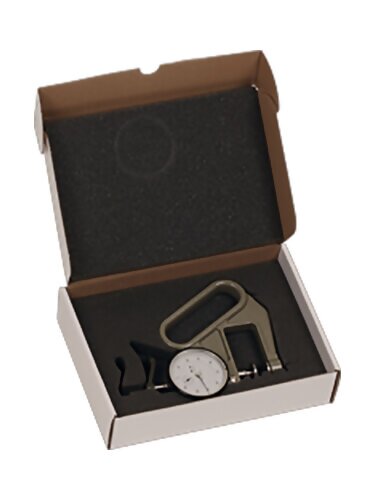

Kit Contents
- Hans-Schmidt J-50 Analog Thickness Gauge
- Transport Packing Case
Features
- Metric or Inch Dials Available
- Resolution 0.01 mm or 0.001 inch
- Measurement by manual pressure by plunger
- Opening by spring force - self opening
- NIST-Traceable Calibration Certificate is optional)
Specifications
| Resolution | 0.01 mm |
| Measuring range | 10 mm |
| Depth of jaw | 50 mm |
| Scale diameter | 58 mm |
| Feeler shape | A,B,C,D or E |
| Spring force | Self opening |
| Weight, net | 300 g |
Feeler Shape
To order, please indicate the desired feeler, e.g. J-50-B for gauge with feeler >b<. this means that not all feelers are included in the package.< />>
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
