Measuring Range:0 - 10 mm or 0 - 30 mm
Resolution: 0.01 mm
Measuring range: 0 - 10 mm or 0 - 30 mm
Resolution: 0.01 mm

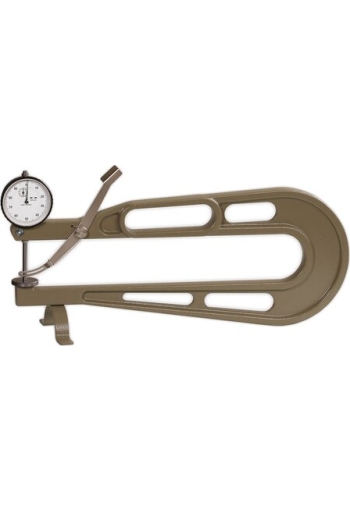

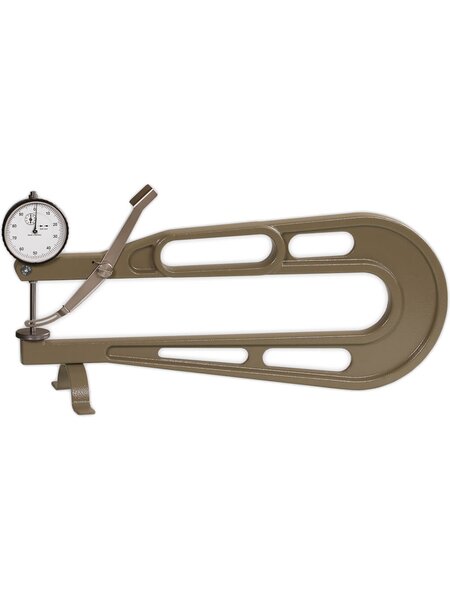

The Hans-Schmidt J-300 Series Dial Thickness Gauge is a to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, foam and more
Kit Contents
- Hans-Schmidt J-300 Series Dial Thickness Gauge
Features
- Opening by lifting device (lever) – self closing thickness gauge J-300
- J-300 Thickness gauge features an easy to read analog display along with the high accuracy
- The J-300 model is available with 5 different feelers, which can be found below
- Measuring by specified spring force of 1.2 N (optional 0.6 N or 2 N)
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 10 mm or 30 mm |
| Depth of jaw; | 300 mm |
| Bezel diameter: | 54 mm |
| Measuring pressure: | 1.2 N (optional 0.6 N or 2 N) ± 10 % |
| Feeler shape: | A, B, C, D or E - Specify when ordering |
| Measuring principle: | Self-closing |
| Weight, net (gross): | 1350 g (1450 g) |
Ranges
| Model | Measuring Range | Resolution | Jaw Depth |
| J-300 | 10 mm | 0.01 mm | 300 mm |
| J-300-30 | 30 mm | 0.01 mm | 300 mm |
| J-15 | 10 mm | 0.01 mm | 18 mm |
| J-45 | 10 mm | 0.01 mm | 45 mm |
| JA-50 | 10 mm | 0.01 mm | 50 mm |
| J-50 | 10 mm | 0.01 mm | 50 mm |
| J-100 | 10 mm | 0.01 mm | 100 mm |
| J-200 | 10 mm | 0.01 mm | 200 mm |
| j-200-30 | 30 mm | 0.01 mm | 200 mm |
| J-400 | 10 mm | 0.01 mm | 400 mm |
| J-400-30 | 30 mm | 0.01 mm | 400 mm |
Feeler Shape
To order, please indicate the desired feeler, e.g. J-300-B for gauge with feeler B. One feeler only included in package
 | Feeler: A
For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard |
| Feeler: B
For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard |
| Feeler: C
For soft leather, cardboard, paper, foils, etc.
|
| Feeler: D
For hard leather, plywood, fiberboard, etc.
|
| Feeler: E
For sheet metal, etc. |
