Operating by lifting device - self closing
Resolution 0.001 mm (0.00005 inch)
Easy to read LCD Display

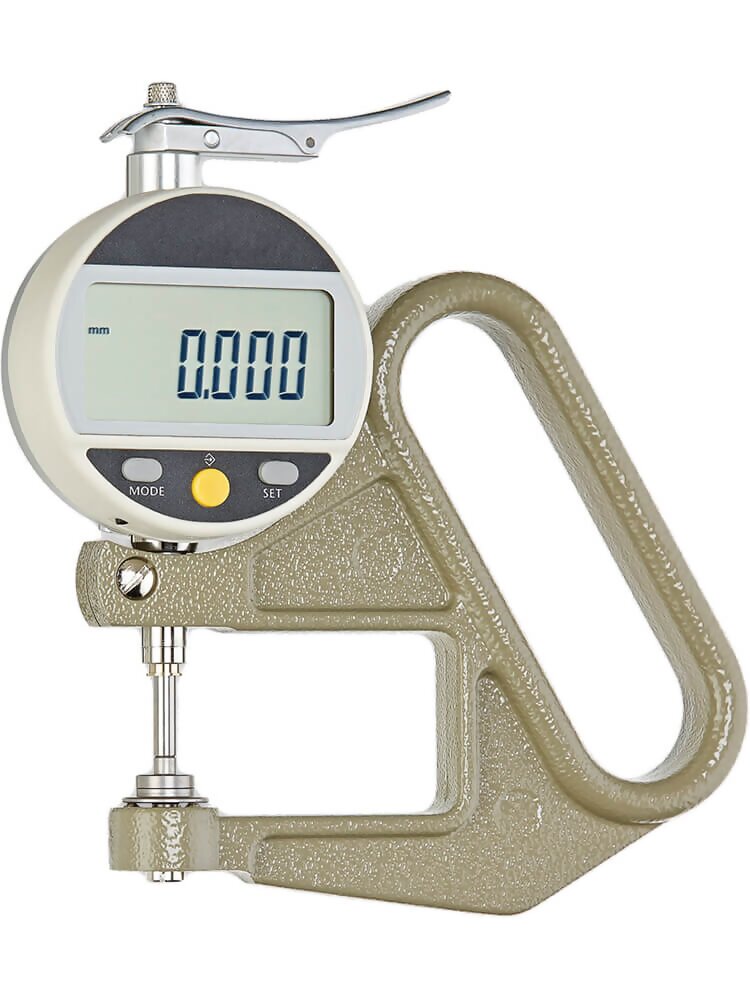

The Hans-Schmidt FD-50 Digital Thickness Gauge series features an easy-to-read LCD display with the ability to display thickness in mm or inches.
The Hans-Schmidt FD-50 Digital Thickness Gauge model is available with 5 different feelers, which can be found below. A self-closing mechanism provides accurate and repeatable measurements
Features
- Operating by lifting device - self closing
- Resolution 0.001 mm (0.00005 inch)
- Easy to read LCD Display
- User selectable units mm and inch
- USB Data Output (requires optional cable, DCPRMD-USB)
- Dial gauge: Sylvac S 229
- NIST-Traceable Calibration Certificate optional
Specifications
| Resolution | 0.001 mm / 0.0001 inch |
| Measuring range | 0 - 12.5 mm / 0.4 inch |
| Depth of jaw | 50 mm |
| Display | LCD 6 digit, 8.5 mm high |
| Measuring principle | Capacitive (Sylvac) |
| Measuring pressure | < 1.4 N |
| Feeler shape | a,b,c,d or e |
| Lifting device | Operating by lifting device - self closing |
| Data output | USB, RS 232, optical coupling |
| Power supply | Battery 3 V Lithium, CR 2032 |
| Temperature range | 10 - 45°C |
| Weight, net | 300 g |
Feeler Shape
To order, please indicate the desired feeler, e.g. 500-FD-B for gauge with feeler >b<. this means that not all feelers are included in the package!< />>
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
