Name: Checkline K-400 Analog Dial Thickness Gauge
Brand: Checkline
SKU: 709

Checkline K-400 Analog Dial Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 30 mm / 0 - 1.00 inch

Resolution: 0.005 inch / 0.1 mm

Jaw Depth: 400 mm / 15.75 inch

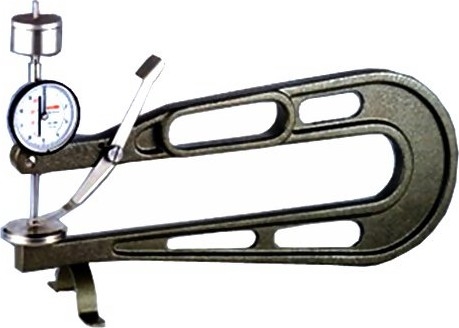

The Checkline K-400 analog dial thickness gauge features an easy to read analog display along with the high accuracy.

The K-400 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

line

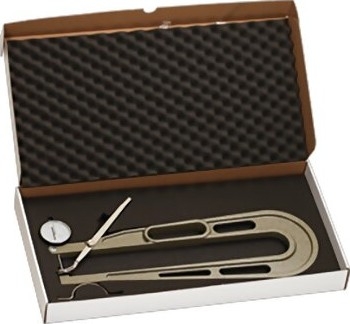

Kit Contents
line

K-400 Analog Dial Thickness Gauge
Transport packing case

line
Specifications
line

Range	1.00" (KZ models) 30 mm (K models)
Resolution	0.001" (KZ models) 0.1 mm (K models)
Range per revolution	0.4" (10 mm)
Bezel-Ø	2.3" (58 mm)
Depth of Jaw	15.75" (400 mm)
Feeler Type	Select Feeler "A", "B", "C", "D" or "E"
Test Pressure	1.8N Standard (optional 0.9N and 2.5N)
Weight	3 Lbs (1.4 Kg)

line

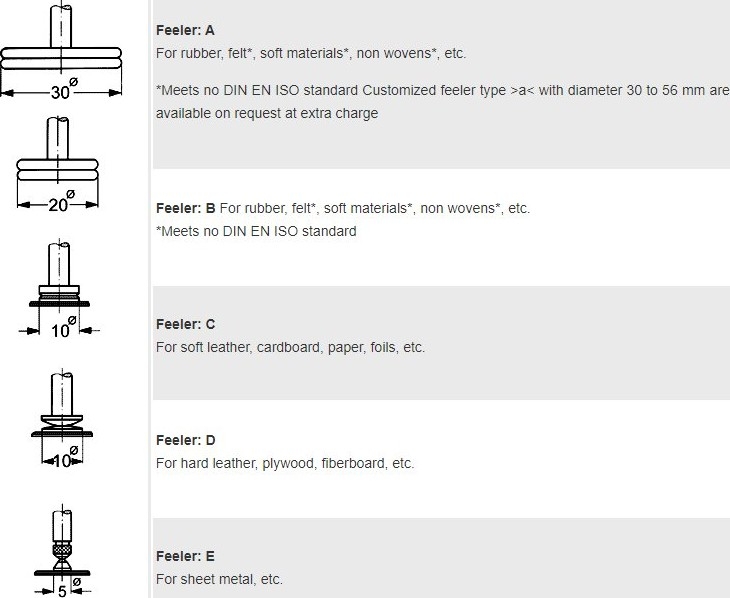

Feeler Shape
line

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.

line
Downloads
line

Checkline K-400 Analog Dial Thickness Gauge - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline K-400-A Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 400 mm, Feeler A for Rubber, Felt, Soft materials, Non Wovens, Metric Units View Model Details

$435.00

Checkline K-400-B Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 400 mm, Feeler B for Rubber, Felt, Soft materials, Non Wovens, Metric Units View Model Details

$435.00

Checkline K-400-C Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 400 mm, Feeler C for Soft Leather, Cardboard, Paper, Foils, Metric Units View Model Details

$435.00

Checkline K-400-D Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 400 mm, Feeler D for Hard Leather, Plywood, Fiberboard, Metric Units View Model Details

$435.00

Checkline K-400-E Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 400 mm, Feeler E for Sheet Metal, Metric Units View Model Details

$435.00

Checkline KZ-400-A Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 15.75", Feeler A for Rubber, Felt, Soft materials, Non Wovens, English Units View Model Details

$435.00

Checkline KZ-400-B Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 15.75", Feeler B for Rubber, Felt, Soft materials, Non Wovens, English Units View Model Details

$435.00

Checkline KZ-400-C Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 15.75", Feeler C for Soft Leather, Cardboard, Paper, Foils, English Units View Model Details

$435.00

Checkline KZ-400-D Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 15.75", Feeler D for Hard Leather, Plywood, Fiberboard, English Units View Model Details

$435.00

Checkline KZ-400-E Analog Thickness Gauge, Range 0 - 1.00", Depth of Jaw 15.75", Feeler E for Sheet Metal, English Units View Model Details

$435.00

Recommended Accessories

PRICE

NISTCAL Traceable Calibration Certificate

$110.00 *$2.00
