Name: Checkline DMD-3-1 Digital Thickness Gauge
Brand: Checkline
SKU: 894

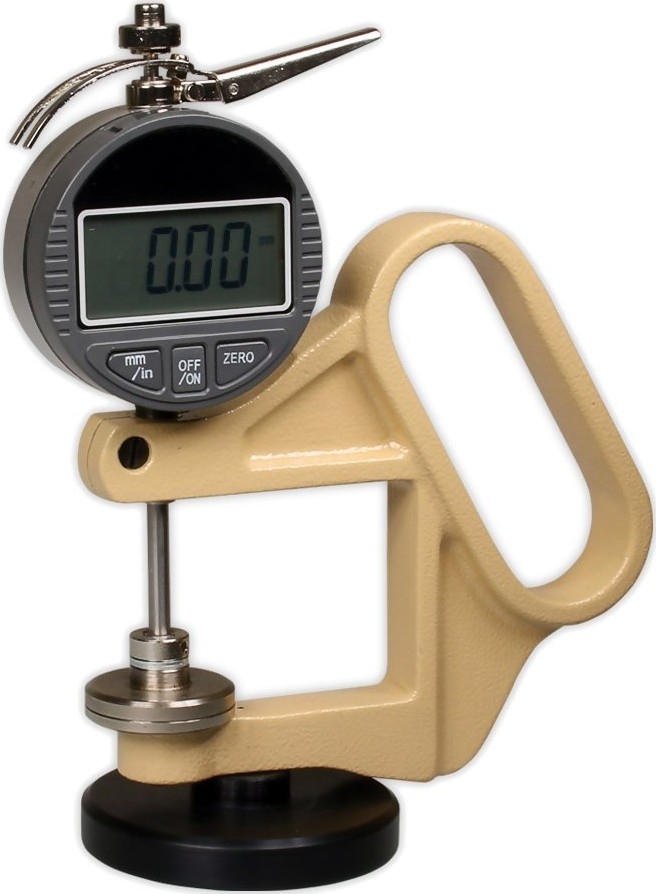

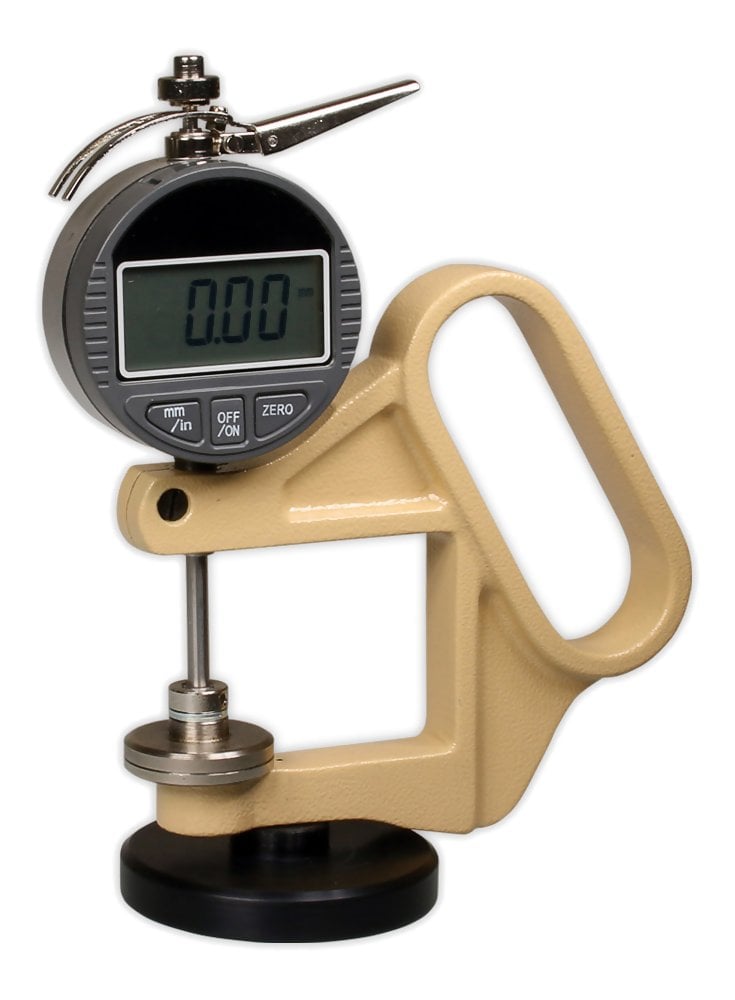

Checkline DMD-3-1 Digital Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 1 in (0 - 25 mm)

Resolution: 0.0005 in (0.01 mm)

Jaw Depth: 1.97 in (50 mm)

The Checkline DMD-3-1 Digital Thickness Gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

line

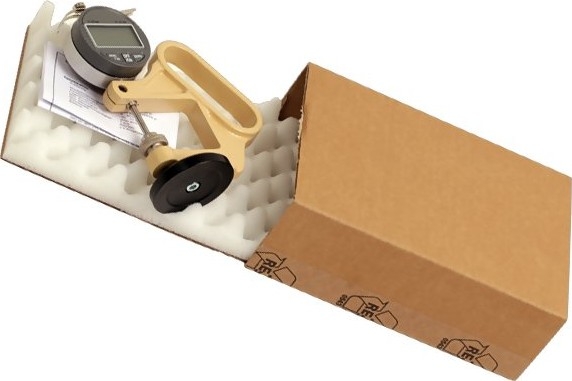

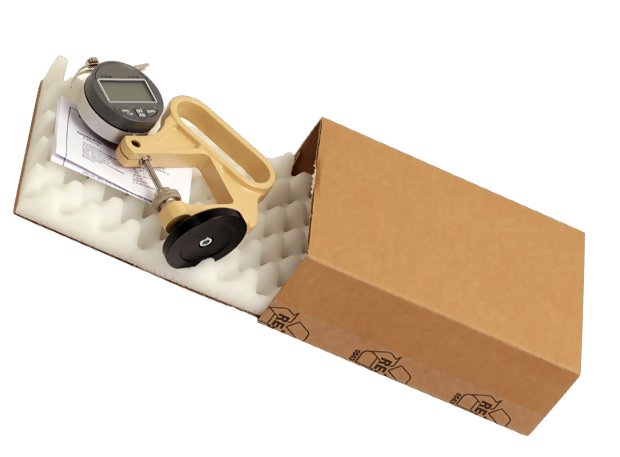

Kit Contents
line

Thickness gauge DMD-3-1
Transport Packing Case
Instructions

line
Features
line

Thickness gauge with RS 232 output for data collection
Measuring by spring force
Opening by lifting device (lever) - self closing
LCD display with user selectable units (mm or inch)
Zero setting by pushing a button
Calibration certificate included

line
Specifications
line

Resolution	0.0005 in (0.01 mm)
Measuring range	0 - 1 in (25 mm)
Depth of jaw	1.97 in (50 mm)
Measuring pressure	2 N
Measuring principle	Self closing
Feeler shape	A/B/C/D/E
Display	LCD 4 digit, 8 mm high
Measuring system	Sylvac
Weight, net (gross)	300 g (350 g)

line
Available Models
line

Model	Measuring Range	Resolution	Depth of Jaw
DMD-3	0 - 0.4 in (0 - 10 mm)	0.0005 in (0.01 mm)	1.97 in (50 mm)
DMD-3-1	0 - 1 in (0 - 25 mm)	0.0005 in (0.01 mm)	1.97 in (50 mm)
DMD-820	0 - 0.4 in (0 - 10 mm)	0.0005 in (0.01 mm)	7.87 in (200 mm)
DMD-820-1	0 - 1 in (0 - 25 mm)	0.0005 in (0.01 mm)	7.87 in (200 mm)
DMD-830	0 - 0.4 in (0 - 10 mm)	0.0005 in (0.01 mm)	11.81 in (300 mm)
DMD-830-1	0 - 1 in (0 - 25 mm)	0.0005 in (0.01 mm)	11.81 in (300 mm)
DMD-850	0 - 0.4 in (0 - 10 mm)	0.0005 in (0.01 mm)	19.70 in (500 mm)
DMD-850-1	0 - 1 in (0 - 25 mm)	0.0005 in (0.01 mm)	19.70 in (500 mm)

line

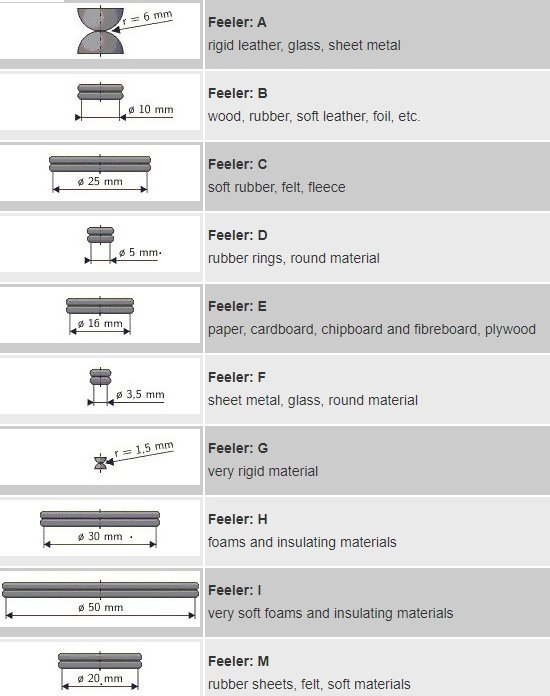

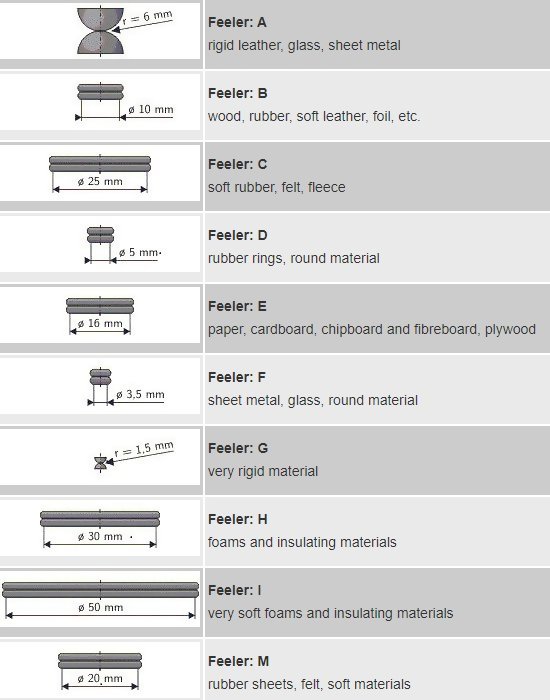

Feeler Shape
line

To order, please indicate the desired feeler, e.g. DMD-3-1 for gauge with feeler >B<. This means that NOT all feelers are included in the package!

	Feeler: A rigid leather, glass, sheet metal
	Feeler: B wood, rubber, soft leather, foil, etc.
	Feeler: C soft rubber, felt, fleece
	Feeler: D rubber rings, round material
	Feeler: E paper, cardboard, chipboard and fibreboard, plywood
	Feeler: F sheet metal, glass, round material
	Feeler: G very rigid material
	Feeler: H foams and insulating materials
	Feeler: I very soft foams and insulating materials
	Feeler: M rubber sheets, felt, soft materials

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline DMD-3-1-A Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler A (6 mm) for Rigid Leather, Glass, Sheet Metal View Model Details

$484.00

Checkline DMD-3-1-B Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler B (10 mm) for Wood, Rubber, Soft Leather, Foil, etc. View Model Details

$484.00

Checkline DMD-3-1-C Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler C (25 mm) for Soft Rubber, Felt, Fleece View Model Details

$484.00

Checkline DMD-3-1-D Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler D (5 mm) for Rubber Rings, Round Material View Model Details

$484.00

Checkline DMD-3-1-E Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler E (16 mm) for Paper, Cardboard, Chipboard and Fibreboard, Plywood View Model Details

$484.00

Checkline DMD-3-1-F Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler F (3.5 mm) for Sheet Metal, Glass, Round Material View Model Details

$484.00

Checkline DMD-3-1-G Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler G (1.5 mm) for Very Rigid Material View Model Details

$484.00

Checkline DMD-3-1-H Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler H (30 mm) for Foams and Insulating Materials View Model Details

$484.00

Checkline DMD-3-1-I Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler I (50 mm) for Very Soft Foams and Insulating Materials View Model Details

$484.00

Checkline DMD-3-1-M Digital Thickness Gauge, Range 0 - 1", Jaw Depth 50 mm, Feeler M (20 mm) for Rubber Sheets, Felt, Soft Materials View Model Details

$484.00
