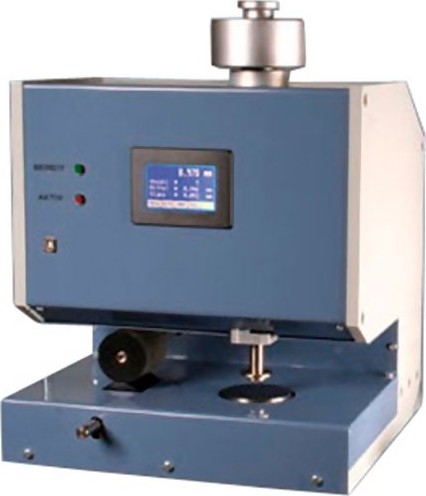

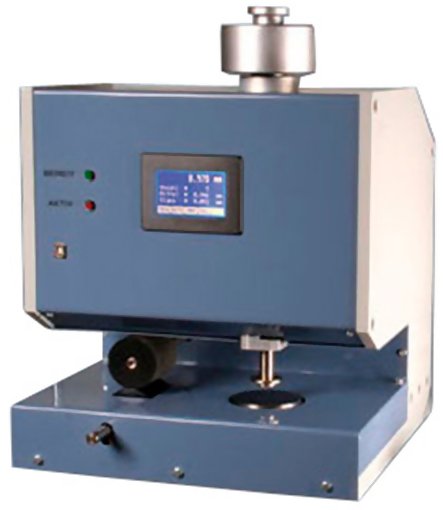

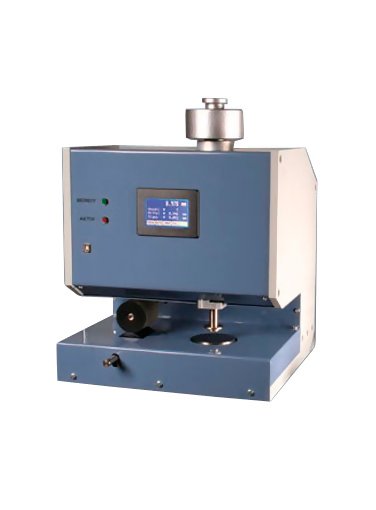

Thickness Gauge with motorized operation to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.

According to international standards DIN, EN and ISO

Kit Contents

Features

• Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability
• Thickness gauge D-2020 with selectable measuring units mm / inch
• The display language can be changed between German and English
• Easy to use
• Calibration report for free, DAkkS inspection certificate optional

Special Features

• The thickness gauge D-2020 is mainly designed for laboratory use; They are working according international DIN, EN, ISO and ASTM standards
• Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument
• Thickness gauge D-2020 is equipped with graphic display for readings and statistics as well as a motor driven feeding system
• Touch screen for adjusting e. g.:
  • Number of measurings 1 – 250
  • Adjustable measuring range 0 … 10 mm
  • Measuring time 1 – 60 sec.
  • Measuring units mm or inch
  • Travel distanced 10 – 100 mm
  • 2 different travel speeds
• 2 selectable modes:
  • “AUTO” – executing a series of measurements
  • “MAN” – executing a single measurement
• Time saving during series measuring by ideal set up according the measuring task (motorized feeler, adjustable measuring time and adjustable measuring path)
• Adjustable, automatic material feed by series of measurements (travel distance: 10 – 100 mm, speed: slow or fast)
• Statistical analysis of series of measurement (Number of measurings, average value, min, max, standard deviation)
• 2 display modes:
  • numeric
  • numeric and graph
• Interface:
  • USB for data transmission
  • RS-232 for printer
• The standard measuring range is 0 – 10 mm; 25 is optional available
• The standard resolution is 0.001 mm
