A pinhole detector is a non‐destructive instrument for detecting discontinuities in a coating system including pinholes, cracks and thin spots. Other names include porosity detector, continuity tester, sponge tester and holiday detector.

There are two types of pinhole detectors, low voltage (wet sponge) and high voltage (spark tester). Low voltage detectors, like the PosiTest LPD, are typically used on coating systems less than 500 µm (20 mils) thick. High voltage spark testers operate at voltages up to 35,000V which can seriously harm the operator and damage the coating if the test is not correctly conducted. They tend to be more expensive and more complex than low‐voltage pinhole detectors.

When measuring coating thickness, concrete is not considered a ‘conductive’ substrate, as it is much less conductive than metal. However, concrete is still slightly conductive, and can carry enough current to allow low‐voltage pinhole detectors to function. Therefore, for the purposes of low‐voltage pinhole detection, concrete is considered a ‘conductive’ substrate.

The challenge when conducting low‐voltage pinhole testing on concrete is to ensure the instrument is properly grounded. If there is exposed rebar or metal protruding from the concrete, this is the easiest solution. An alternative is to drive a metal rod (or piece of rebar) into the ground nearby the concrete to at least the depth of the slab, relying on the earth to conduct the electric current between the rod and the slab.

The PosiTest LPD has been designed as a fully customizable unit and offers a number of features not typically found in other competitive instruments.

• Lightweight – weighs less than most competitive products, reducing muscle strain and fatigue
• Ergonomic design ‐‐while most other devices are box‐shaped, the PosiTest LPD was specifically designed to fit comfortably in the hand with a balanced weight distribution
• Easy‐to‐use – bright LEDs and simple 3‐button operation with graphic icons
• Calibrated (well‐regulated) voltage outputs that will not drop under load. The PosiTest LPD is more likely to find small pinholes than other devices.
• GroundSense™ visibly reassures the user that the instrument is properly grounded. Users of most competitive devices would not alert if the connection to ground is lost, resulting in undetected pinholes.

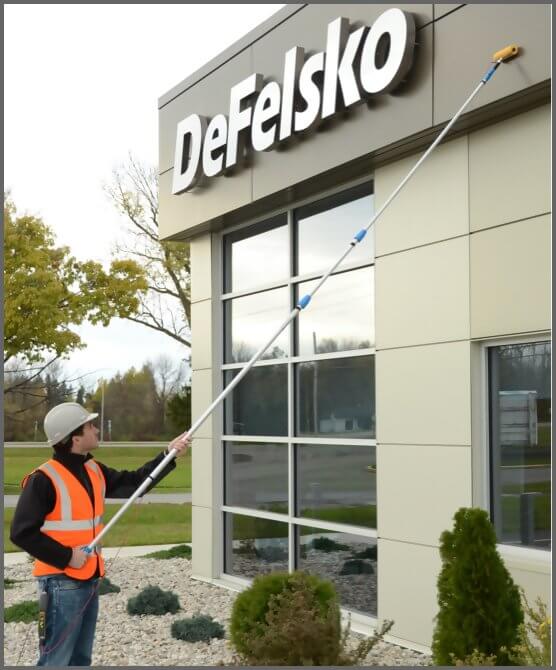

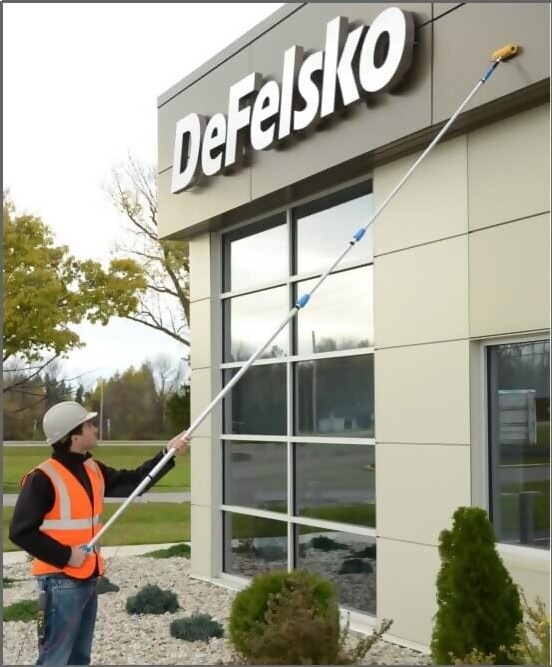

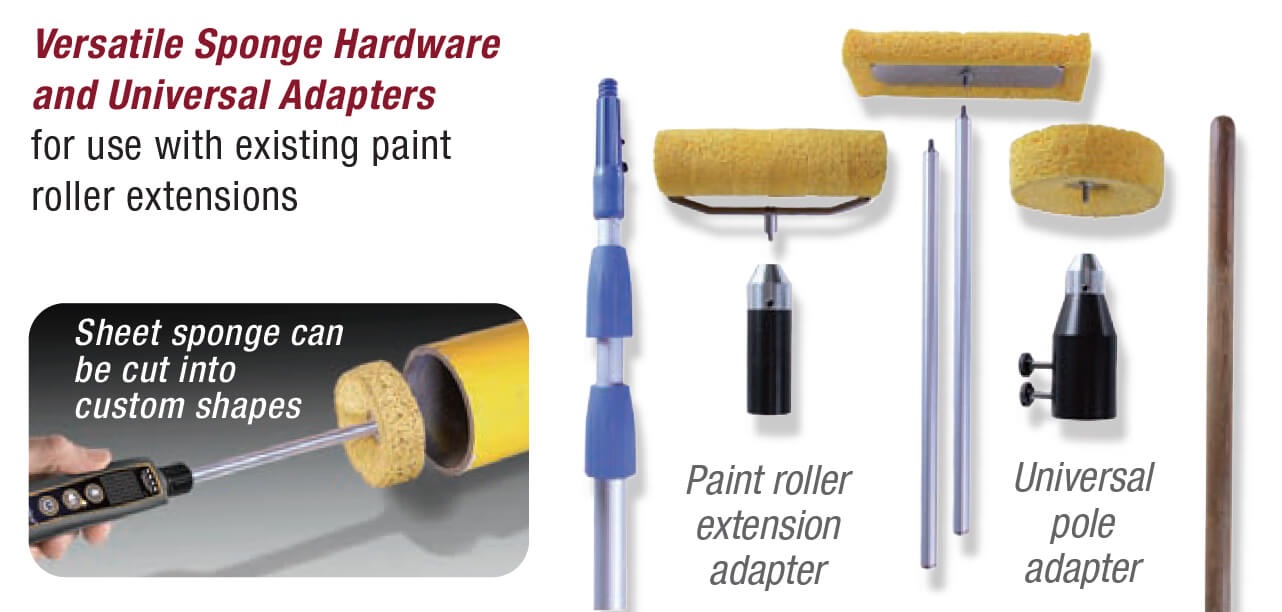

• Common threads and connectors that allow for unprecedented compatibility and customization. Customers can extend the reach of the PosiTest LPD with their own poles and extension rods.

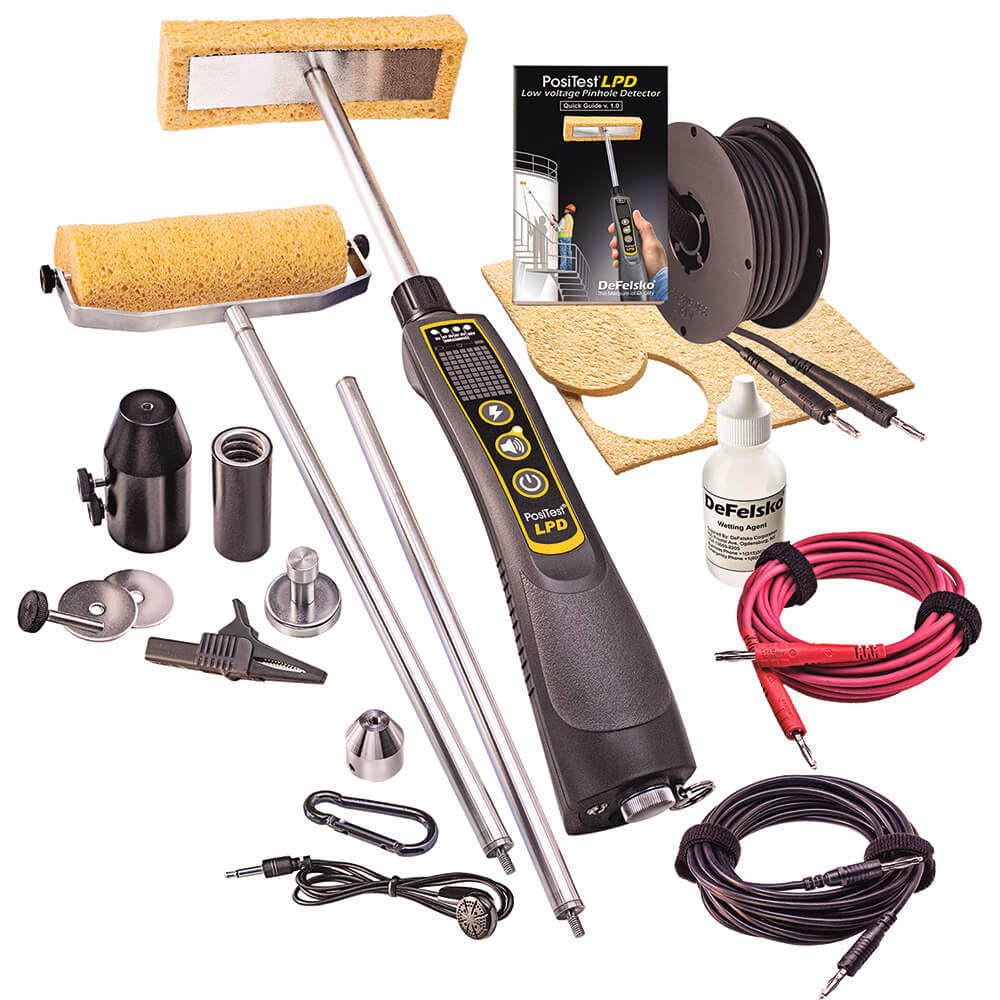

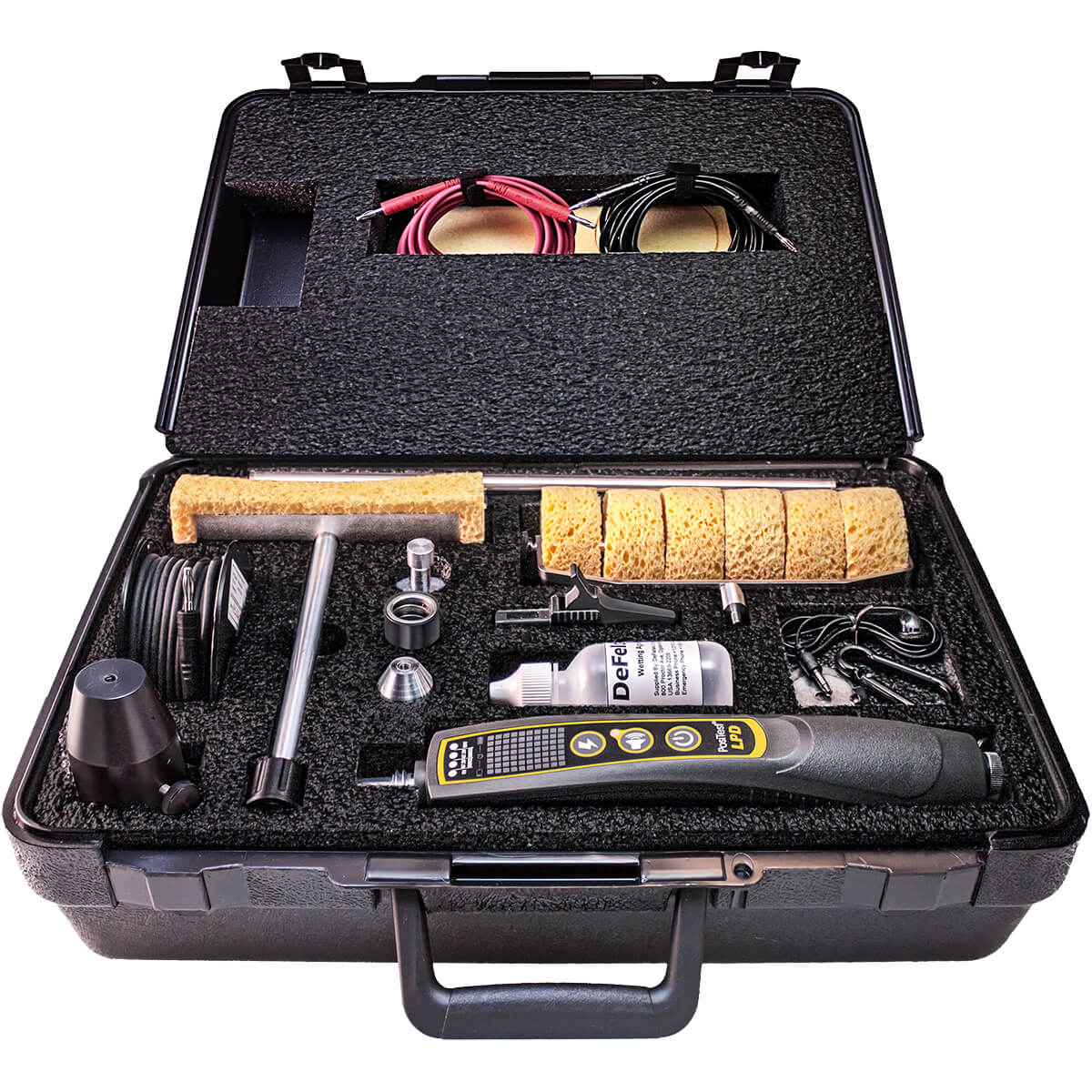

• All models include a hard shell case to conveniently carry the instrument and all accessories.
• Includes Long Form Certificate of Calibration traceable to NIST
• Two year warranty
• IP65 ingress protection‐ dust and splash resistant. No other device is rated this highly.

The PosiTest LPD arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute.

No other device provides this level of Certification. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

The PosiTest LPD Low voltage Pinhole Detector has four specific pre-set voltages. These voltages were chosen because they are specified in various international standards and/or they match the operating voltages of other commercially available instruments. Most standards do not specify a specific voltage, and instead allow a range of voltages- for example, NACE SP0188 specifies a range of 5V-90V with no guidance on the proper voltage setting for a given application or coating thickness.

At the time of writing, we are aware of only two international standards that specify a specific voltage and sensitivity:

• ISO 8989 Method A Vitreous and porcelain enamels — Low voltage test for detecting and locating defects: 9V, 90 kΩ
• ISO 14654 Epoxy-coated steel for the reinforcement of concrete: 67.5V, 80 kΩ

In general, we have found that settings of 67.5V, 80 kΩ (for metal substrates) or 67.5V, 90 kΩ (for concrete substrates) are most commonly accepted and used for the vast majority of applications.
