The DeFelsko KITAUTOFN1 PosiTector Automotive Paint Inspection Kit is required for accurate paint depth measurement on automobiles. Include probes for measuring coatings on all automotive substrates — steel, aluminum, and plastic — providing everything required for accurate paint depth measurement on automobiles.
- Automotive Manufacturing
- ADAS Bumper and Fascia Repair
- Auto Auction Appraisal
- Automotive Detailing and Refinishing
- Collision Repair
Kit Contents

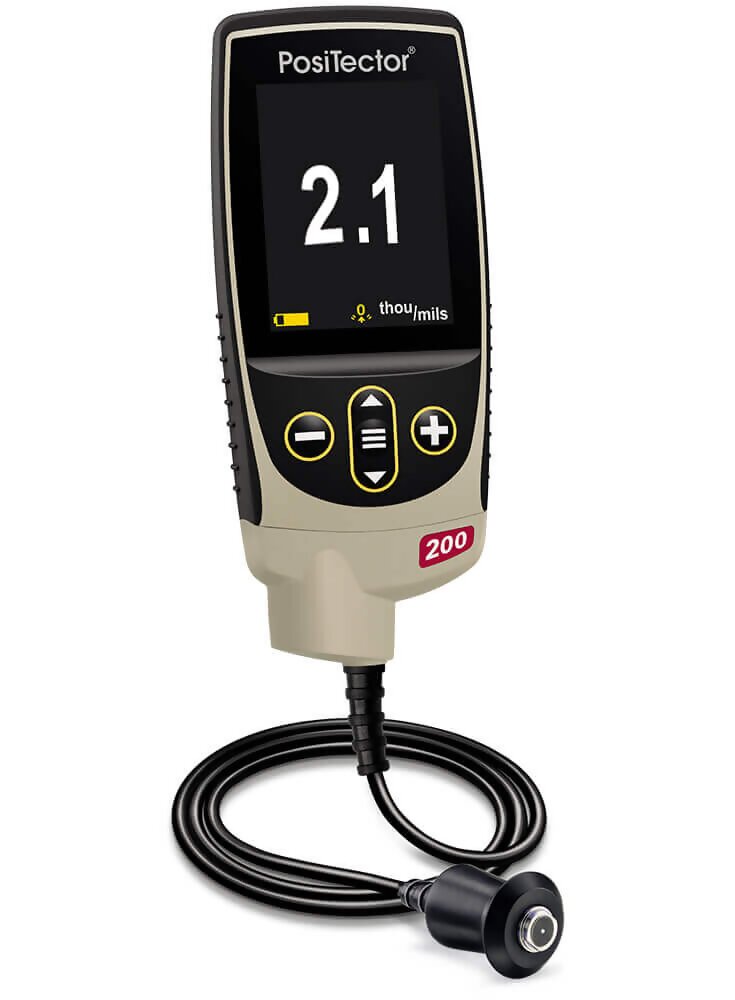

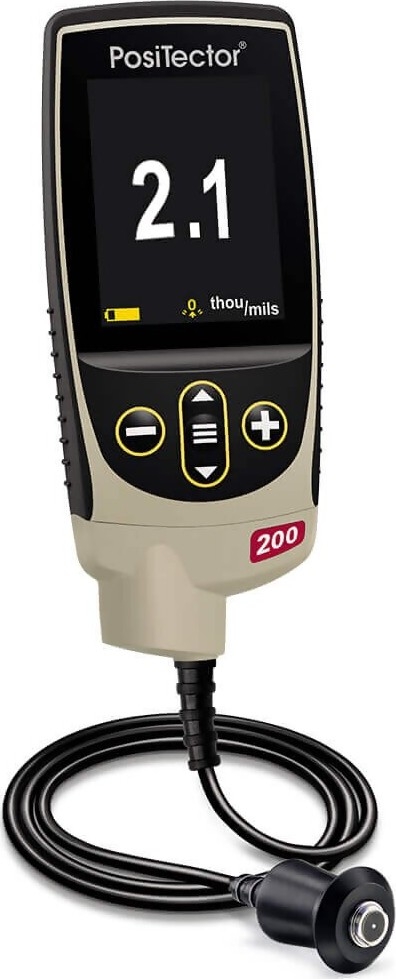

- DeFelsko 200B1 Positector Standard Ultrasonic Coating Thickness Gage

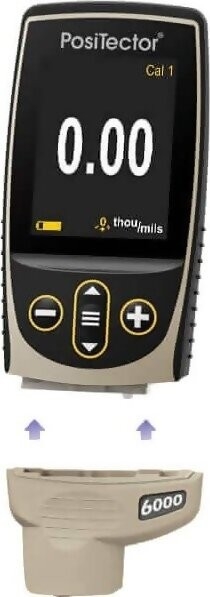

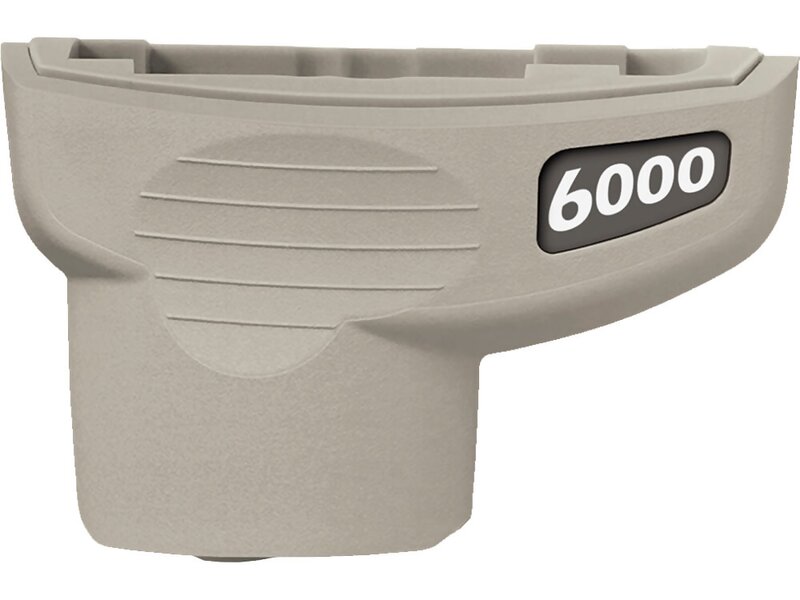

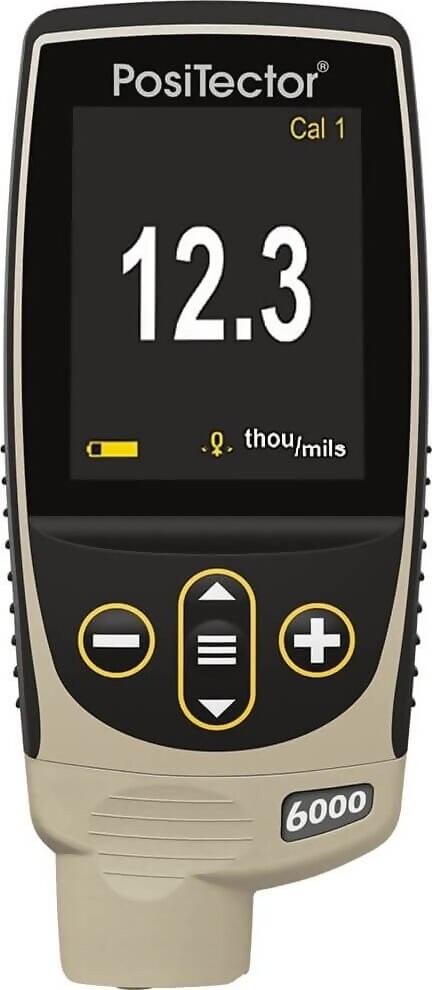

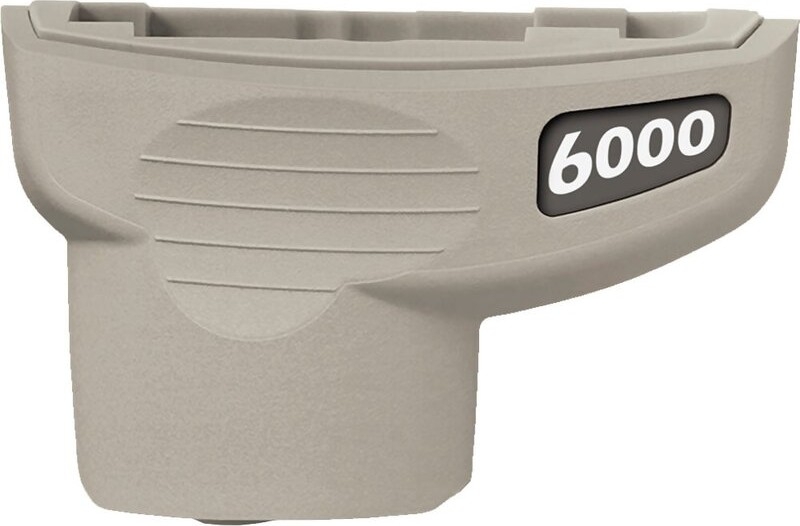

- DeFelsko PRBFN PosiTector 6000 Integral Probe
- Couplant (Ultrasonic Gel)
- Protective Carrying Case and Instructions
Features
Simple
- Ready to measure — no adjustment required for most applications
- Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- On-gage help explains menu items at the touch of a button
- RESET feature instantly restores factory settings
Durable
- Weatherproof, dustproof, and water resistant — IP65-rated enclosure
- Ergonomic design with durable rubberized grip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Responsive transducers provide fast, accurate readings
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808
Versatile
- Auto rotating display with Flip Lock
- Mils/Microns switchable
- Selectable display languages
Powerful
- Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range — ideal for ignoring unwanted surface echoes
- Screen Capture – save 100 screen images for record keeping and review
- Over 20 hours of continuous operation with 3 AAA batteries
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- PosiSoft USB Drive — stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Includes PosiSoft suite of software for viewing and reporting data
- Software Updates via web keep your gage current
Standard Model
- Measure the total thickness of a coating system
- Storage of 1,000 readings per probe — stored readings can be viewed or downloaded
Specifications

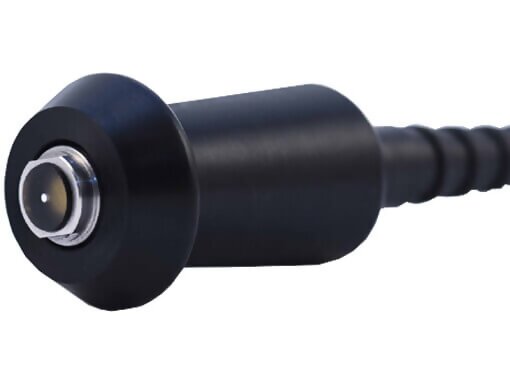

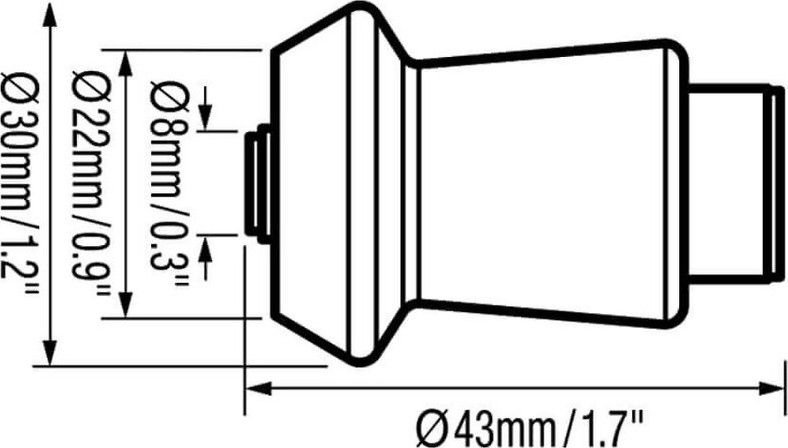

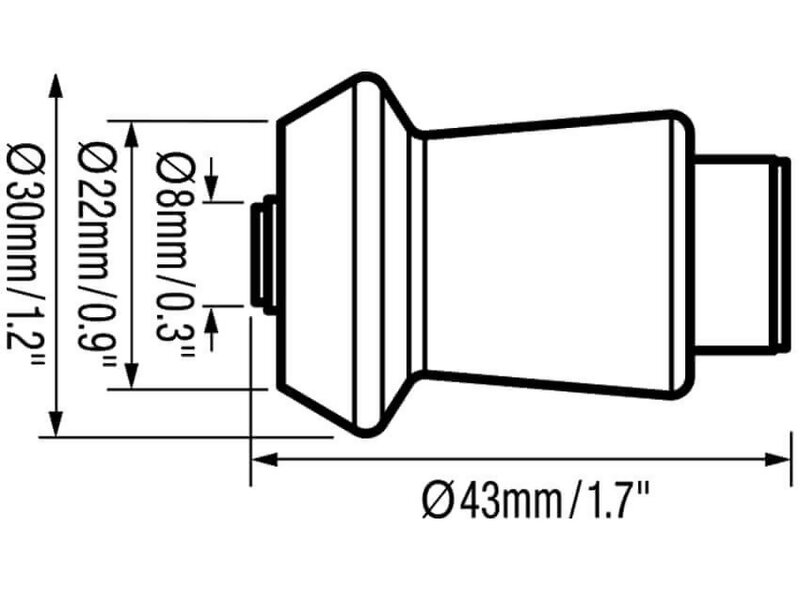

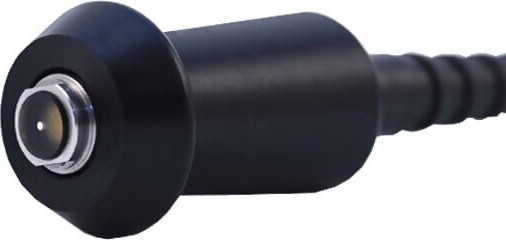

| Probe | PRB200B |
| Application | Polymer coating on wood, plastic, etc. |
| Measurement Range1 | 13 to 1,000 µm, 0.5 to 40 mils |
| PRB200B Accuracy | ± (2 µm + 3% of reading), ± (0.1 mils + 3% of reading) |
| Certified Thickness Standard | STDA3 |
| Probe | PRBFN, Ferrous and Non-Ferrous, Integral Probe |
| Range | 0 - 60 mils, 0 - 1500 µ |
| PRBFN Accuracy2 | ± (0.05 mils + 1%) 0 - 2 mils, ± (0.1 mils + 1%) > 2 mils, ± (1 µ + 1%) 0 - 50 µ, ± (2 µ + 1%) > 50 µ |
- Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5,000 µm (2 to 200 mils).
- Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
