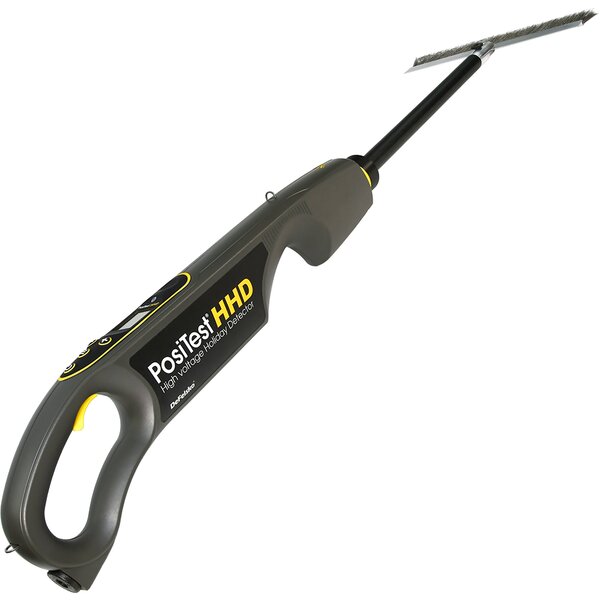

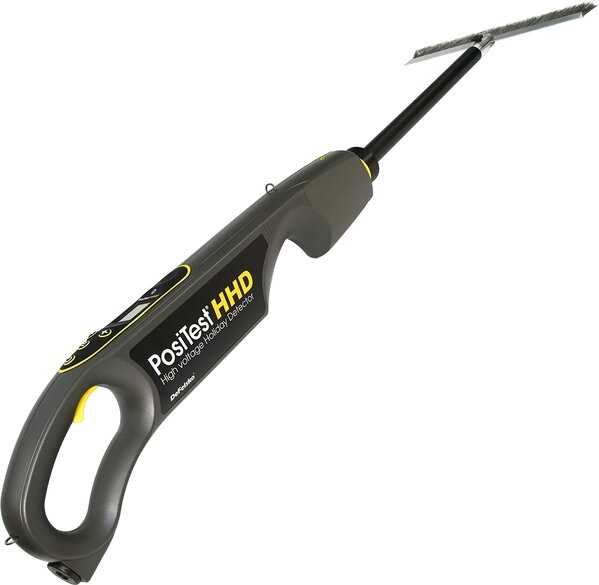

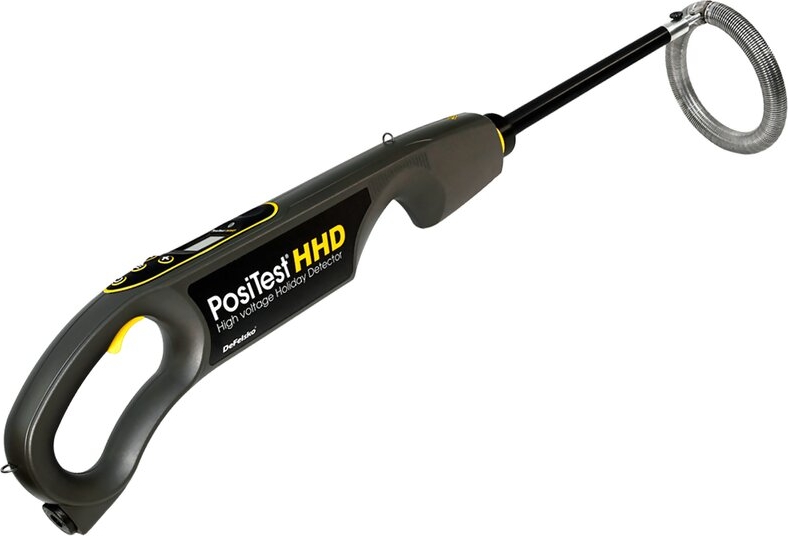

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

Q: What is a holiday detector?

A holiday detector is a non-destructive instrument for detecting discontinuities in a coating system including holidays, pinholes, and cracks. Other names include porosity detector, continuity tester, and holiday tester.There are two types of pinhole detectors: low voltage (wet sponge) and high voltage (spark tester). Low voltage detectors, like the PosiTest LPD, are typically used on coating systems less than 500 µm (20 mils) thick. High voltage spark testers, like the DeFelsko PosiTest HHD operate at voltages up to 35,000V and are typically used on coatings more than 500 µm (20 mils) thick.

Q: What is meant by the term 'stick type' or 'wand' holiday detector?

A 'stick type' holiday detector is a standalone detector with internal battery power and electrodes that attach to the end of an extension rod (stick). 'Wand' or 'Belt-style' detectors typically have a separate battery pack carried on the belt or shoulder strap and electrodes that attach to a handheld wand. The DeFelsko PosiTest HHD is the first combination stick type/wand type instrument on the market. With the optional handheld wand accessory, the DeFelsko PosiTest HHD converts into a wand style instrument suitable for voltages less than 15k.

Q: How is a high-voltage test performed?

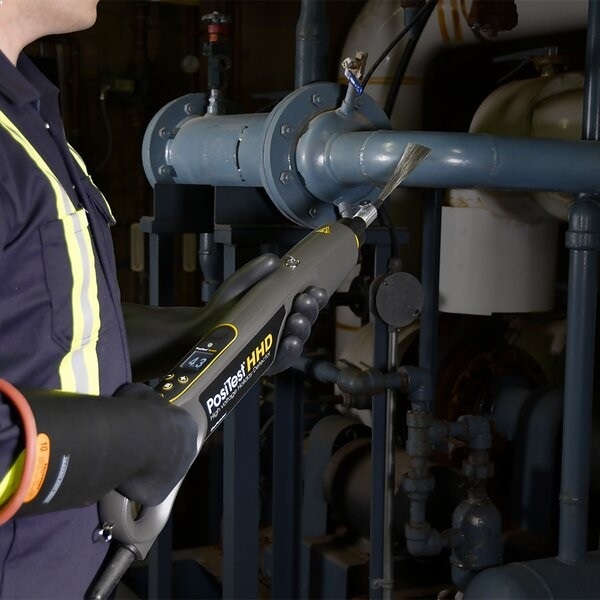

A high-voltage holiday test is performed by moving a charged electrode over the coated surface. When a holiday is encountered, current flows from the electrode into the substrate. The current returns to the detector through the ground (earth) wire, completing the circuit and triggering audible and visible alarms. An integrated peak reading voltmeter measures and displays the output voltages on the display while in use.

Q: Why is porosity measurement important?

After a protective coatings has been applied, it is important to ensure there are no defects or discontinuities present that expose the substrate beneath. Small areas of thin or missing coating, called 'pinholes' or 'holidays', can become foci for corrosion and drastically reduce the life of a protective coating system. They can be invisible to the naked eye. Porosity detectors are often used in applications where corrosion is difficult to monitor, or in aggressive service environments where performance of the protective coating is critical.

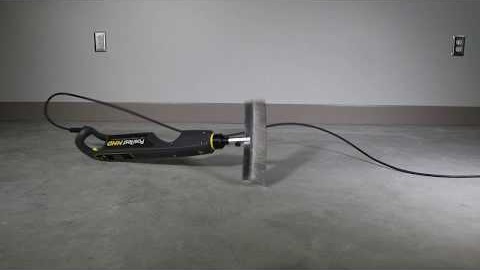

Q: How does the DeFelsko PosiTest HHD measure coatings on concrete?

When measuring coating thickness, concrete is not considered a 'conductive' substrate, as it is much less conductive than metal. However, concrete is still slightly conductive, and can carry enough current to allow holiday detectors to function. Therefore, for the purposes of holiday detection, concrete is considered a 'conductive' substrate.

Q: Are custom size electrodes available?

Yes. DeFelsko manufactures a wide variety of rolling spring and flat wire brush electrodes. Custom sizes are available upon request.

Q: Are internal pipe, half-circle, and other types of electrodes available?

At launch, flat brush and spring electrodes will be available in pre-stocked and custom lengths, in addition to the handheld rubber paddle and fan brush. DeFelsko plans to add additional types of electrodes in the future, based on demand. If you have a request for an electrode configuration not currently offered by DeFelsko, please let us know.

Q: What electrodes are compatible with the DeFelsko PosiTest HHD?

The DeFelsko PosiTest HHD offers industry-standard connectors and adaptors for compatibility with nearly all existing electrodes including SPY, PCWI and Tinker & Rasor.

Q: What is the DeFelsko PosiTest HHD Verifier?

The DeFelsko PosiTest HHD Verifier is a calibrated voltmeter (crest meter, jeep meter) ideal for verifying the operating voltage of both Pulse and Continuous DC holiday detectors in the range from 500 to 35,000 Volts.

Q: Is the DeFelsko PosiTest HHD Verifier necessary to use the DeFelsko PosiTest HHD High voltage Holiday Detector?

No. The DeFelsko PosiTest HHD features a built-in voltmeter (crest meter, jeep meter) with a traceable Long Form Certificate of Calibration. However, some standards call for a standalone voltmeter.

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

See More DeFelsko PosiTest HHD

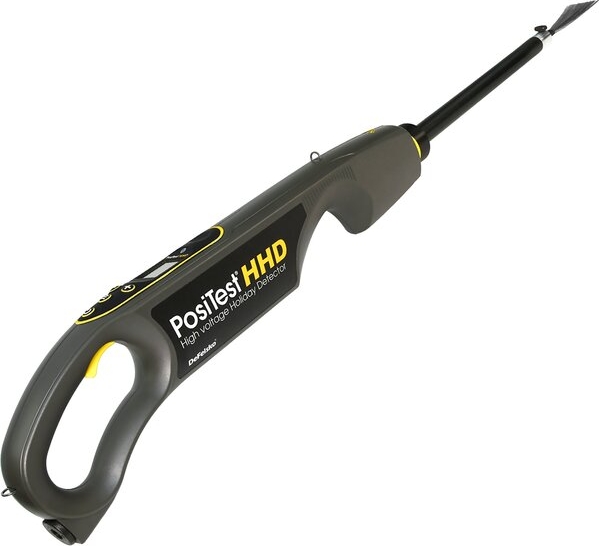

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

Easy-to-use with bright, color LCD

Ready to measure - comes with everything needed for testing

Audibly and visibly alerts when flaws/holidays are detected

The DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector is used to Detect holidays, pinholes and other discontinuities using pulse DC

Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue
Regulated pulse DC voltage output that won't change under load - ±5% voltage accuracy
Voltage calculator feature - choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage
Extensive electrode options - choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors - custom sizes available upon request
Long Form Certificate of Calibration included with each instrument

Conforms to ASTM D4787/D5162/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1

line

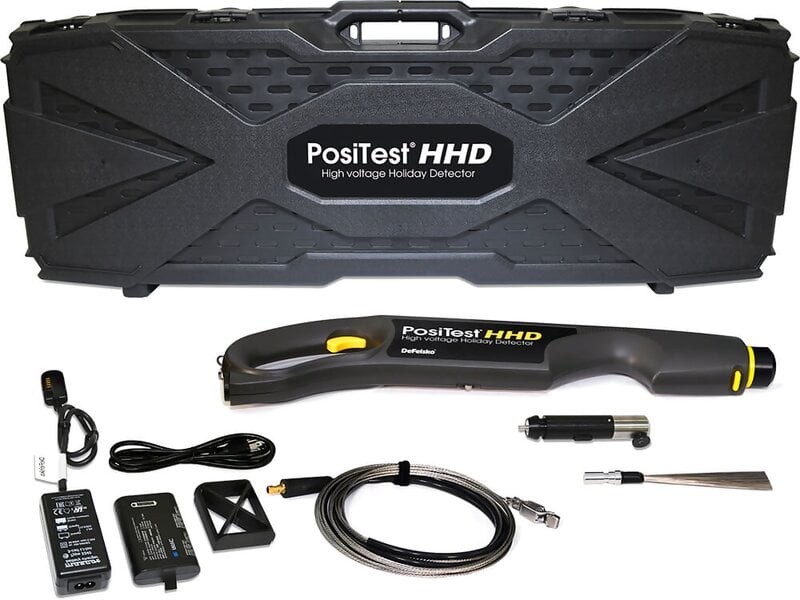

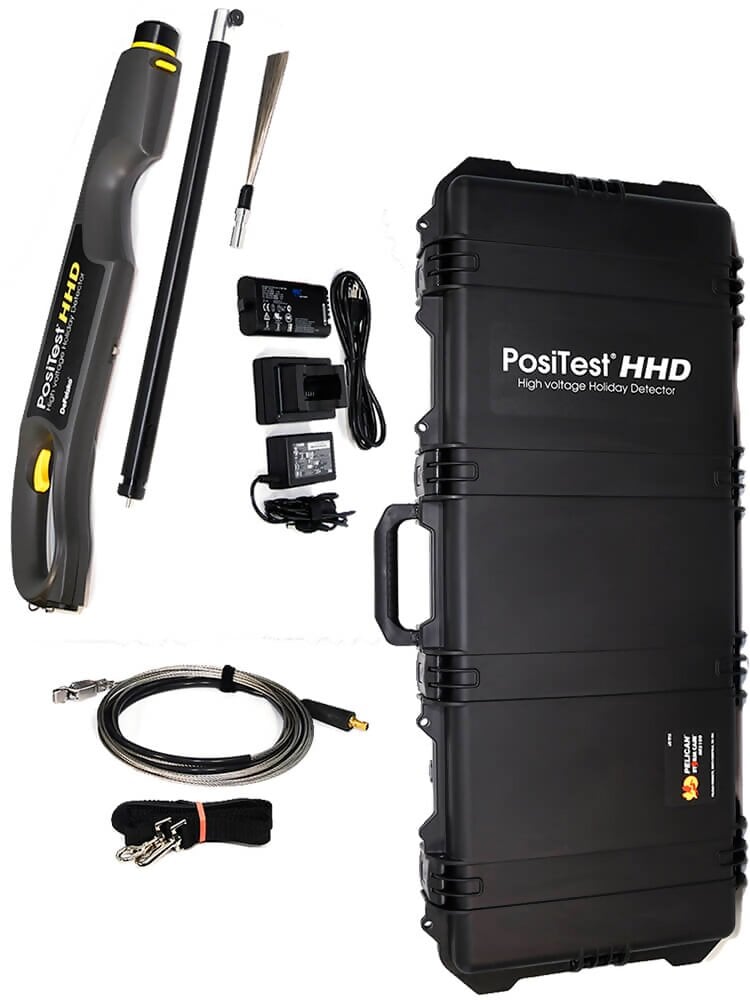

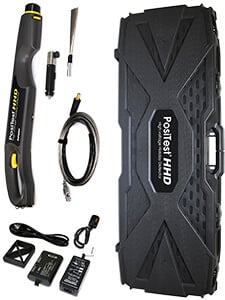

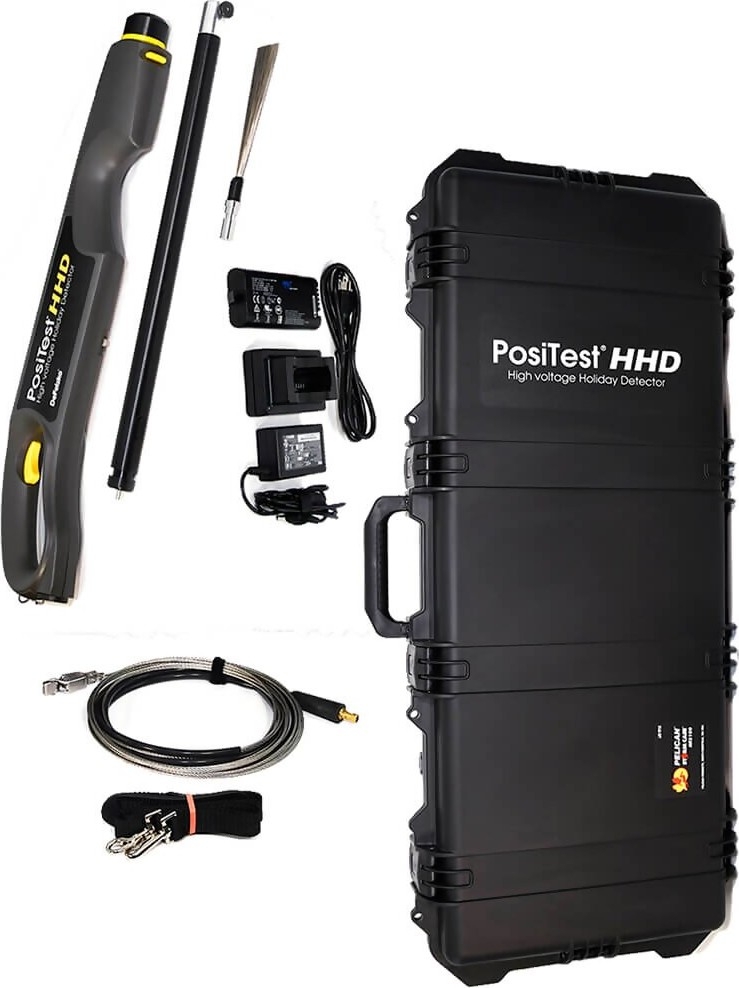

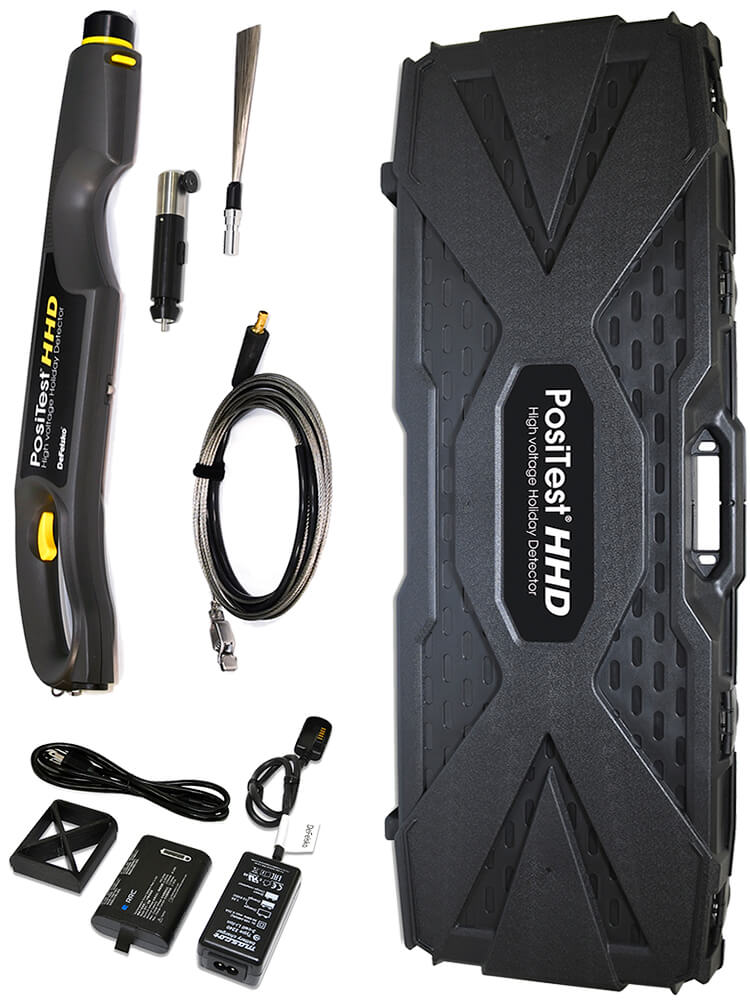

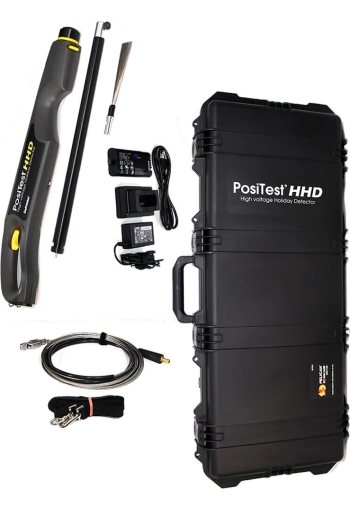

Kit Contents
line

DeFelsko PosiTest HHD High voltage Holiday Detector Stick-Type
7.6 m (25') ground (earth) cable with ground clip
36 Wh Li-ion battery pack with built-in charge state indicator
Smart charger with universal AC voltage input

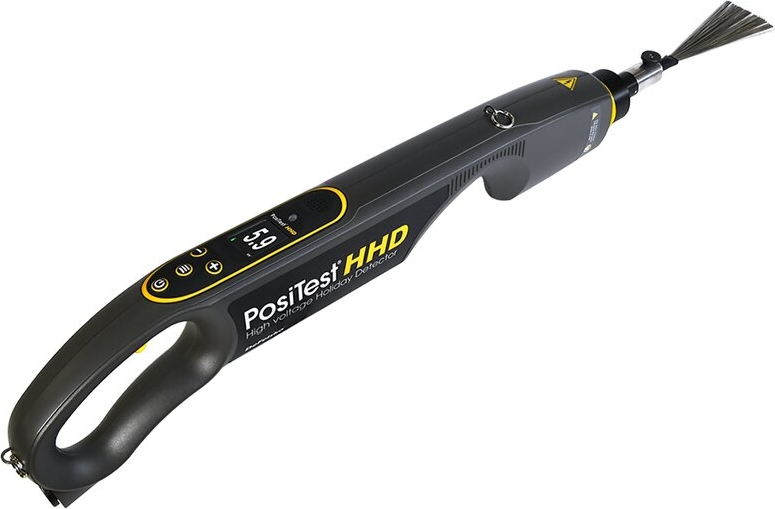

Stainless steel fan brush
13 cm (5" ) electrode rod with thumb screw
Instruction Manual
Hard shell case
Long Form Certificate of Calibration traceable to NIST
Two year warranty

line
Features
line

Simple

Easy-to-use with bright, color LCD
Ready to measure - comes with everything needed for testing
Audibly and visibly alerts when flaws/holidays are detected
Lightweight, ergonomic design provides comfortable all-day use, reducing fatigue
Voltage calculator feature - choose one of 11 international standards, and input the coating thickness to automatically calculate the required test voltage

Durable

Rugged, environmentally sealed ABS plastic enclosure
Weatherproof, dustproof, and shockproof
Included hard shell case with custom foam inserts for superior protection
Two year warranty

Accurate

Built-in certified voltmeter (crest meter, jeep meter) displays and regulates the voltage at the electrode
Long Form Certificate of Calibration included with each instrument
Conforms to national and international standards including ISO, ASTM, and NACE

Powerful

Strobe light and loud audible alarms emitted when a holiday is detected. Audio alarm mode can be adjusted for differing environments.
Removable Smart lithium-ion battery with built-in charge state indicator

Versatile

A wide range of rolling spring electrodes and wire brushes are available. Custom sizes available upon request.

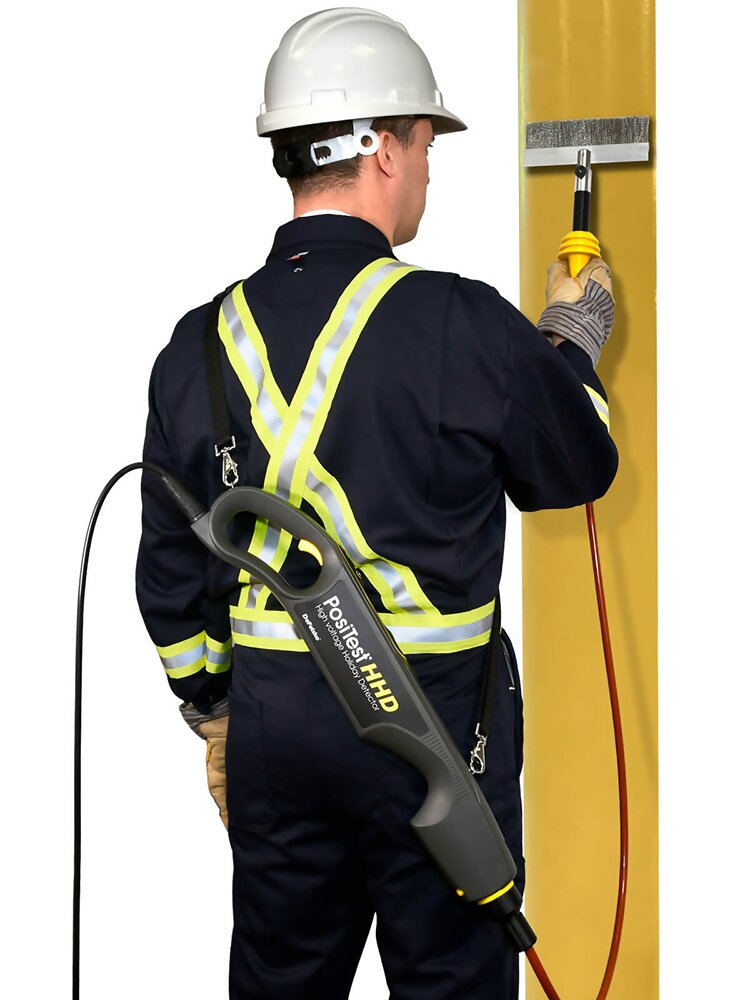

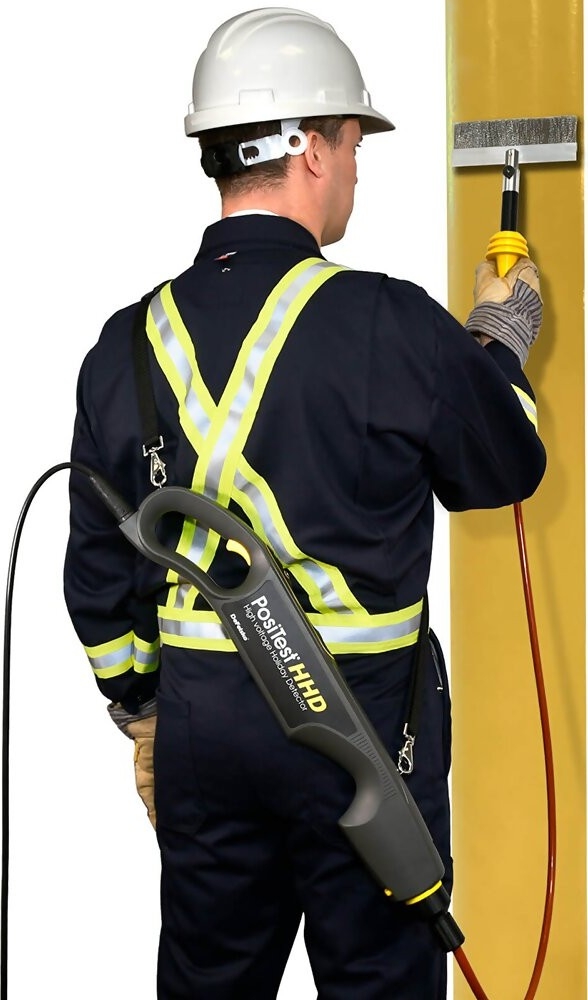

Optional handheld wand accessory coverts the detector into a wand configuration ideal for testing hard-to-reach areas (suitable for voltages < 15 kV)
Industry-standard connectors and adaptors for compatibility with nearly all existing electrodes
User adjustable voltage range from 0.5 – 35 kV

Safe

Press and hold Safety Trigger helps prevent accidental high voltage generation
7.6 m (25') ground (earth) cable with locking connector and spring clamp
Shock proof/creep proof - internally sealed to minimize creep distance to high voltage components. Designed in accordance with IEC 61010-1.

line
Specifications
line

Output Voltage Range	0.5 - 35 kV
Output Voltage Adjustment	0.5 kV - 1 kV: 10 Volt Steps 1 kV - 35 kV: 100 Volt Steps
Output Accuracy	±5%
Pulse Duration	10 μs
Pulse Repetition Rate	30 Hz
Coating Thickness Range	up to 20 mm (780 mils)*
Operating Temperature	-20° to 60°C (-4° to 140°F)
Case	Heavy duty hard-shell case
Included Electrode Rod	13 cm (5")
Shoulder Strap	Optional
Battery Size	36 Wh Li-ion
Typical Battery Life for selected rolling springs @ 10 kV - Ø 12"	16 hrs.
Typical Battery Life for selected rolling springs @ 10 kV - Ø 40"	12 hrs.
Weight	6 kg (13 lbs.)
Dimensional Weight	14 kg (30 lbs.)

line
Electrodes
line

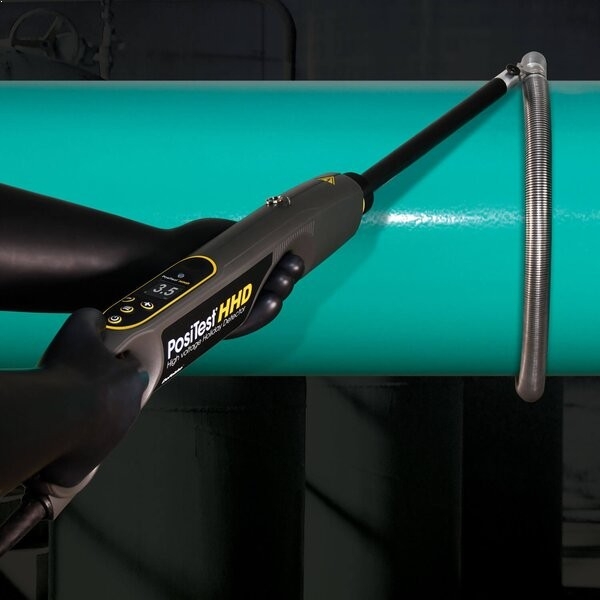

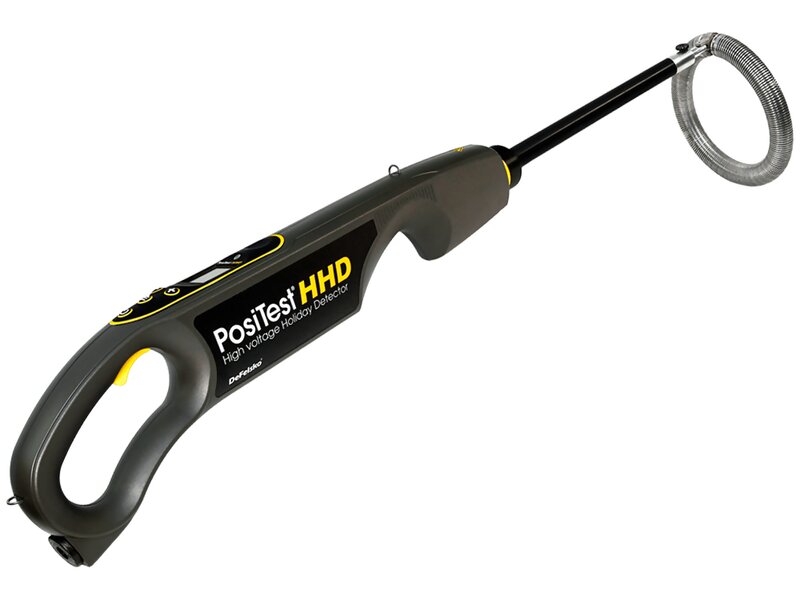

Rolling Spring Electrodes

Rolling Spring Coil for 4” pipe (102 mm) OD	HHDSPRING4
Rolling Spring Coil for 6” pipe (152 mm) OD	HHDSPRING6
Rolling Spring Coil for 8” pipe (203 mm) OD	HHDSPRING8
Rolling Spring Coil for 12” pipe (304 mm) OD	HHDSPRING12
Rolling Spring Coil for 14” pipe (356 mm) OD	HHDSPRING14
Rolling Spring Coil for 16” pipe (406 mm) OD	HHDSPRING16
Rolling Spring Coil for 20” pipe (508 mm) OD	HHDSPRING20
Rolling Spring Coil for 24” pipe (610 mm) OD	HHDSPRING24

Please Note: Each spring includes two pre-installed spring couplers. A spring connector (HHDCONNECT) is required to attach the PosiTest HHD to the spring couplers. Custom sizes and bulk pricing available. Additional couplers (HHDCOUPLER - 2 pack) are available.

line

Flat Wire Brush Electrodes

HHD Flat Brush 51 mm/2”	HHDFLTBRSH2
HHD Flat Brush 152 mm/6”	HHDFLTBRSH6
HHD Flat Brush 203 mm/8”	HHDFLTBRSH8
HHD Flat Brush 305 mm/12”	HHDFLTBRSH12
HHD Flat Brush 610 mm/24”	HHDFLTBRSH24
HHD Flat Brush 914 mm/36”	HHDFLTBRSH36
HHD Flat Brush 1219 mm/48”	HHDFLTBRSH48

line

Half-Circle Neoprene Brush Electrode

Half-Circle Neoprene Brush for 50-127 mm/2-5" pipe OD

HHDHCBRSH5

line
Accessories
line

Rolling Spring Electrodes

Steel pipe electrodes - assorted sizes available: 10 to 60 cm (4 – 24”) Rolling springs include two pre-installed spring couplers

line

Flat Wire Brush Electrodes

Stainless steel - assorted sizes available: 5 to 120 cm (2 – 48”)

line

Replacement Fan Brush Electrode

Stainless steel - 5 cm (2”)

line

Handheld Wand

Converts the PosiTest HHD to a wand-type instrument

*PosiTest HHD sold separately

line

Extension Rods

Choose between 13 cm (5") and 50 cm (20") rods

line

Electrode Adaptors

Connect to spring and brush electrodes from other manufacturers

line

PosiTest HHD Verifier

Standalone voltmeter (crest meter, jeep meter) for verifying the accuracy and operation of ALL pulse type and DC holiday detectors

line

Spring Couplers

Thread onto rolling springs and attach to the Spring Connector

line

Spring Connectors

Connect the PosiTest HHD to DeFelsko or SPY rolling spring electrodes

line

HHD Half-Circle Neoprene Brush 50–127mm/2-5"

Neoprene half-circle brush electrode for PosiTest HHD series - good for pipes 50 to 127 mm / 2 to 5 inches

line
Downloads
line

DeFelsko PosiTest HHD High Voltage Holiday Detector - Data Sheet

DeFelsko PosiTest HHD High Voltage Holiday Detector - Instruction Manual English, Spanish, German, French

DeFelsko PosiTest HHD High Voltage Holiday Detector - Full Guide Chinese

DeFelsko PosiTest HHD High Voltage Holiday Detector - Full Guide Arabic

DeFelsko PosiTest HHD High Voltage Holiday Detector - Full Guide Korean

Accessories for DeFelsko Inspection Instruments - Online Catalog

F.A.Q.

What is a holiday detector?

A holiday detector is a non-destructive instrument for detecting discontinuities in a coating system including holidays, pinholes, and cracks. Other names include porosity detector, continuity tester, and holiday tester.There are two types of pinhole detectors: low voltage (wet sponge) and high voltage (spark tester). Low voltage detectors, like the PosiTest LPD, are typically used on coating systems less than 500 µm (20 mils) thick. High voltage spark testers, like the DeFelsko PosiTest HHD operate at voltages up to 35,000V and are typically used on coatings more than 500 µm (20 mils) thick.

What is meant by the term 'stick type' or 'wand' holiday detector?

A 'stick type' holiday detector is a standalone detector with internal battery power and electrodes that attach to the end of an extension rod (stick). 'Wand' or 'Belt-style' detectors typically have a separate battery pack carried on the belt or shoulder strap and electrodes that attach to a handheld wand. The DeFelsko PosiTest HHD is the first combination stick type/wand type instrument on the market. With the optional handheld wand accessory, the DeFelsko PosiTest HHD converts into a wand style instrument suitable for voltages less than 15k.

How is a high-voltage test performed?

A high-voltage holiday test is performed by moving a charged electrode over the coated surface. When a holiday is encountered, current flows from the electrode into the substrate. The current returns to the detector through the ground (earth) wire, completing the circuit and triggering audible and visible alarms. An integrated peak reading voltmeter measures and displays the output voltages on the display while in use.

Why is porosity measurement important?

After a protective coatings has been applied, it is important to ensure there are no defects or discontinuities present that expose the substrate beneath. Small areas of thin or missing coating, called 'pinholes' or 'holidays', can become foci for corrosion and drastically reduce the life of a protective coating system. They can be invisible to the naked eye. Porosity detectors are often used in applications where corrosion is difficult to monitor, or in aggressive service environments where performance of the protective coating is critical.

How does the DeFelsko PosiTest HHD measure coatings on concrete?

When measuring coating thickness, concrete is not considered a 'conductive' substrate, as it is much less conductive than metal. However, concrete is still slightly conductive, and can carry enough current to allow holiday detectors to function.

Therefore, for the purposes of holiday detection, concrete is considered a 'conductive' substrate.

Are custom size electrodes available?

Yes. DeFelsko manufactures a wide variety of rolling spring and flat wire brush electrodes. Custom sizes are available upon request.

Are internal pipe, half-circle, and other types of electrodes available?

At launch, flat brush and spring electrodes will be available in pre-stocked and custom lengths, in addition to the handheld rubber paddle and fan brush. DeFelsko plans to add additional types of electrodes in the future, based on demand. If you have a request for an electrode configuration not currently offered by DeFelsko, please let us know.

What electrodes are compatible with the DeFelsko PosiTest HHD?

The DeFelsko PosiTest HHD offers industry-standard connectors and adaptors for compatibility with nearly all existing electrodes including SPY, PCWI and Tinker & Rasor.

What is the DeFelsko PosiTest HHD Verifier?

The DeFelsko PosiTest HHD Verifier is a calibrated voltmeter (crest meter, jeep meter) ideal for verifying the operating voltage of both Pulse and Continuous DC holiday detectors in the range from 500 to 35,000 Volts.

Is the DeFelsko PosiTest HHD Verifier necessary to use the DeFelsko PosiTest HHD High voltage Holiday Detector?

No. The DeFelsko PosiTest HHD features a built-in voltmeter (crest meter, jeep meter) with a traceable Long Form Certificate of Calibration. However, some standards call for a standalone voltmeter.

Is the new DeFelsko PosiTest HHD compatible with PosiSoft solutions?

No. The DeFelsko PosiTest HHD does not record any data.

How is the DeFelsko PosiTest HHD calibrated at DeFelsko?

Each DeFelsko PosiTest HHD is calibrated using instruments traceable to a National Metrology Lab. A Long Form Certificate of Calibration containing actual measure values in included with every instrument.

Are there any special shipping considerations for the DeFelsko PosiTest HHD's Lithium-Ion batteries?

The DeFelsko PosiTest HHD and one additional spare battery (charged less than 30% of capacity) can be shipped via surface and air transport on the major carriers (UPS, FedEx, and DHL) to all countries, subject to additional labelling requirements. Note: When returning the DeFelsko PosiTest HHD for service or repair, DO NOT include any batteries.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector	$3,395.00
DeFelsko PosiTest HHD Verifier Standalone Voltmeter - HHDVERIFY	$690.00
DeFelsko Handheld Wand - HHDWAND	$255.00
DeFelsko Replacement Battery - HHDBATTERY	$170.00
DeFelsko PCWI Adaptor - HHDPCWIADPT	$30.00
DeFelsko Tinker and Rasor Adaptor - HHDTRADPT	$50.00
DeFelsko Extension Rod 127mm/5” - HHDEXTRODS	$80.00
DeFelsko Ext. Rod Thumb Screws (3/Pk) - HHDTHMBSCR	$20.00
DeFelsko Ground Cable 7.5m/25’ - HHDGND25	$100.00
DeFelsko HHDSTRAP HHD Shoulder Strap	$15.00
DeFelsko HHD Flat Brush 51 mm/2” - HHDFLTBRSH2	$85.00
DeFelsko HHD Flat Brush 152mm/6” - HHDFLTBRSH6	$105.00
DeFelsko HHD Flat Brush 203mm/8” - HHDFLTBRSH8	$125.00
DeFelsko HHD Flat Brush 305mm/12” - HHDFLTBRSH12	$170.00
DeFelsko PCWI Electrode Adaptors 266 & 280 Adaptor - HHD266ADPT	$80.00
DeFelsko HHD Flat Brush 610mm/24” - HHDFLTBRSH24	$335.00
DeFelsko HHD Flat Brush 914mm/36” - HHDFLTBRSH36	$505.00
DeFelsko HHD Flat Brush 1219mm/48” - HHDFLTBRSH48	$670.00
DeFelsko HHD Fan Brush Electrode 152mm/6” - HHDFANBRSH	$30.00
DeFelsko HHD Conductive Paddle Electrode 102mm/4” - HHDPADDLE	$75.00
DeFelsko HHD Spring Coupler 2 pack - HHDCOUPLER	$85.00
DeFelsko HHD Spring Connector - HHDCONNECT	$100.00
DeFelsko HHD Rolling Spring Coil for 4” pipe (102 mm) OD - HHDSPRING4	$105.00
DeFelsko HHD Rolling Spring Coil for 6” pipe (152 mm) OD -HHDSPRING6	$115.00
DeFelsko HHD Rolling Spring Coil for 8” pipe (203 mm) OD - HHDSPRING8	$125.00
DeFelsko HHD Rolling Spring Coil for 10" pipe (254 mm) OD - HHDSPRING10	$135.00
DeFelsko HHD Rolling Spring Coil for 12” pipe (304 mm) OD - HHDSPRING12	$145.00
DeFelsko HHD Rolling Spring Coil for 14” pipe (356 mm) OD - HHDSPRING14	$160.00
DeFelsko HHD Rolling Spring Coil for 16” pipe (406 mm) OD - HHDSPRING16	$170.00
DeFelsko HHD Rolling Spring Coil for 20” pipe (508 mm) OD - HHDSPRING20	$190.00
DeFelsko HHD Rolling Spring Coil for 24” pipe (610 mm) OD - HHDSPRING24	$210.00
DeFelsko HHD Rolling Spring Coil for 30" pipe (762 mm) OD - HHDSPRING30	$240.00
DeFelsko HHD Rolling Spring Coil for 36" pipe (914 mm) OD - HHDSPRING36	$270.00
DeFelsko HHDHCBRSH5 HHD Half-Circle Neoprene Brush 50-127mm/2-5"	$195.00

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

$3,395.00

Recommended Accessories

PRICE

DeFelsko PosiTest HHD Verifier Standalone Voltmeter - HHDVERIFY

$690.00

DeFelsko Handheld Wand - HHDWAND

$255.00

DeFelsko Replacement Battery - HHDBATTERY

$170.00

DeFelsko PCWI Adaptor - HHDPCWIADPT

$30.00

DeFelsko Tinker and Rasor Adaptor - HHDTRADPT

$50.00

DeFelsko Extension Rod 127mm/5” - HHDEXTRODS

$80.00

DeFelsko Ext. Rod Thumb Screws (3/Pk) - HHDTHMBSCR

$20.00

DeFelsko Ground Cable 7.5m/25’ - HHDGND25

$100.00

DeFelsko HHDSTRAP HHD Shoulder Strap

$15.00

DeFelsko HHD Flat Brush 51 mm/2” - HHDFLTBRSH2

$85.00

DeFelsko HHD Flat Brush 152mm/6” - HHDFLTBRSH6

$105.00

DeFelsko HHD Flat Brush 203mm/8” - HHDFLTBRSH8

$125.00

DeFelsko HHD Flat Brush 305mm/12” - HHDFLTBRSH12

$170.00

DeFelsko PCWI Electrode Adaptors 266 & 280 Adaptor - HHD266ADPT

$80.00

DeFelsko HHD Flat Brush 610mm/24” - HHDFLTBRSH24

$335.00

DeFelsko HHD Flat Brush 914mm/36” - HHDFLTBRSH36

$505.00

DeFelsko HHD Flat Brush 1219mm/48” - HHDFLTBRSH48

$670.00

DeFelsko HHD Fan Brush Electrode 152mm/6” - HHDFANBRSH

$30.00

DeFelsko HHD Conductive Paddle Electrode 102mm/4” - HHDPADDLE

$75.00

DeFelsko HHD Spring Coupler 2 pack - HHDCOUPLER

$85.00

DeFelsko HHD Spring Connector - HHDCONNECT

$100.00

DeFelsko HHD Rolling Spring Coil for 4” pipe (102 mm) OD - HHDSPRING4

$105.00

DeFelsko HHD Rolling Spring Coil for 6” pipe (152 mm) OD -HHDSPRING6

$115.00

DeFelsko HHD Rolling Spring Coil for 8” pipe (203 mm) OD - HHDSPRING8

$125.00

DeFelsko HHD Rolling Spring Coil for 10" pipe (254 mm) OD - HHDSPRING10

$135.00

DeFelsko HHD Rolling Spring Coil for 12” pipe (304 mm) OD - HHDSPRING12

$145.00

DeFelsko HHD Rolling Spring Coil for 14” pipe (356 mm) OD - HHDSPRING14

$160.00

DeFelsko HHD Rolling Spring Coil for 16” pipe (406 mm) OD - HHDSPRING16

$170.00

DeFelsko HHD Rolling Spring Coil for 20” pipe (508 mm) OD - HHDSPRING20

$190.00

DeFelsko HHD Rolling Spring Coil for 24” pipe (610 mm) OD - HHDSPRING24

$210.00

DeFelsko HHD Rolling Spring Coil for 30" pipe (762 mm) OD - HHDSPRING30

$240.00

DeFelsko HHD Rolling Spring Coil for 36" pipe (914 mm) OD - HHDSPRING36

$270.00

DeFelsko HHDHCBRSH5 HHD Half-Circle Neoprene Brush 50-127mm/2-5"

$195.00

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

Images & Videos

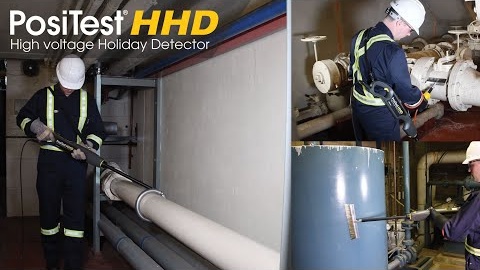

DeFelsko HHDKITB PosiTest HHD Basic Kit High Voltage Holiday Detector

Similar Products
