Ideal for field / laboratory verification of pulse or continuous DC holiday detectors
Wide measurement range
Simple two step operation

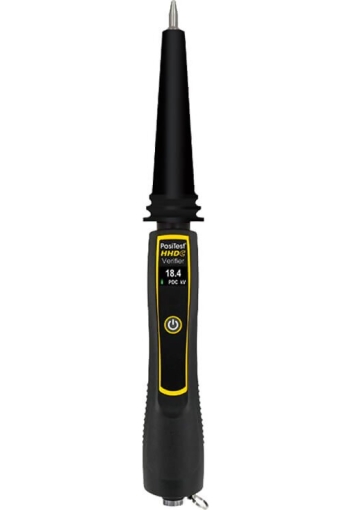

DeFelsko PosiTest HHD Verifier standalone voltmeter (crest meter, jeep meter) for verifying the accuracy and operation of pulse or continuous type DC holiday detectors.
Ideal for field/laboratory verification of the PosiTest HHD High voltage Holiday Detector series.

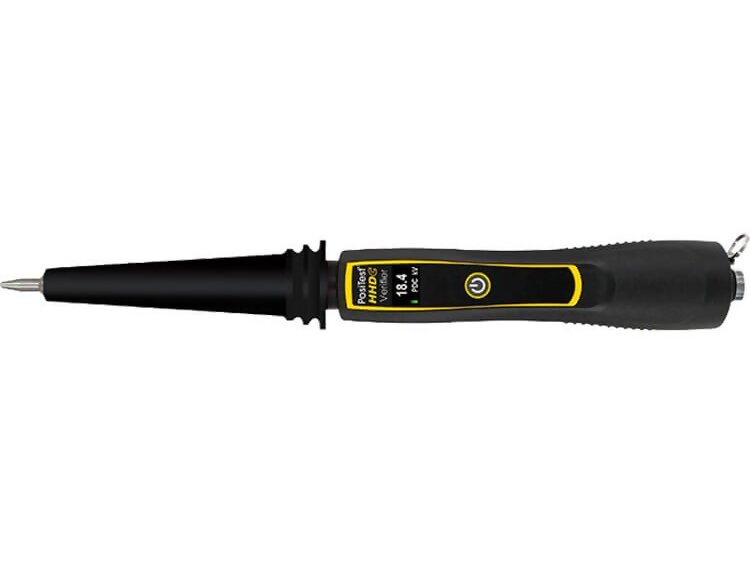

Kit Contents
- DeFelsko HHDCVERIFY PosiTest HHD C Verifier
- Batteries
- Instructions
- Long Form Certificate of Calibration traceable to NIST
- Two year warranty
Features
- Ideal for field / laboratory verification of pulse or continuous DC holiday detectors
- Wide measurement range
- Simple two step operation
- Lightweight / Portable - requires no external power sources
- Certificates of Calibration showing traceability to NIST included
- Two year warranty
- Made in USA
Specifications
| Voltage Range | 0.5 – 30 kV |
| Resolution | 0.5 kV – 1 kV: 10 Volt Steps | >1 kV: 100 Volt Steps |
| Accuracy | ±5% |
| Operating Temperature | -20° to 60° C (-4° to 140° F) |
Operation
IMPORTANT: Before using the PosiTest HHD / HHD C Verifier, ensure that a proper ground is established between the holiday detector and the verifier.
- Before using the verifier, ensure that a proper ground is established between the holiday detector and the verifier. Ensure that the ground lead is plugged into the PosiTest HHD C Verifier and that the other end of the ground lead is connected to the ground lead of the high voltage holiday detector that is being verified.
- Turn the verifier on by pressing and releasing the power button. Once powered on, the verifier continuously monitors the voltage on the Probe Tip. The voltage displayed on the verifier should match the voltage displayed by the detector within the combined tolerance of both units.

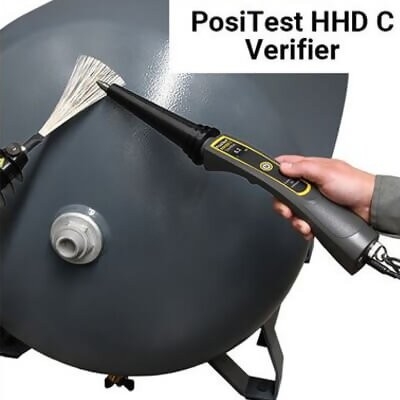

- For DC holiday detectors such as the PosiTest HHD and PosiTest HHD C, the verifier probe tip can be left connected to an exposed electrode indefinitely with no concern. For best results, try to position the verifier probe perpendicular (90°) to the electrode on the holiday detector.
Related Products
Downloads
F.A.Q.
What is the difference between the PosiTest HHD Verifier and the PosiTest HHD C Verifier?
The PosiTest HHD Verifier is a calibrated voltmeter (crest meter, jeep meter) ideal for verifying the operating voltage of ALL Pulse type holiday detectors in the range from 500 to 35,000 Volts.
The PosiTest HHD C Verifier is a calibrated voltmeter (crest meter, jeep meter) ideal for verifying the operating voltage of ALL Continuous type holiday detectors in the range from 500 to 30,000 Volts
Are PosiTest HHD Verifiers necessary to use the PosiTest HHD or HHD C High voltage Holiday Detectors?
No. The PosiTest HHD series feature a built-in voltmeter (crest meter, jeep meter) with a traceable Long Form Certificate of Calibration. However, some standards call for a standalone voltmeter.
