    Product Description
    Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fibreglass

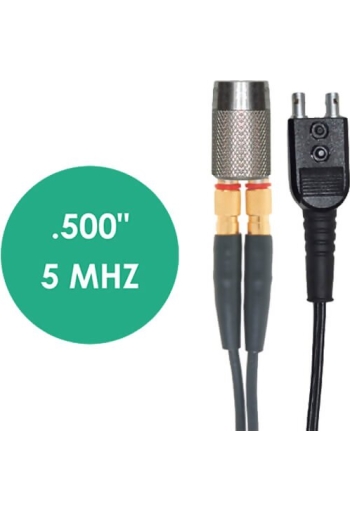

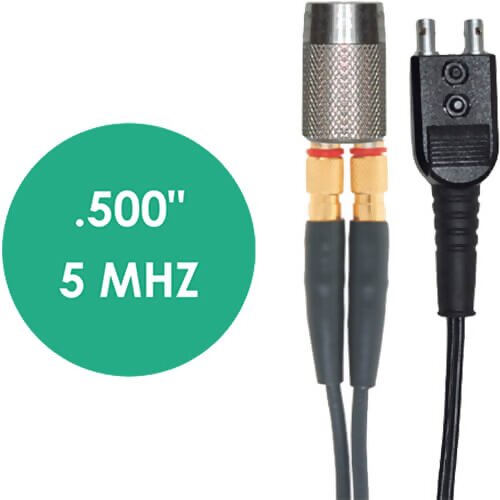

    The Dakota range of Dual Element Transducers is designed to ultrasonically measure material thickness when access is only available to one side of the material under inspection.

    Dual element transducers are designed with two crystals in one case, separated by an acoustic barrier. One crystal transmits a signal and receives on another crystal, this improves signal measuring speeds.

    The crystals are mounted at slight angles towards each other. Enabling better near surface focusing.

    Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fiberglass.

    Specifications

    Part NumberDiameterCharacteristicDampingThru Paint™PottedMicrodotLemoTopSideZXMXCMXR9FX70
    1.00 MHz Dual Element Thickness Transducer
    T-004-00001/2"StandardS
    T-104-00001/2"StandardS
    T-204-00011/2"StandardS
    T-304-00011/2"StandardS
    T-104-06001/2"CompositeS
    T-904-00091/2"ArmouredS
    2.25 MHz Dual Element Thickness Transducer
    T-002-10001/4"StandardS
    T-102-10001/4"StandardS
    T-202-10011/4"StandardS
    T-302-10011/4"StandardS
    T-042-10001/4"Hi Temp2S
    T-242-10011/4"Hi Temp2S
    T-004-10001/2"StandardS
    T-104-10001/2"StandardS
    T-204-10011/2"StandardS
    T-304-10011/2"StandardS
    T-044-10001/2"Hi Temp2S
    T-244-10011/2"Hi Temp2S
    T-104-16001/2"CompositeS
    T-904-10091/2"ArmouredS
    3.50 MHz Dual Element Thickness Transducer
    T-104-97001/2"StandardHD
    T-104-99001/2"Coating ThicknessCT
    5.00 MHz Dual Element Thickness Transducer
    T-001-20003/16"StandardS
    T-101-20003/16"StandardS
    T-101-27003/16"StandardHD
    T-301-20013/16"StandardS
    T-121-21003/16"Low ProfileS
    T-101-29003/16"Coating ThicknessCT
    T-002-20001/4"StandardS
    T-002-27001/4"StandardHD
    T-102-20001/4"StandardS
    T-102-27001/4"StandardHD
    T-202-20011/4"StandardS
    T-302-20011/4"StandardS
    T-302-27011/4"StandardHD
    T-162-21101/4"Low Profile 1" WandS
    T-132-21101/4"Low Profile 9" WandS
    T-102-29001/4"Coating ThicknessCT
    T-302-29011/4"Coating ThicknessCT
    T-042-20001/4"Hi Temp2S
    T-042-27001/4"Hi Temp2HD
    T-212-20011/4"Hi Temp2HD
    T-242-20011/4"Hi Temp2S
    T-004-20001/2"StandardS
    T-104-20001/2"StandardS
    T-104-27001/2"StandardHD
    T-204-20011/2"StandardS
    T-304-20011/2"StandardS
    T-104-29001/2"Coating ThicknessCT
    T-044-20001/2"Hi Temp2S
    T-214-20011/2"Hi Temp2S
    T-244-20011/2"Hi Temp2S
    T-044-27001/2"Hi Temp2HD
    T-904-20091/2"ArmouredS
    T-104-21201/2"Cylinder Probe - IronS
    7.50 MHz Dual Element Thickness Transducer
    T-001-30003/16"StandardS
    T-101-30003/16"StandardS
    T-101-39003/16"Coating ThicknessCT
    T-002-32001/4"Exxon SpecS
    T-102-32001/4"Exxon SpecS
    T-202-32011/4"Exxon SpecS
    T-302-32011/4"Exxon SpecS
    T-002-33001/4"High ResolutionS
    T-102-33001/4"High ResolutionS
    T-102-37001/4"StandardHD
    T-102-39001/4"Coating ThicknessCT
    T-202-33011/4"High ResolutionS
    T-302-33011/4"High ResolutionS
    10.00 MHz Dual Element Thickness Transducer
    T-101-40003/16"StandardS
    T-001-40003/16"StandardS
    T-002-40001/4"StandardS
    T-102-40001/4"StandardS
    T-202-40011/4"StandardS
    T-302-40011/4"StandardS
    T-162-41101/4"Low Profile 1" WandS
    T-132-41101/4"Low Profile 9" WandS
    T-004-40001/2"StandardS
    T-104-40001/2"StandardS
    T-204-40011/2"StandardS
    T-304-40011/2"StandardS
    T-104-41201/2"Cylinder Probe - AlumS
    1. Damping:
      • S - Standard Damping Transducer
      • CT - Damped Coating Thickness Transducer
      • HD - Highly Damped Transducer
      • The maximum temperature range of a Standard Transducer is 126°C (260°F)
    2. The maximum temperature range of a High Temperature Transducer is 335°C (635°F) except T-214-2001 which has a maximum temperate range of 482°C (900°F)
